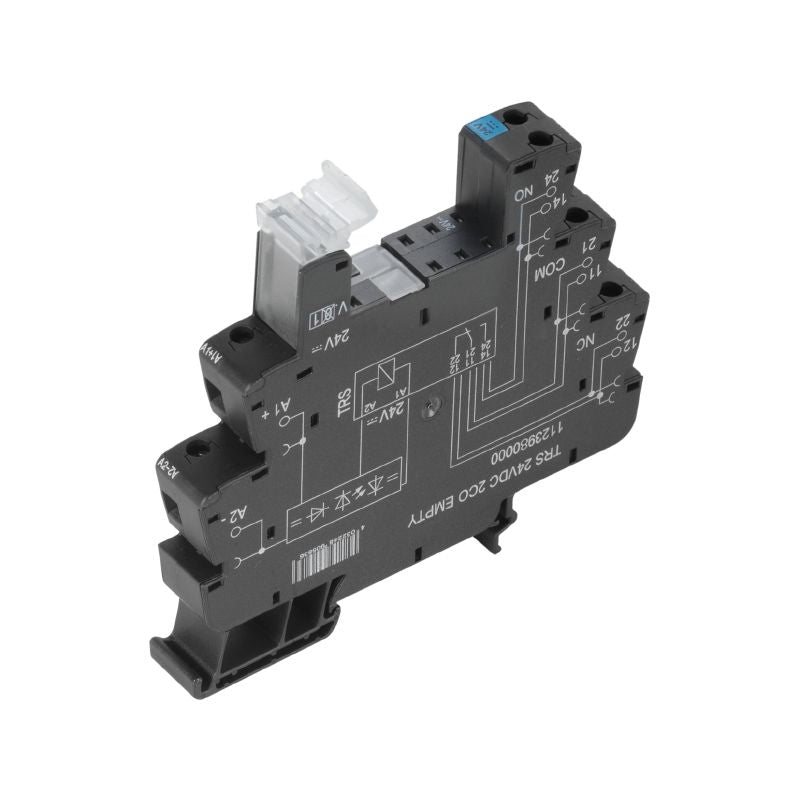

2662900000 - TRS Relay Socket 24-230V, 2 CO Contacts, 87.8mm Depth (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRS 24-230VUC 2CO EMPTY ED2 relay socket, expertly engineered to support two CO contacts This reliable socket operates across a control voltage range of 24 to 230 V UC ±10 %, with a continuous current rating of up to 10 A Featuring a user-friendly screw connection for straightforward wiring, it complies with RoHS standards for environmental safety The socket is UL approved under certificate number E223759, highlighting its dependable performance.

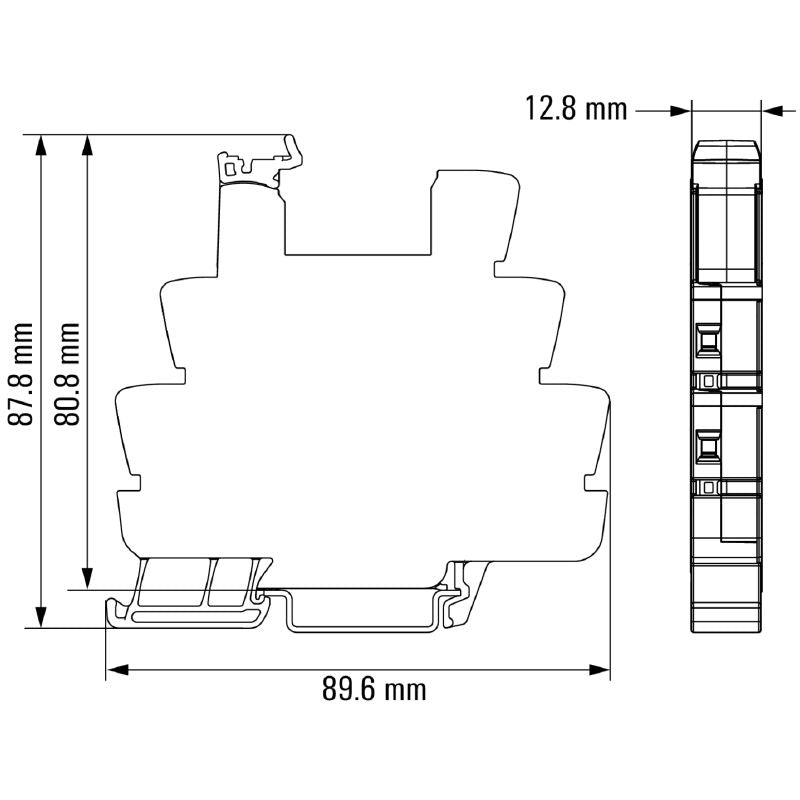

Measuring 878 mm in depth, 896 mm in height, and 128 mm in width, it has a lightweight design at just 47 g Built to withstand various ambient conditions, it can operate with a maximum temperature of 60 °C, making it a versatile choice for your electrical needs.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Screw connection for reliable wire attachment.

•Compact size with efficient thermal performance.

•Versatile operational voltage range.

Specifications:
