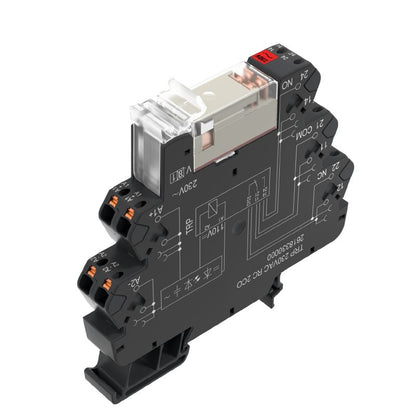

2618470000 - 120V AC Relay Module with 2 CO Contacts, 8A Capacity (Pack of 10)

SKU: SKU: 2618470000 Download PDF

Variant:

2618470000 - 120V AC Relay Module with 2 CO Contacts, 8A Capacity (Pack of 10)

Now $221.89

~~BEFORE $0.00~~ Now $221.89

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable performance with this relay module, designed to operate on a controlled voltage of 120 V AC with a ±10% tolerance Equipped with two CO contacts composed of durable AgNi material, it efficiently manages a continuous current of up to 8 A This module employs a straightforward push-in connection method and does not include a test button It meets RoHS compliance and carries a UL cULus certification, ensuring quality and safety with certificate number E141197.

Features and Benefits:

•Push-in connection method.

•No test button available.

•Two CO contacts with AgNi.

•RoHS compliant.

•UL listed.

Specifications:

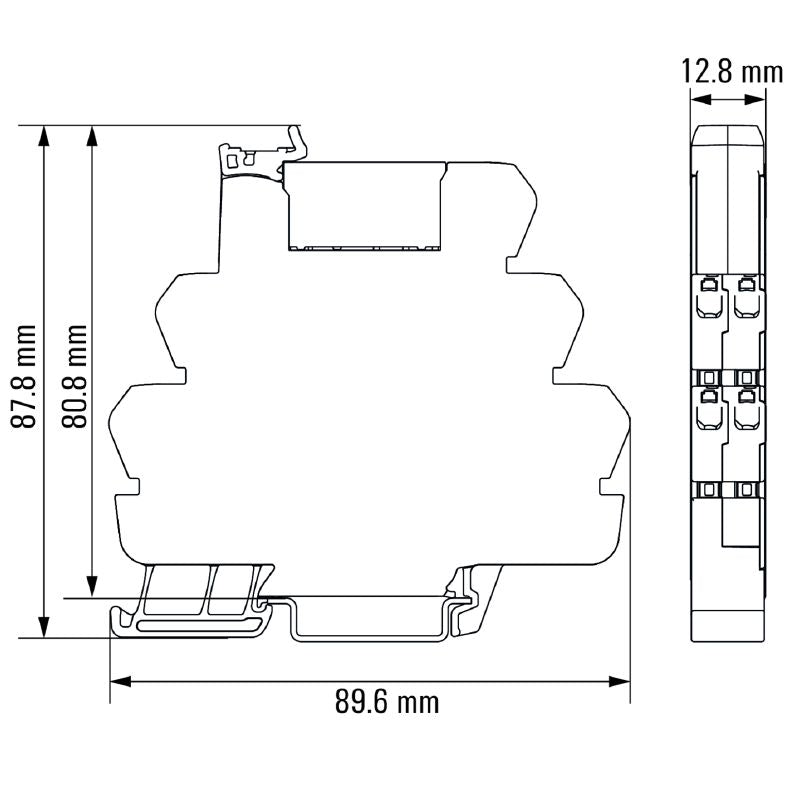

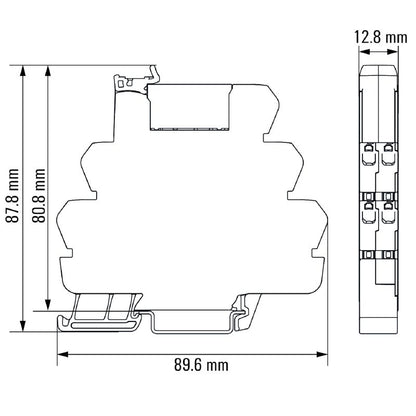

Depth	87.8 mm
Height	89.4 mm
Width	12.8 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…60 °C
Rated control voltage	120 V AC ±10 %
Continuous current	8 A
Rated current AC	5.5 mA
Power rating	0.6 VA
Output current derating	{'60 °C': '6 A', '50 °C': '8 A'}
Max. switching frequency	0.1 Hz
Max. switching voltage (AC)	250 V
Max. switching voltage (DC)	250 V
Min. switching power	{'24 V': '1 mA', '10 V': '10 mA', '5 V': '100 mA'}
Inrush current	15 A / 4 s
AC switching capacity (resistive)	2000 VA

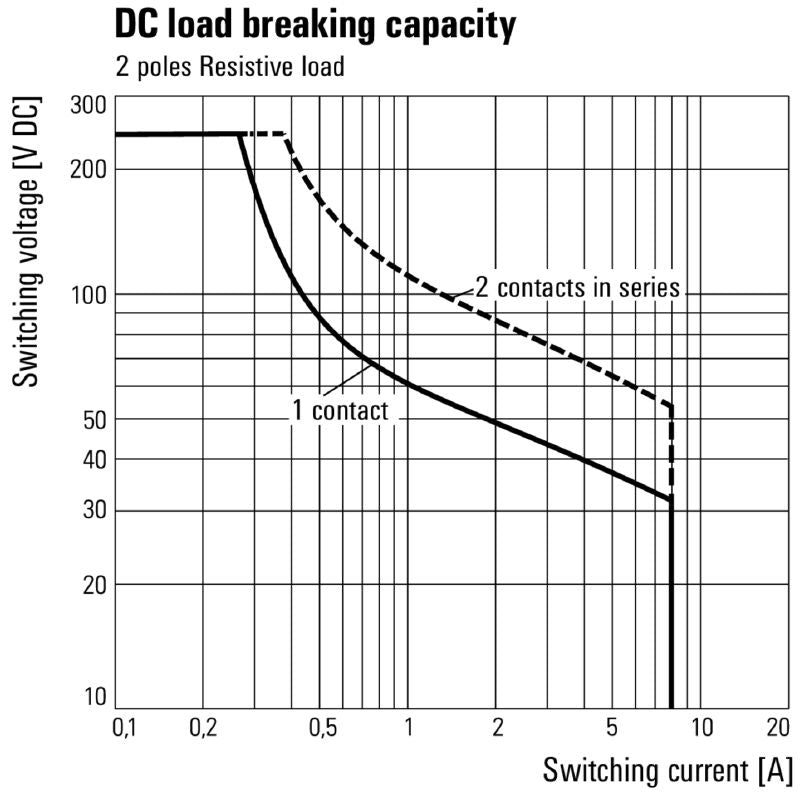

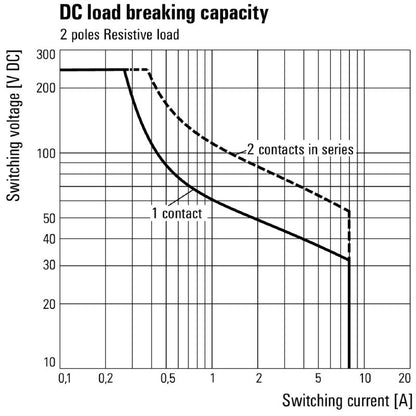

DC switching capacity (resistive)	192 W @ 24 V
Switch-on delay	≤ 9 ms
Switch-off delay	≤ 10 ms
Contact type	2 CO contact (AgNi)

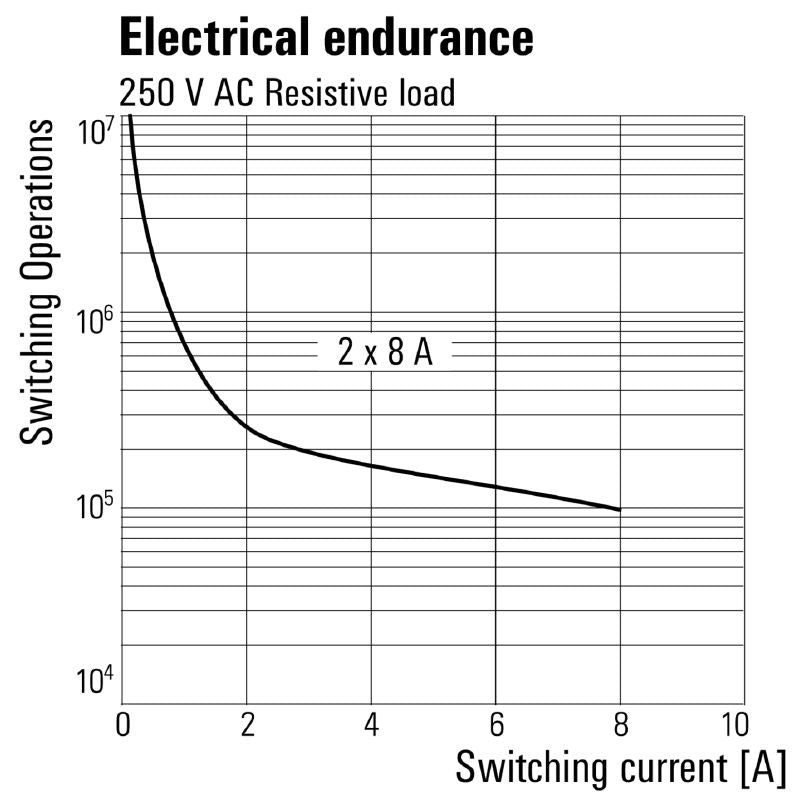

Mechanical service life	30 x 10^6 switching cycles
Operating altitude	≤ 2000 m above sea level
Protection degree	IP20
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Dielectric strength for control side - load side': '3.51 kV eff / 1 min.'}
