2618390000 - 120V AC Solid-State Relay for Voltage Control (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable solid-state relay engineered for effective voltage control This unit operates with a control voltage of 120 V AC ±10% and can switch voltages between 24 to 240 V AC Capable of managing a continuous current of 1 A, it employs a convenient push-in connection system Although this relay is being phased out, it will remain in stock until May 31, 2025, offering an excellent opportunity for your electrical needs.

Features and Benefits:

•RoHS compliant with exemptions.

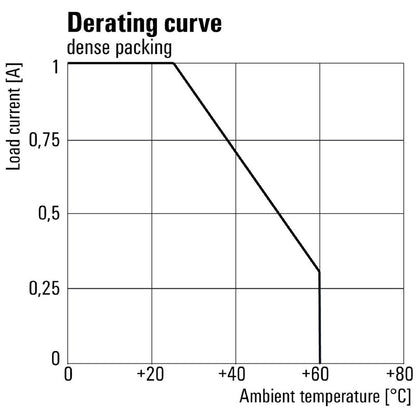

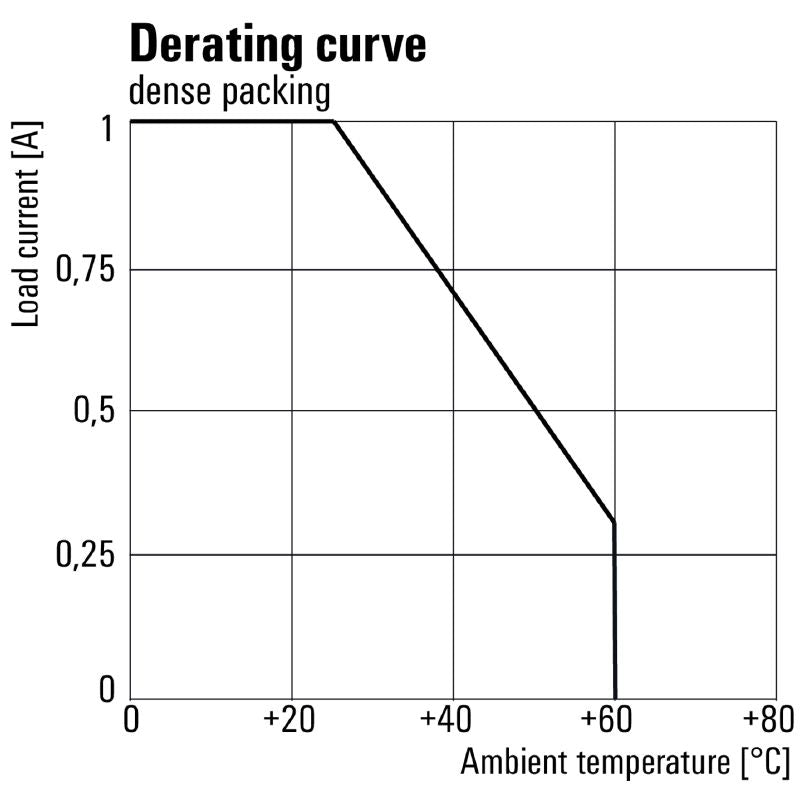

•Designed for ambient temperatures of -20 °C to 60 °C.

•Includes a green LED status indicator.

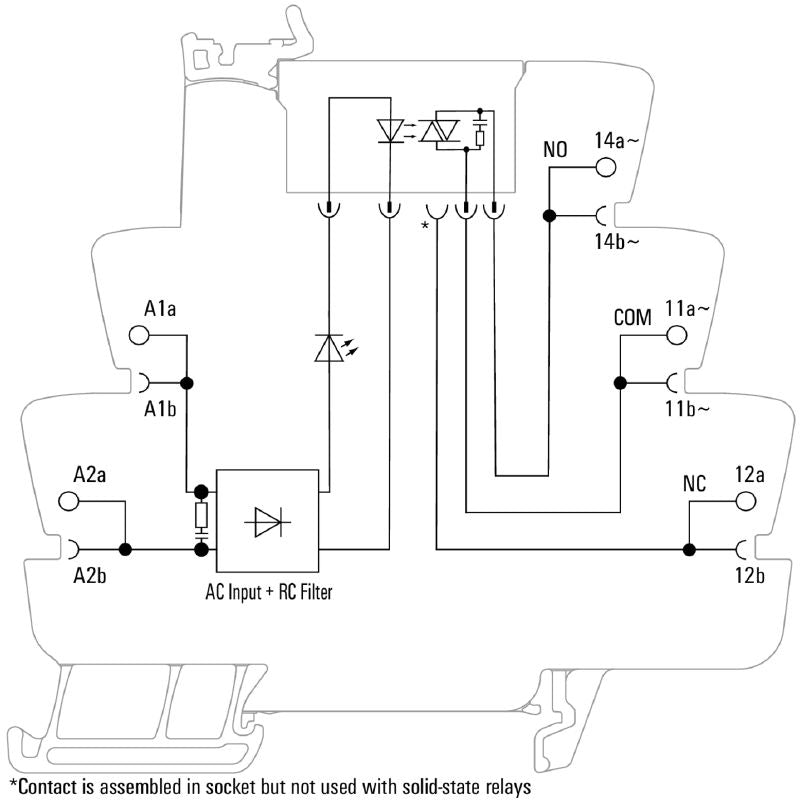

•Utilizes a protective circuit with a rectifier and RC element.

•Inrush current capability of 15 A for 10 ms.

Specifications:
