2618220000 - 24V Relay Module with 6A CO Contact, RoHS Compliant (Pack of 10)

2618220000 - 24V Relay Module with 6A CO Contact, RoHS Compliant (Pack of 10)

SKU: SKU: 2618220000   Download PDF

Select a Variant:
  • 2618220000 - 24V Relay Module with 6A CO Contact, RoHS Compliant (Pack of 10)
Qty:
Regular price Now $133.82   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $133.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

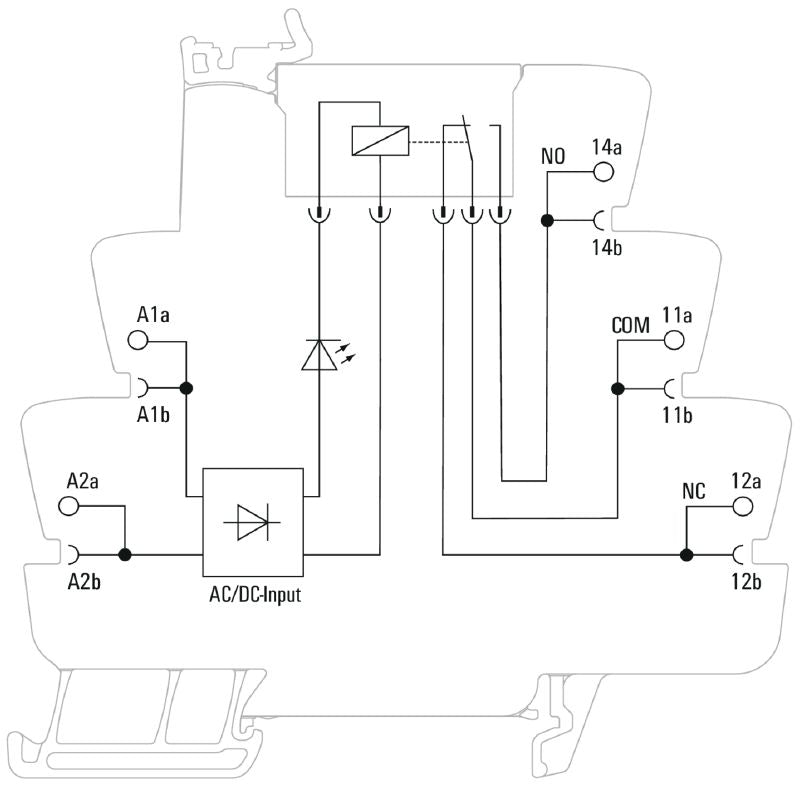

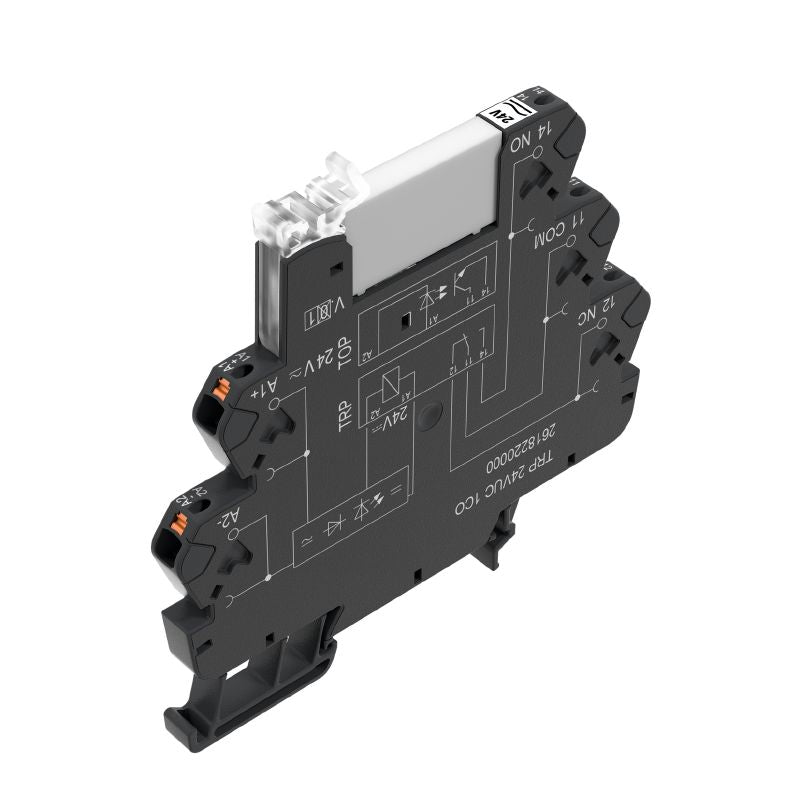

Introducing the TRP 24VUC 1CO relay module, engineered with a single CO contact made from AgNi for optimal performance It operates efficiently at a control voltage of 24 V UC ±10 % and is capable of managing a continuous current of 6 A The module utilizes a PUSH IN connection method for straightforward installation, while being compliant with RoHS standards, ensuring it adheres to legislative safety guidelines.

Note that this model does not include a test button.

Features and Benefits:

    •Includes one CO contact.

    •Rated control voltage of 24 V UC ±10 %.

    •Continuous current capability of 6 A.

    •PUSH IN connection method.

    •RoHS compliant.

Specifications:

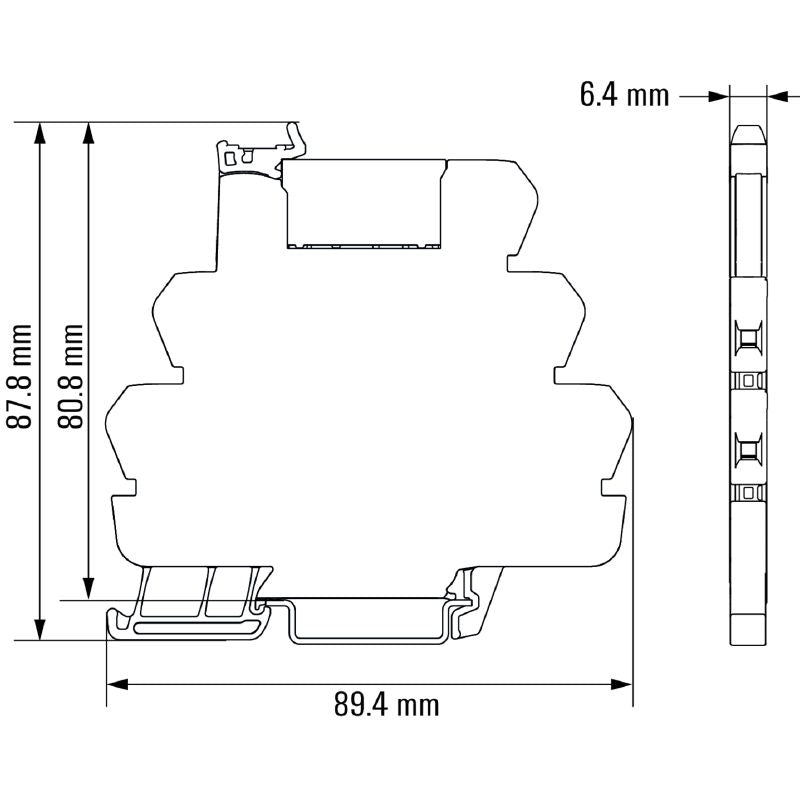

 Depth 87.8 mm
 Height 89.4 mm
 Width 6.4 mm
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…60 °C
 Humidity 5-95% relative humidity, Tu = 40°C, without condensation
 Rated current AC 11.7 mA
 Rated current DC 6.4 mA
 Power rating 270 mVA / 154 mW
 Max. switching frequency at rated load 0.1 Hz
 Inrush current 20 A / 20 ms
 Mechanical service life 5 x 106 switching cycles
 IP protection IP20
 Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
