Product Information

Description:

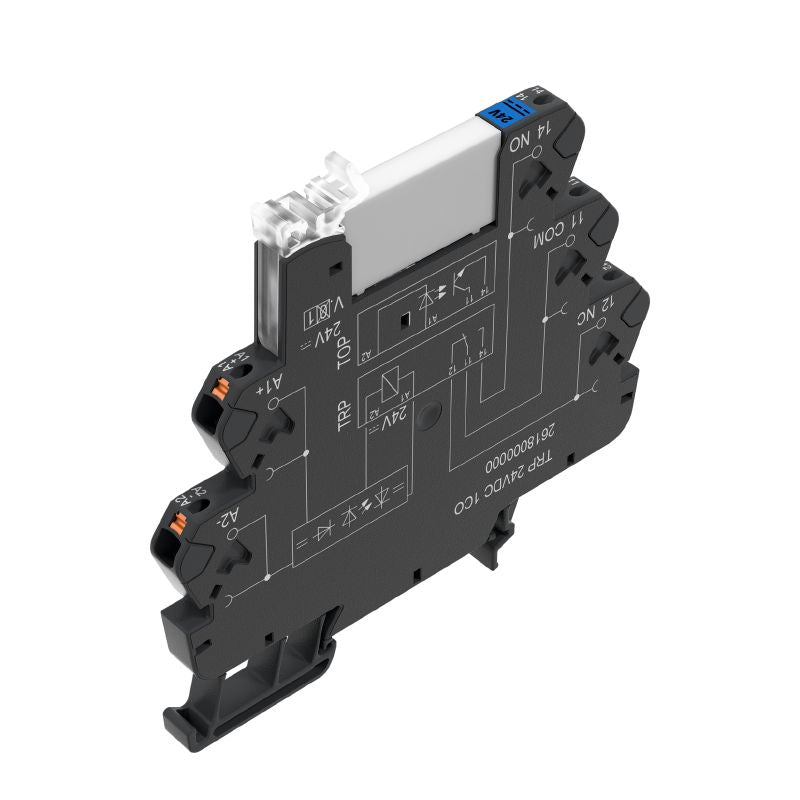

Introducing the TRP relay module, designed for reliable performance with a rated control voltage of 24 V DC ±20% This module is equipped with a single CO contact made from high-quality AgSnO, allowing it to manage a continuous current of up to 6 A For your convenience, it features PUSH IN connections for easy installation Please note, this model does not include a test button.

Features and Benefits:

•Ambient temperature range from -40 °C to 60 °C.

•No test button available.

•Mechanical service life of 5 x 10^6 switching cycles.

•IP20 protection degree.

•Compliant with RoHS and other environmental standards.

Specifications:

Rated Control Voltage	24 V DC ±20 %
Continuous Current	6 A

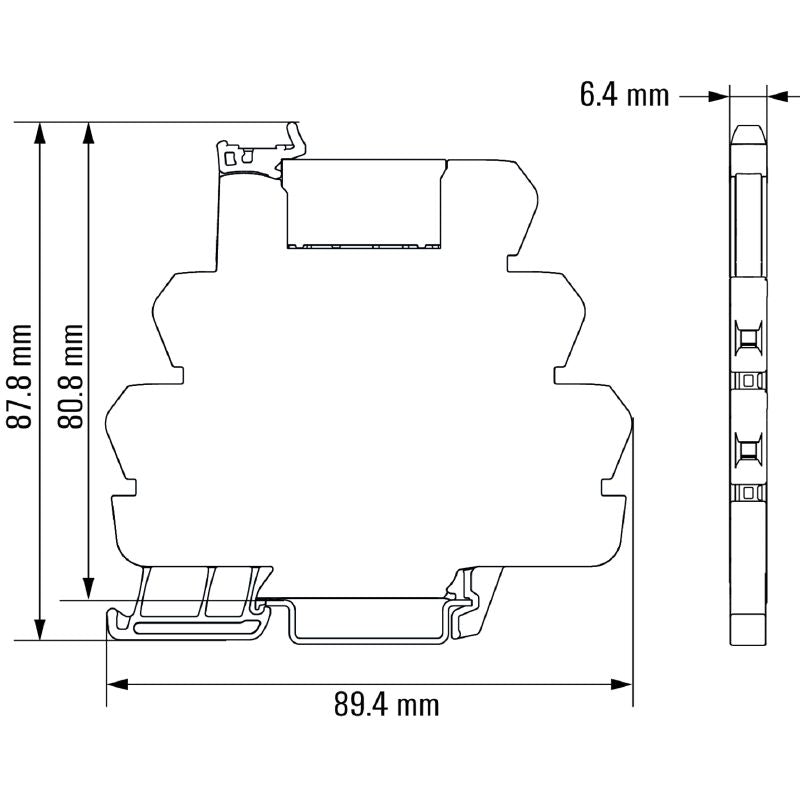

Depth	87.8 mm
Height	89.4 mm
Width	6.4 mm
Net Weight	28.2 g
Temperature (Storage)	-40 °C to 85 °C
Ambient Temperature (Max)	60 °C
Rated Control Current	11.5 mA
Power Rating	280 mW
Status Indicator	Green LED
Rated Switching Voltage	250 V AC
Inrush Current	30 A / 20 ms
AC Switching Capacity (Max)	1500 VA
DC Switching Capacity (Max)	144 W @ 24 V
Switch-on Delay	≤ 6 ms
Switch-off Delay	≤ 16 ms
Contact Type	1 CO contact (AgSnO)
Operating Altitude	≤ 2000 m above sea level
Wire Connection Method	PUSH IN
Clamping Range (Min)	0.14 mm²
Clamping Range (Max)	2.5 mm²
Surge Voltage Category	III
Dielectric Strength for Control Side - Load Side	4 kV eff / 1 Min.
