2617860000 - 12V Relay Module, Single CO Contact, 6A AgSnO (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRP 12VDC 1CO AGSNO relay module, designed for seamless performance with its single CO contact constructed from AgSnO This reliable module operates at a control voltage of 12 V DC, accommodating a tolerance range of ±20% With a continuous current capacity of 6 A, it is built to handle your electrical needs efficiently Featuring a PUSH IN connection method, this relay simplifies installation, though it does not come equipped with a test button.

Perfect for various applications, this module ensures durability and functionality.

Features and Benefits:

•RoHS compliant.

•Compatible with rigid and flexible copper conductors.

•Rated for operational use at maximum ambient temperatures up to 60°C.

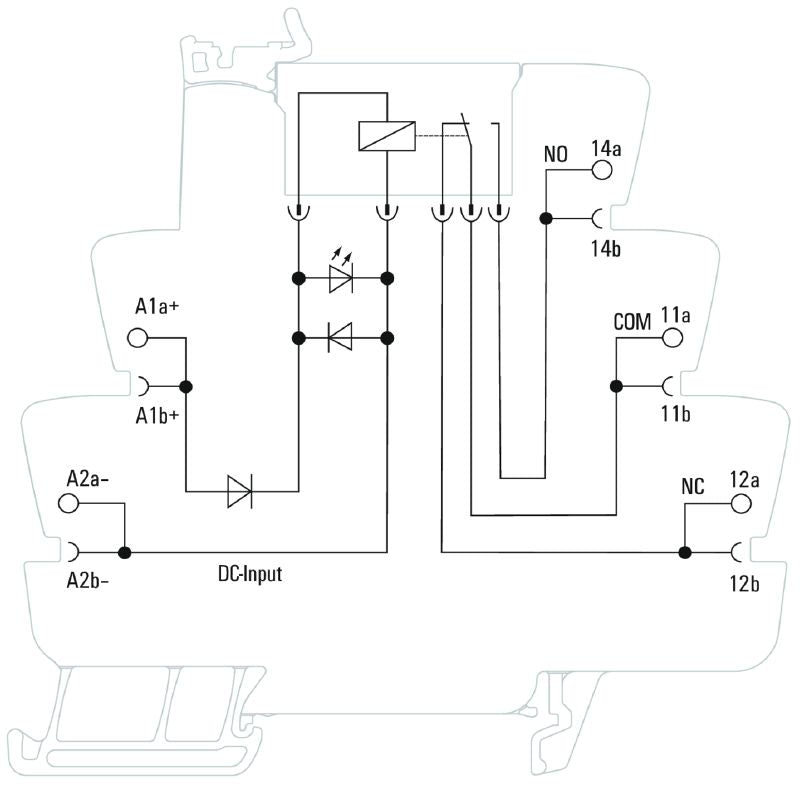

•Offers reverse polarity protection and free-wheeling diode in its protective circuit.

•Mechanical service life rated at 5 million switching cycles.

•IP20 protection degree.

Specifications:
