1956388 - Durable 2-Armed Puller with Adjustable Legs and Hook Brake

1956388 - Durable 2-Armed Puller with Adjustable Legs and Hook Brake

SKU: SKU: 1956388

Variant:
  • 1956388 - Durable 2-Armed Puller with Adjustable Legs and Hook Brake
Regular price Now $254.13
Regular price BEFORE   $0.00 Sale price Now $254.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

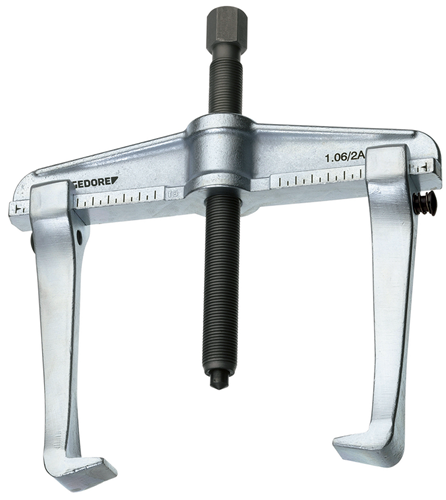

Introducing a versatile universal puller, crafted with a robust drop-forged design and a hook forged from a single piece for added strength and long-lasting performance This tool includes a leg brake that secures the legs, preventing accidental slips, while allowing for easy adjustments along the cross-beam at the touch of a button The integrated scale facilitates uniform leg adjustments, ensuring balanced pulling and optimal force application for even the toughest tasks.

With the ability to reposition the legs, this puller efficiently accommodates both internal and external pulling Additionally, interchangeable legs are available to suit different clamping depths, making this puller a reliable choice for various applications.

Features and Benefits:

    •Strong drop forged design for durability.

    •Leg brake prevents unintentional slipping.

    •Easy adjustment of legs with push button.

    •Built-in scale for centered pulling.

    •Can be used as external and internal puller.

    •Interchangeable legs for different clamping depths.

Specifications:

 Tractive force (max.) [t] 7.5
 Number of arms 2
 Version 2-arm pattern
 Number of hooks 2
 Hook brake available Yes
 Width of hooked foot [mm] 32
 Thickness of hooked foot at tip 5.0
 Usable depth of hooked foot d2 [mm] 32
 Can be retrofitted with hydraulic spindle Yes
 Hydraulic spindle optional 1.06/HSP2
 Width across flats [mm] 27
 Usable clamping reach [mm] 200
 Clamping width (max.) external pulling [mm] 250
 Clamping width a2 (max.) internal pulling [mm] 340
 Clamping width a2 (min.) internal pulling [mm] 125
 Spindle thread size G 3/4 x 280
 Spindle Surface coating Nitro-carburated
 Spindle Thrust piece type Spitze
 reversible arms available Yes
