1676008 - 9-Hook Puller Set with Plastic Case and Spindles

1676008 - 9-Hook Puller Set with Plastic Case and Spindles

SKU: SKU: 1676008

Variant:
  • 1676008 - 9-Hook Puller Set with Plastic Case and Spindles
Regular price Now $787.88
Regular price BEFORE   $0.00 Sale price Now $787.88
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

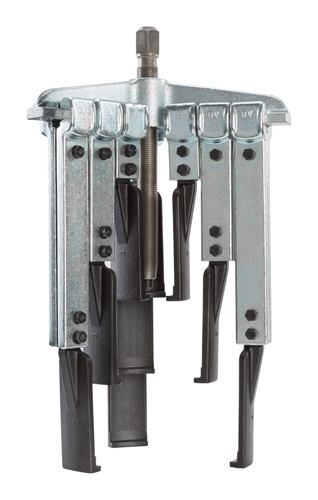

This puller set comes neatly packaged in a durable plastic case and features two spindles along with a versatile cross-beam that offers both 2-arm and 3-arm configurations Included are nine slim pulling legs in varying lengths of 150 mm, 220 mm, and 300 mm The thoughtfully designed spindle helps to streamline your work, while both sides of the spindles showcase a stylish burled inlay, adding to the overall functionality and aesthetic appeal.

Features and Benefits:

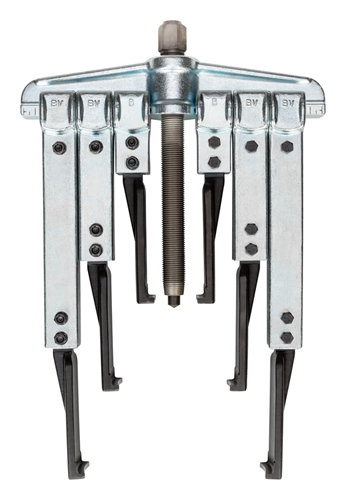

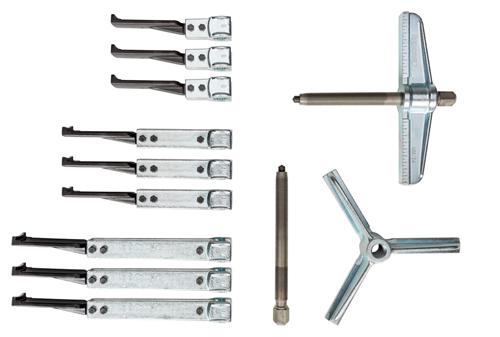

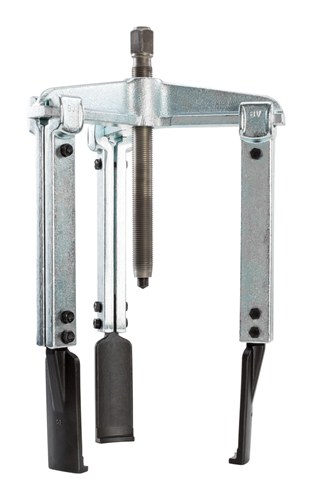

    •Includes 2 spindles and cross-beams in 2- and 3-arm patterns.

    •Nine slim pulling legs in three different lengths.

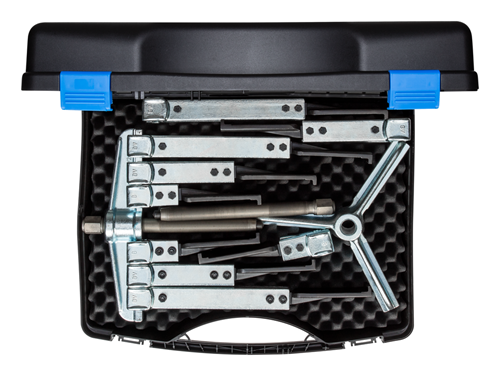

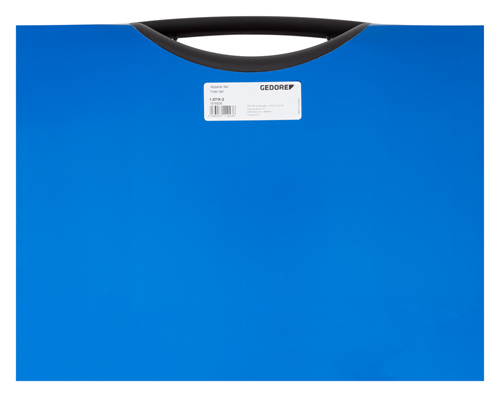

    •Comes with a plastic case for easy storage.

    •Designed for a maximum tractive force of 5.0 tons.

Specifications:

 Dimensions and weight: 200x150/220/300 mm
 Net weight [kg]: 13.5 kg
 Clamping reach: 150 / 220 / 300 mm
 Max. pulling width [mm]: 200 mm
 Maximum tractive force [t]: 5.0

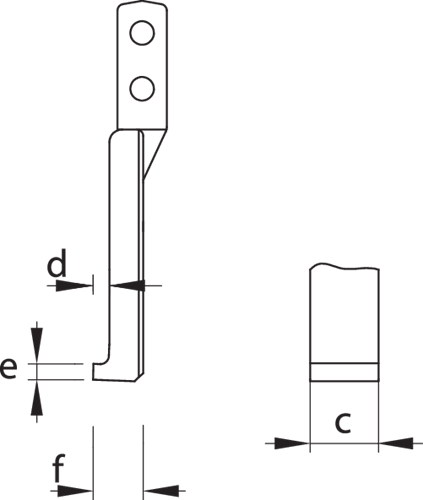

 Hook foot width [mm]: 40 mm
 Hook foot thickness at tip [mm]: 5.0 mm
 Usable depth of hook foot d2 [mm]: 7 mm
 Spindle thread size: G 1/2 x 210
 Contents (Qty of pieces): 10
