1550993 - 180mm VDE Insulated Side Cutters for High Leverage Precision

1550993 - 180mm VDE Insulated Side Cutters for High Leverage Precision

SKU: SKU: 1550993

Variant:
  • 1550993 - 180mm VDE Insulated Side Cutters for High Leverage Precision
Regular price Now $50.89
Regular price BEFORE   $0.00 Sale price Now $50.89
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

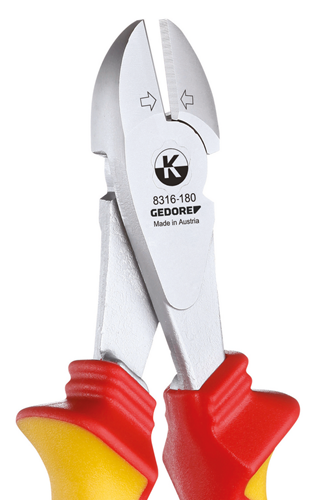

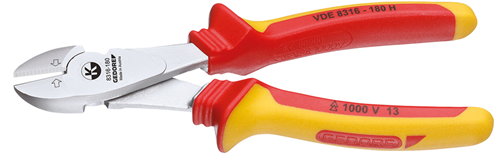

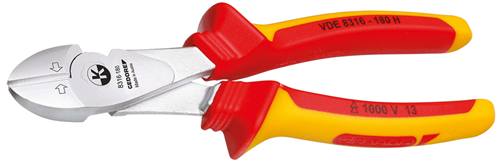

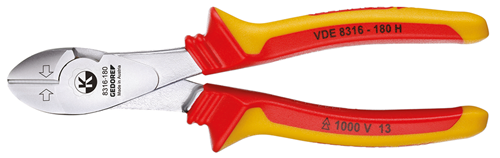

Experience the convenience of VDE power side cutters, featuring an insulated casing and a practical length of 180 mm These cutters are engineered for enhanced leverage, making your tasks easier They boast precision cutting edges that have been induction-hardened to a hardness of 63 - 65 HRC Crafted from specially hardened and tempered GEDORE steel, these tools are drop-forged, oil-hardened, and undergo a thorough annealing process.

The handles come equipped with VDE insulating sleeves, rated for voltages up to 1000 V, meeting the standards of EN 60900/IEC 60900 for safety and reliability.

Features and Benefits:

    •High leverage for easier work.

    •Induction-hardened precision cutting edges.

    •Hardness of 63 - 65 HRC.

    •GEDORE special hardened and tempered steel.

    •Drop-forged, oil-hardened, and annealed construction.

    •Handles with VDE insulating sleeves up to 1000 V.

Specifications:

 Total width [mm] 55 mm
 Total height [mm] 27 mm
 Total length [mm] 180 mm
 Design non-sparking No
 Standard DIN ISO 5749 EN 60900/IEC60900
 ESD Yes/No No
 Bevel with
 Handle design 2-component grips VDE insulated up to 1000 V
 Hardening process Induction hardened
 Width of head 1 [mm] 26.0 mm
 Head height 1 [mm] 22.6 mm
 Head thickness [mm] T1 11.0 mm
 Material Heat-treated steel
 Surface chrome-plated
 Opening spring present No
 Compliance compliant
 Blade shape with facet
 Hardness of cutting edge 63 - 65 HRC
 Cutting edge length [mm] 22.6 mm
 Cutting values Piano wire: 1.8 mm / 13 AWG, Hard wire: 2.7 mm / 10 AWG, Medium hard wire: 3.8 mm / 7 AWG
