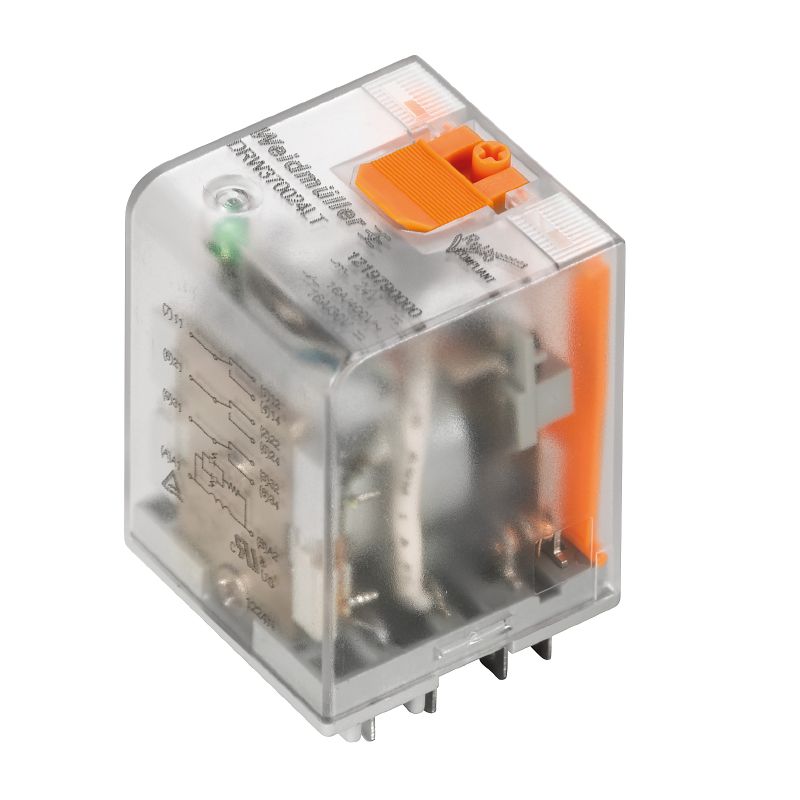

1220080000 - 220V DC Relay with NO/NC Contacts & Blow-Out Magnet (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

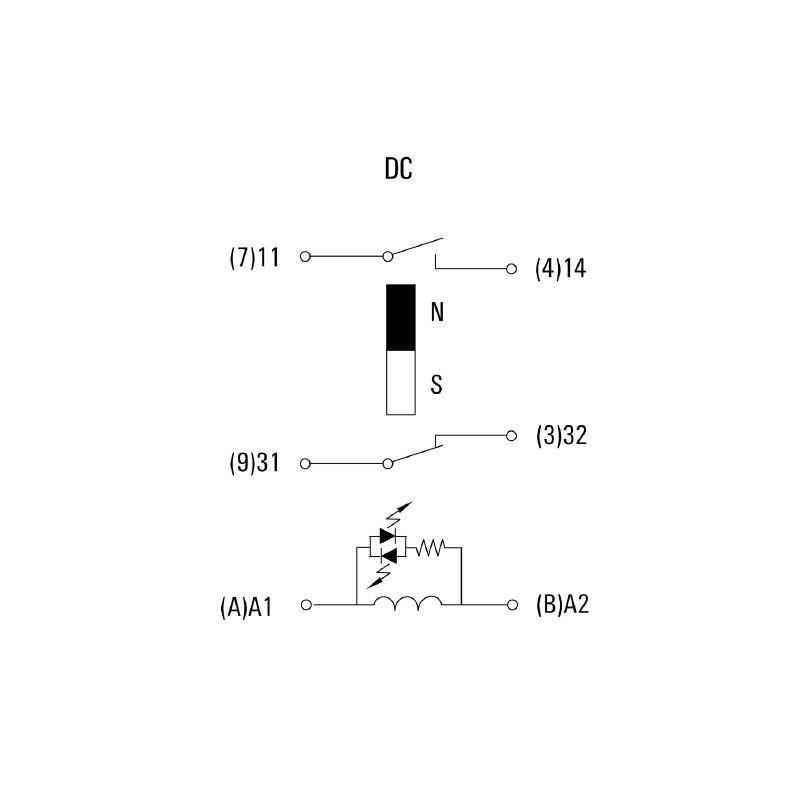

Introducing a versatile relay that combines functionality with efficiency This model features both a normally open (NO) contact and a normally closed (NC) contact, enhanced by a specialized blow-out magnet made from AgSnO It operates seamlessly at a control voltage of 220V DC and is capable of handling a steady current of up to 16A For added convenience, a dedicated test button allows for easy functionality checks.

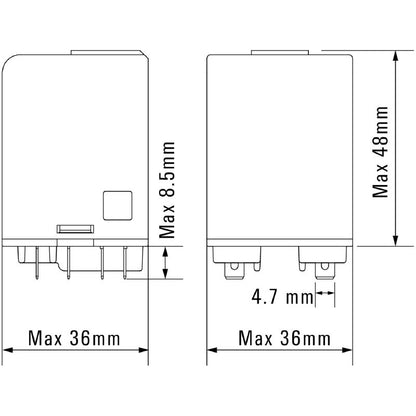

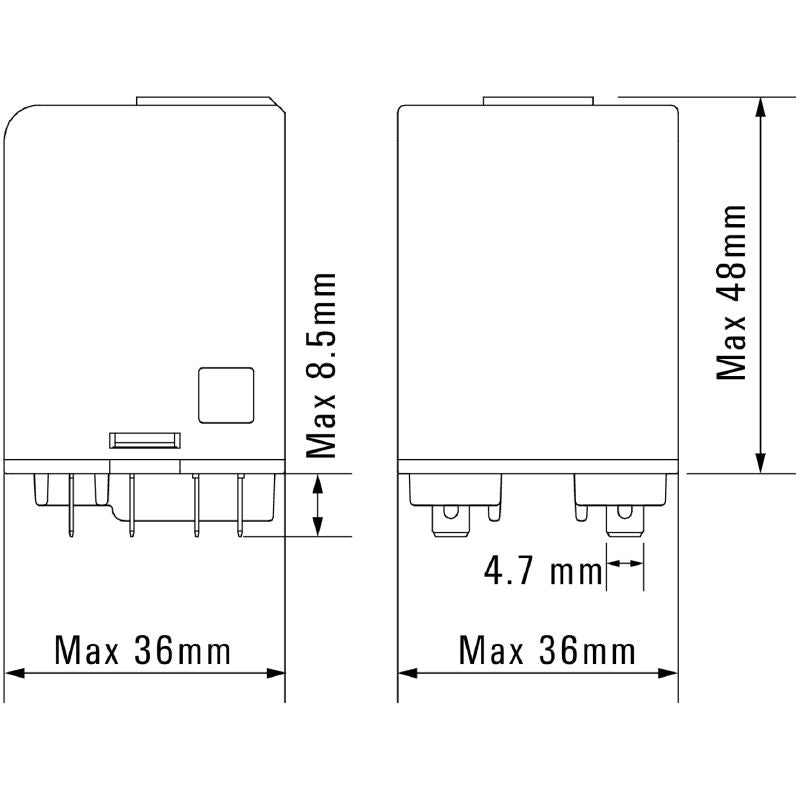

The relay is designed with flat blade connections that measure 48 mm x 05 mm, ensuring a reliable and secure connection for various applications.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•UL Approved with Certificate No. E312083.

•Green LED indicator for status.

•Lockable test button included.

•Mechanical switch position indicator present.

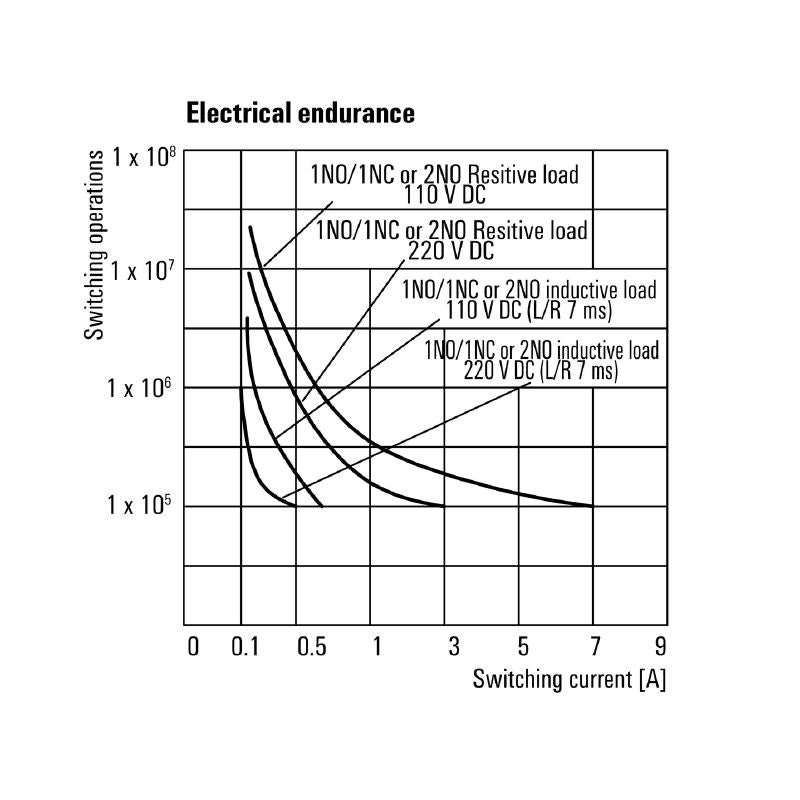

•Designed for a mechanical service life of 10 million switching cycles.

Specifications:
