1219580000 - D-SERIES PWR Relay Module, 2 NO Contacts, 220V DC, 25A (Pack of 10)

1219580000 - D-SERIES PWR Relay Module, 2 NO Contacts, 220V DC, 25A (Pack of 10)

SKU: 1219580000 Download PDF

Variant:
  • 1219580000 - D-SERIES PWR Relay Module, 2 NO Contacts, 220V DC, 25A (Pack of 10)
Now $267.73
BEFORE   $0.00 Now $267.73
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

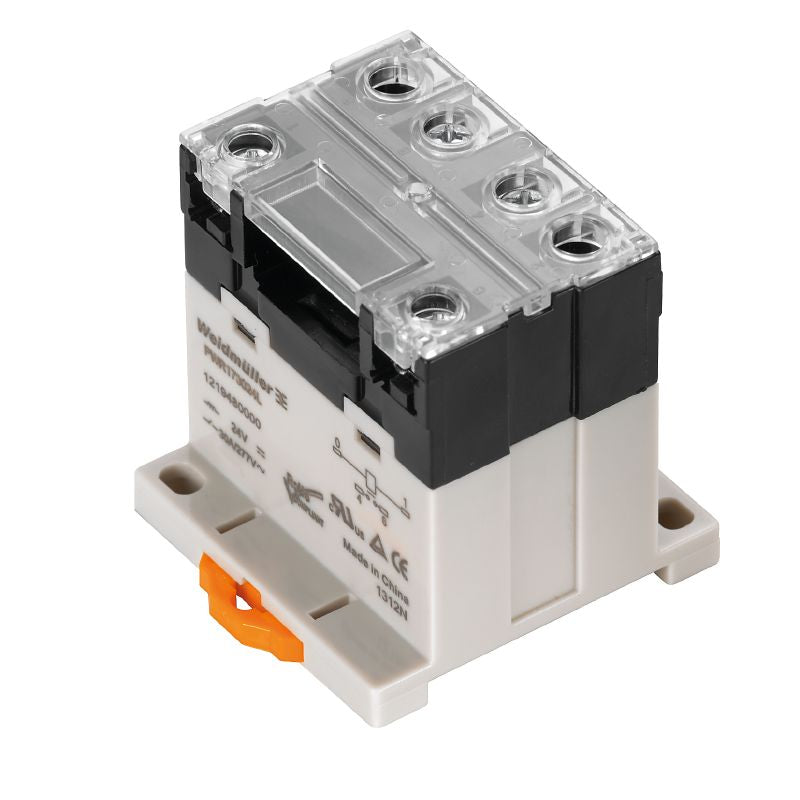

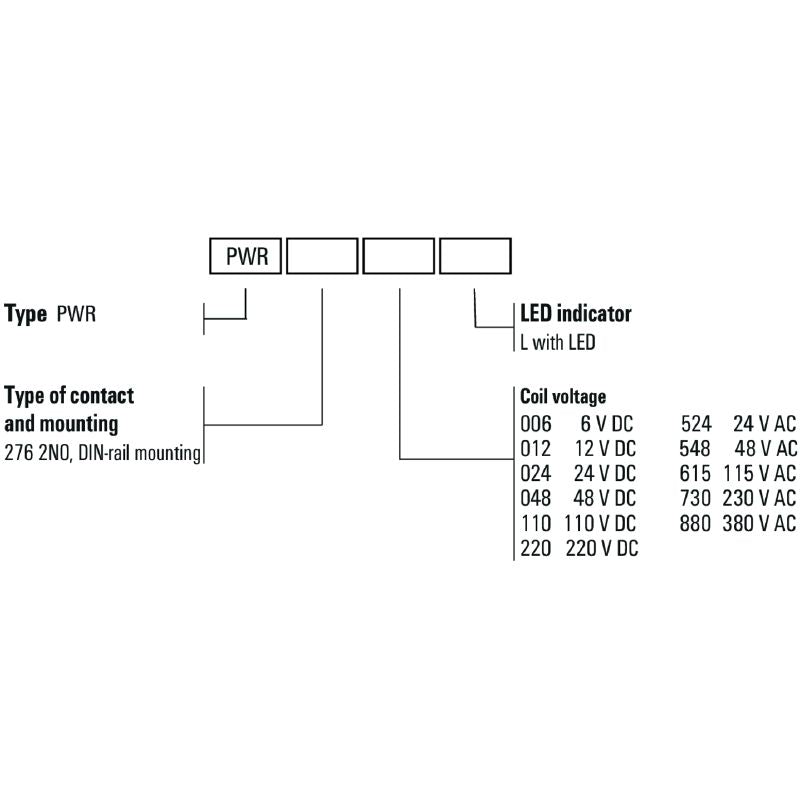

Introducing the D-SERIES PWR Relay Module, model PWR276220L, a reliable component equipped with two normally open (NO) contacts crafted from AgSnO material This module operates efficiently at a control voltage of 220 V DC and boasts a continuous current rating of 25 A Connections are easily established using screws, although a test button is not included This versatile relay module is engineered for optimal performance in various applications.

Features and Benefits:

    •Screw connection method for reliable contact.

    •Green LED status indicator.

    •RoHS compliant without exemptions.

    •Operating temperature range of -25 °C to 55 °C.

    •IP10 protection degree.

Specifications:

 Control Voltage 220 V DC
 Rated Current DC 8.7 mA
 Power Rating 1.9 W
 Coil Resistance 25474 Ω ± 10 %
 Rated Switching Voltage 277 V AC
 Continuous Current 25 A
 Max Switching Frequency at Rated Load 0.1 Hz
 Max Switching Voltage, AC 250 V
 Min Switching Power 100 mA @ 12 V
 Inrush Current 120 A / 50 ms
 AC Switching Capacity (resistive), max 6900 VA
 DC Switching Capacity (resistive), max 600 W @ 24 V
 Switch-On Delay <30 ms
 Switch-Off Delay <30 ms
 Contact Type 2 NO contact (AgSnO)
 Mounting Rail TS 35
 Min Rated Connection Clamping Range (control side) 0.5 mm²
 Max Rated Connection Clamping Range (control side) 2.5 mm²
 Min Tightening Torque (control side) 0.5 Nm
 Max Tightening Torque (control side) 1.2 Nm
 Min Rated Connection Clamping Range (load side) 0.5 mm²
 Max Rated Connection Clamping Range (load side) 4 mm²
 Min Tightening Torque (load side) 0.5 Nm
 Max Tightening Torque (load side) 1.2 Nm
 Dielectric Strength for Control Side - Load Side 4 kV eff / 1 min
 Surge Voltage Category III
 Insulation Material Group IIIa
 Pollution Severity 3
 Clearance and Creepage Distances for Control Side - Load Side ≥ 5.5 mm
