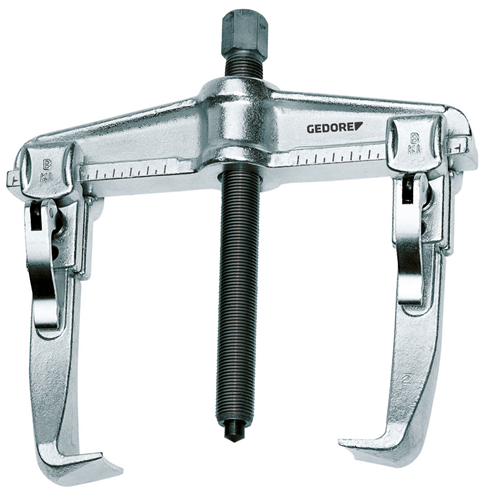

1215140 - 2-Arm Quick-Release Puller for Discs and Bearings

1215140 - 2-Arm Quick-Release Puller for Discs and Bearings

SKU: SKU: 1215140

Variant:
  • 1215140 - 2-Arm Quick-Release Puller for Discs and Bearings
Regular price Now $95.43
Regular price BEFORE   $0.00 Sale price Now $95.43
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience efficient and secure extraction with this reliable puller, ideal for removing discs, wheels, ball bearings, and more Crafted with a robust drop-forged design, it features an adjustable scale for consistent positioning of the puller legs The tool allows for centered pulling, optimizing force application even under heavy loads Versatile in function, it can serve as both an internal and external puller by simply repositioning the legs.

Accessory hooks are available for various clamping depths The quick-release legs facilitate speedy setup and adjustment Additionally, it can be upgraded with a hydraulic spindle for enhanced performance.

Features and Benefits:

    •Strong drop forged pattern.

    •Scale for uniform adjustment of the puller legs.

    •Can be used as external and internal puller by repositioning the legs.

    •Quick release legs for fast, easy set-up and adjustment.

    •Upgradeable with hydraulic spindle.

Specifications:

 Tractive force (max.) [t] 3
 Number of arms 2
 Width of hooked foot [mm] 22 mm
 Thickness of hooked foot at tip 3,0 mm
 Usable depth of hooked foot d2 [mm] 12 mm
 Can be retrofitted with hydraulic spindle Yes
 Width across flats [mm] 17 mm
 Quick release lever available Yes
 Usable clamping reach [mm] 100 mm
 Clamping width (max.) external pulling [mm] 130 mm
 Clamping width a2 (max.) internal pulling [mm] 180 mm
 Clamping width a2 (min.) internal pulling [mm] 70 mm
 Spindle thread size M 14x1,5 x 140
 reversible arms available Yes
