1132820000 - 3-Contact Relay Socket, 12A, RoHS & UL Certified (Pack of 10)

SKU: SKU: 1132820000 Download PDF

Variant:

1132820000 - 3-Contact Relay Socket, 12A, RoHS & UL Certified (Pack of 10)

Now $37.27

~~BEFORE $0.00~~ Now $37.27

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

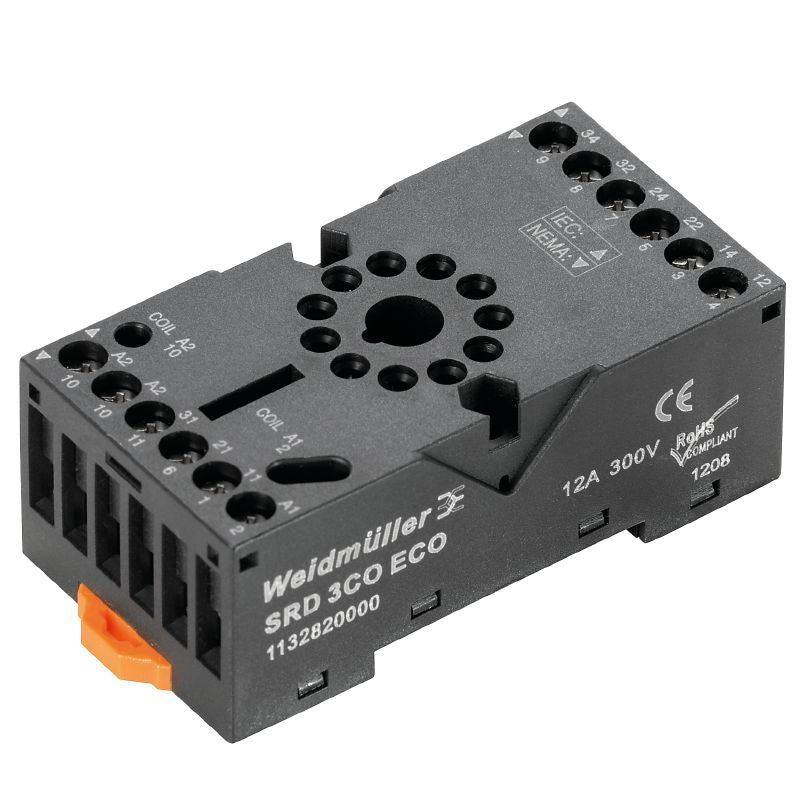

Introducing the SRD ECO 3CO relay socket, featuring three contacts with CO functionality This relay socket accommodates a continuous current of 12 A and utilizes screw terminals for reliable wiring connections It adheres to RoHS standards and bears the UL certification number E355547 for quality assurance The sleek black housing is designed to function within a broad temperature range, enduring ambient temperatures up to 65 °C and storage conditions from -40 °C to 85 °C.

Ideal for a variety of applications, this relay socket combines performance with compliance.

Features and Benefits:

•Rated for 12 A continuous current.

•Screw connection method.

•RoHS compliant.

•UL approved.

•IP20 protection degree.

Specifications:

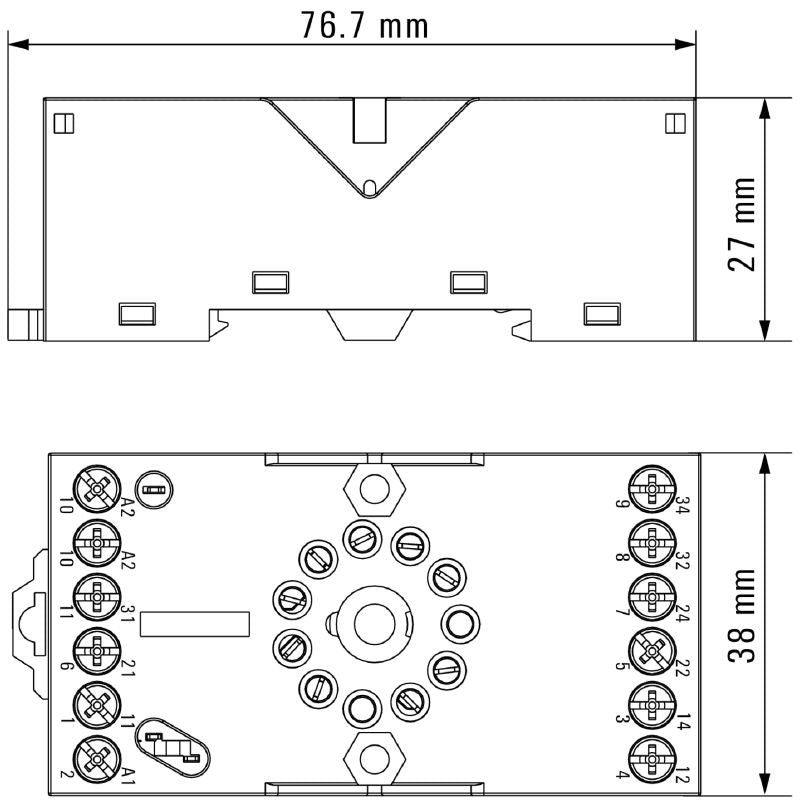

Depth	27 mm
Height	76.7 mm
Width	38 mm
Rated switching voltage	250 V AC
Max. switching voltage, AC	300 V
Pollution severity	2
Surge voltage category	III
Dielectric strength for control side - load side	2.5 kV eff / 1 Min.
Connection data	{'Tightening torque, min.': '0.5 Nm', 'Tightening torque, max.': '1 Nm', 'Clamping range, min.': '0.5 mm²', 'Clamping range, max.': '2.5 mm²'}
