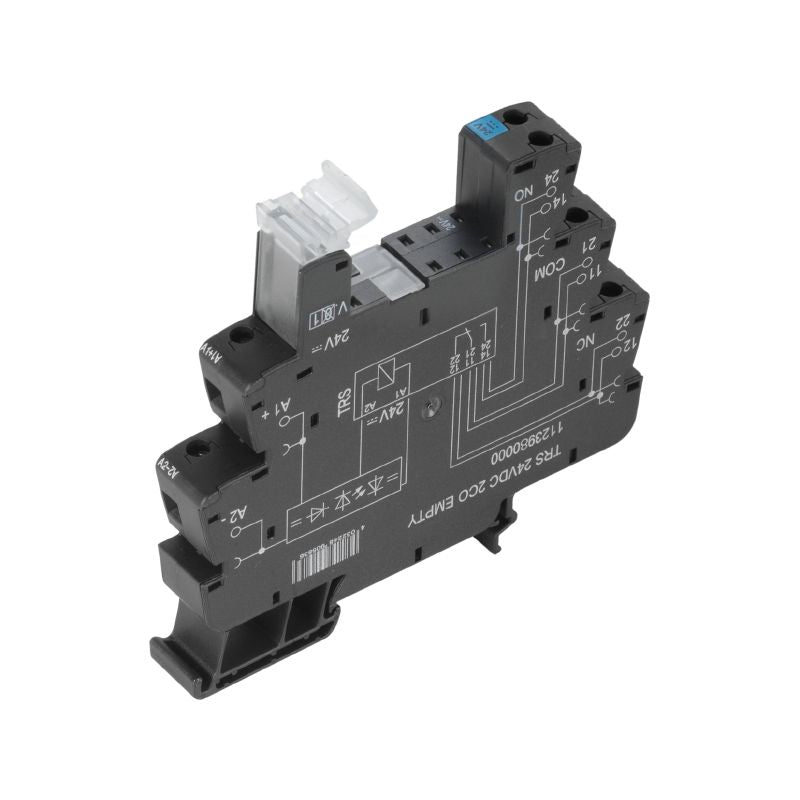

1124070000 - TRS Relay Socket with 2 Contacts, 24-230V, 10A Capacity (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TRS 24-230VUC 2CO EMPTY relay socket, expertly designed with two robust contacts and a control voltage range from 24 to 230 V UC, accommodating a tolerance of ±10% With a continuous current capacity of 10 A via secure screw connections, this socket is both reliable and versatile It proudly meets ROHS standards and holds certification number E223759 Please note that this product will no longer be available for ordering after September 29, 2025.

Features and Benefits:

•Includes approvals for ROHS compliance.

•Suitable for a wide rated control voltage range of 24 to 230 V UC.

•Operational current capacity of 10 A.

•Compact size suitable for limited spaces.

•Advanced flammability rating of UL94 V-0 for reliable safety.

Specifications:
