1123120000 - 24VDC Gold-Plated Relay Module with Tension-Clamp Connection (Pack of 10)

1123120000 - 24VDC Gold-Plated Relay Module with Tension-Clamp Connection (Pack of 10)

SKU: SKU: 1123120000   Download PDF

Select a Variant:
  • 1123120000 - 24VDC Gold-Plated Relay Module with Tension-Clamp Connection (Pack of 10)
Qty:
Regular price Now $118.03   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $118.03 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

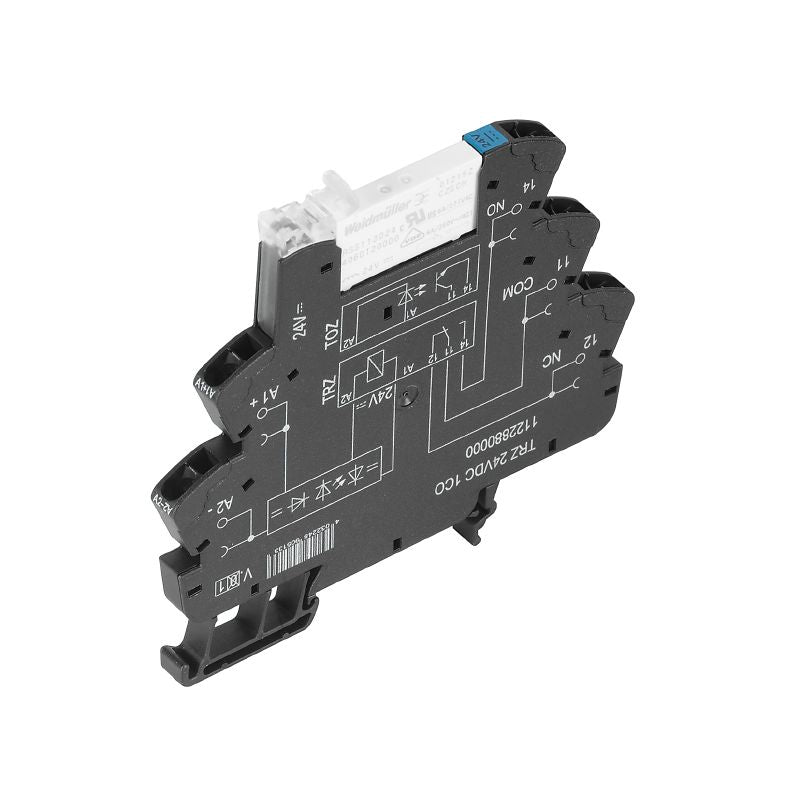

Experience reliable control with the TRZ 24VDC relay module featuring a single change-over (CO) contact made from gold-plated AgNi material This module operates efficiently within a control voltage range of 24 V DC ±20%, capable of handling continuous currents up to 6 A It is designed without a test button and incorporates a tension-clamp connection for secure wiring Meeting RoHS compliance and boasting an E141197 certificate number for cULus, this relay module is a trustworthy choice for your electrical needs.

Features and Benefits:

    •RoHS compliant.

    •Tension-clamp connection.

    •No test button.

    •AgNi gold-plated contact.

Specifications:

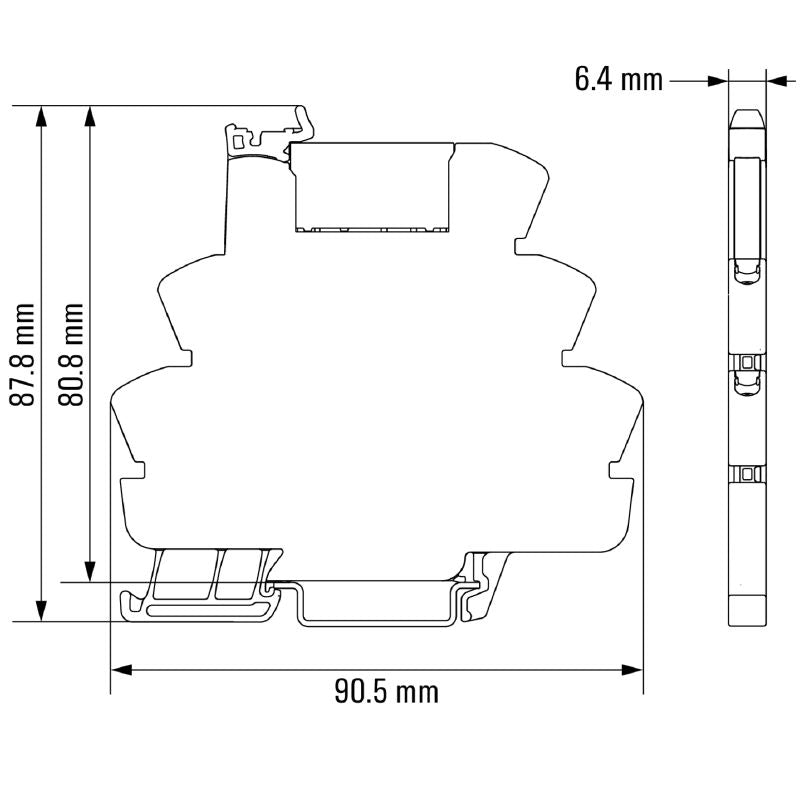

 Depth 87.8 mm
 Height 90.5 mm
 Width 6.4 mm
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…60 °C
 Rated control voltage 24 V DC ±20 %
 Rated current DC 11.5 mA
 Power rating 280 mW
 Rated switching voltage 250 V AC
 Continuous current 6 A
 Max. switching frequency at rated load 0.1 Hz
 Inrush current 20 A / 20 ms
 AC switching capacity (resistive), max. 1500 VA

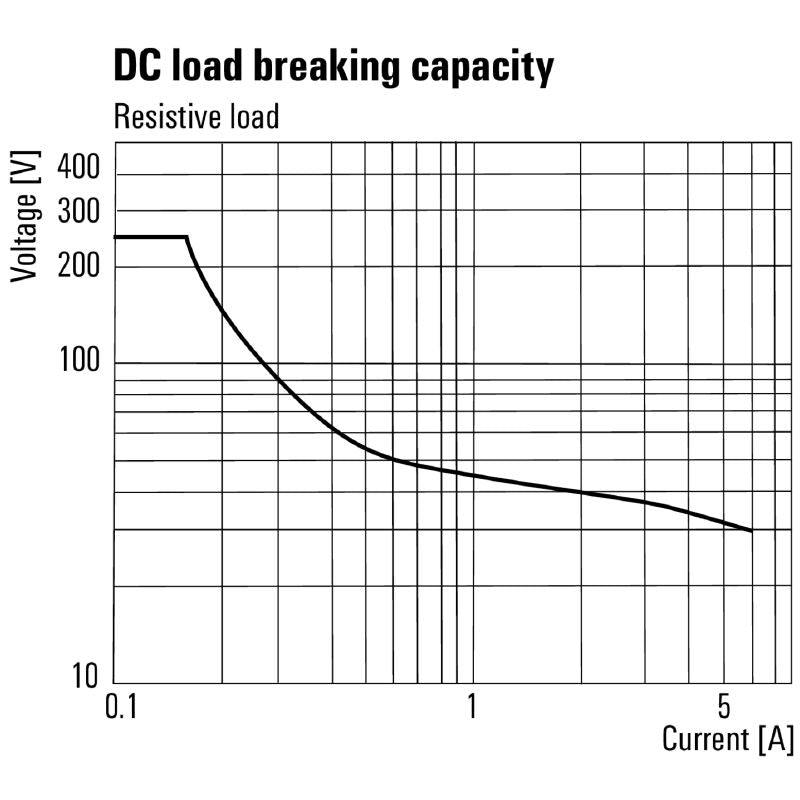

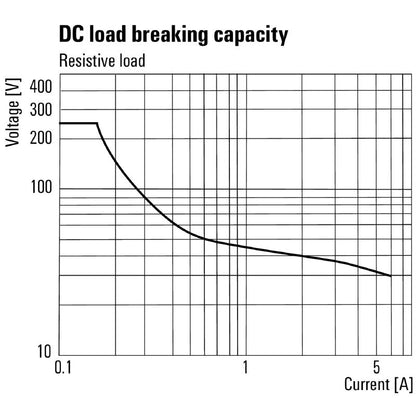

 DC switching capacity (resistive), max. 144 W @ 24 V
 Switch-on delay ≤ 6 ms
 Switch-off delay ≤ 16 ms

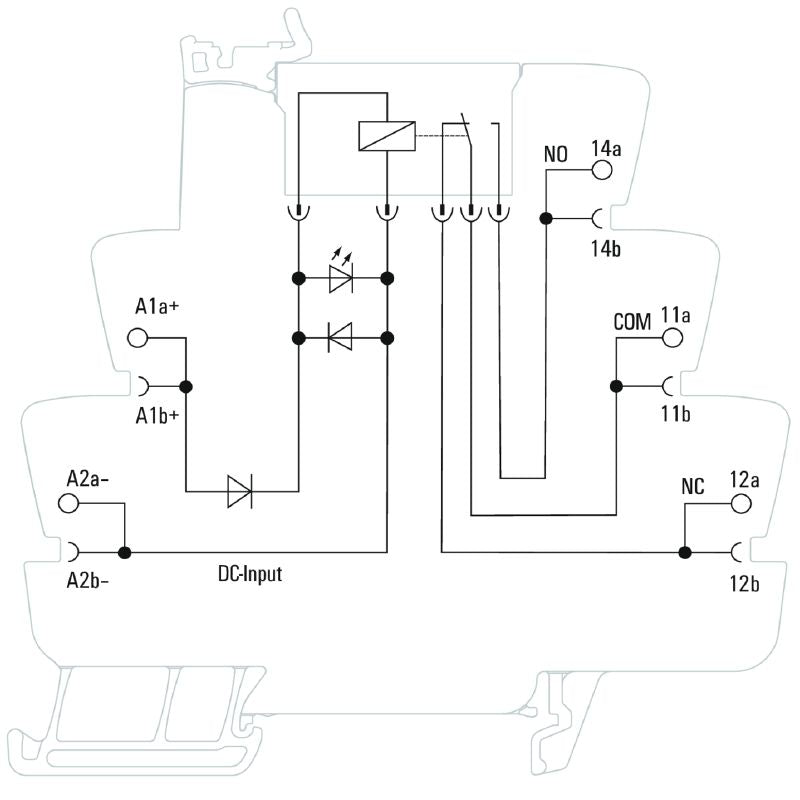

 Contact type 1 CO contact (AgNi gold-plated)

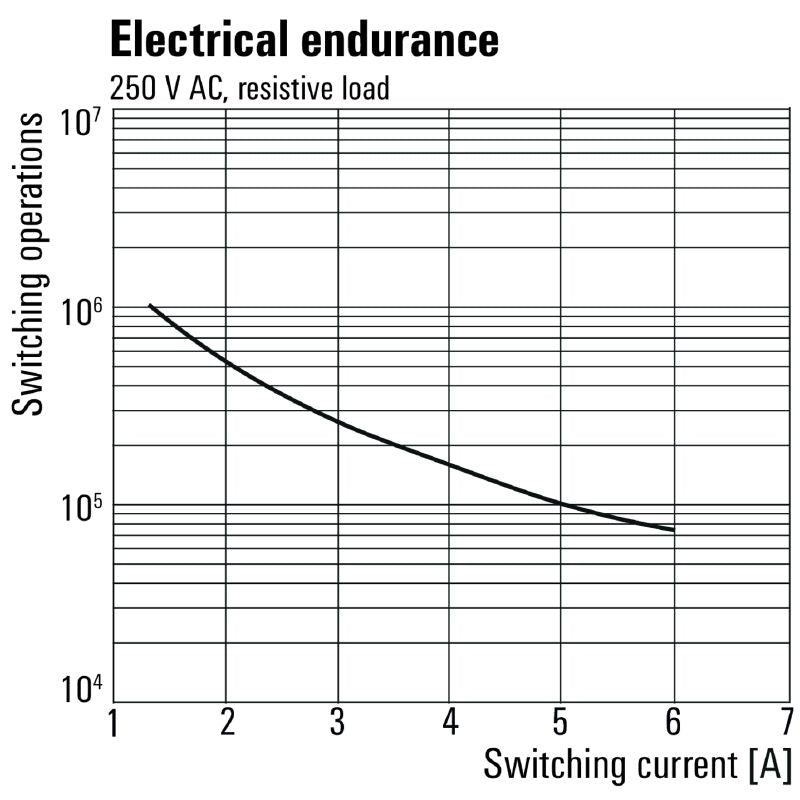

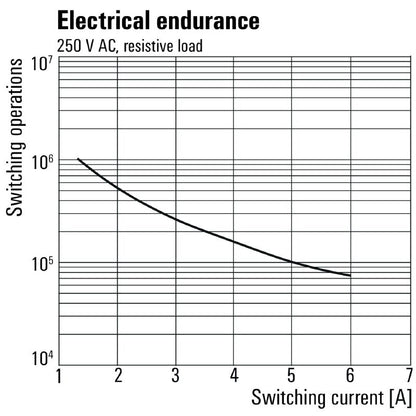

 Mechanical service life 5 x 10^6 switching cycles
 Operating altitude ≤ 2000 m above sea level
 UL94 flammability rating V-0
 Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Protection degree IP20
