Description:

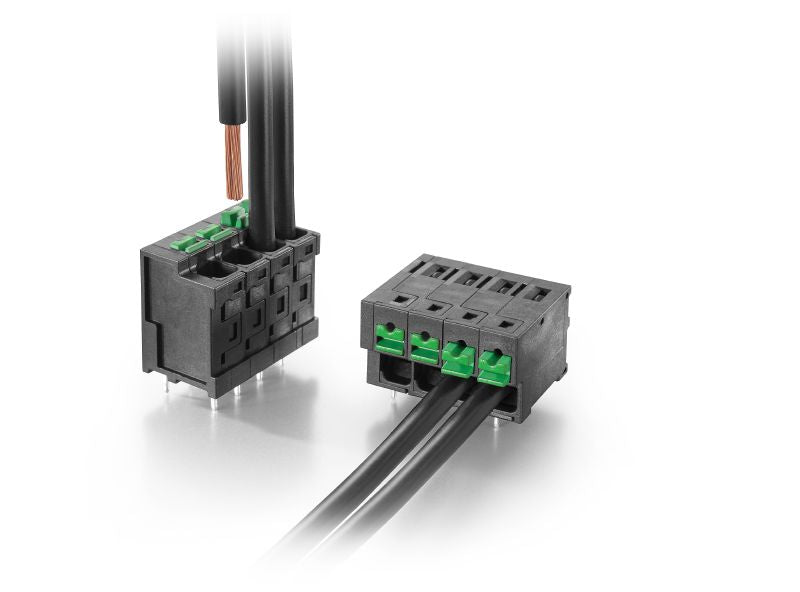

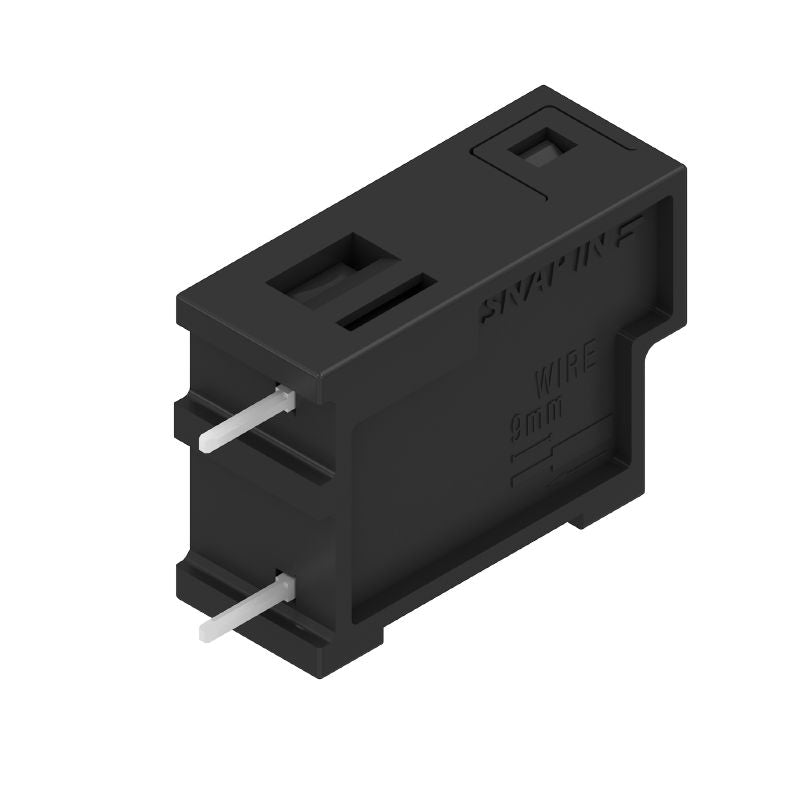

Introducing the MTS 5/01 V T4 B T PCB terminal, expertly crafted for THT solder connections With a pitch of 5 mm, this single-pole component is packaged in a tube for easy handling It meets IEC standards, supporting voltages up to 400 V and a current of 32 A, accommodating wire sizes between 05 to 4 mm² Additionally, in accordance with UL standards, it can manage 300 V and 185 A with AWG sizes from 20 to 12, making it a reliable choice for your connectivity needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection according to DIN VDE 0470.
•WireReady clamping point property.

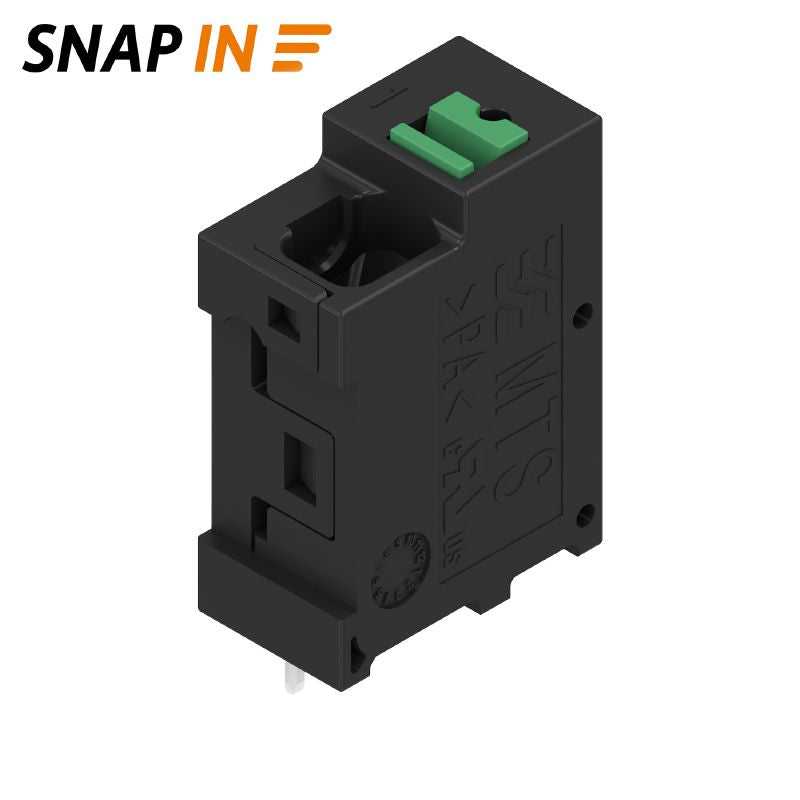

•SNAP IN wire connection method with push button.
•High temperature tolerance with operating limits of -50 °C to 70 °C.
Specifications:

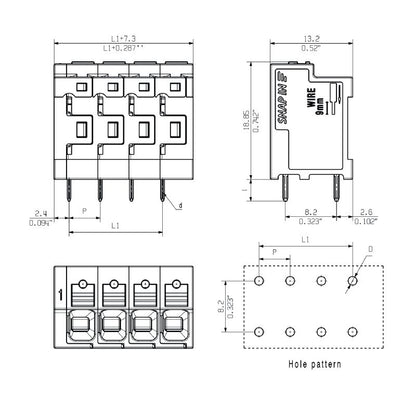

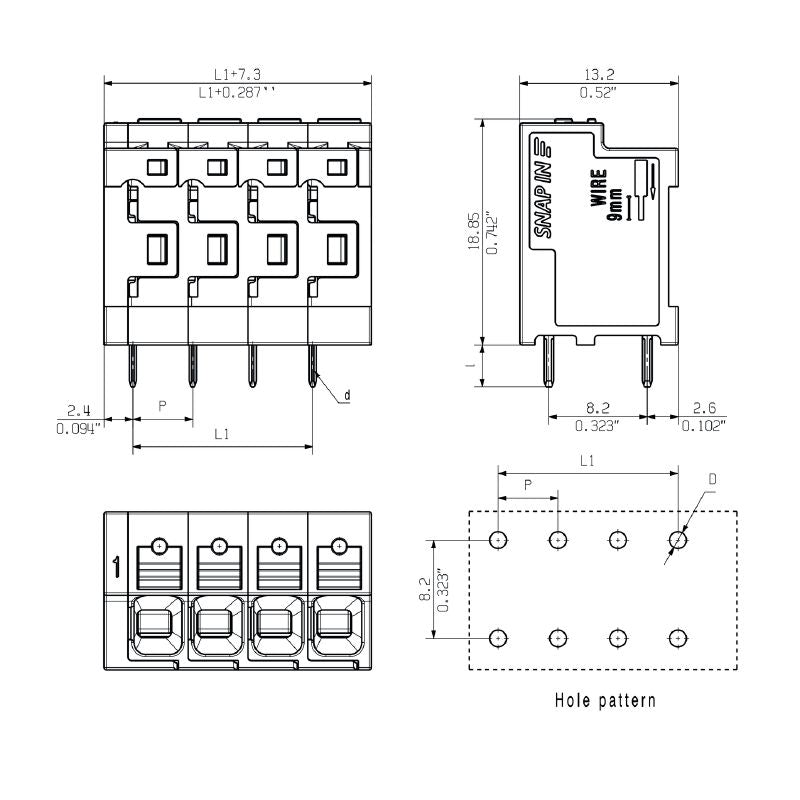

| Depth | 13.2 mm |
| Height | 22.35 mm |
| Width | 7.3 mm |
| Ambient temperature | -50 °C…125 °C |
| Installation temperature | -50 °C to +70 °C |
| Material | PA 9T |
| Color | black |
| Clamping range min | 0.34 mm² |
| Clamping range max | 4 mm² |

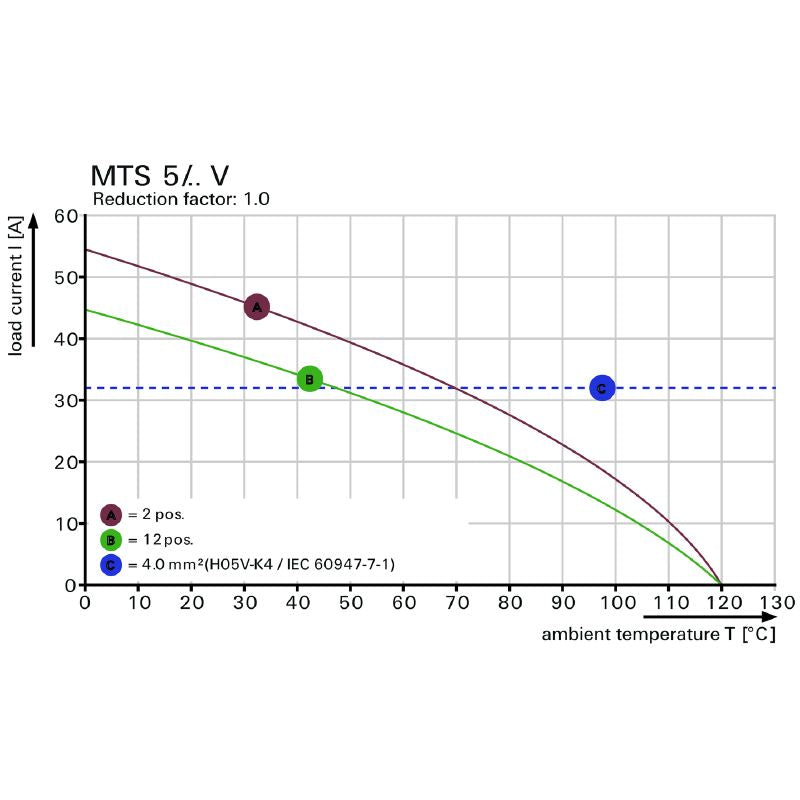

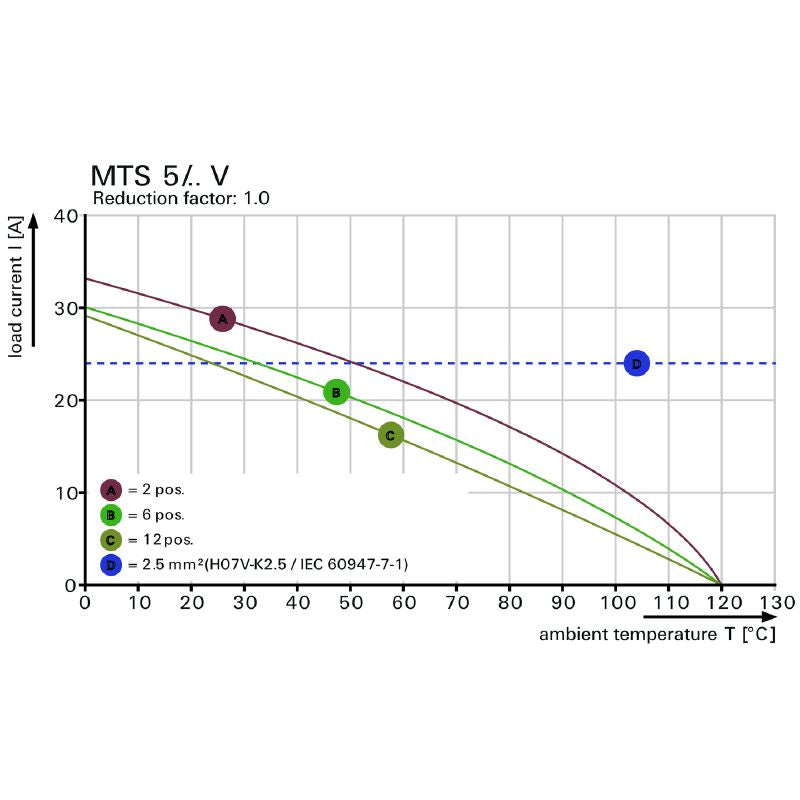

| Rated current | 32 A |
| Rated voltage | 400 V |
| Rated current (UL 1059) | 18.5 A |
| Storage temperature | -25 °C to 55 °C |
| Pitch | 5 mm |
| Number of poles | 1 |
| Pin series quantity | 1 |
