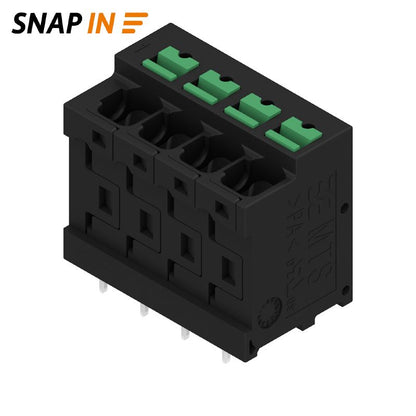

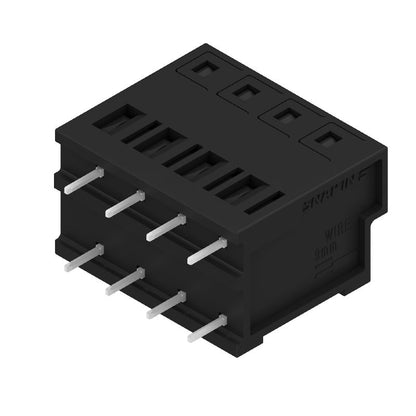

2913730000 - 5mm Pitch PCB Terminal with 4 Poles, 400V Rated (Pack of 24)
2913730000 - 5mm Pitch PCB Terminal with 4 Poles, 400V Rated (Pack of 24)
SKU: SKU: 2913730000 Download PDF
- 2913730000 - 5mm Pitch PCB Terminal with 4 Poles, 400V Rated (Pack of 24)
- 2913730000 - 5mm Pitch PCB Terminal with 4 Poles, 400V Rated (Pack of 24)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our reliable printed circuit board terminals, perfect for PCB terminal and through-hole solder connections These terminals feature a 500 mm pitch and are equipped with 4 poles, conveniently packaged in a tube for easy handling They comply with ROHS regulations and are verified under UL file number E60693
Designed for optimal performance, these terminals support a maximum rated voltage of 400 V, with a current capacity of 32 A for wire cross-sections ranging from 0.
5 to 4 mm² per IEC standards Additionally, they cater to UL standards with a maximum voltage of 300 V and a current rating of 185 A for AWG wire sizes 20 to 12 Upgrade your electronic projects with these high-quality, compliant terminals.
Features and Benefits:
•Compliant with ROHS without exemptions.

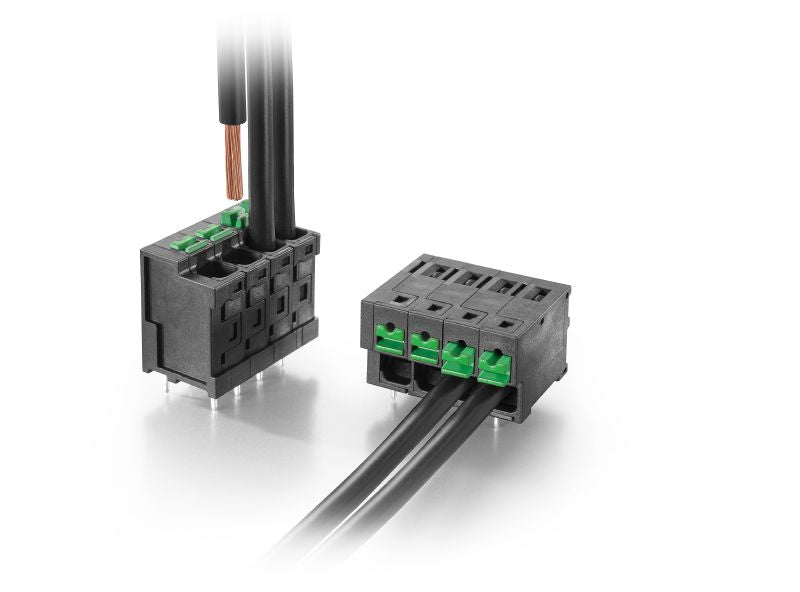

•Uses SNAP IN wire connection method.
•Touch-safe protection according to DIN VDE 0470 and VDE 57 106 standards.
•WireReady property for convenience.
Specifications:
| Dimensions | {'Depth': '13.2 mm', 'Height': '22.35 mm', 'Width': '22.3 mm'} |
| Temperature | {'Ambient': '-50 °C to 80 °C', 'Installation': '-50 °C to 70 °C', 'Storage': '-25 °C to 55 °C', 'Operating': '-50 °C to 80 °C'} |
| Material | {'Insulating Material': 'PA 9T', 'Contact Material': 'Cu-alloy', 'UL 94 Flammability Rating': 'V-0'} |
| Rated Data | {'Rated Voltage (IEC)': '400 V', 'Rated Current (IEC)': '32 A', 'Rated Current (UL)': '18.5 A', 'Rated Impulse Voltage': '4 kV'} |
| Clamping Range | {'Min': '0.34 mm²', 'Max': '4 mm²'} |
| Protection Degree | IP20 |
