Description:

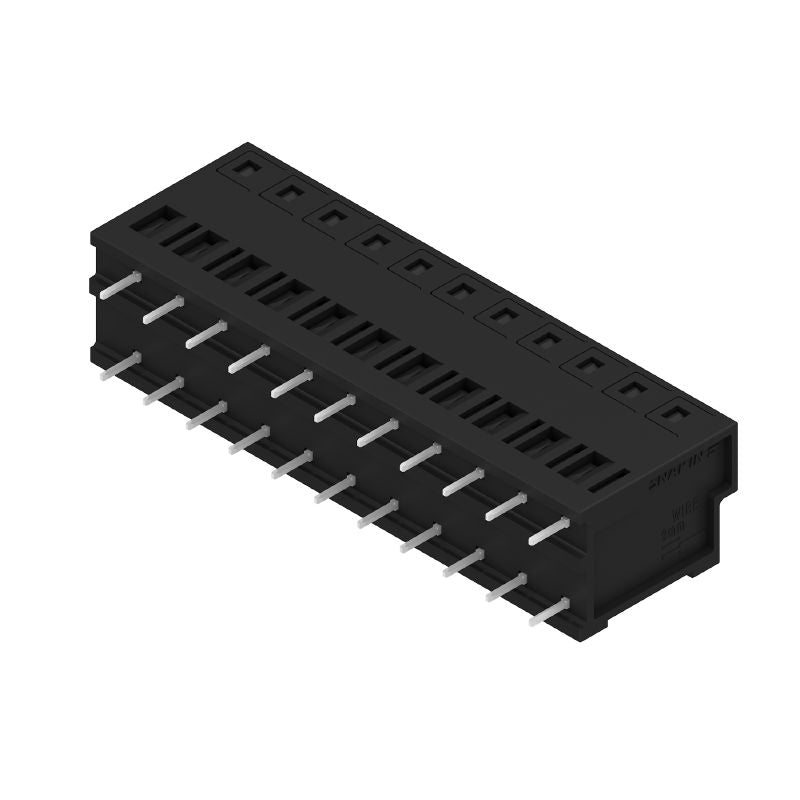

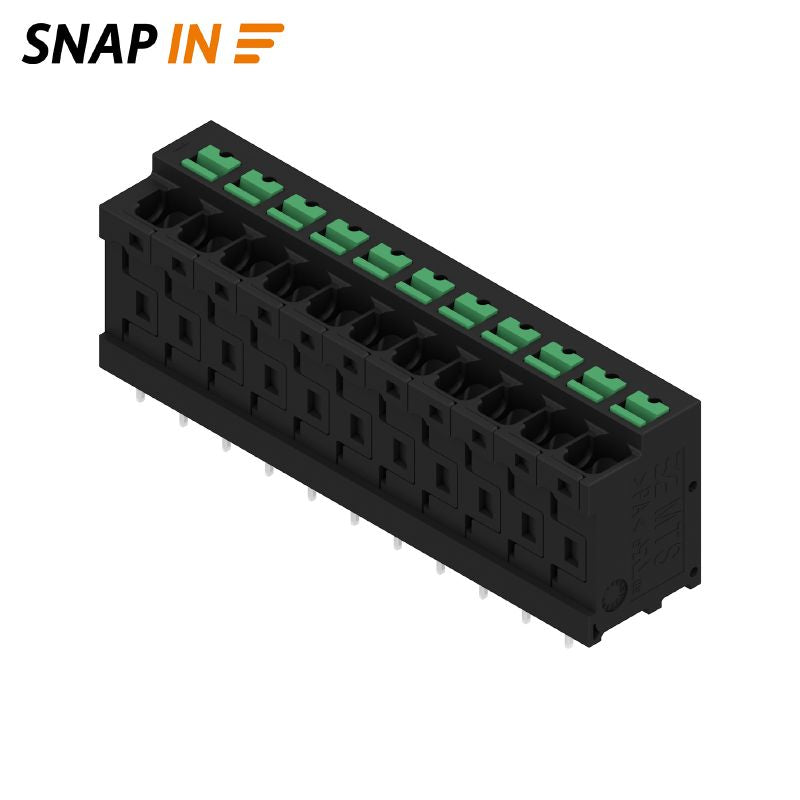

Optimize your electrical connections with these printed circuit board terminals, specifically engineered for THT solder applications With a pitch of 500 mm and a capacity of 11 poles, these terminals are built to meet rigorous standards They are RoHS and UL certified (certificate number E60693), making them reliable for multiple uses Capable of handling IEC specifications of up to 400 V and 32 A, as well as UL ratings of 300 V and 18.
5 A, they offer exceptional performance Delivered in organized tubes, these terminals ensure convenient storage and use.
Features and Benefits:
•Compliant with international standards and norms.
•Compact design with 180° conductor outlet direction.
•Touch-safe protection according to DIN VDE regulations.
Specifications:

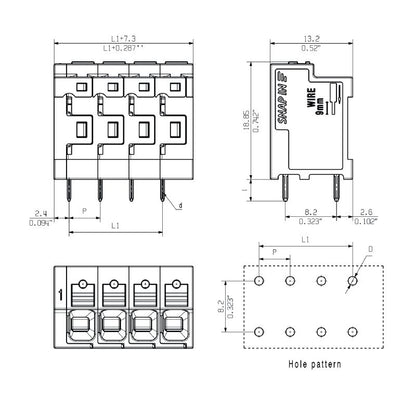

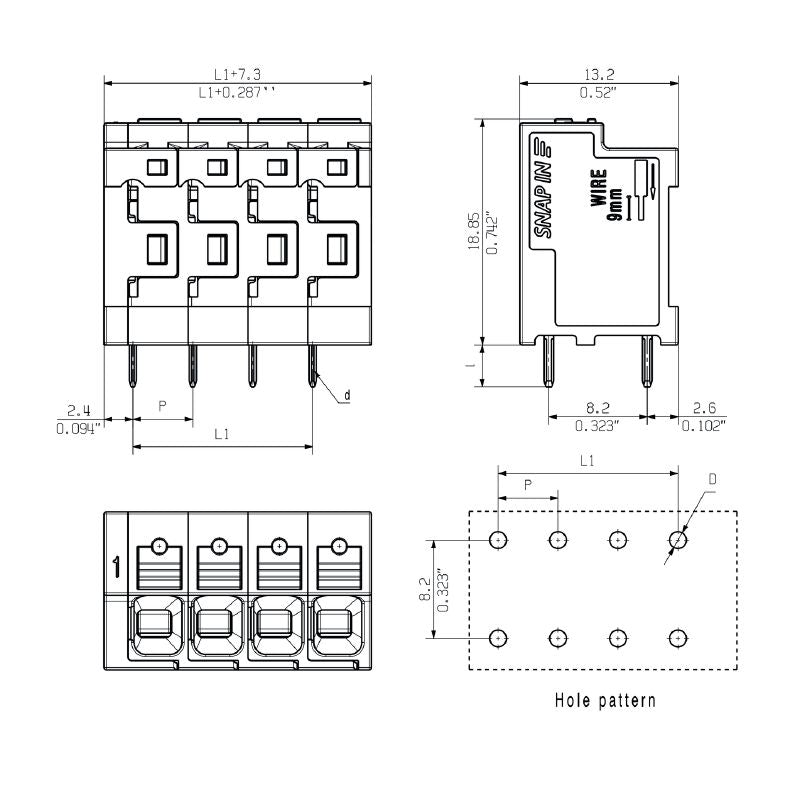

| Pitch in mm | 5.00 mm |
| Number of poles | 11 |
| Rated voltage | 400 V |

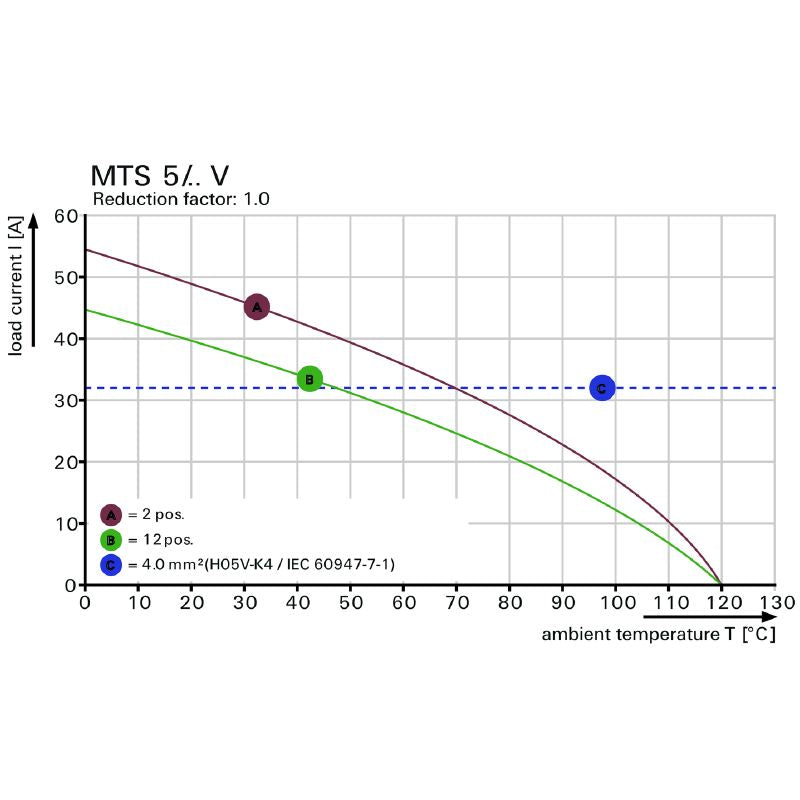

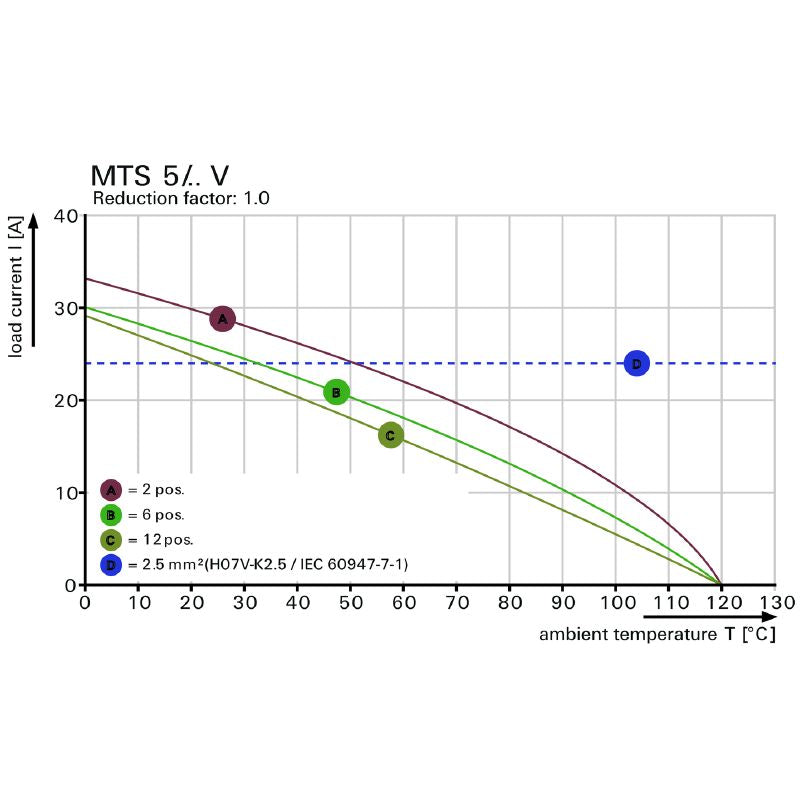

| Rated current | 32 A |
| Installation temperature | -50 °C to +70 °C |
| Ambient temperature | -50 °C…80 °C |
| Insulating material | PA 9T |
| Protection degree | IP20 |
| Storage temperature, min | -25 °C |
| Storage temperature, max | 55 °C |
