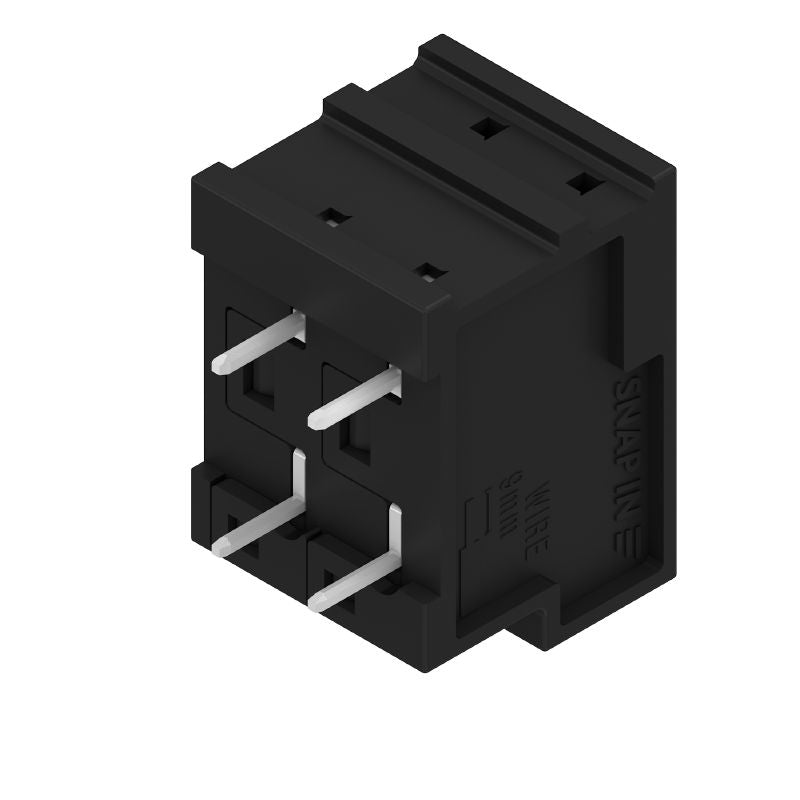

2913600000 - PCB Terminal 5mm Pitch, 2 Poles, 400V, UL Certified (Pack of 44)
2913600000 - PCB Terminal 5mm Pitch, 2 Poles, 400V, UL Certified (Pack of 44)
SKU: SKU: 2913600000 Download PDF
- 2913600000 - PCB Terminal 5mm Pitch, 2 Poles, 400V, UL Certified (Pack of 44)
- 2913600000 - PCB Terminal 5mm Pitch, 2 Poles, 400V, UL Certified (Pack of 44)
Couldn't load pickup availability
Description:
Discover the reliability of this printed circuit board terminal, designed for efficient electrical connectivity Featuring THT solder connections and a pitch of 500 mm, it comes packaged in a tube containing two poles Adhering to IEC standards, it supports a voltage of 400 V and a current of 32 A, while also holding a UL certification for 300 V and 185 A specifications This organized packaging includes a total of 44 units, ensuring safe and convenient storage for all your project needs.
Features and Benefits:
•RoHS compliant without exemption.

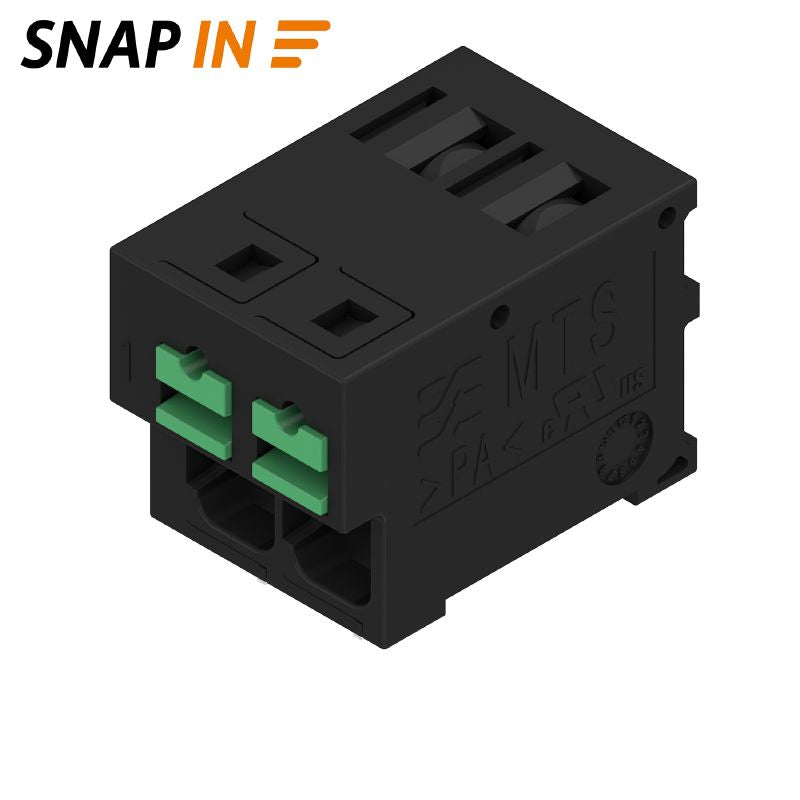

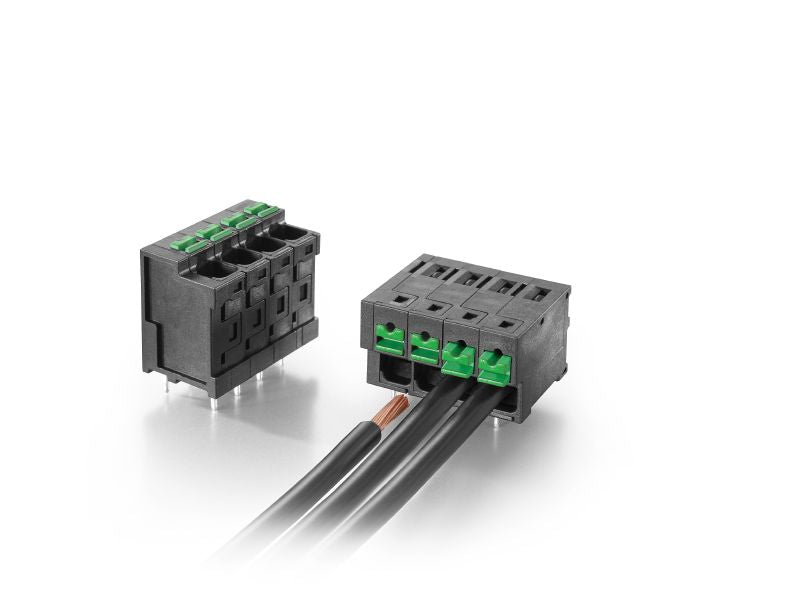

•SNAP IN wire connection with push button.
•Touch-safe protection according to DIN VDE standards.
Specifications:

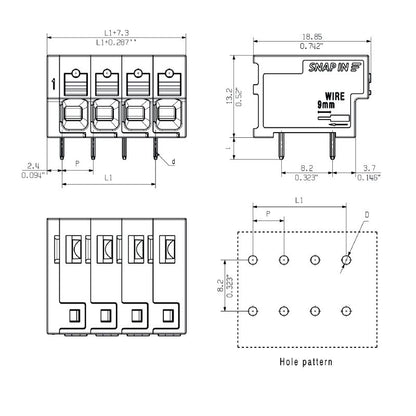

| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 12.3 mm |
| Ambient temperature | -50 °C…80 °C |
| Installation temperature | -50 °C to +70 °C |
| Clamping range min. | 0.34 mm² |
| Clamping range max. | 4 mm² |
| Rated voltage for surge voltage class III/2 | 400 V |

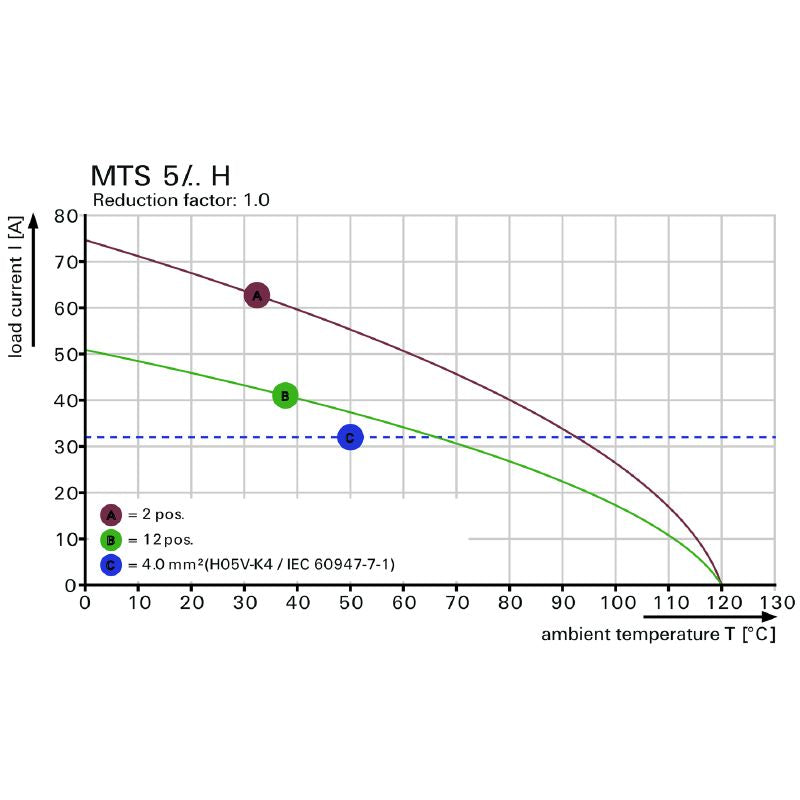

| Rated current, max. number of poles (Tu=20°C) | 32 A |
| Solder pin length (l) | 3.5 mm |
| Protection degree | IP20 |
| Insulating material | PA 9T |
| UL 94 flammability rating | V-0 |
