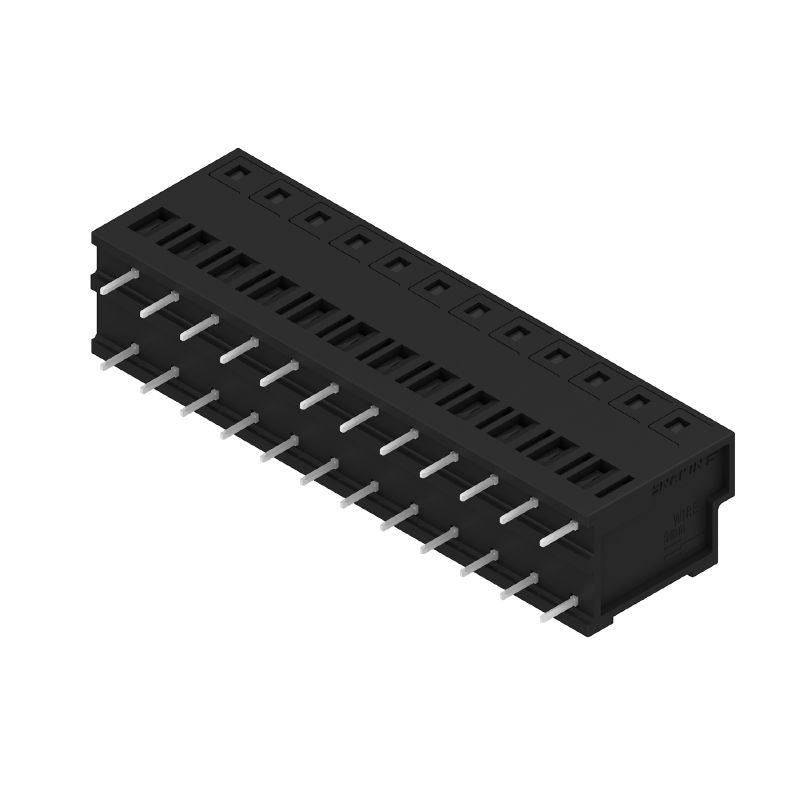

2913810000 - MTS 5.00mm PCB Terminal 12-Pole for Through-Hole Soldering (Pack of 8)
2913810000 - MTS 5.00mm PCB Terminal 12-Pole for Through-Hole Soldering (Pack of 8)
SKU: SKU: 2913810000 Download PDF
- 2913810000 - MTS 5.00mm PCB Terminal 12-Pole for Through-Hole Soldering (Pack of 8)
- 2913810000 - MTS 5.00mm PCB Terminal 12-Pole for Through-Hole Soldering (Pack of 8)
Couldn't load pickup availability
Description:
Introducing the MTS 5/12 V T4 B T PCB terminal, expertly crafted for reliable through-hole soldering This terminal accommodates a 500 mm pitch and boasts 12 poles for versatile connectivity With its RoHS compliance and UL certification (Certificate No E60693), you can trust its quality It meets IEC standards of up to 400 V and 32 A, along with UL specifications of up to 300 V and 185 A Supplied in a convenient tube, this terminal operates efficiently in temperatures ranging from -50 °C to 80 °C, and it weighs just 30.
578 grams, making it a great addition to your electrical components.
Features and Benefits:
•Compliant with RoHS regulations.
•Designed for THT solder connections.

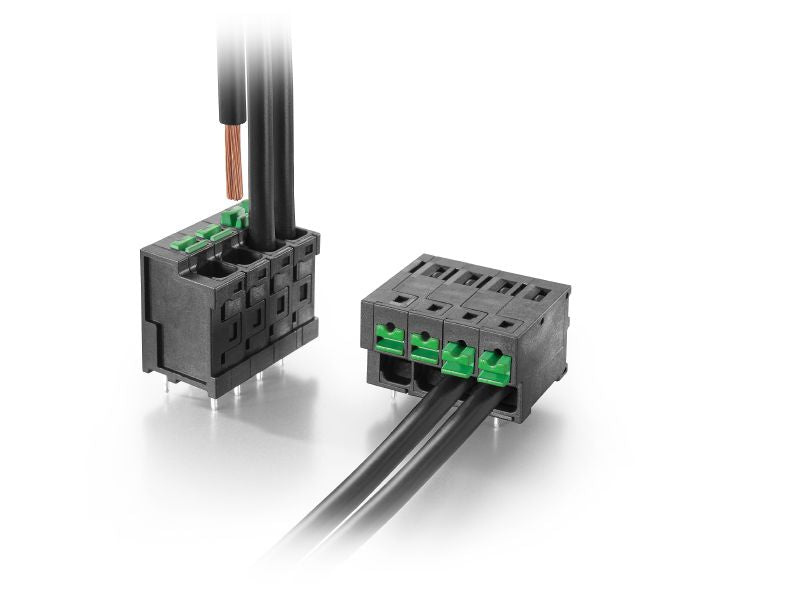

•Utilizes SNAP IN wire connection with a push button.
•Touch-safe according to DIN VDE standards.
•Single row with a conductor outlet direction of 180°.
•Material includes a durable insulating material PA 9T.
Specifications:
| Rated current (min.) | 32 A |
| Rated current (max.) | 32 A |
| Rated voltage (IEC) | 400 V |
| Rated voltage (UL) | 300 V |

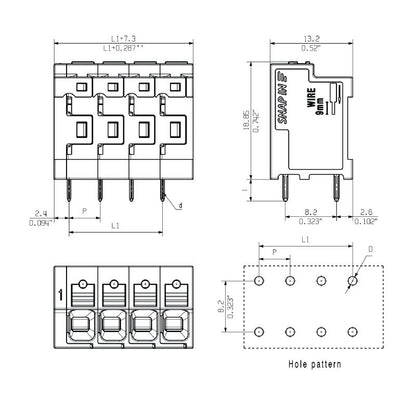

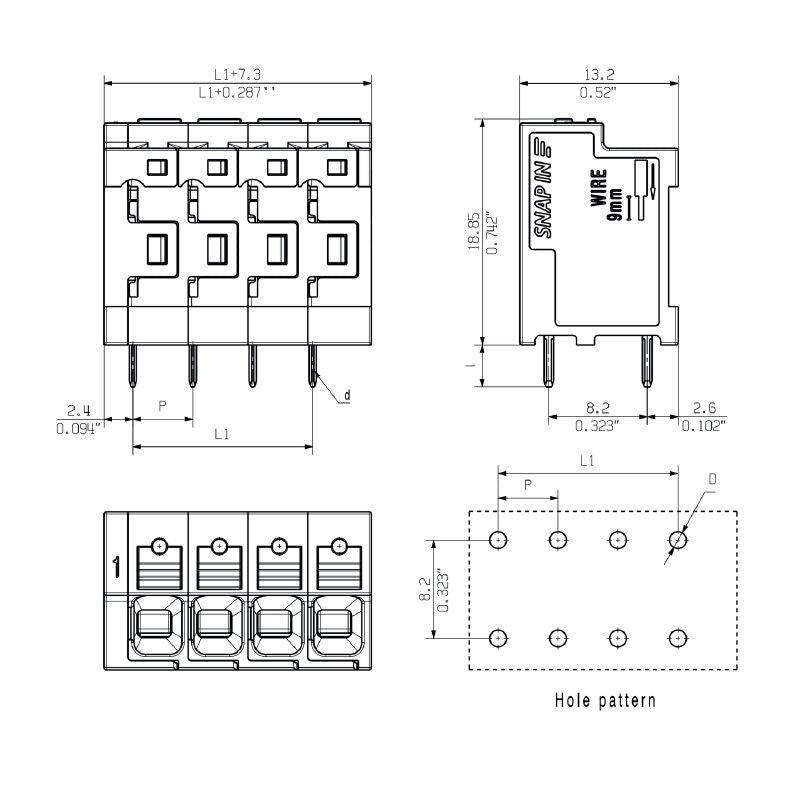

| Pitch | 5 mm |
| Number of poles | 12 |
| Depth | 13.2 mm |
| Height | 22.35 mm |
| Width | 62.3 mm |
| Operating temperature (min.) | -50 °C |
| Operating temperature (max.) | 80 °C |
| Storage temperature (min.) | -25 °C |
| Storage temperature (max.) | 55 °C |
| Moisture Level | 1 |
