Description:

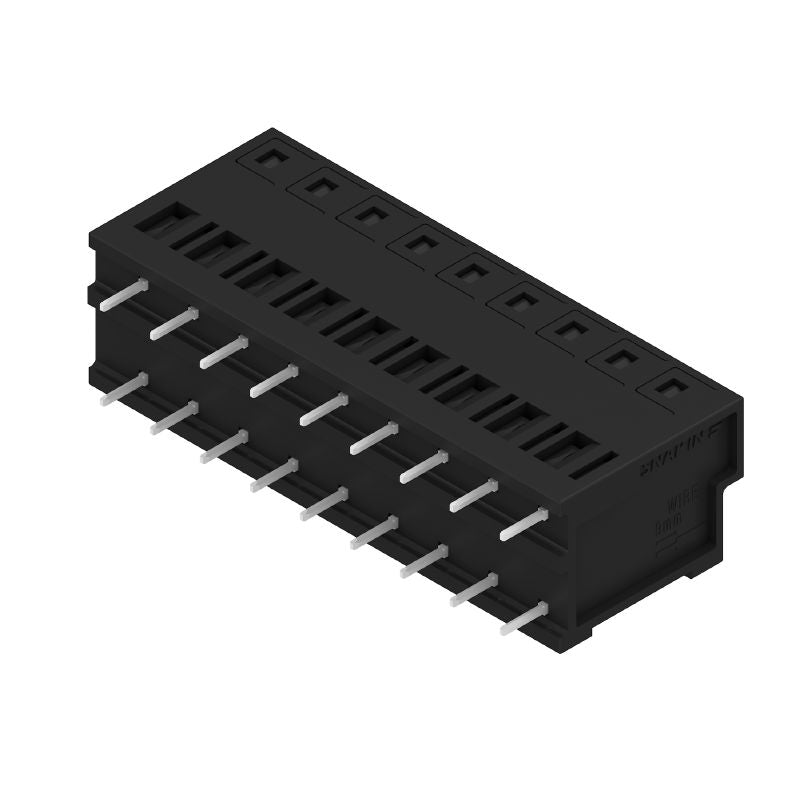

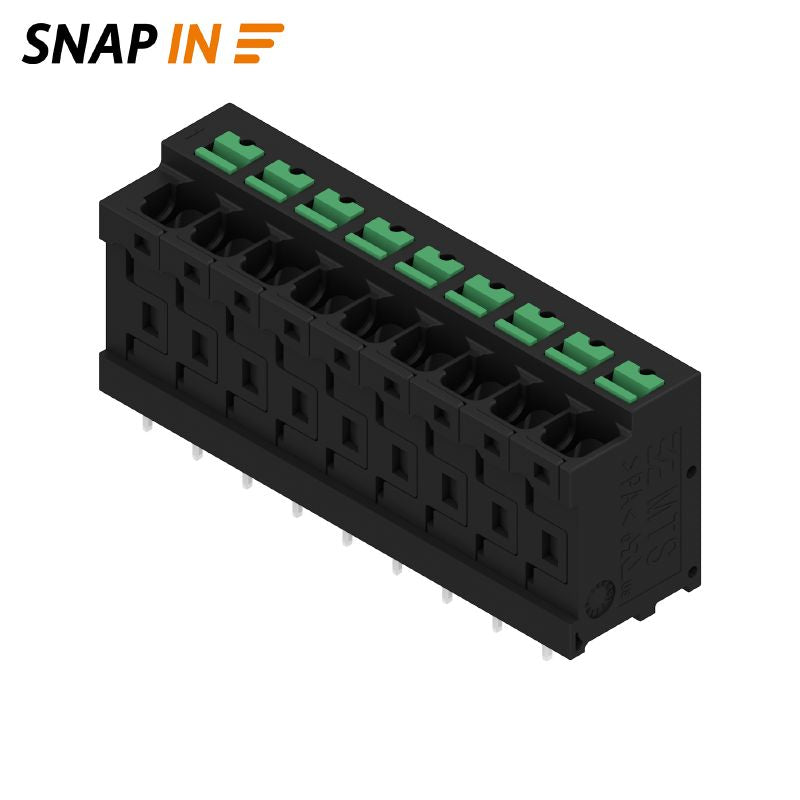

Introducing the MTS 5/09 V T4 B T terminal, an efficient printed circuit board component tailored for THT solder connections Boasting a 500 mm pitch and supporting 9 poles, this terminal meets both RoHS standards and adheres to IEC and UL electrical regulations Its innovative SNAP IN wire connection, complemented by a push button, simplifies installation, making it user-friendly Additionally, it can operate in environments ranging from -50 °C to 80 °C, showcasing its versatility in various conditions.
Features and Benefits:
•RoHS compliant without exemption.
•Easy installation with SNAP IN push button method.
•Wide temperature range support from -50 °C to 80 °C.
Specifications:
| Voltage IEC | 400 V |
| Current IEC | 32 A |
| Wire connection method | SNAP IN with push button |
| Pitch | 5 mm |
| Number of poles | 9 |
| Solder pin dimensions | 0.6 x 0.8 mm |
| Rated voltage UL | 300 V |
| Rated current UL | 18.5 A |
| Insulating material | PA 9T |
| Flammability rating | V-0 |

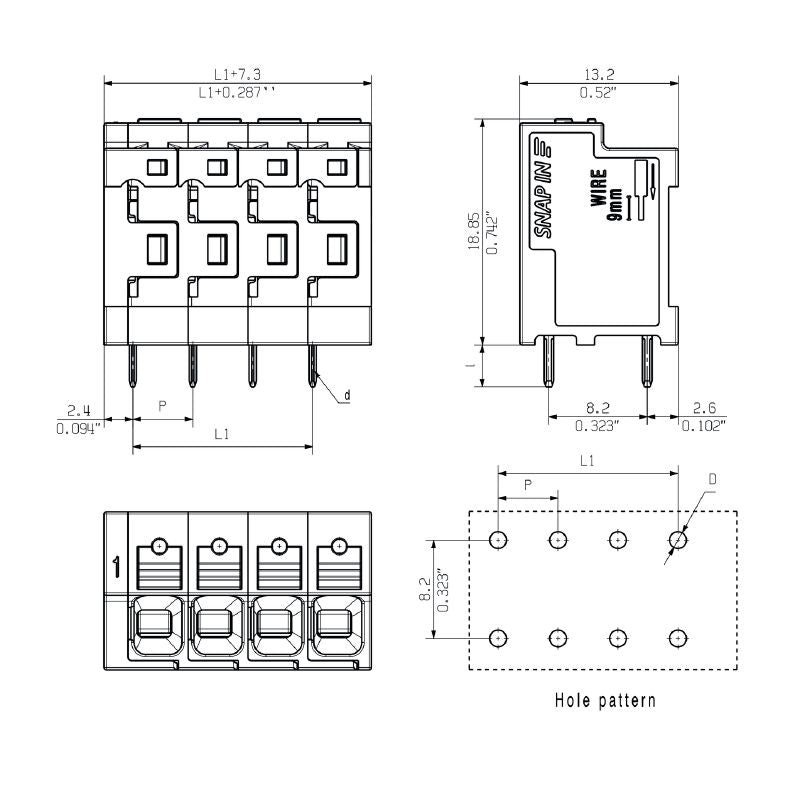

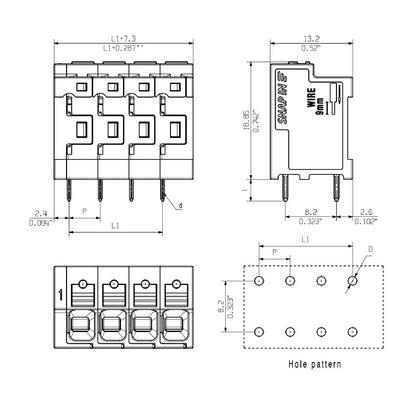

| Depth | 13.2 mm |
| Height | 22.35 mm |
| Width | 47.3 mm |
