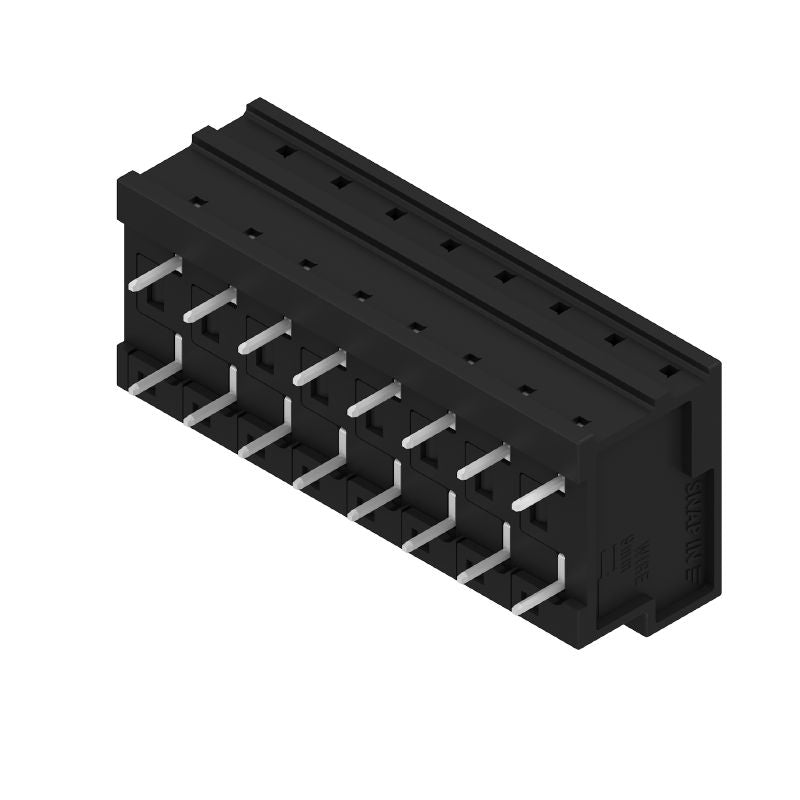

2913660000 - 5mm Pitch THT 8-Pole Terminal Block for PCB Connections (Pack of 12)
2913660000 - 5mm Pitch THT 8-Pole Terminal Block for PCB Connections (Pack of 12)
SKU: SKU: 2913660000 Download PDF
- 2913660000 - 5mm Pitch THT 8-Pole Terminal Block for PCB Connections (Pack of 12)
- 2913660000 - 5mm Pitch THT 8-Pole Terminal Block for PCB Connections (Pack of 12)
Couldn't load pickup availability
Description:
This terminal block is expertly made for printed circuit board applications, featuring a through-hole solder connection with a pitch of 500 mm It accommodates up to 8 poles and is conveniently packaged in a tube Compliant with RoHS standards and certified by UL (file number E60693), it ensures quality and reliability for your electronic connections.
Features and Benefits:
•Designed for a wide ambient temperature range from -50 °C to 80 °C.
•Easy connection method using SNAP IN with a push button.
•Touch-safe protection according to DIN VDE standards.
•Wire connection method is compatible with multiple wire sizes.
Specifications:

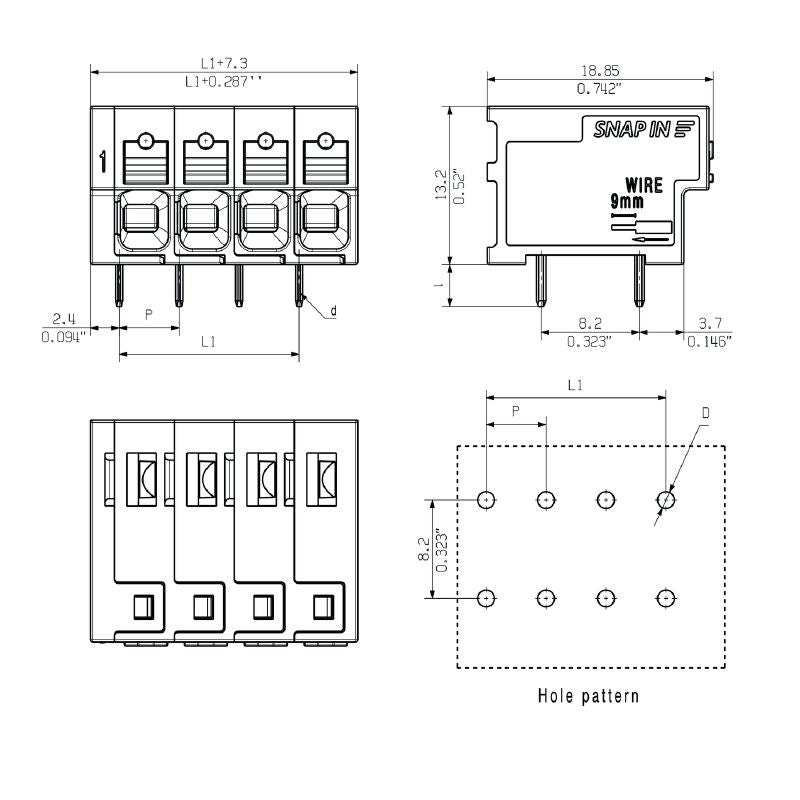

| Pitch in mm | 5.00 mm |
| Number of poles | 8 |
| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 42.3 mm |
| Net weight | 19.926 g |
| Rated Voltage | 400 V |
| Rated Current | 32 A |
| Ambient Temperature | -50 °C…80 °C |
| Installation Temperature | -50 °C to +70 °C |
| Insulating Material | PA 9T |
| Solder Pin Length | 3.5 mm |
| Touch-safe Protection | IP 20 |
| Moisture Level | 1 |
| UL Voltage Rating | 300 V |
