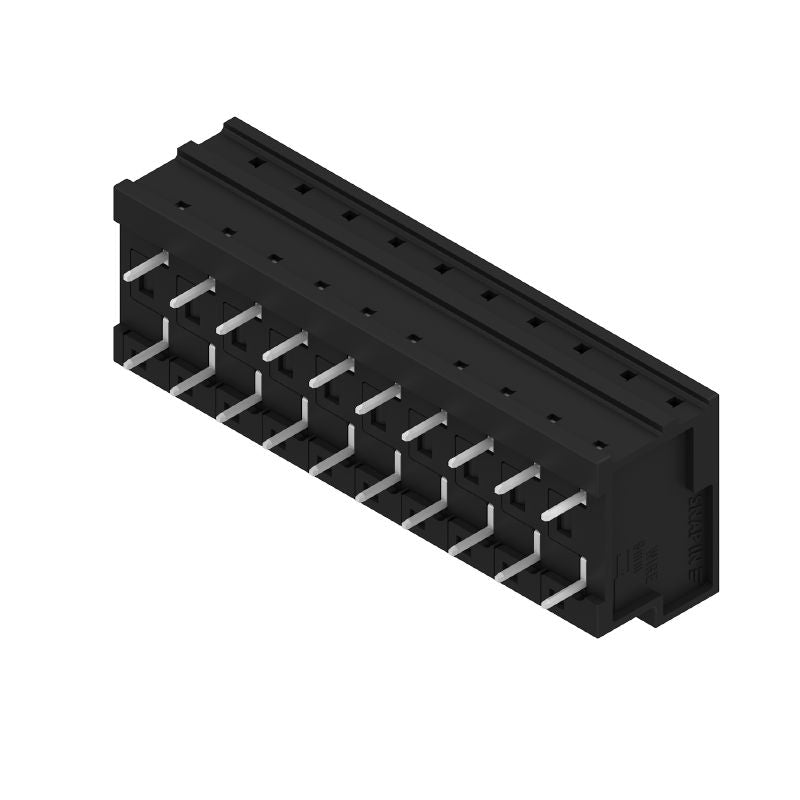

2913680000 - 5mm Pitch PCB Terminal for 10 Poles, THT Connections (Pack of 10)
2913680000 - 5mm Pitch PCB Terminal for 10 Poles, THT Connections (Pack of 10)
SKU: SKU: 2913680000 Download PDF
- 2913680000 - 5mm Pitch PCB Terminal for 10 Poles, THT Connections (Pack of 10)
- 2913680000 - 5mm Pitch PCB Terminal for 10 Poles, THT Connections (Pack of 10)
Couldn't load pickup availability
Description:
Discover versatility with our printed circuit board terminal, specifically crafted for through-hole (THT) soldering connections This component has a 5 mm pitch and supports 10 poles within each tube, ensuring reliable connections It complies with IEC standards for voltages up to 400 V and currents of 32 A, accommodating wire sizes from 05 mm² to 4 mm² Additionally, it meets UL standards for up to 300 V and 18.
5 A, compatible with wire sizes from AWG 12 to AWG 20 The bipartite design allows for seamless and efficient installation, making it a practical choice for your electronic projects.
Features and Benefits:
•Compliant with RoHS without exemptions.

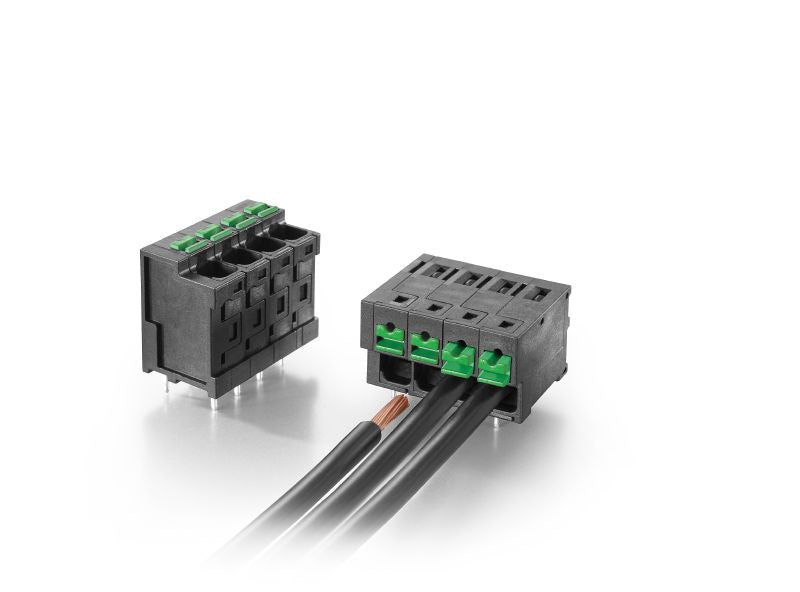

•SNAP IN wire connection method for easy assembly.
•Touch-safe protection according to DIN VDE.
•1.3 mm solder eyelet hole diameter.
•Suitable for various wire types, including flexible and solid conductors.
Specifications:

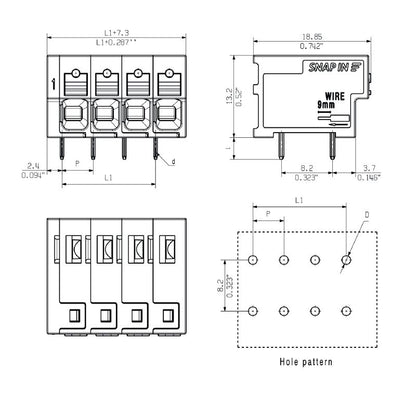

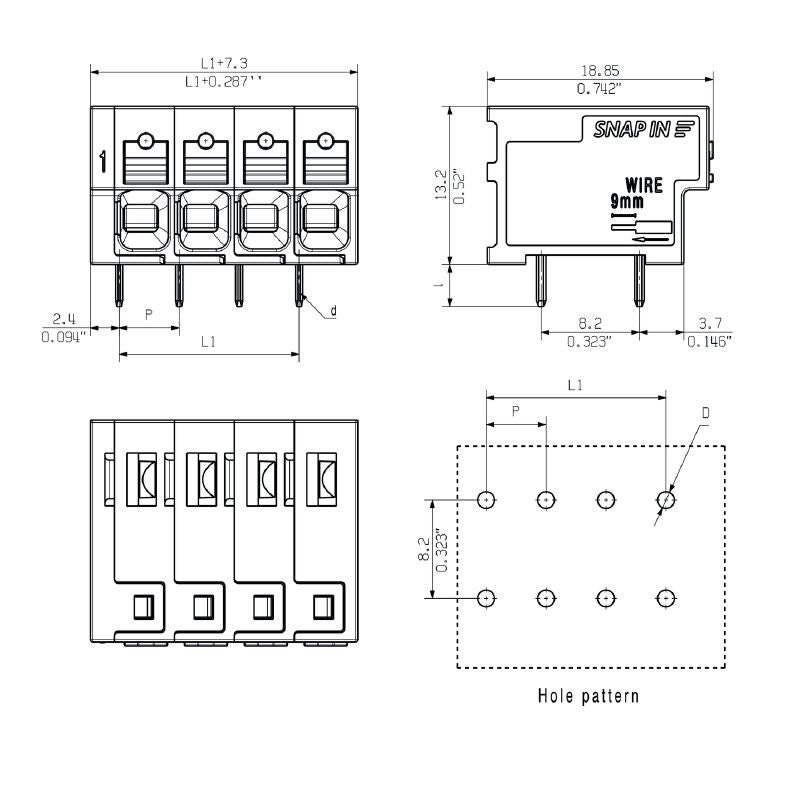

| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 52.3 mm |
| Rated voltage | 400 V / 300 V |

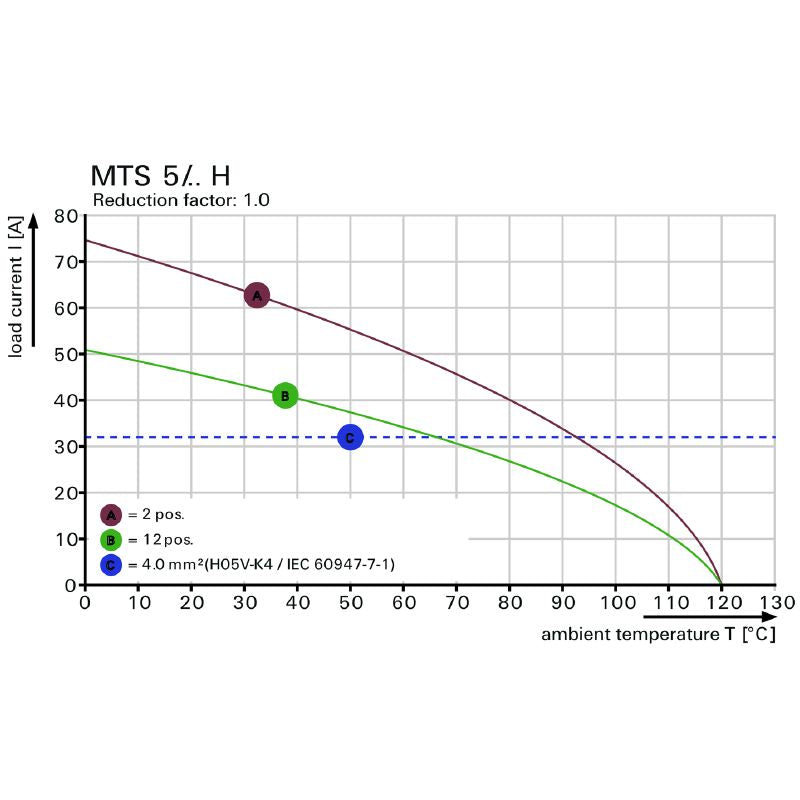

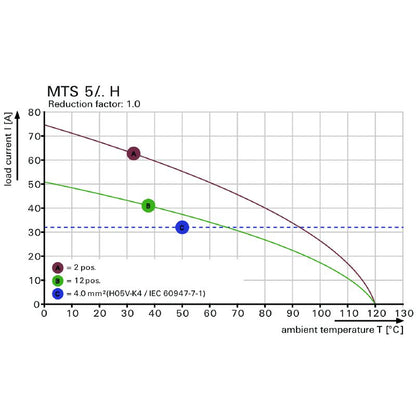

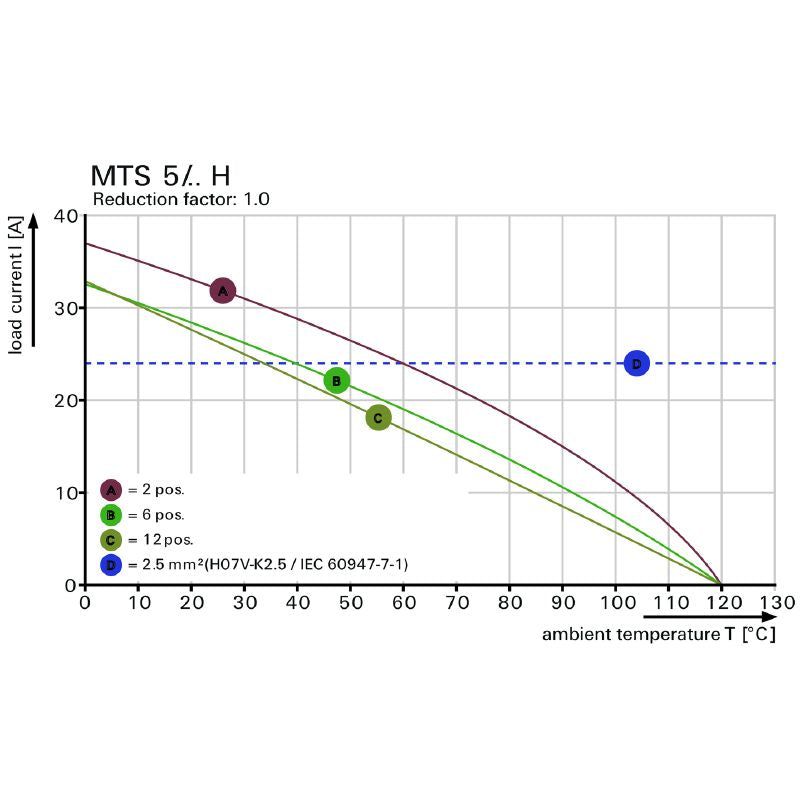

| Rated current | 32 A / 18.5 A |
| Operating temperature | -50 °C to 80 °C |
| Solder pin length | 3.5 mm |
| Pitch in mm | 5 mm |
| No. of poles | 10 |
| Insulating material | PA 9T |
| Protection degree | IP20 |
