Description:
Introducing a reliable printed circuit board terminal, expertly designed for through-hole soldering with a pin pitch of 500 mm and accommodating up to 6 connections Each terminal is conveniently packaged in tubes, making ordering simple and efficient With ROHS compliance and UL certification, this terminal ensures safe and reliable performance It can withstand ambient temperatures from -50 °C to 80 °C and is suitable for installation temperatures between -50 °C and 70 °C.
The versatile clamping range supports wire sizes from 05 to 4 mm², making it ideal for use within specific voltage ratings.
Features and Benefits:

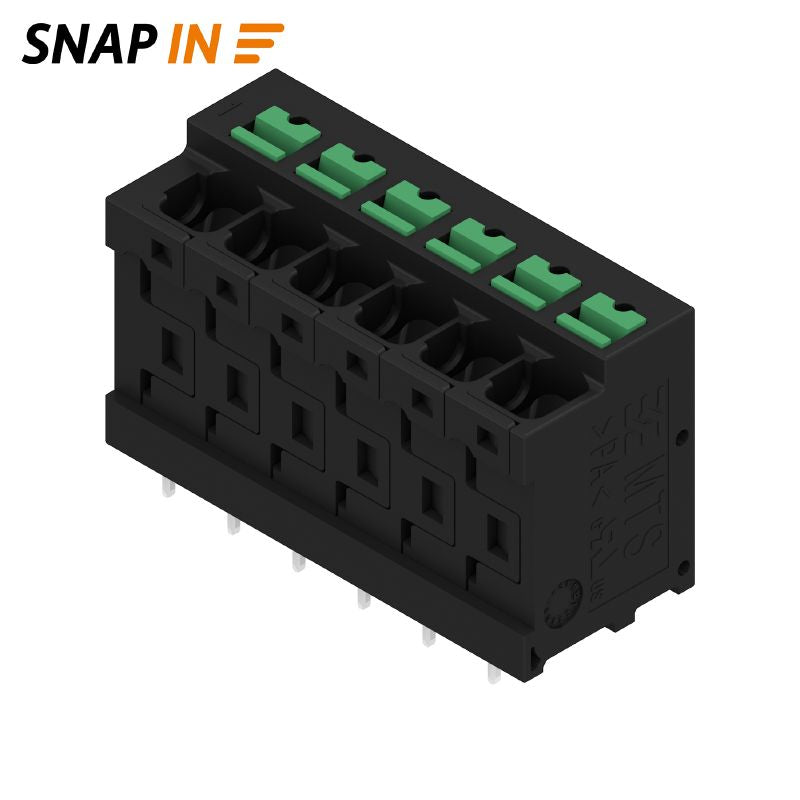

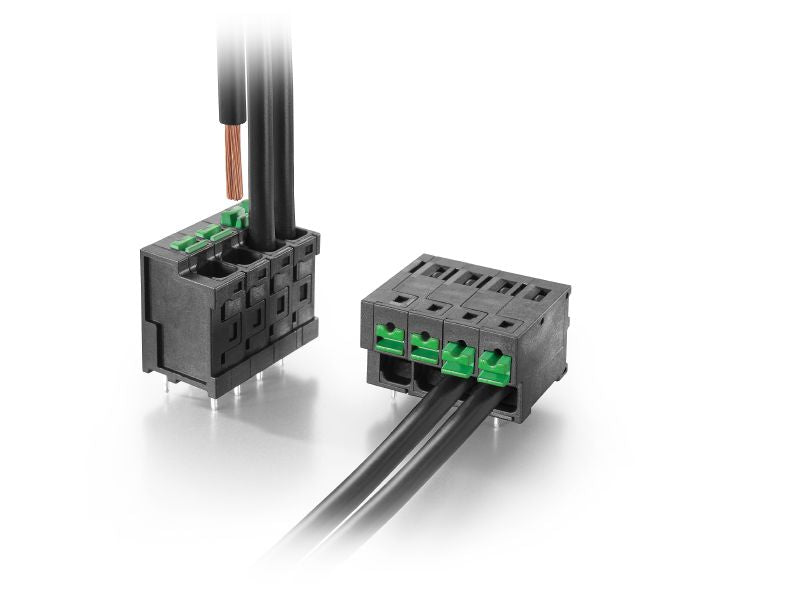

•PCB terminal with a snap-in connection method.
•Clamping range supports both solid and flexible wires.
•Designed for high mechanical reliability with push button for easy operation.
•Touch-safe protection based on DIN standards.
Specifications:
| Pitch | 5.00 mm |
| Rated Voltage (IEC) | 400 V / 300 V |
| Rated Current | 32 A / 18.5 A |

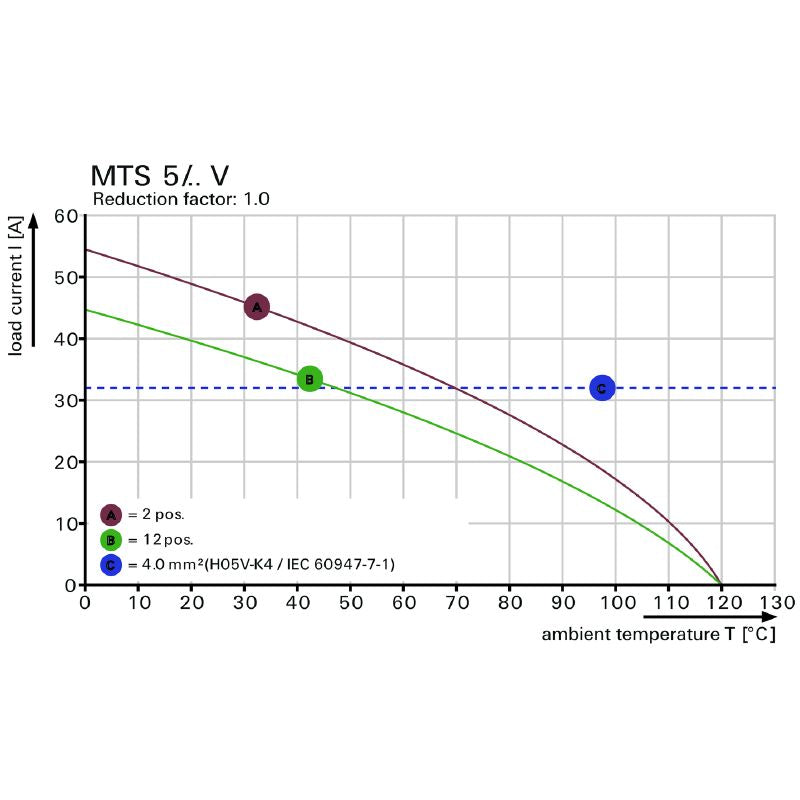

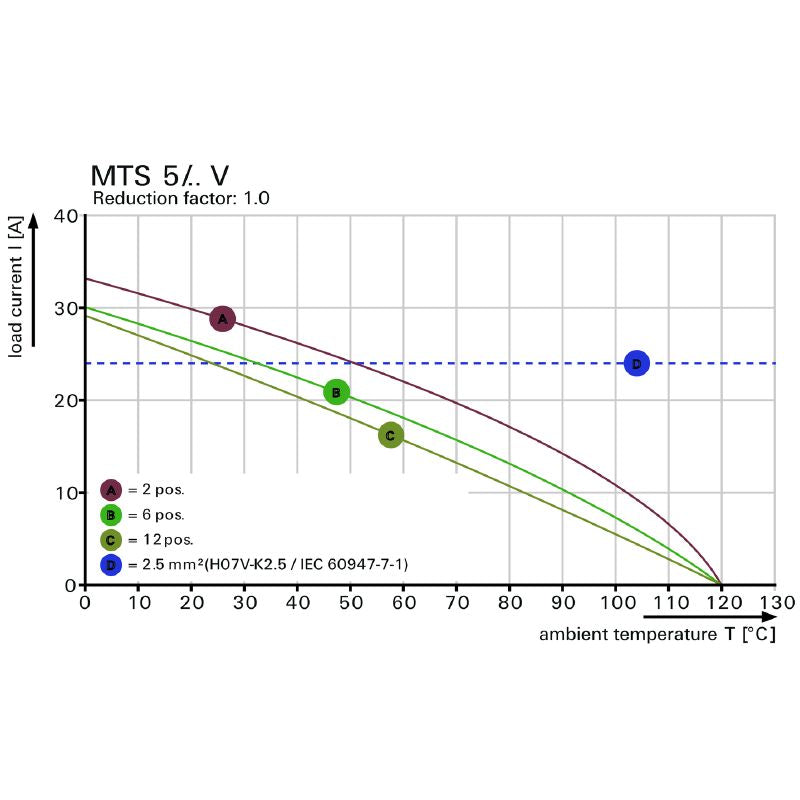

| Ambient Temperature | -50 °C…80 °C |
| Insulating Material | PA 9T |
| Contact Material | Cu-alloy |
| Number of poles | 6 |

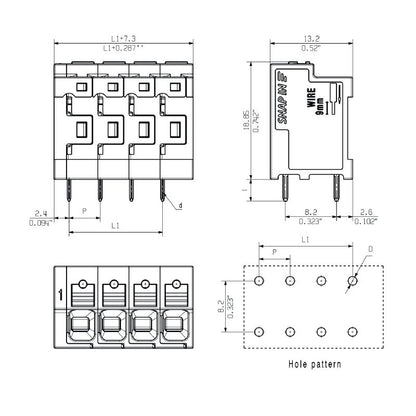

| Dimensions (L x W x H) | 32.3 mm x 13.2 mm x 22.35 mm |
| Solder Pin Length | 3.5 mm |
| Stripping Length | 9 mm |
| Protection Degree | IP20 |
| UL Flammability Rating | V-0 |
