Description:

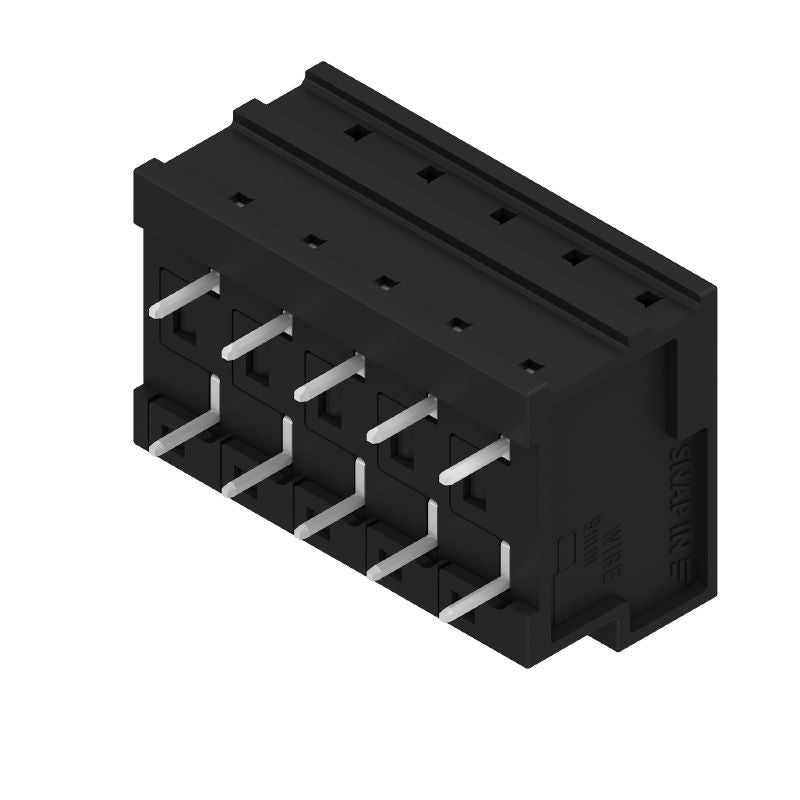

Introducing the MTS 5/05 H T4 B T, a reliable printed circuit board terminal specifically engineered for through-hole soldering applications With a pole count of five and a pitch measurement of 500 mm, this terminal offers excellent connectivity It is rated for 400 V and 32 A, meeting both UL and IEC standards, and is RoHS compliant to ensure safety and environmental responsibility Crafted from PA 9T insulating material, it comes conveniently packaged in tubes.
This terminal is built to withstand a temperature range of -50 °C to 80 °C and has various certifications for environmental compliance, making it a dependable choice for your electronic projects.
Features and Benefits:

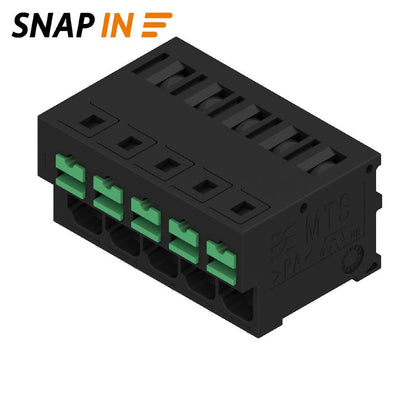

•SNAP IN wire connection method with a push button.
•WireReady property for enhanced usability.
•IP20 rated safety protection against touch.
•Designed for use with flexible and solid conductors with varying cross-sections.
Specifications:

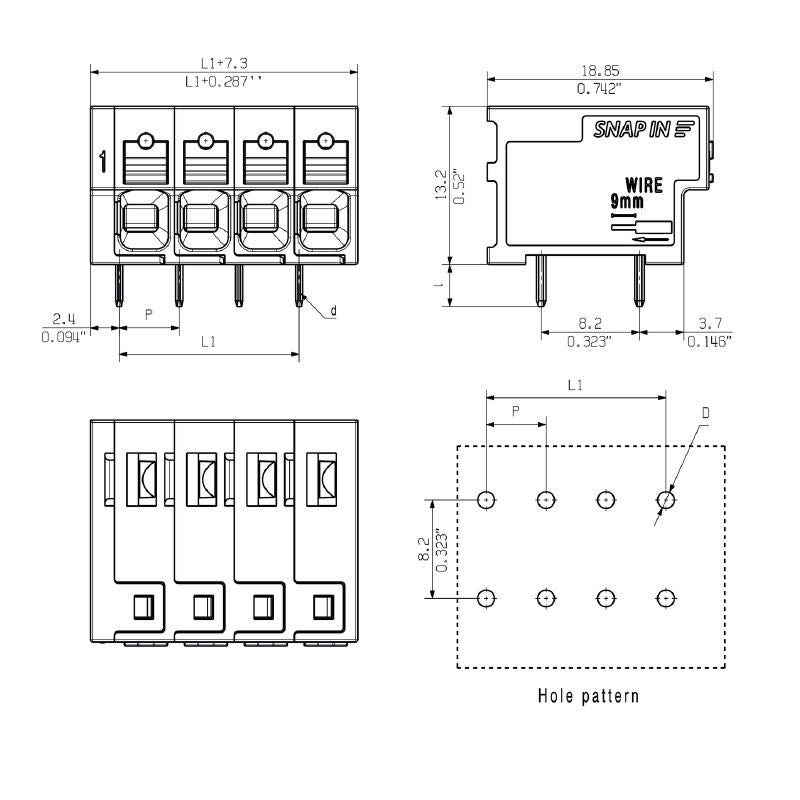

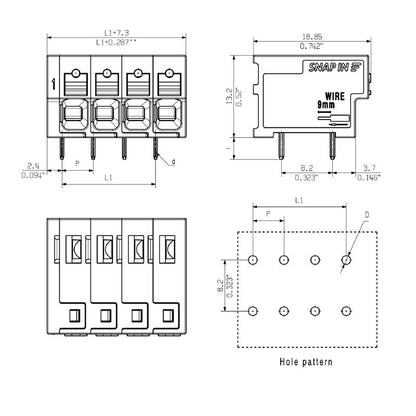

| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 27.3 mm |
| Ambient temperature | -50 °C to 80 °C |
| Installation temperature | -50 °C to 70 °C |
| Wire connection cross section AWG, min | AWG 20 |
| Wire connection cross section AWG, max | AWG 12 |
| Rated current, min | 32 A |
| Rated current, max | 32 A |
| Rated voltage | 400 V |
| Solder pin length | 3.5 mm |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
