Description:

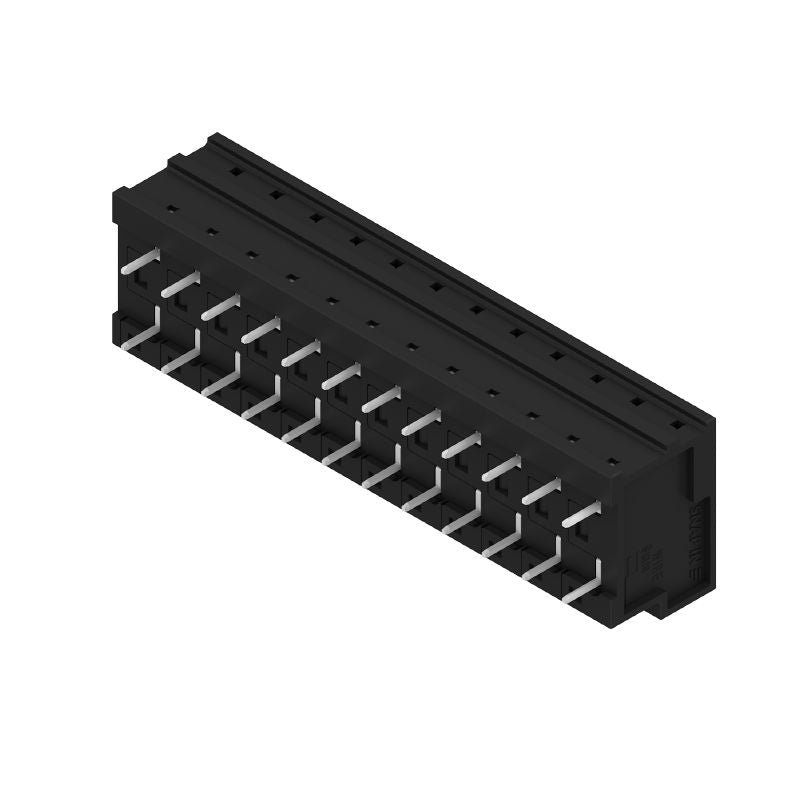

Discover our specialized circuit board terminals designed specifically for THT solder connections With a 5 mm pitch, these terminals support up to 12 poles and come conveniently packaged in a tube They meet RoHS compliance standards and hold a cURus certification (Certificate No E60693) These terminals are rated for voltages of 400 V at 32 A in accordance with IEC guidelines, and 300 V at 185 A as specified by UL standards, ensuring reliability and safety for your electrical applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Conforms to IPC-A-610 'Class 2'.

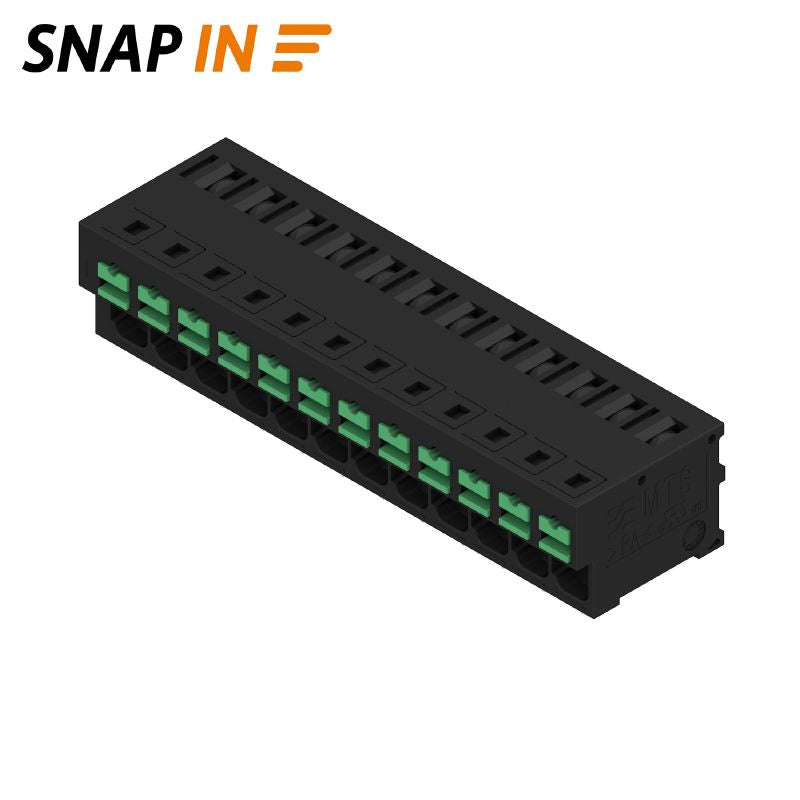

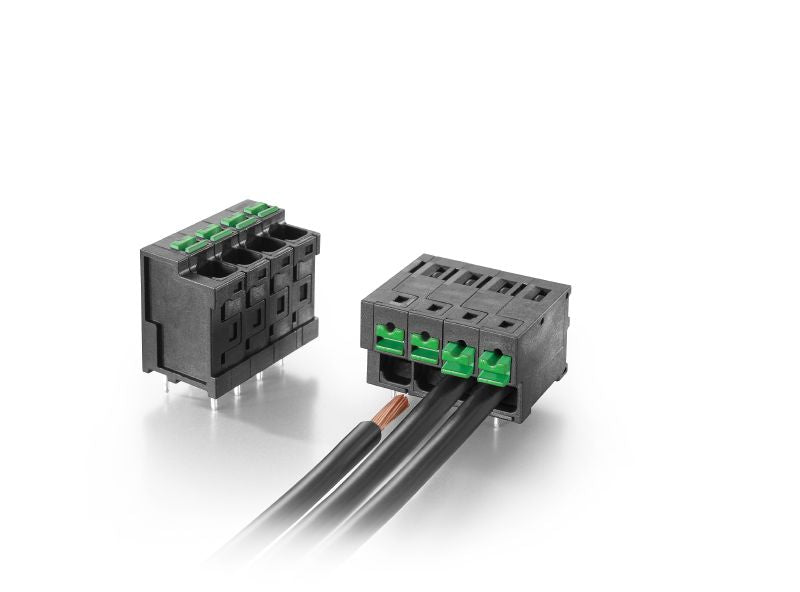

•Allows for SNAP IN wire connection with a push button mechanism.
•Touch-safe protection according to DIN VDE standards.
•Accommodates a wide range of wire sizes from 0.34 mm² to 4 mm².
Specifications:
| Pitch in mm | 5 mm |
| Number of poles | 12 |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 32 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 18.5 A |

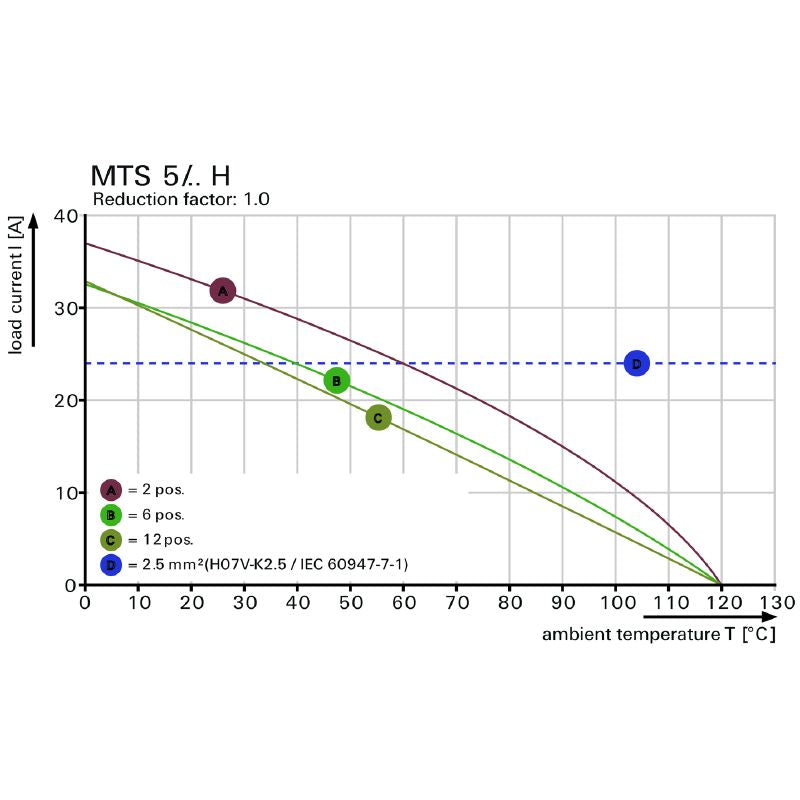

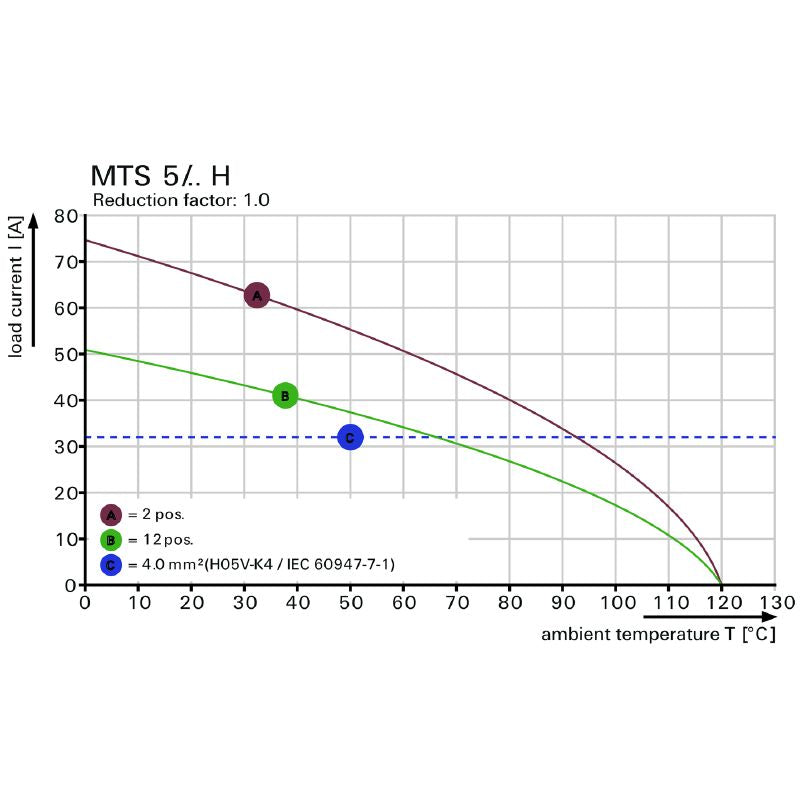

| Ambient temperature | -50 °C to 80 °C |
| Installation temperature | -50 °C to 70 °C |

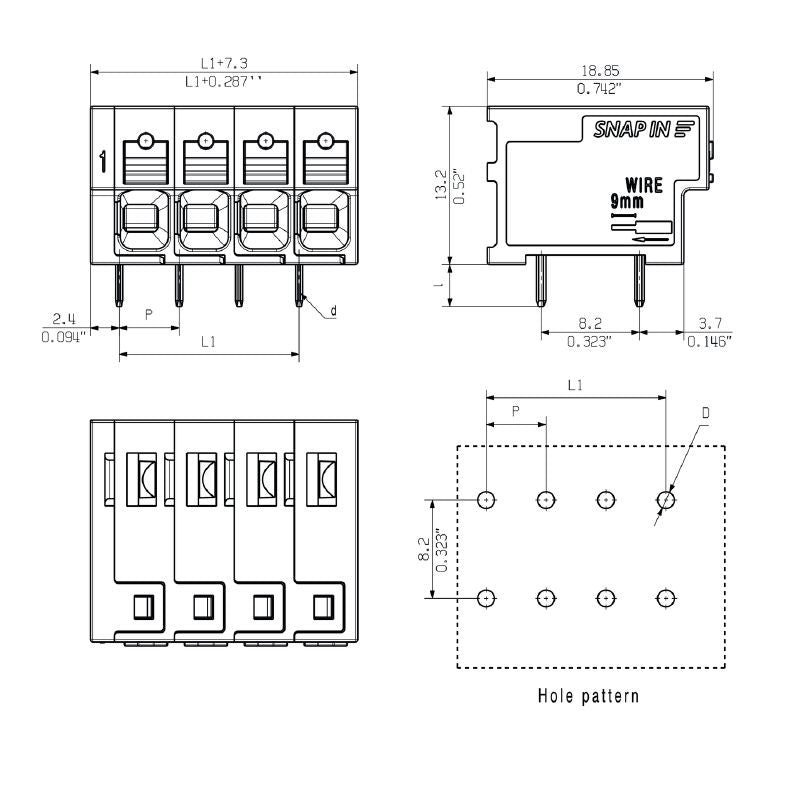

| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 62.3 mm |
| Net weight | 29.618 g |
| Color | black |
