Description:

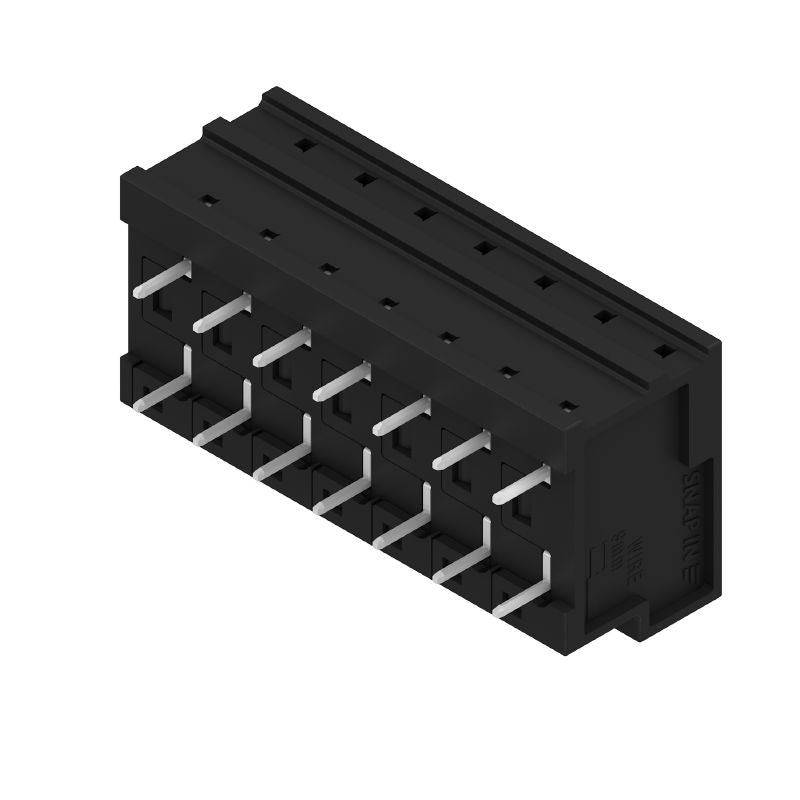

Optimize your connections with these printed circuit board terminals, perfect for THT solder applications Designed with a 5 mm pitch, these terminals can accommodate up to 7 poles and support a working voltage of 400 V at 32 A They are compatible with wire sizes from 05 mm² to 4 mm² Each terminal meets rigorous standards, including UL and RoHS compliance Supplied in tubes, you'll receive 14 terminals per package.
Features and Benefits:
•RoHS Compliant without exemption.
•Suitable for a variety of wire connection cross-sections.

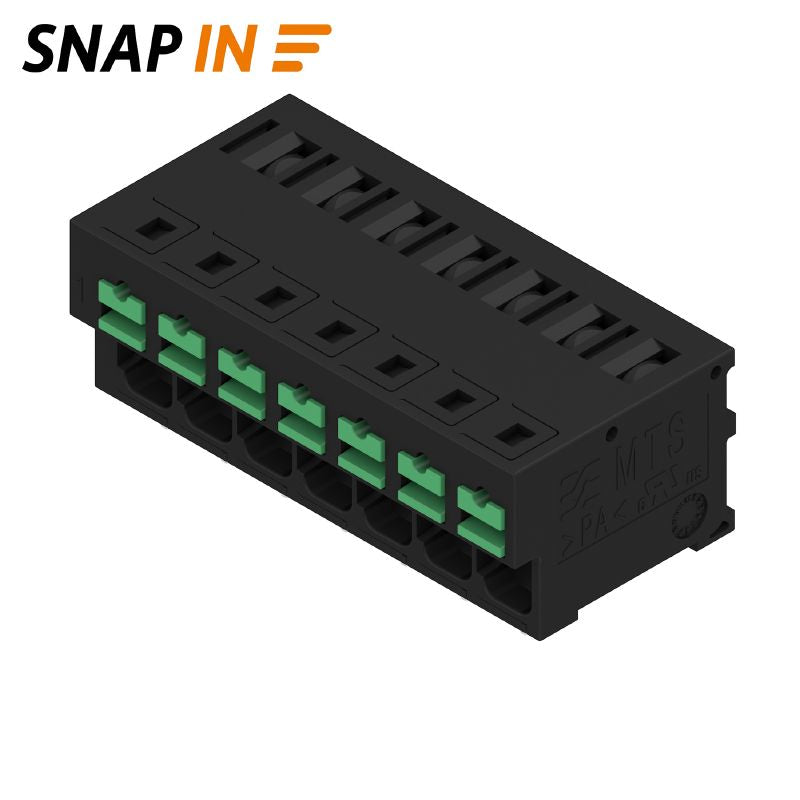

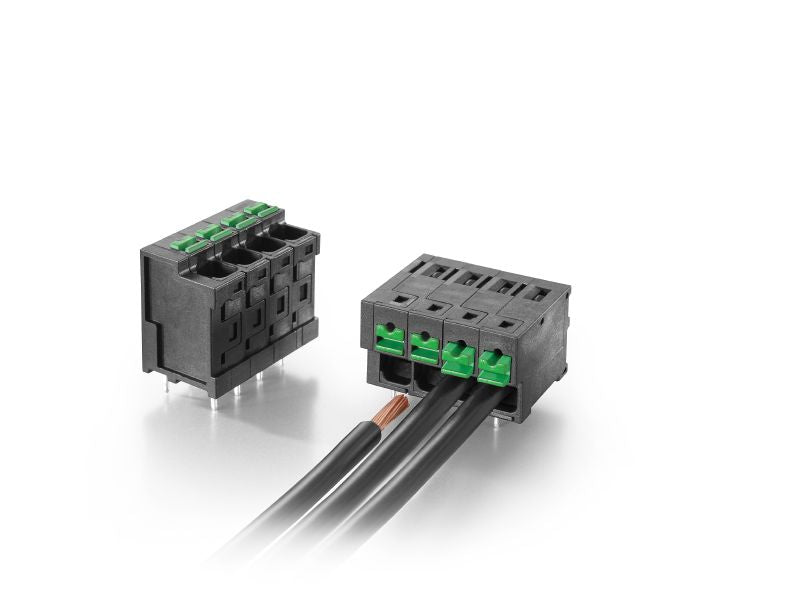

•SNAP IN wire connection method with push button.
•Touch-safe protection as per DIN VDE standards.
Specifications:
| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 37.3 mm |
| Ambient temperature | -50 °C…80 °C |
| Installation temperature | -50 °C to +70 °C |
| Insulating material | PA 9T |
| Color | black |
| Conductor outlet direction | 90° |
| Pitch in mm | 5 mm |
| Number of poles | 7 |
| Rated current | 32 A |
| Rated voltage | 400 V |
| Solder pin length | 3.5 mm |
| Moisture Level | 1 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL voltage rating | 300 V |
