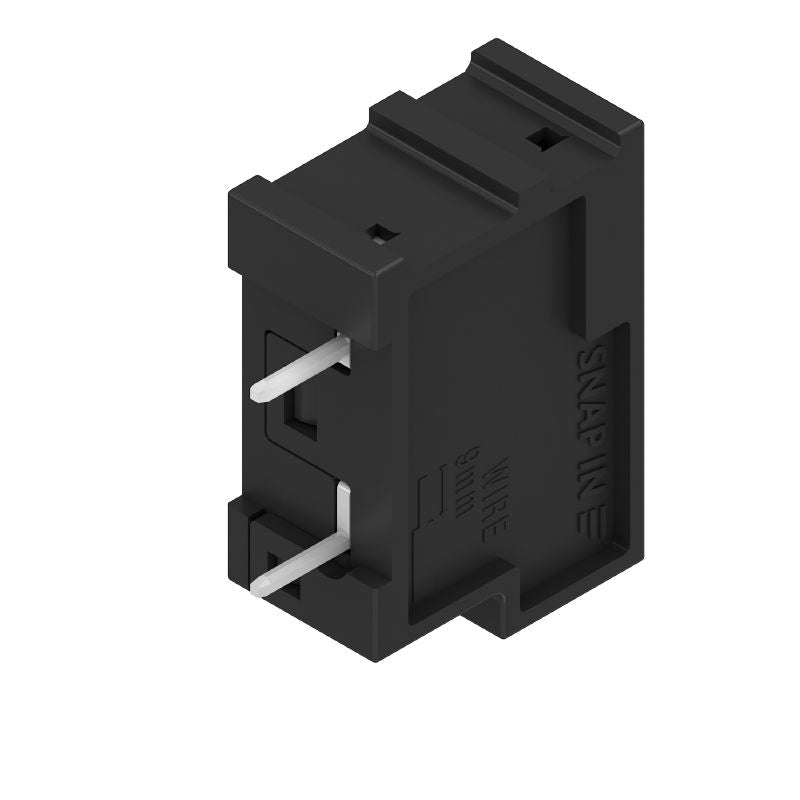

3096000000 - 5.00mm Pitch Circuit Board Terminal, THT, 32A, IEC/UL Approved (Pack of 74)
3096000000 - 5.00mm Pitch Circuit Board Terminal, THT, 32A, IEC/UL Approved (Pack of 74)
SKU: SKU: 3096000000 Download PDF
- 3096000000 - 5.00mm Pitch Circuit Board Terminal, THT, 32A, IEC/UL Approved (Pack of 74)
- 3096000000 - 5.00mm Pitch Circuit Board Terminal, THT, 32A, IEC/UL Approved (Pack of 74)
Couldn't load pickup availability
Description:
Enhance your connection options with this printed circuit board terminal, featuring THT solder connections with a 500 mm pitch Encased in tube packaging, this single-pole terminal operates effectively within a voltage range of 400 V and can handle currents up to 32 A It accommodates wire gauges from 05 to 4 mm², making it a versatile choice for various applications This terminal is compliant with both IEC and UL standards, ensuring dependable performance for your electrical needs.
Features and Benefits:
•Compliant with RoHS and no SVHC above 0.1 wt%.

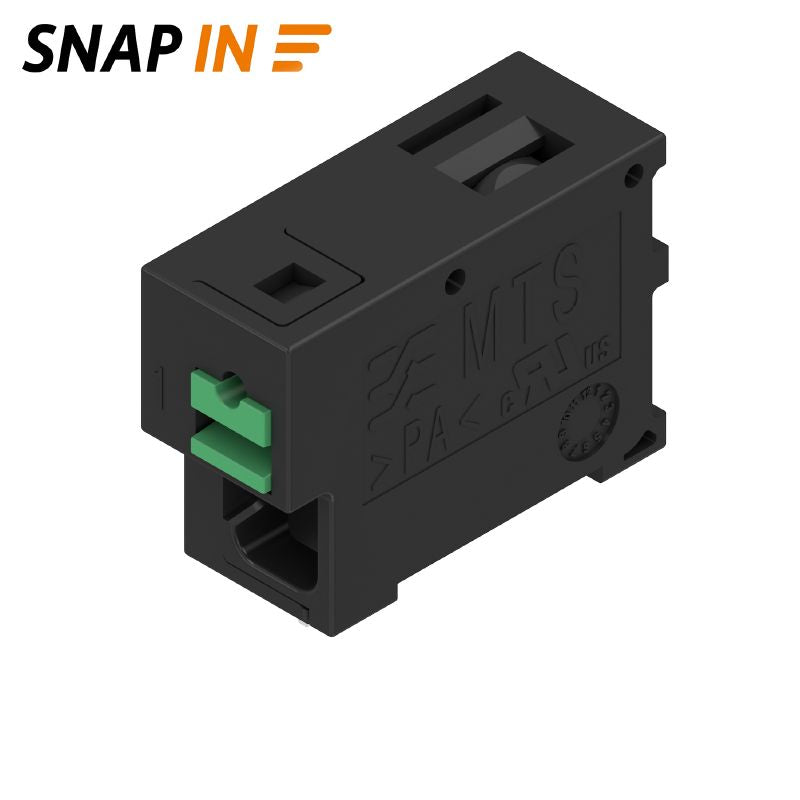

•Wire connection method is SNAP IN with a push button.
•Touch-safe protection according to DIN VDE standards.
•Operating temperature range is from -50 °C to 70 °C.
•Moisture Level (MSL) of 1, indicating high reliability.
•UL 94 flammability rating V-0 for material safety.
Specifications:

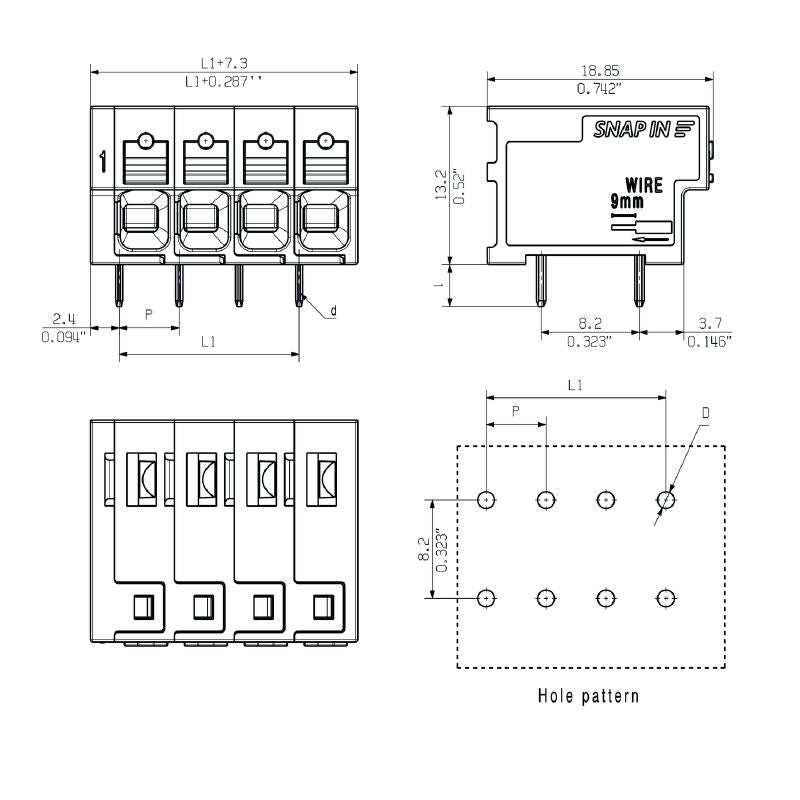

| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 7.3 mm |
| Ambient temperature | -50 °C to 125 °C |
| Insulating material | PA 9T |
| IP protection degree | IP20 |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 32 A |
| Stripping length | 9 mm |
| Solder pin length | 3.5 mm |
| Number of rows | 1 |
| Number of poles | 1 |
