Description:

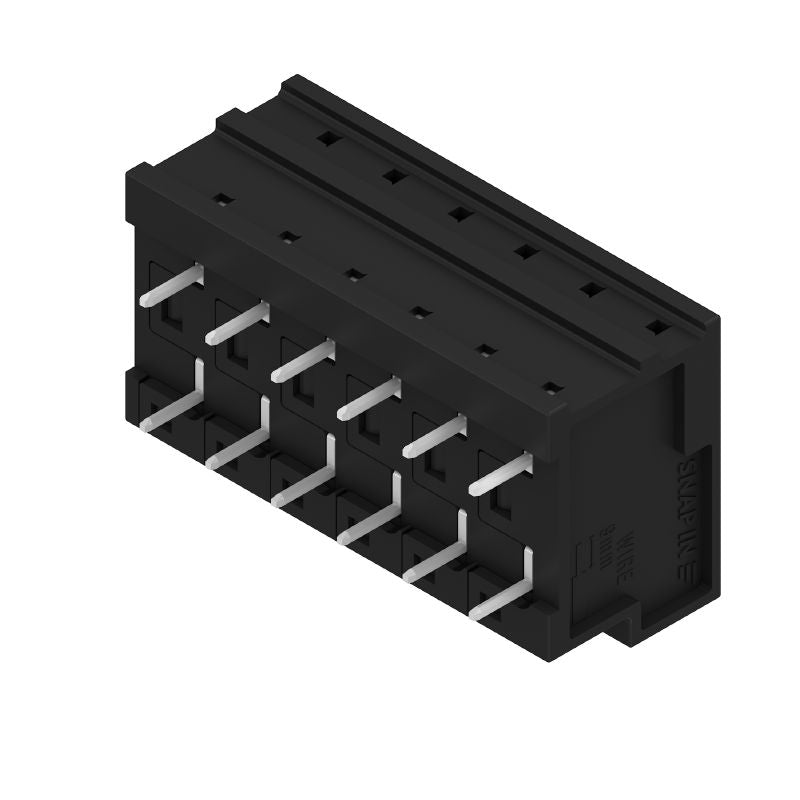

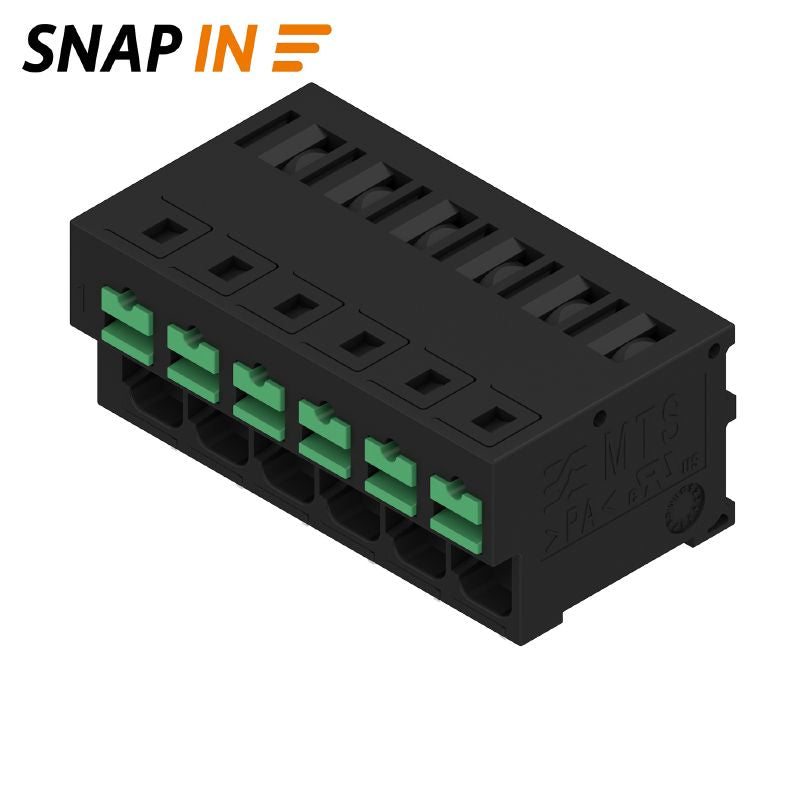

Introducing the MTS 5/06 H T4 B T, a reliable printed circuit board terminal featuring a 5 mm pin pitch and a THT solder connection This terminal supports 6 poles and is conveniently packaged in a tube for easy handling Designed for safety and compliance, it adheres to RoHS regulations and boasts UL approval with the certificate number E60693 Ideal for various applications, it combines functionality with quality assurance.
Features and Benefits:
•Designed for use in printed circuit boards.
•SNAP IN wire connection method with a push button.
•WireReady property for easy installation.
•Touch-safe protection according to DIN VDE 0470.
•Compliant with environmental product standards.
Specifications:
| Approvals | ROHS Compliant, UL File Number E60693 |

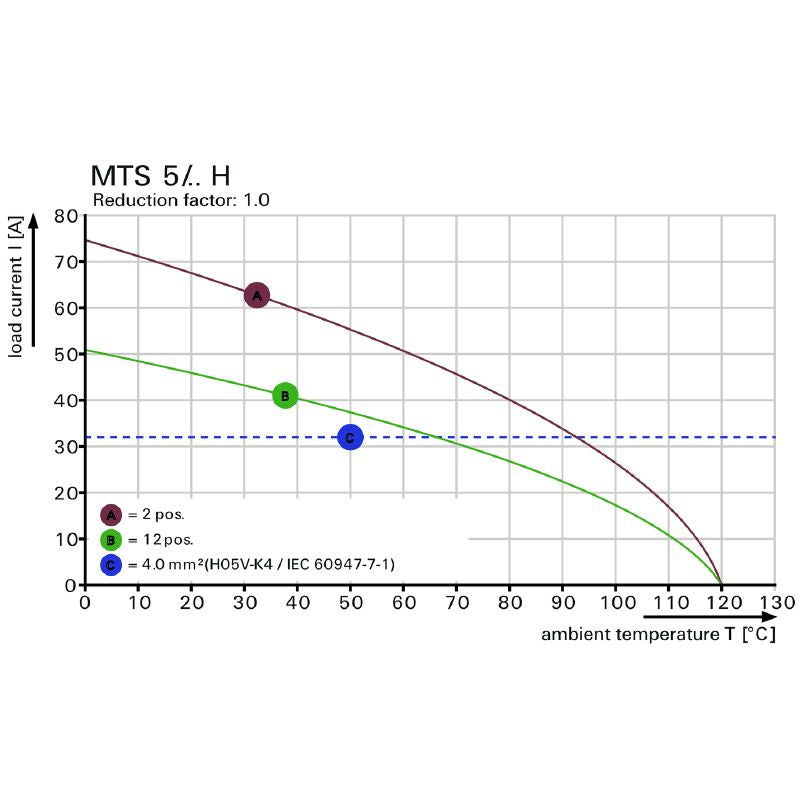

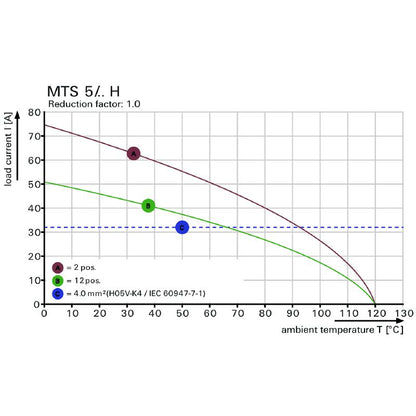

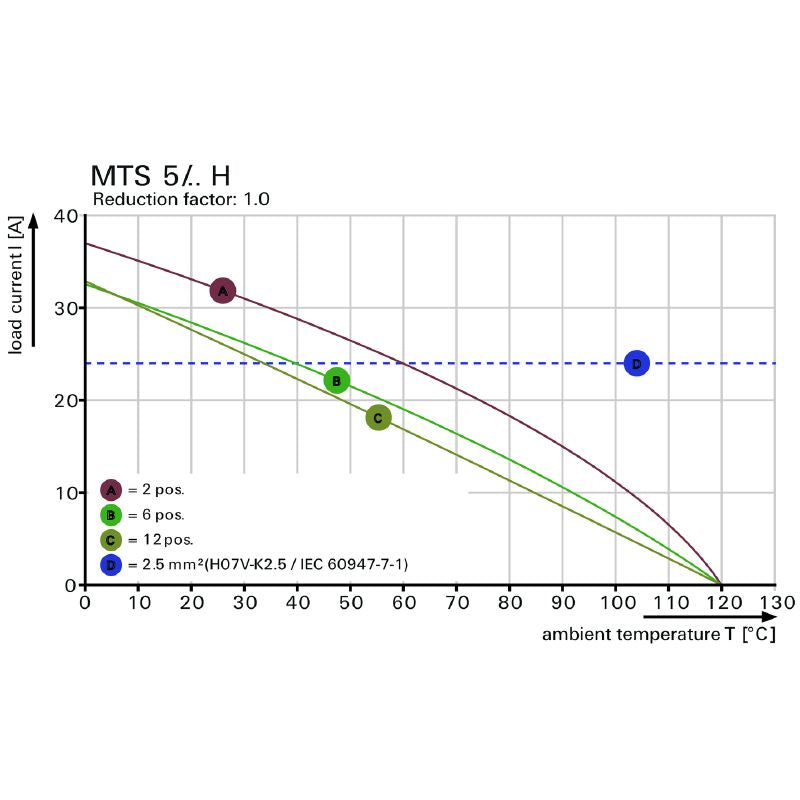

| IEC Voltage Rating | 400 V / 32 A / 0.5 - 4 mm² |
| UL Voltage Rating | 300 V / 18.5 A / AWG 20 - AWG 12 |

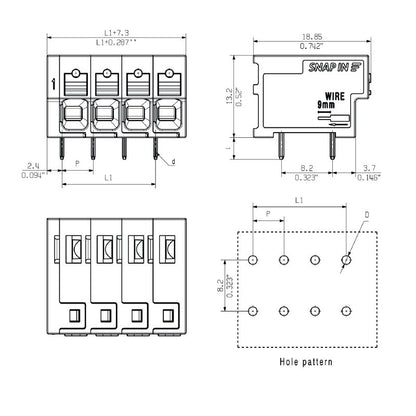

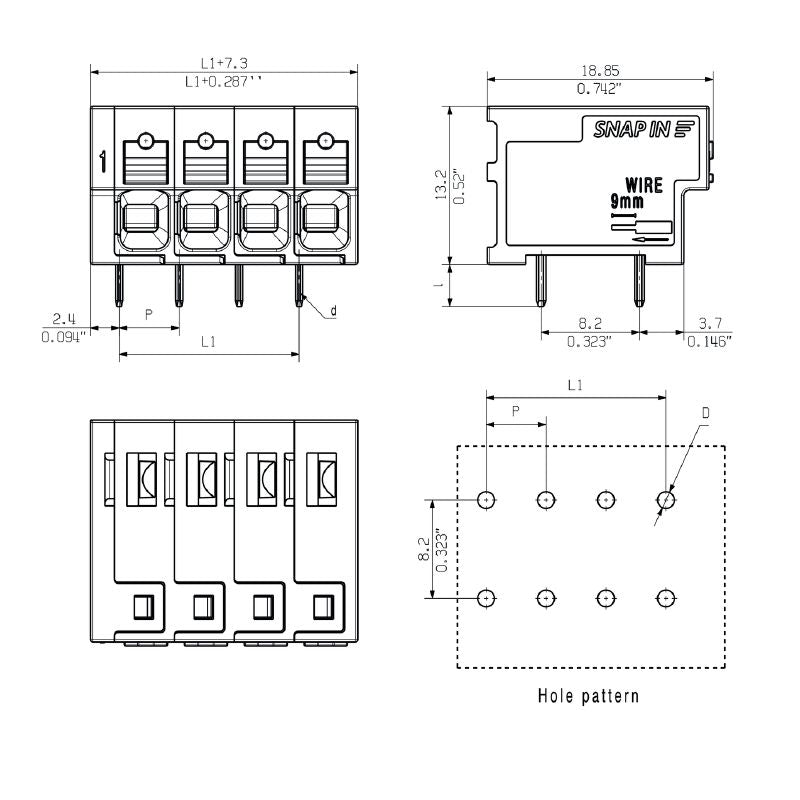

| Dimensions | {'Depth': '18.85 mm', 'Height': '16.7 mm', 'Width': '32.3 mm'} |
| Ambient Temperature Range | -50 °C to 80 °C |
| Max Storage Temperature | 55 °C |
| Solder Pin Length | 3.5 mm |
| Wire Connection Cross Section | AWG 12 to AWG 20 |
| Insulating Material | PA 9T |
| Moisture Level (MSL) | 1 |
| IP Rating | IP20 |
