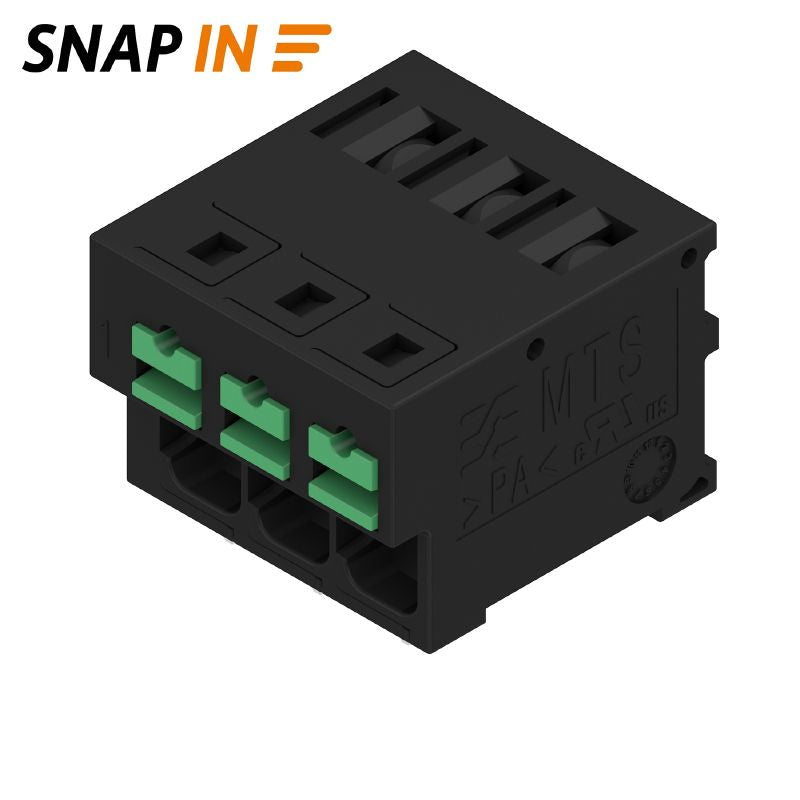

2913610000 - 5mm Pitch THT PCB Terminal, 3 Poles Connectivity (Pack of 31)
2913610000 - 5mm Pitch THT PCB Terminal, 3 Poles Connectivity (Pack of 31)
SKU: SKU: 2913610000 Download PDF
- 2913610000 - 5mm Pitch THT PCB Terminal, 3 Poles Connectivity (Pack of 31)
- 2913610000 - 5mm Pitch THT PCB Terminal, 3 Poles Connectivity (Pack of 31)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this printed circuit board terminal, which features a through-hole (THT) solder connection for secure installation With a 500 mm pitch and three poles, it is engineered to meet various industry standards and is versatile enough for a multitude of electronic applications, ensuring dependable connectivity across different setups.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for ambient temperatures ranging from -50 °C to 80 °C.
•IP20 protection degree.
•Wire connection via SNAP IN with push-button mechanism.
•Reliable clamping point property with WireReady feature.
•Constructed from PA 9T insulating material.
•Touch-safe protection according to relevant standards.

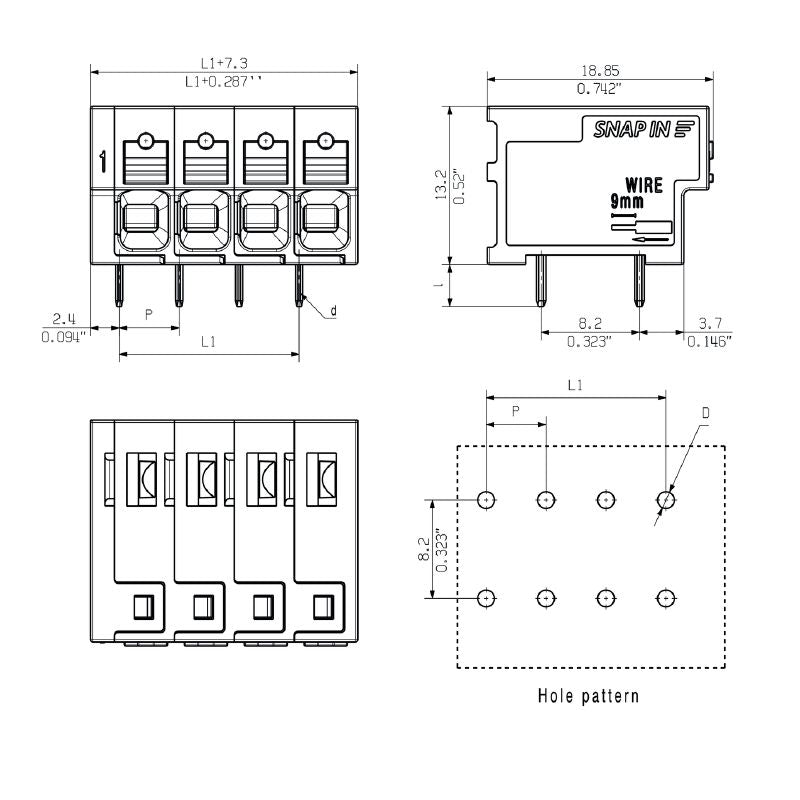

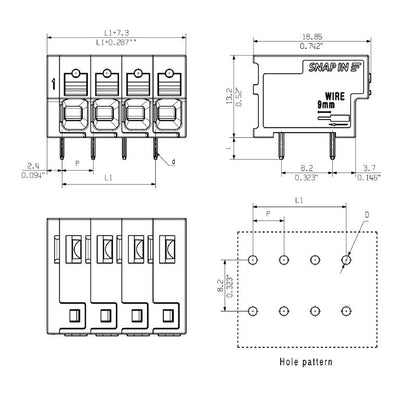

Specifications:
| Pitch in mm | 5.00 mm |
| Number of poles | 3 |
| Net weight | 5 g |
| Depth | 18.85 mm |
| Height | 16.7 mm |
| Width | 17.3 mm |
| Ambient temperature | -50 °C…80 °C |
| Installation temperature | -50 °C to +70 °C |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 32 A |
| Solder pin length | 3.5 mm |
| Moisture Level (MSL) | 1 |
| Comparative Tracking Index (CTI) | ≥ 600 |
