2913760000 - 5mm Pitch THT Terminal Board for 7 Poles (Pack of 14)
2913760000 - 5mm Pitch THT Terminal Board for 7 Poles (Pack of 14)
SKU: SKU: 2913760000 Download PDF
- 2913760000 - 5mm Pitch THT Terminal Board for 7 Poles (Pack of 14)
- 2913760000 - 5mm Pitch THT Terminal Board for 7 Poles (Pack of 14)
Couldn't load pickup availability
Description:

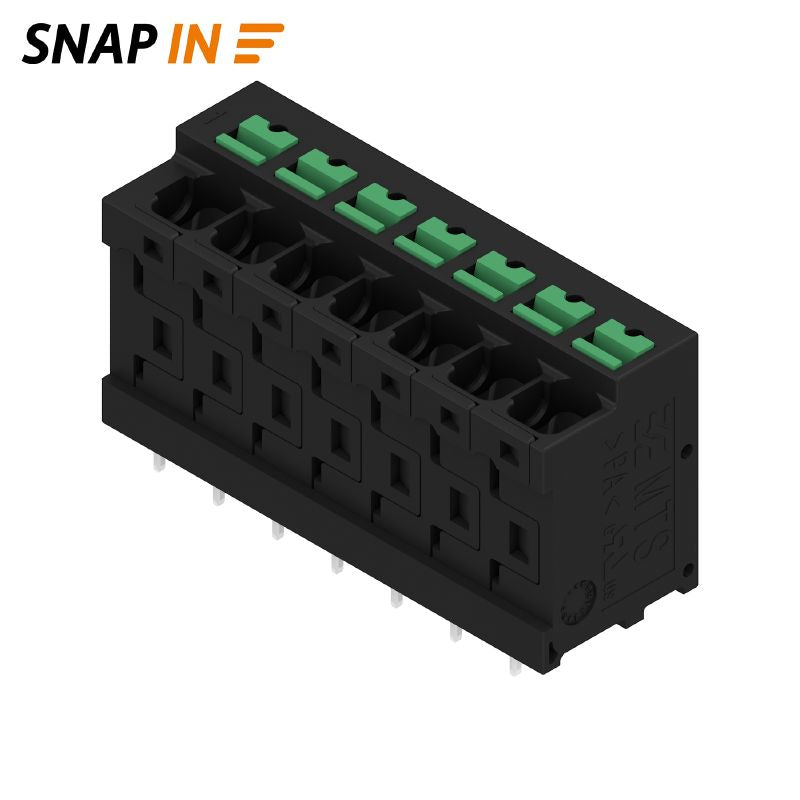

Introducing the MTS 5/07 V T4 B T, a reliable printed circuit board terminal specifically crafted for through-hole (THT) solder connections With a pitch of 500 mm, this terminal supports up to 7 poles and is conveniently packaged in tubes Adhering to IEC standards, it operates at a voltage of 400 V and a current rating of 32 A, while accommodating conductors ranging from 05 to 4 mm² Additionally, it meets UL specifications with ratings of 300 V and 18.
5 A, suitable for wire sizes from AWG 20 to AWG 12.
Features and Benefits:
•RoHS compliant without exemptions.
•IP 20 rated touch-safe protection.

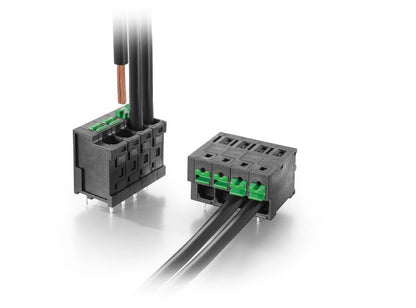

•SNAP IN wire connection method with push buttons.
•Wire-Ready property for easy conductor termination.
Specifications:

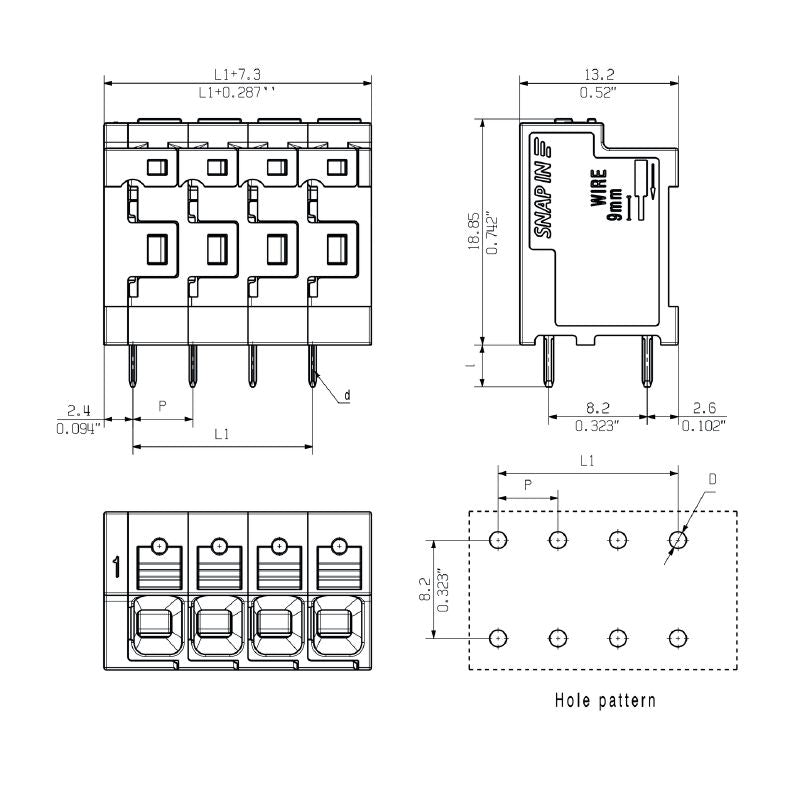

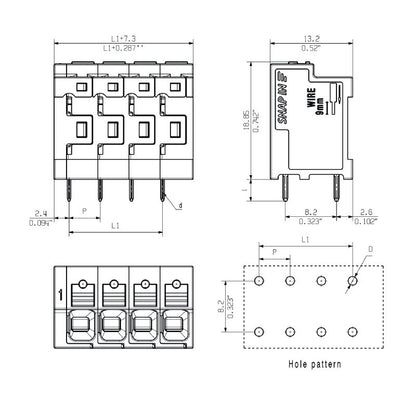

| Depth | 13.2 mm |
| Height | 22.35 mm |
| Width | 37.3 mm |
| Net weight | 17.916 g |
| Ambient temperature | -50 °C…80 °C |
| Installation temperature | -50 °C to +70 °C |
| Number of poles | 7 |
| Pitch | 5 mm |

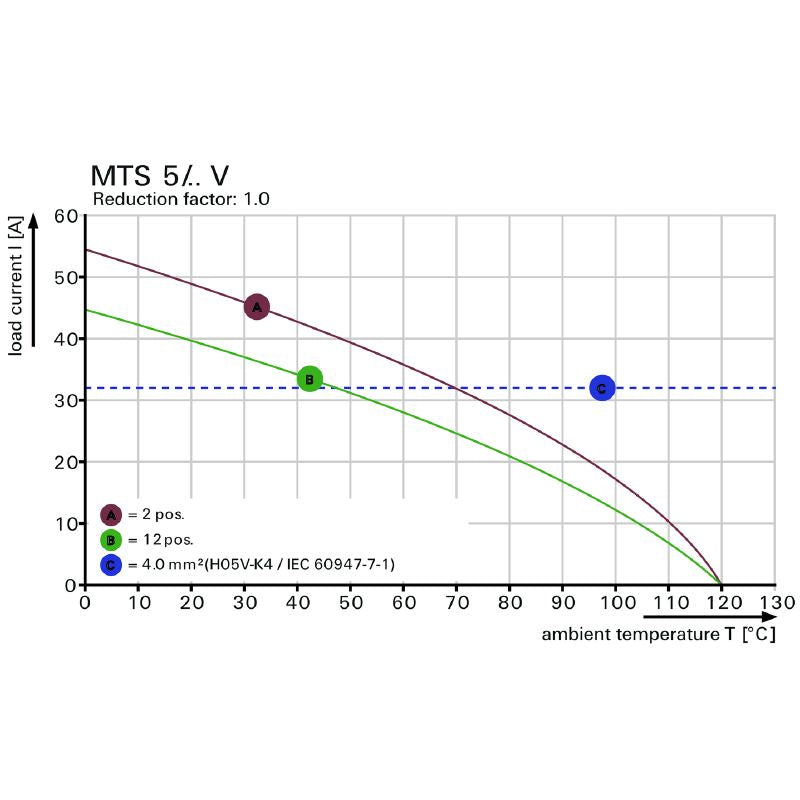

| Rated current, min. and max. | 32 A |
| Rated voltage | 400 V |
| Insulating material | PA 9T |
| Material group | I |
| Flammability rating | V-0 |
