ST7520 - IP65 Rated 28x20 Carbon Steel Electrical Enclosure
ST7520 - IP65 Rated 28x20 Carbon Steel Electrical Enclosure
SKU: SKU: ST7520 Download PDF
- ST7520 - IP65 Rated 28x20 Carbon Steel Electrical Enclosure
- ST7520 - IP65 Rated 28x20 Carbon Steel Electrical Enclosure
Couldn't load pickup availability
Description:

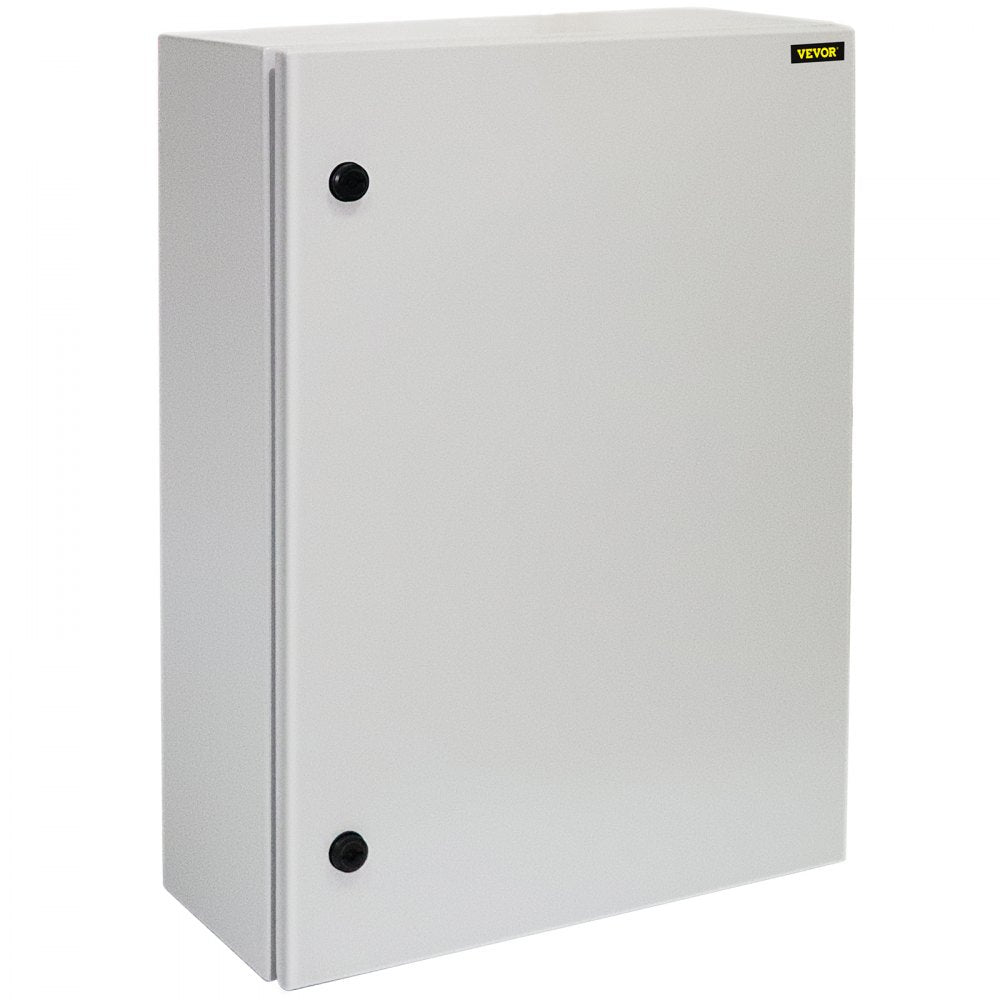

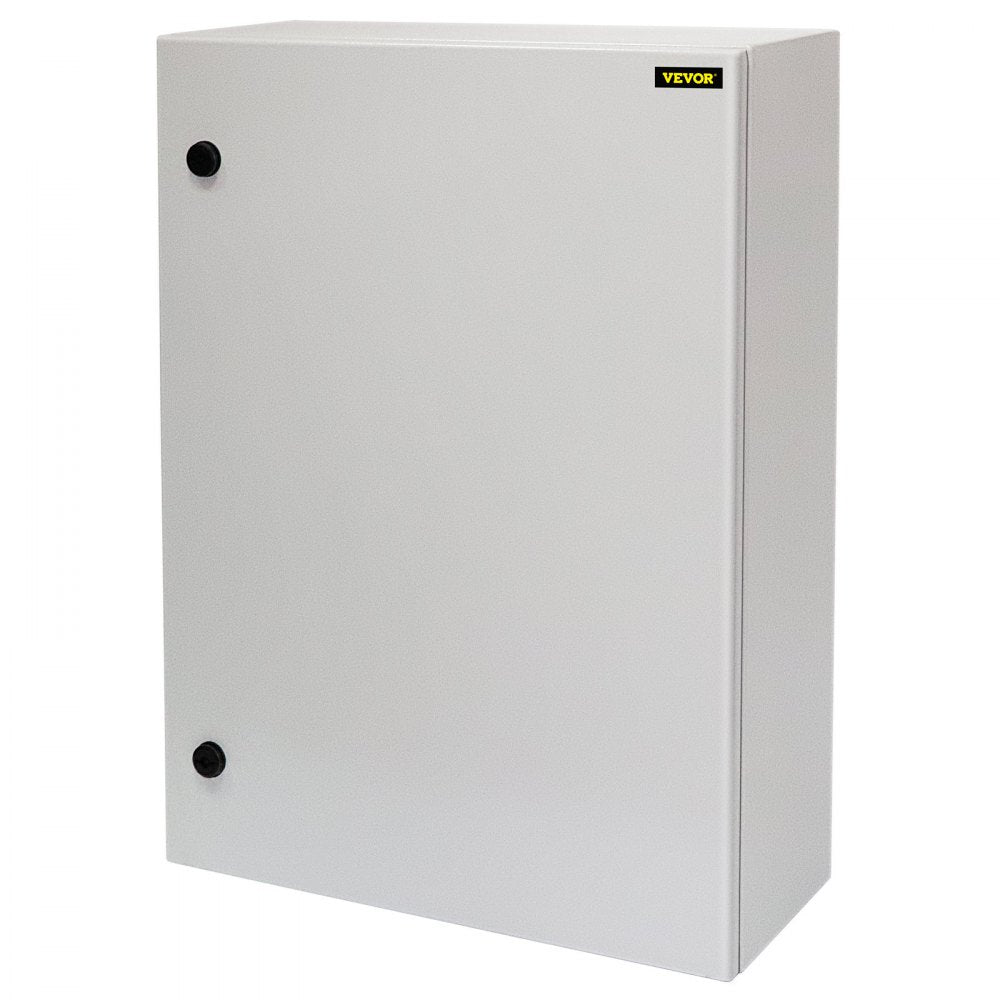

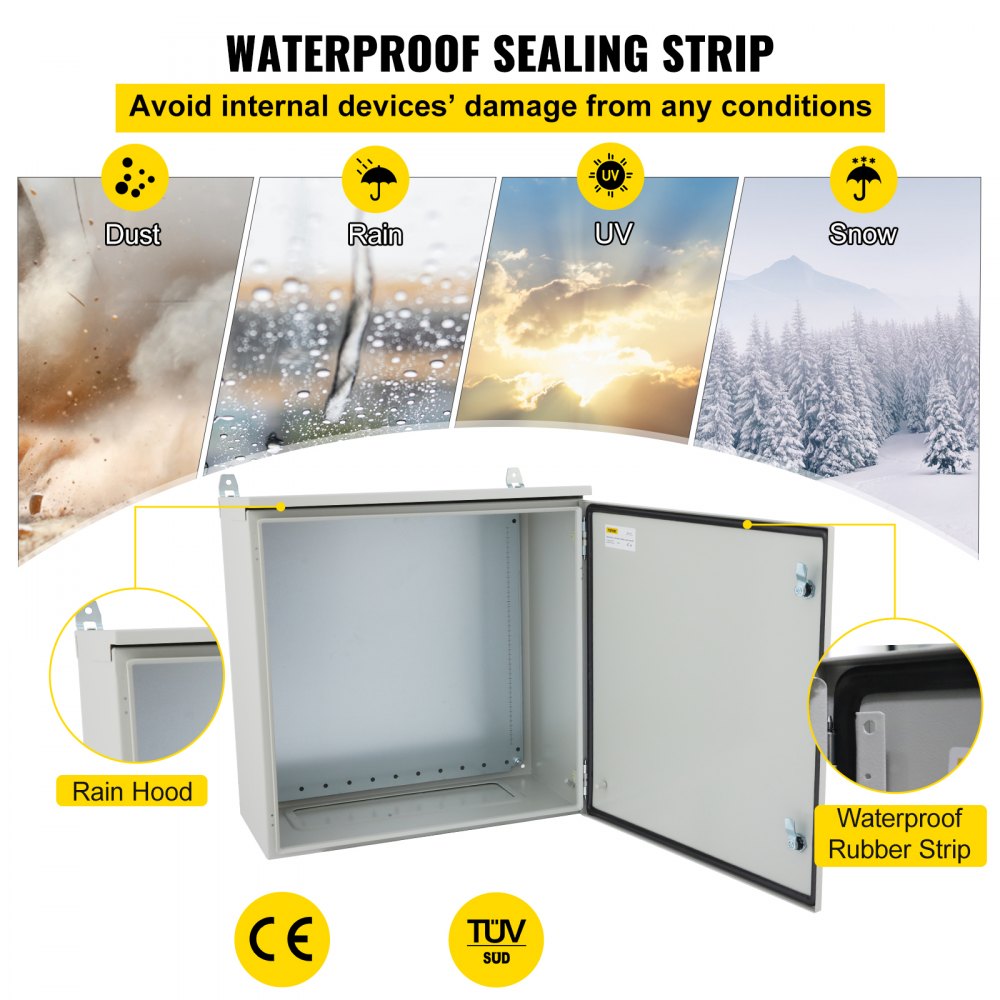

Introducing the VEVOR electrical enclosure, expertly crafted from high-grade carbon steel and featuring dimensions of 28 x 20 x 8 inches This enclosure is built to IP65 standards, offering superior protection for your electrical devices and connections against harsh weather conditions Equipped with durable hinges, a secure locking mechanism, and a rain hood, it’s perfectly suited for a variety of settings, including both indoor and outdoor environments, such as construction sites and electrical installations.
Count on this enclosure for reliable performance year-round.
Features and Benefits:
•High-quality carbon steel construction.
•IP65 waterproof grade.

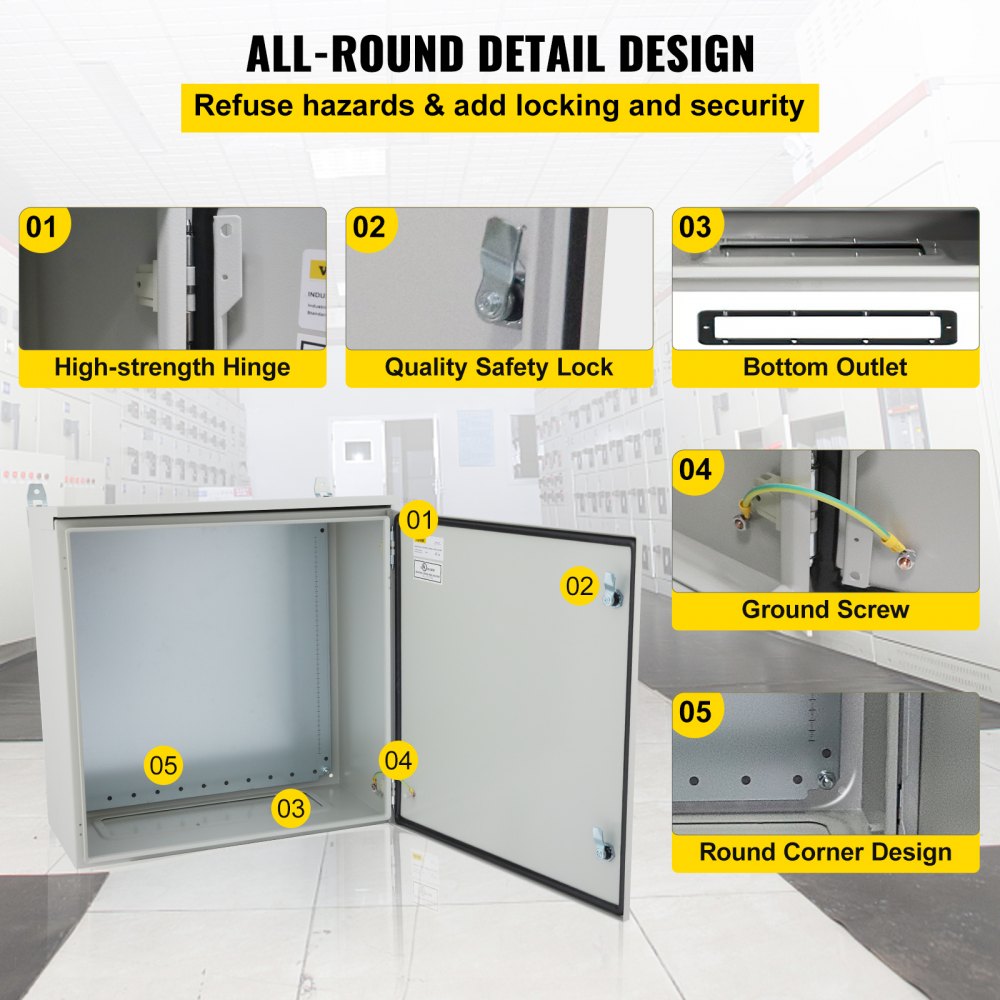

•Reinforced lock and hinge for security.

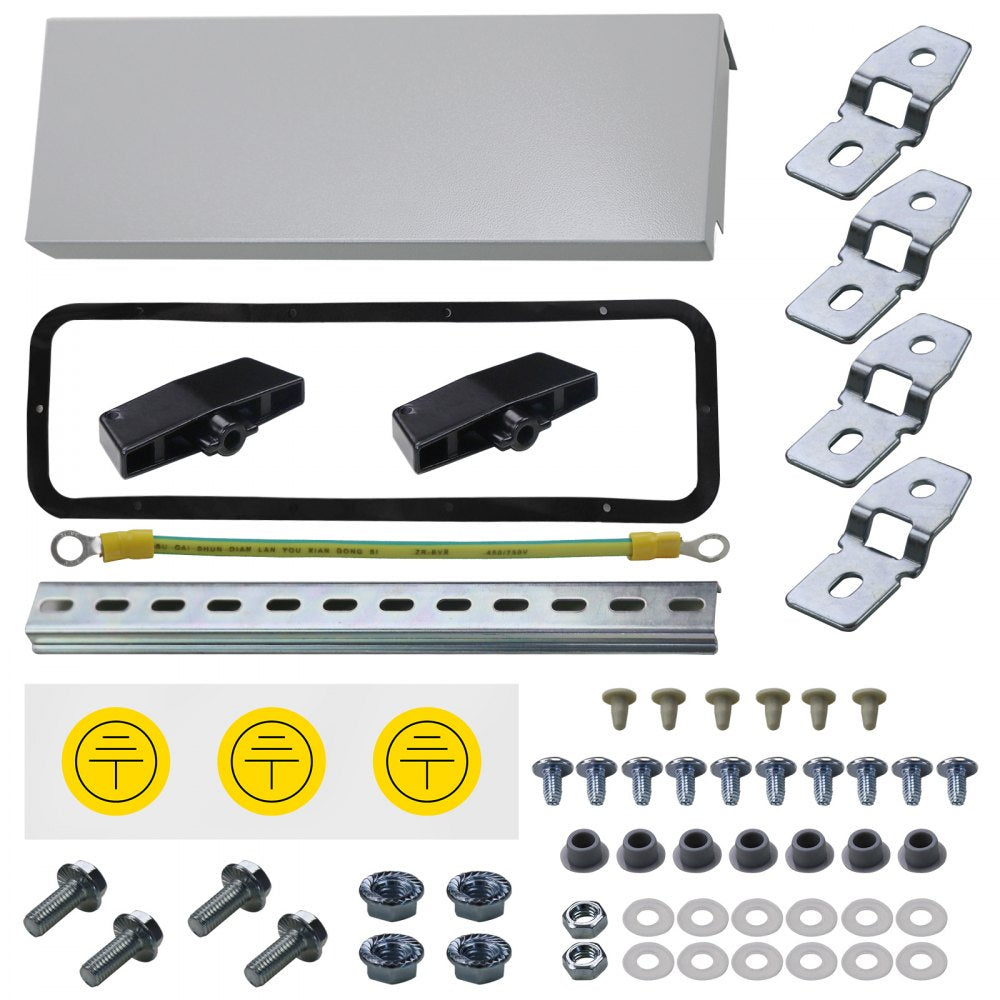

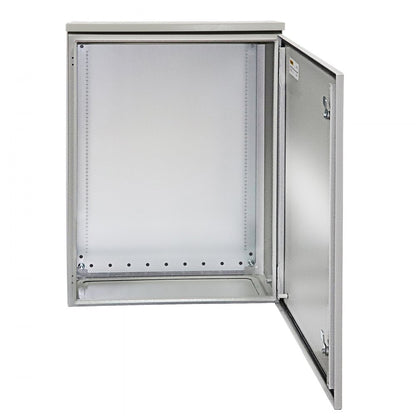

•Easy installation with detachable mounting backplate.
•Thoughtful design including smooth cable cutouts and pre-installed grounding screws.

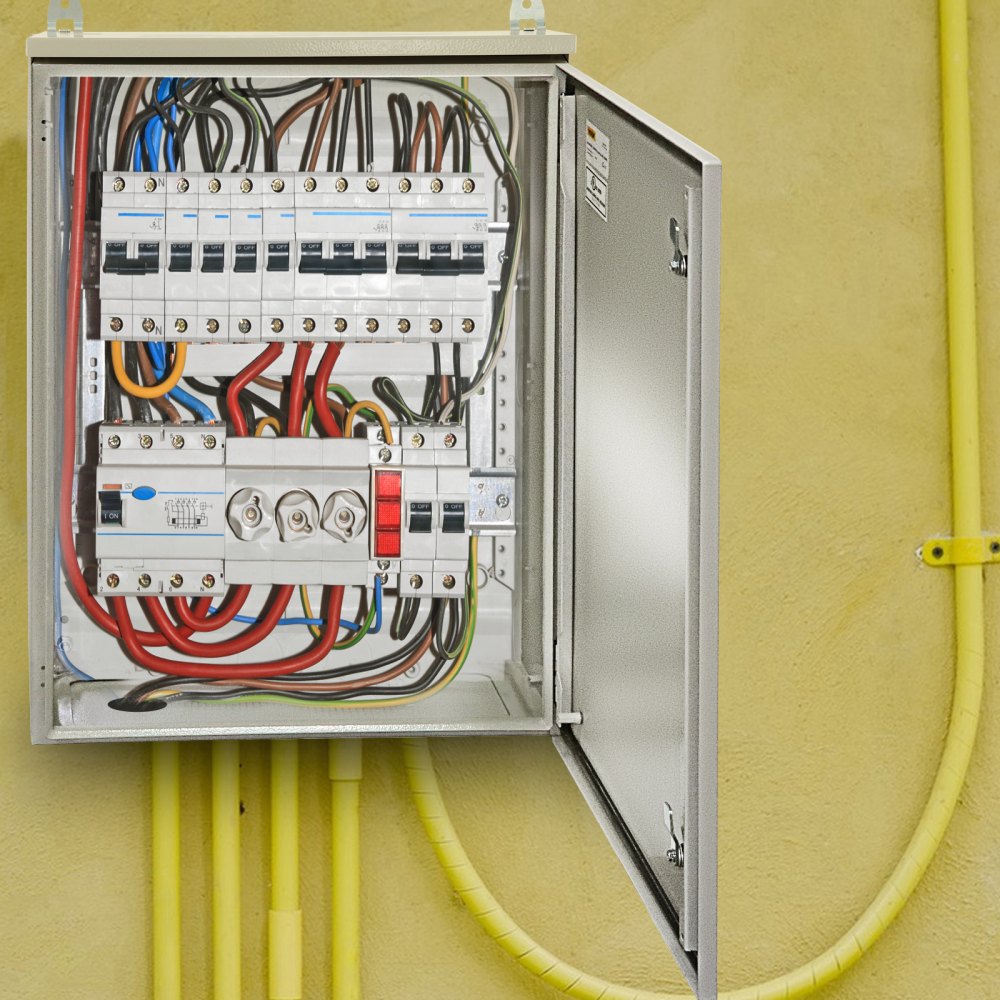

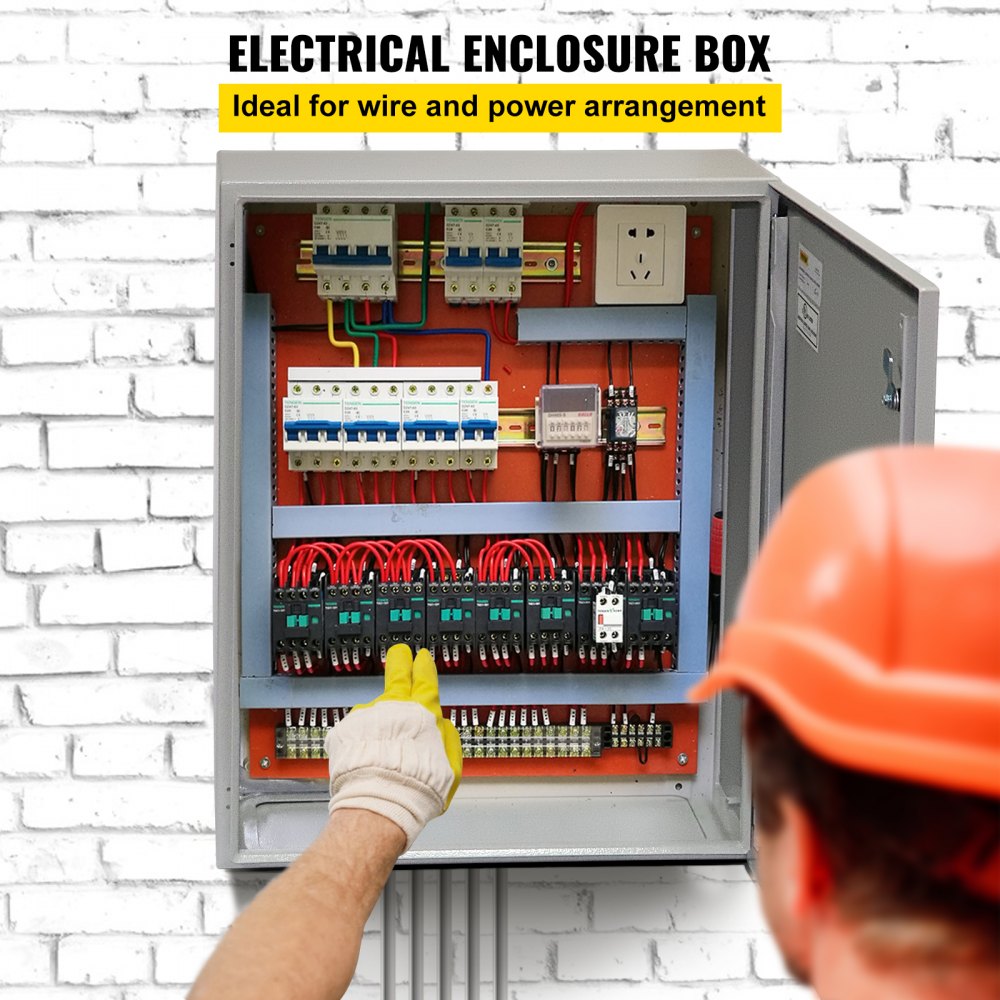

•Electricity and construction applications.
•Indoor and outdoor use including factories and shopping malls.
Specifications:
| Model | ST7520 |

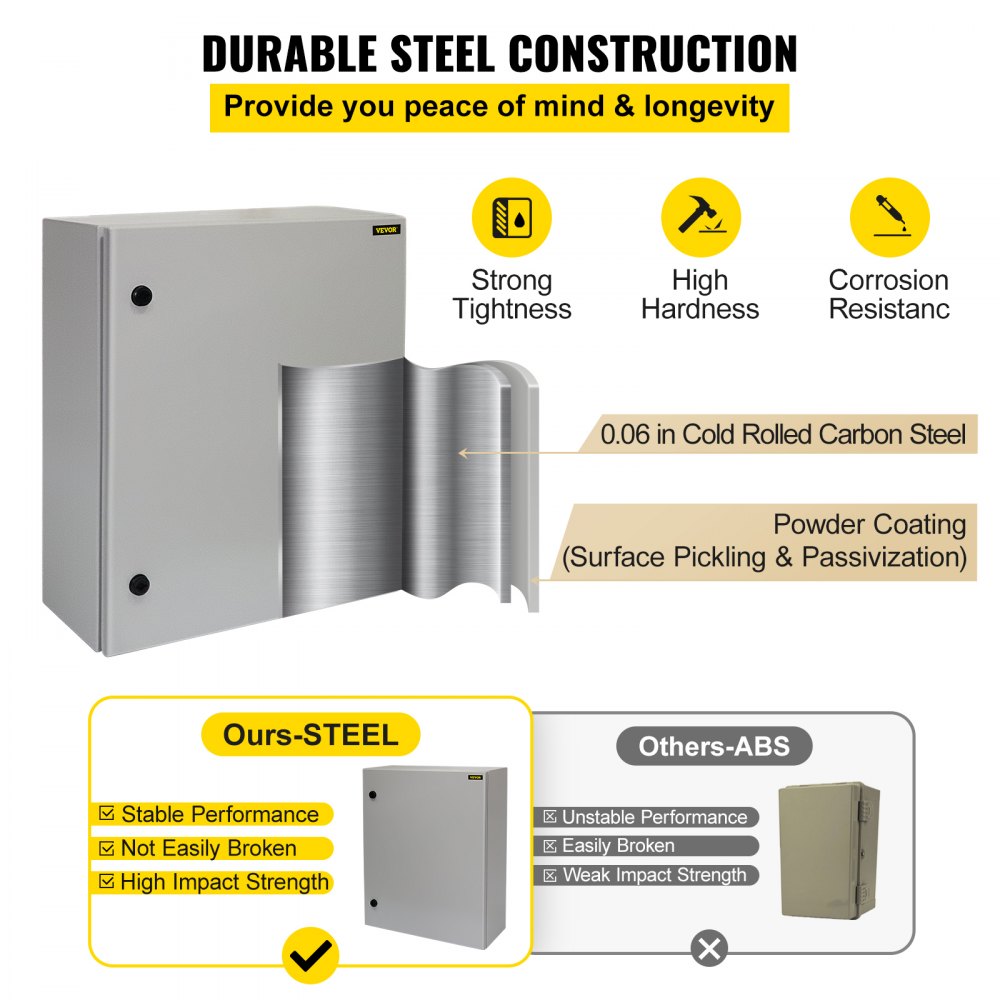

| Body Material | 0.06 in / 0.15 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating (Surface Pickling and Passivization) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam / Nylon (washer or plug) |
| Outer Dimensions (H x W x D) | 28 x 20 x 8 in / 70 x 50 x 20 cm |
| Inner Dimensions (H x W x D) | 27.4 x 19.6 x 7 in / 69.7 x 49.7 x 17.7 cm |
| Galvanized Backplate Dimensions (H x W) | 26.2 x 18 in / 66.5 x 45 cm |
| Mounting Hole Diameter (± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 55.12 lbs / 25 kg |
