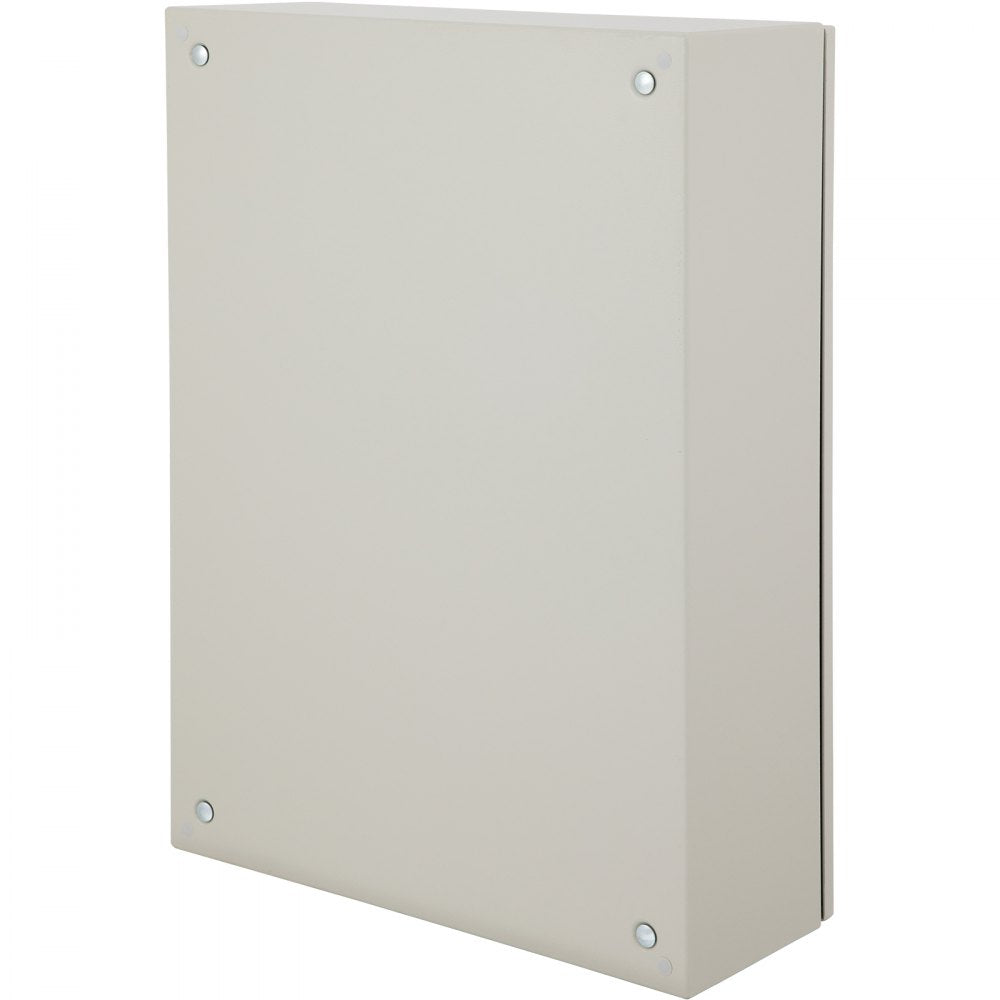

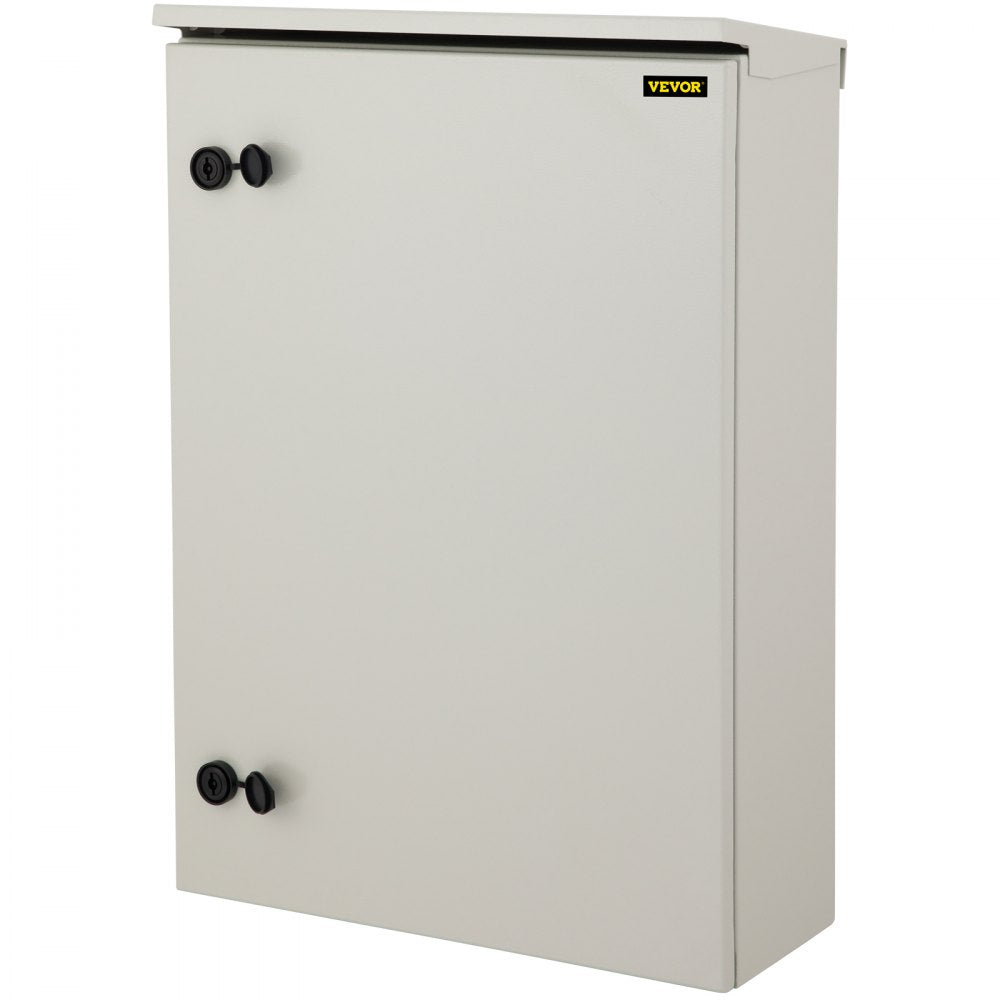

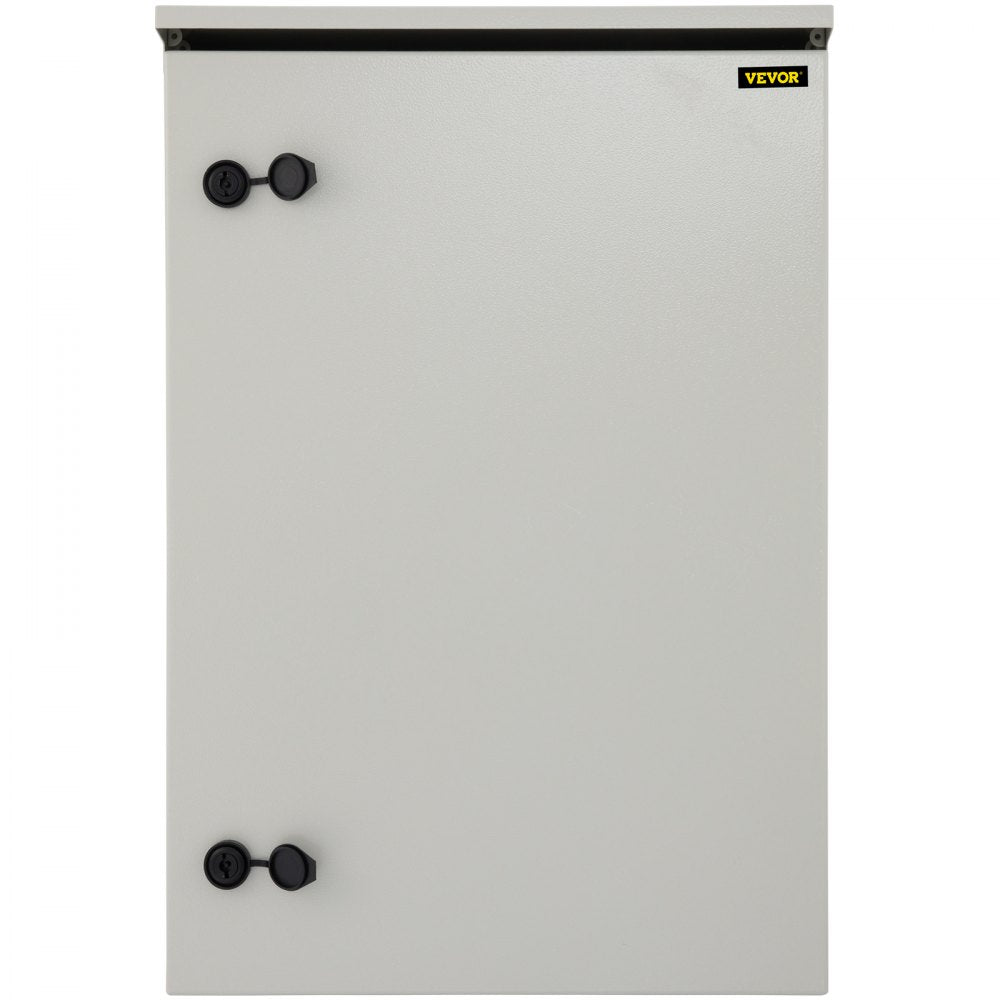

ST6425 - IP65 Outdoor Steel Electrical Enclosure Box, 24"x16"x10"
ST6425 - IP65 Outdoor Steel Electrical Enclosure Box, 24"x16"x10"
SKU: SKU: ST6425 Download PDF
- ST6425 - IP65 Outdoor Steel Electrical Enclosure Box, 24"x16"x10"
- ST6425 - IP65 Outdoor Steel Electrical Enclosure Box, 24"x16"x10"
Couldn't load pickup availability
Description:

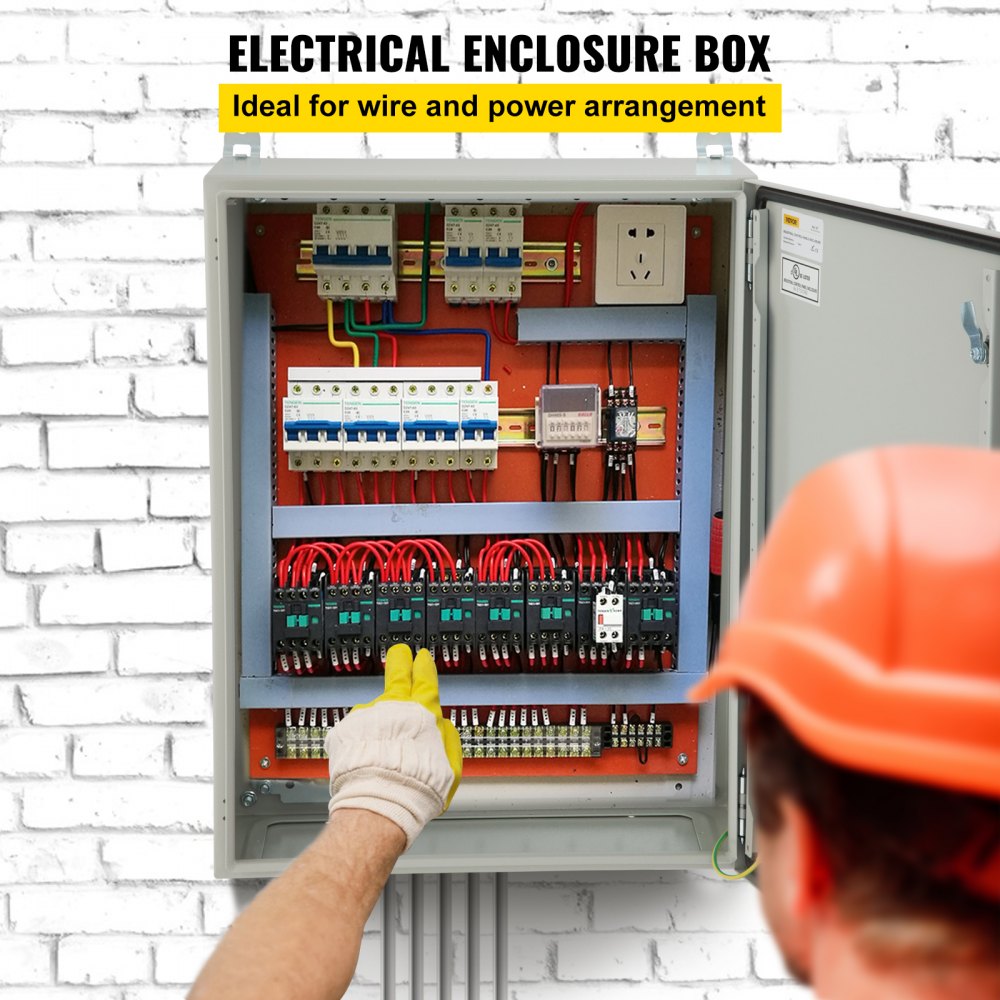

Introducing the VEVOR electrical enclosure box, a durable solution measuring 24 x 16 x 10 inches This enclosure is engineered to comply with UL standards and boasts an impressive IP65 rating, making it perfect for outdoor use Crafted from cold-rolled carbon steel, it effectively shields your plugs, power cords, and other essential equipment from harsh environmental conditions Suitable for both indoor and outdoor applications, this enclosure is an excellent choice for a variety of industries, including electrical and construction.
Count on its sturdy construction to deliver dependable protection and performance all year round.
Features and Benefits:

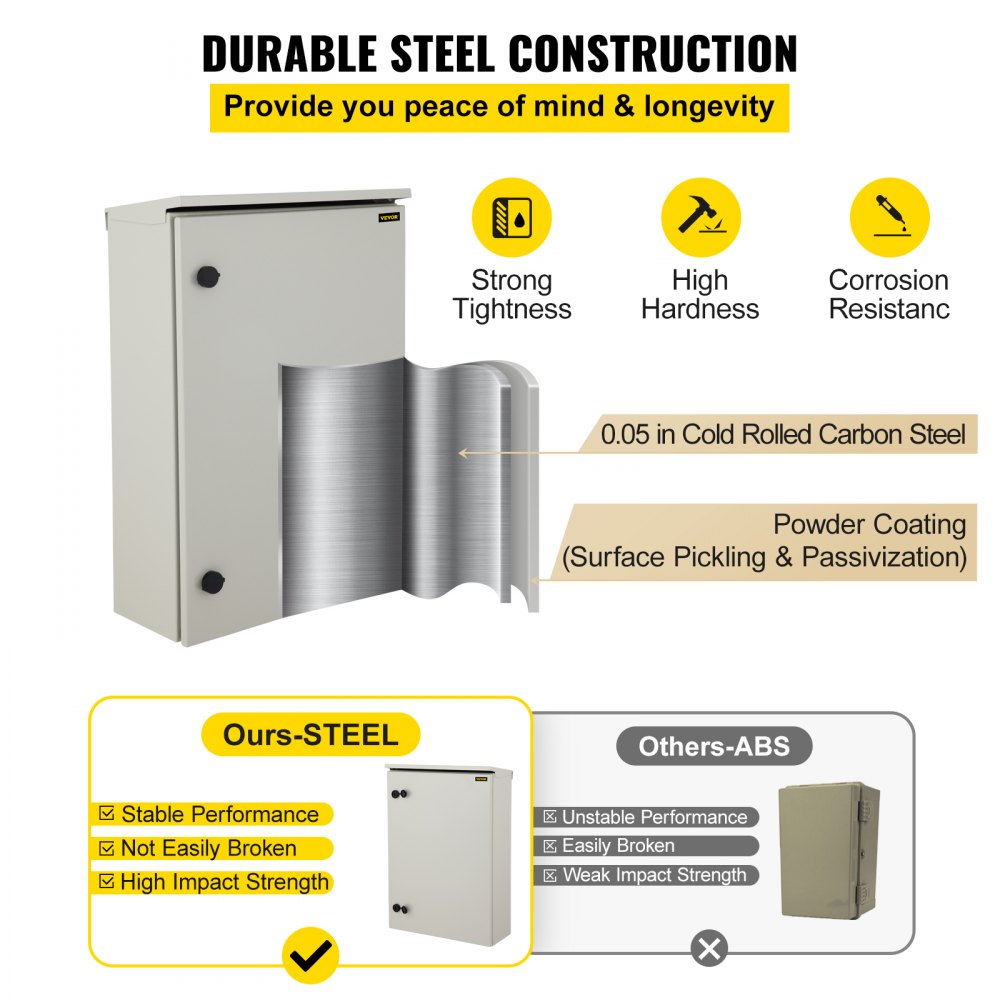

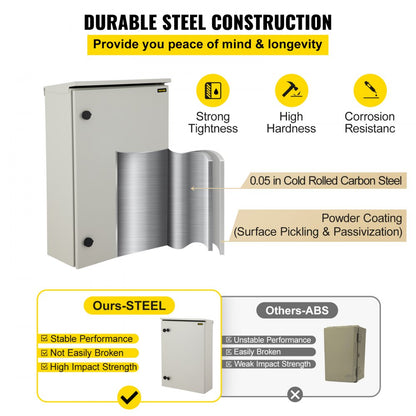

•Sturdy steel construction using precise cutting and welding for wear resistance.

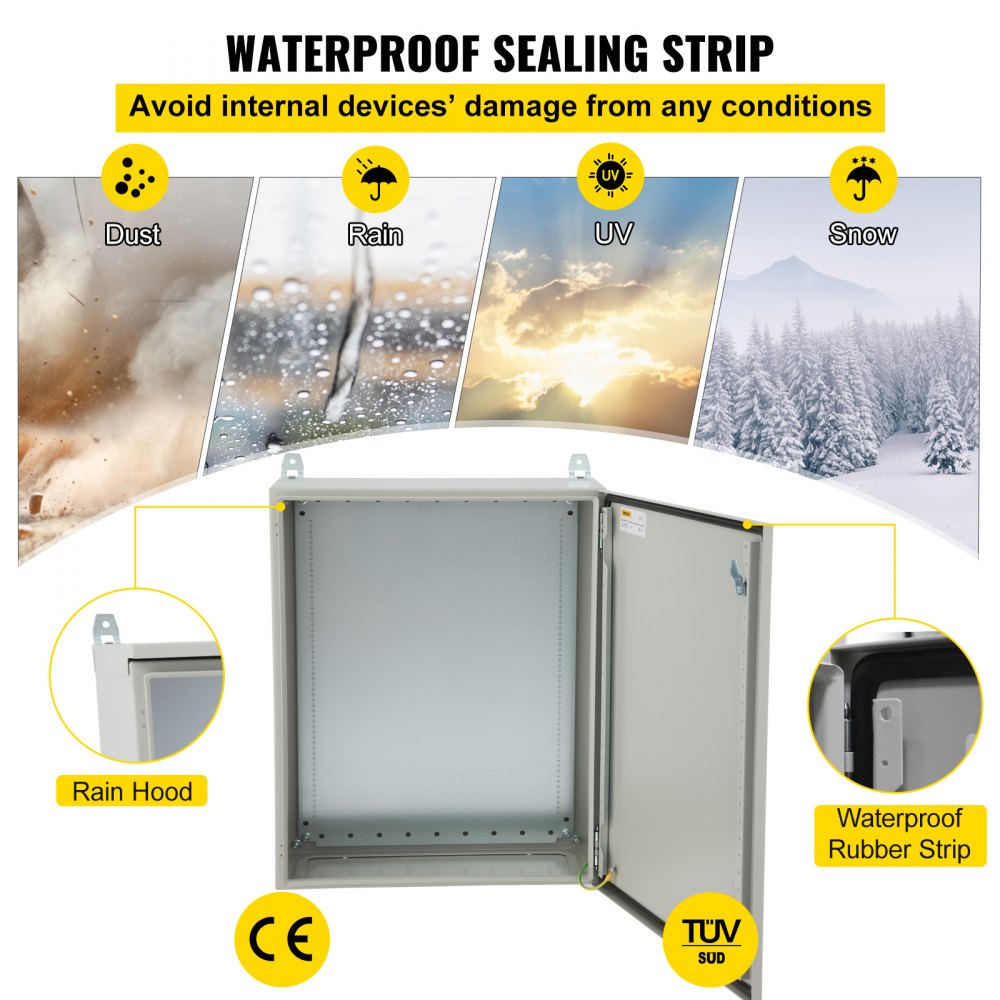

•IP65 waterproof rating that prevents dust and moisture.

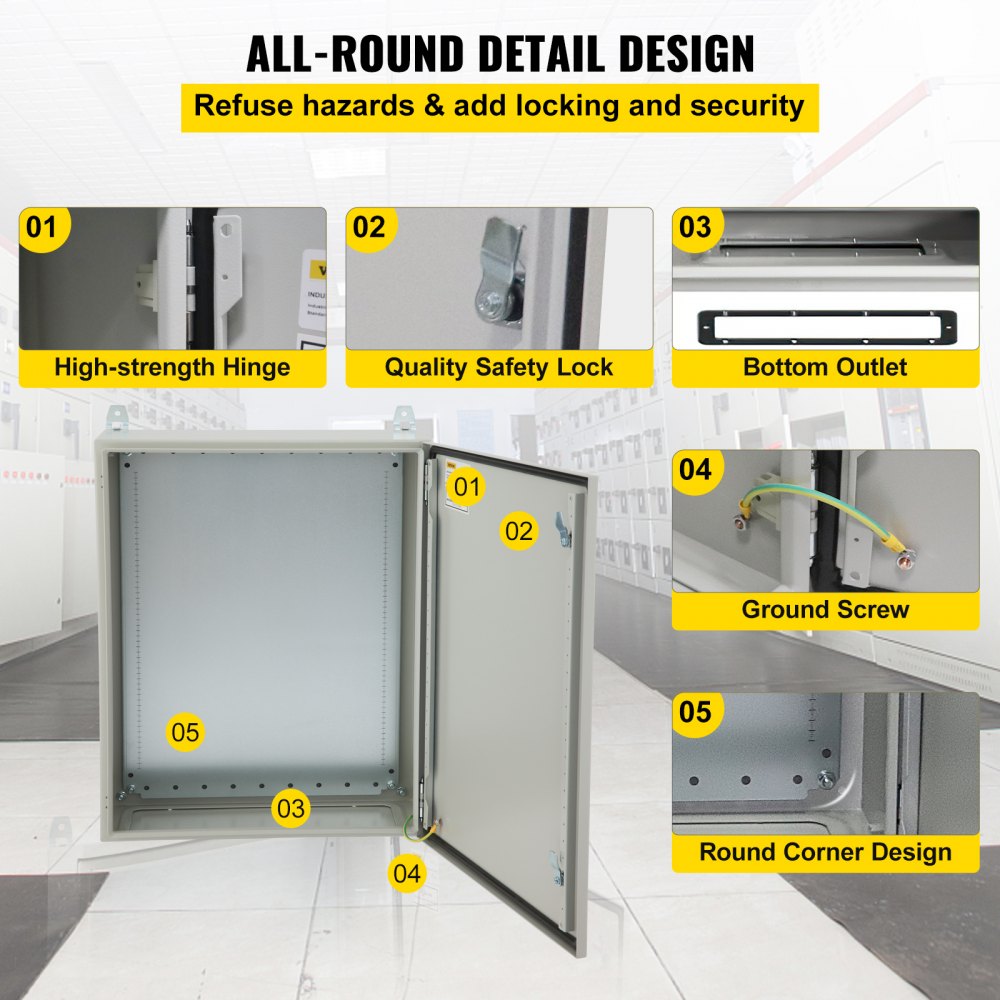

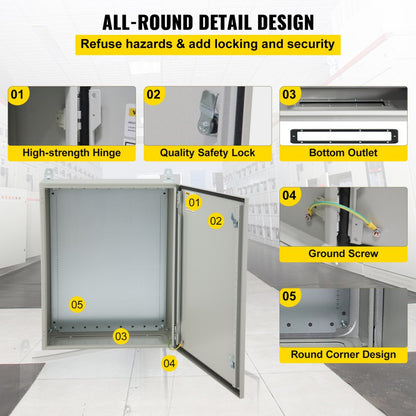

•Reinforced lock and hinge for enhanced security.

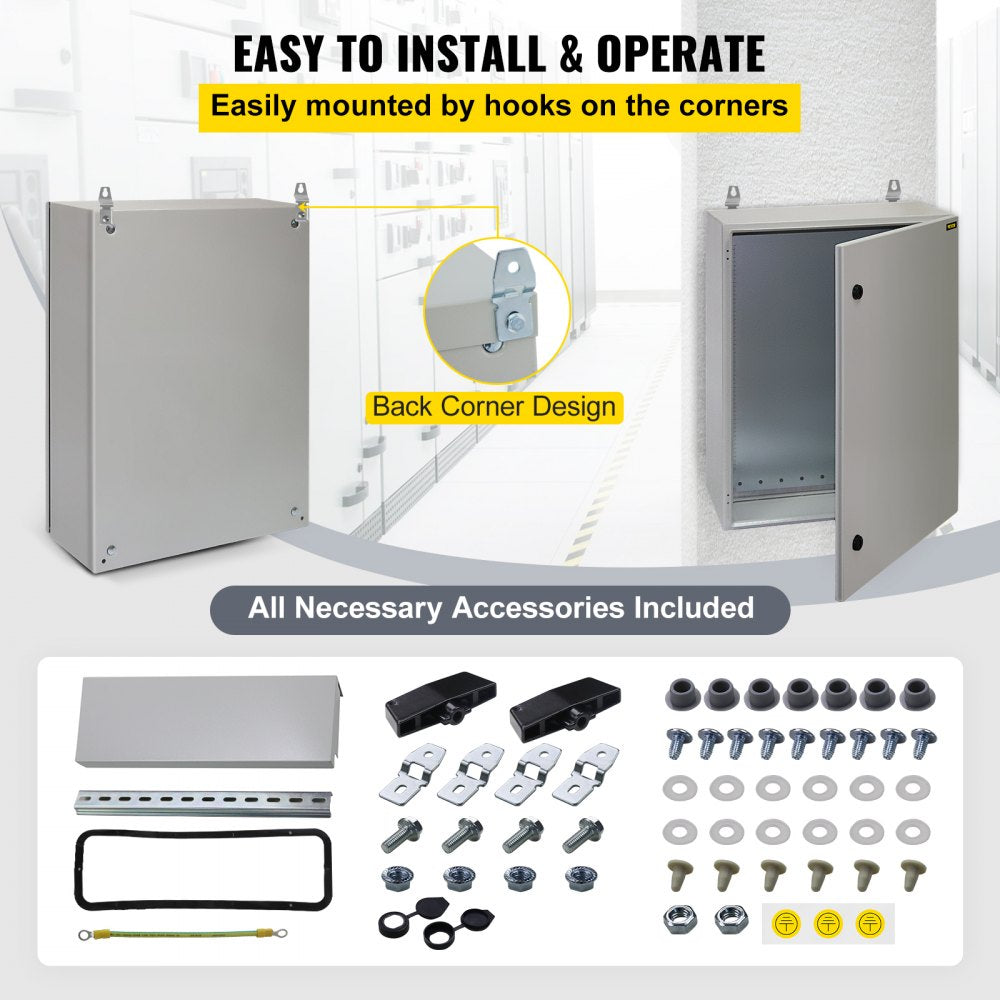

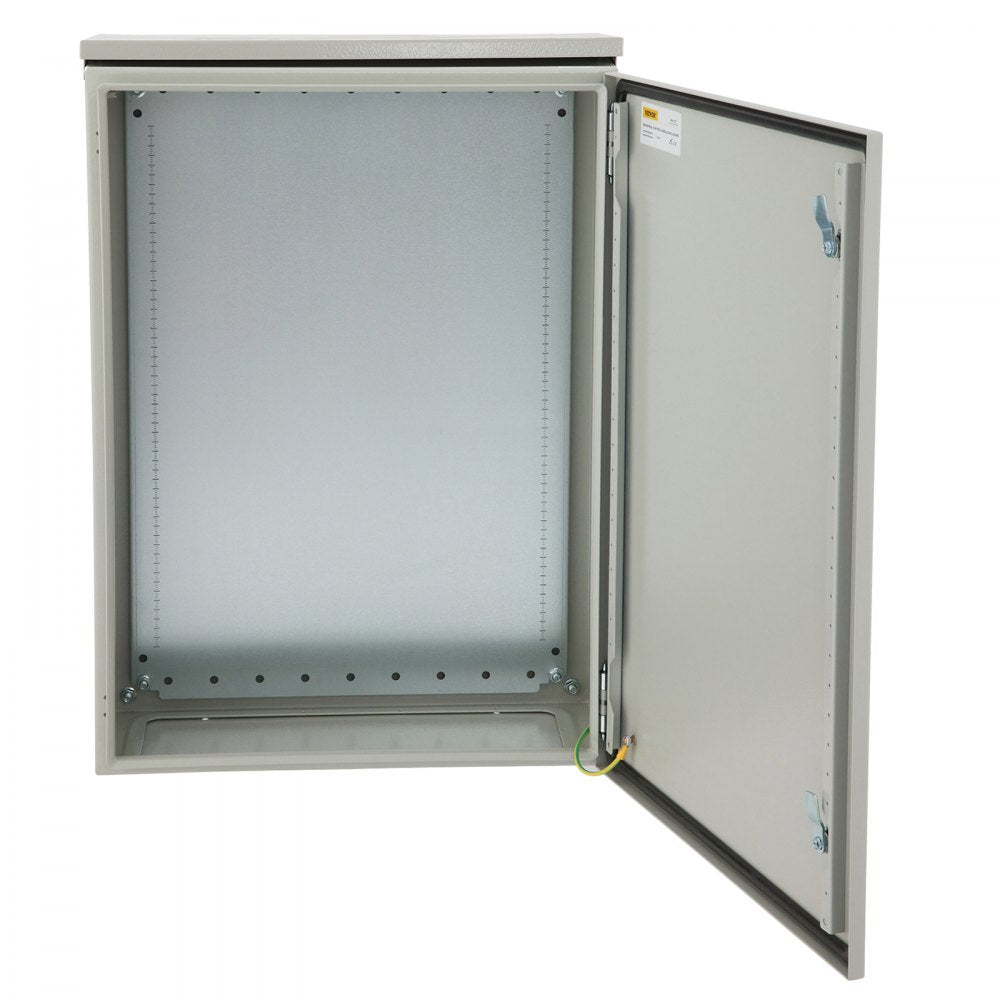

•Convenient operation with a detachable galvanized mounting backplate.
•Well-thought-out design with smooth cutouts to prevent cable damage.

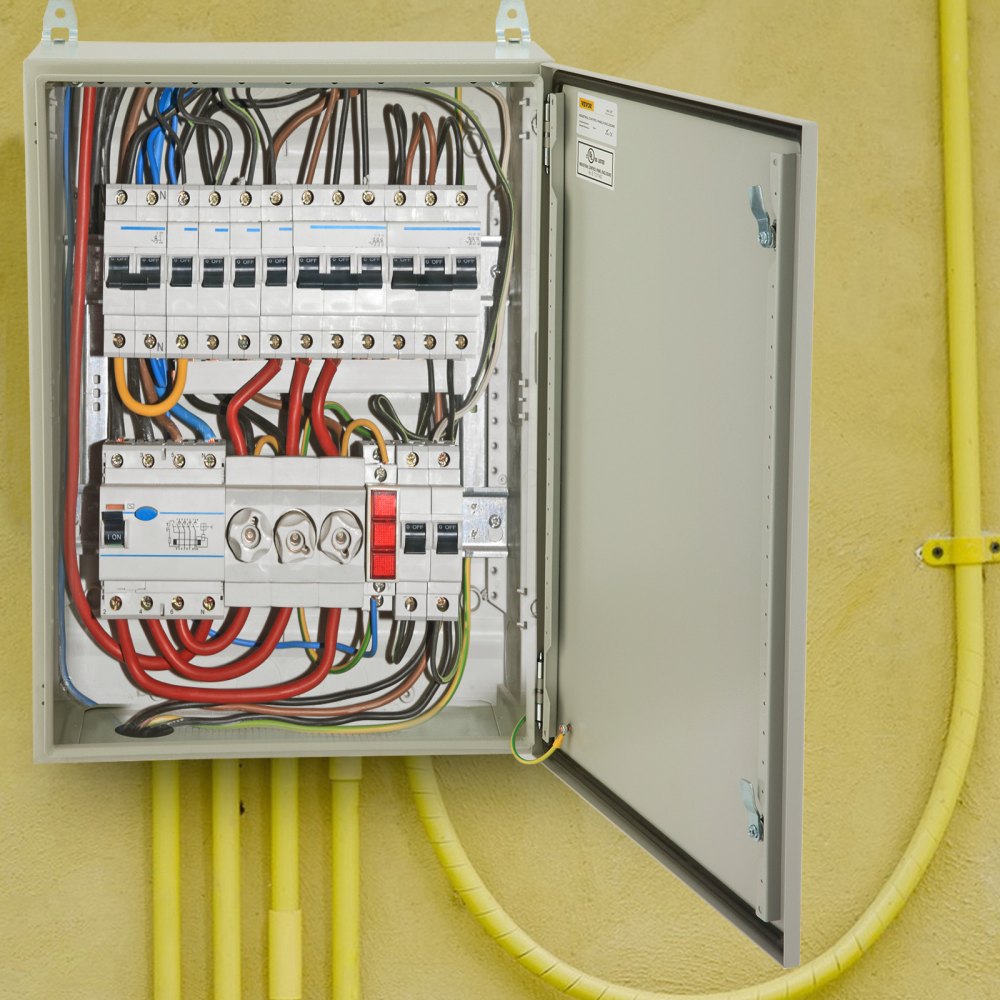

•Electrical circuits protection.
•Industrial equipment housing.
•Outdoor construction sites.
•Shopping malls and public squares.
Specifications:
| Model | ST6425 |
| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating(Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam/ Nylon(washer or plug) |

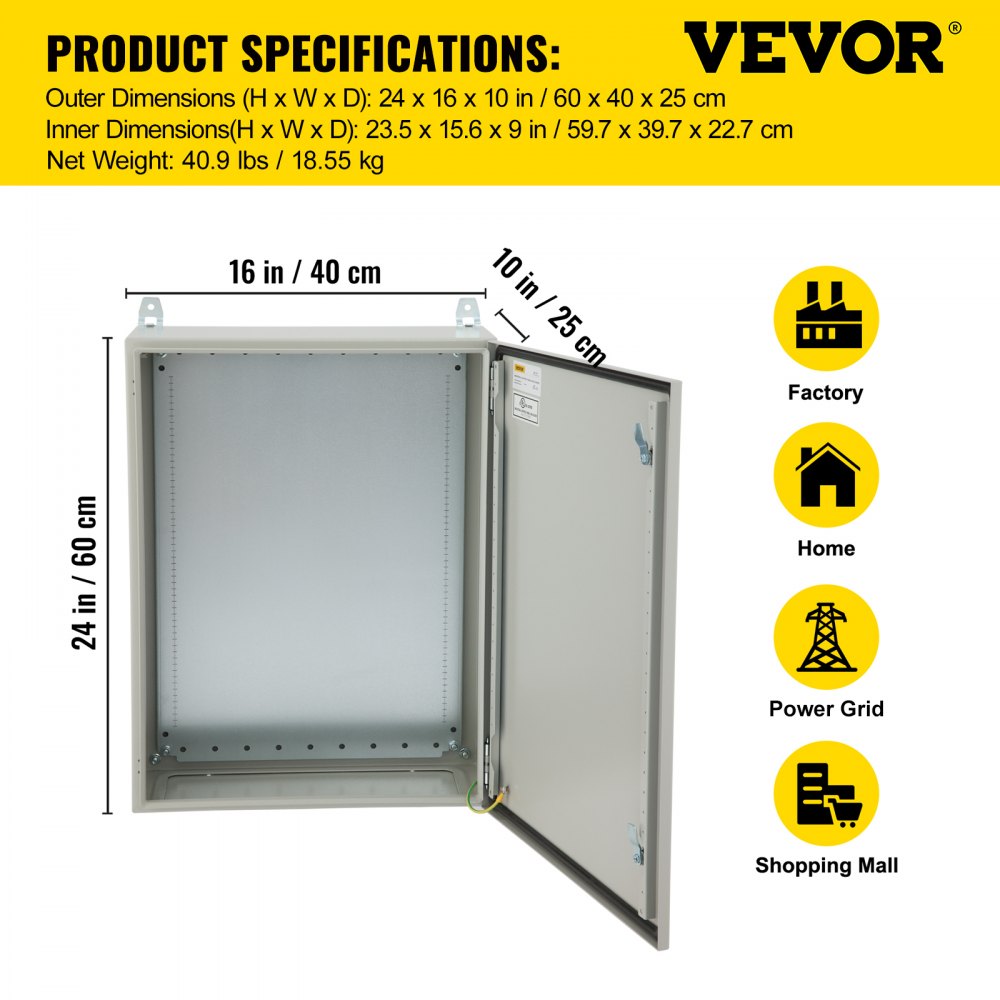

| Outer Dimensions(H x W x D) | 24 x 16 x 10 in / 60 x 40 x 25 cm |
| Inner Dimensions(H x W x D) | 23.5 x 15.6 x 9 in / 59.7 x 39.7 x 22.7 cm |
| Galvanized Backplate Dimensions(H x W) | 22.2 x 14 in / 56.5 x 35 cm |
| Mounting Hole Diameter(± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 40.9 lbs / 18.55 kg |
