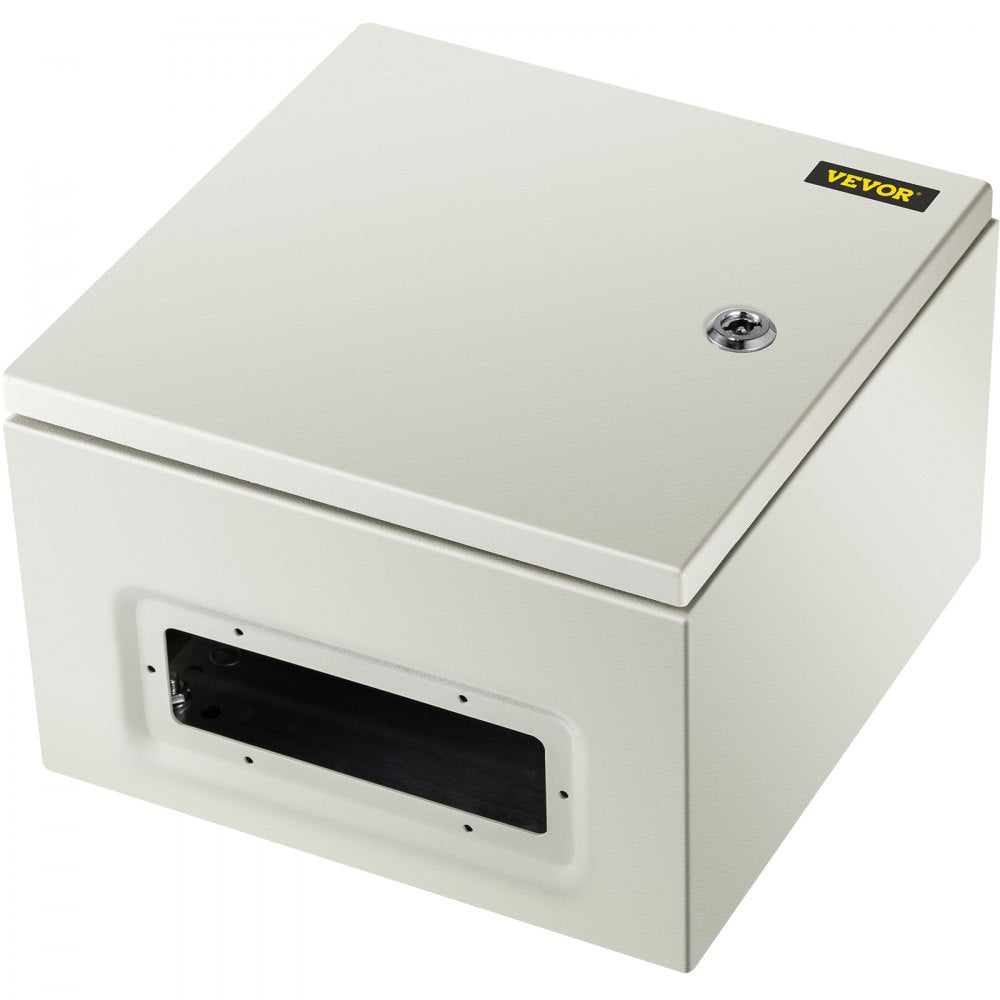

SPT - 12"x12"x8" Durable NEMA Steel Enclosure, Lockable & Powder Coated

SPT - 12"x12"x8" Durable NEMA Steel Enclosure, Lockable & Powder Coated

SKU: SKU: SPT Download PDF

Variant:
  • SPT - 12"x12"x8" Durable NEMA Steel Enclosure, Lockable & Powder Coated
Regular price Now $70.86
Regular price BEFORE   $0.00 Sale price Now $70.86
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VEVOR NEMA steel enclosure, engineered for exceptional durability with a construction of 0059'' thick carbon steel, guaranteeing sturdy protection Measuring 12" x 12" x 8", this versatile enclosure is ideal for a variety of applications Finished with an epoxy polyester powder coating, it offers excellent resistance to wear, making it suitable for both indoor and outdoor environments.

With a lockable feature, it provides top-notch protection against dust and water intrusion Additionally, a detachable galvanized backplate is included for enhanced safety during operation.

Features and Benefits:

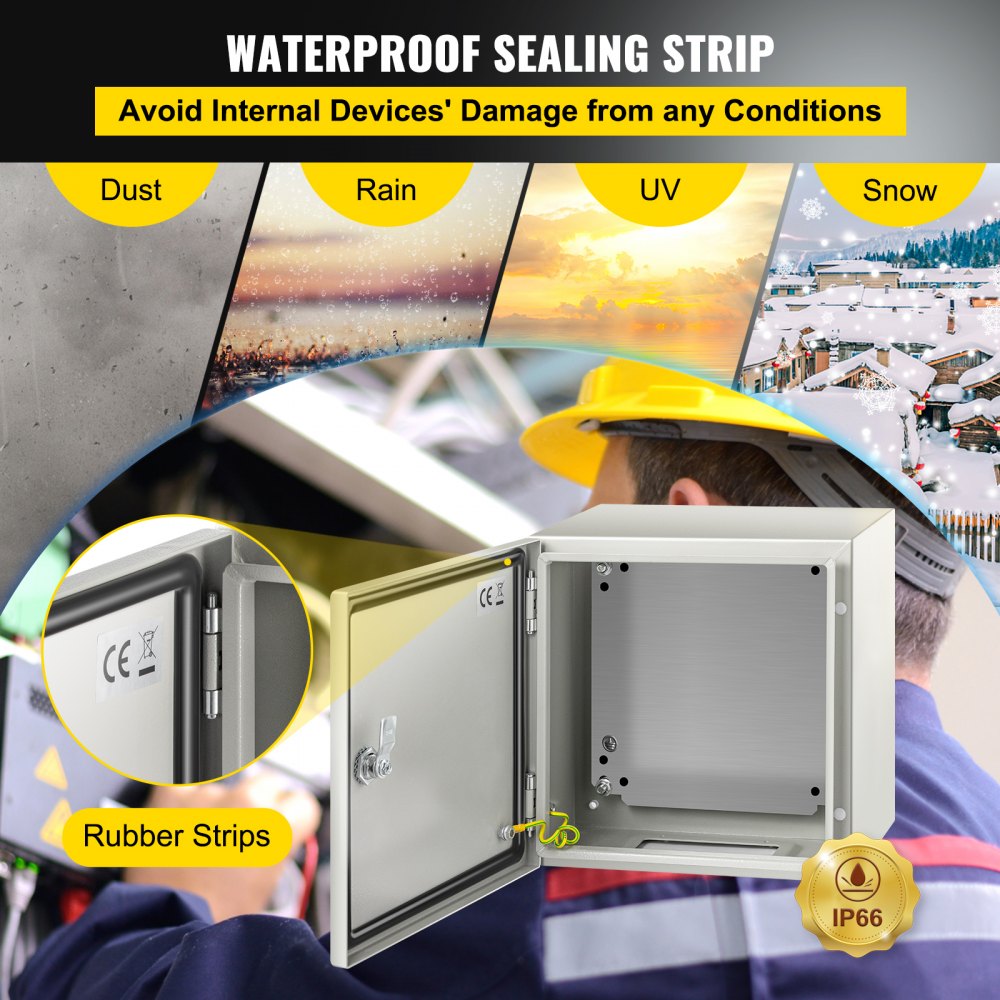

    •IP66 waterproof grade that offers protection against dust and moisture.

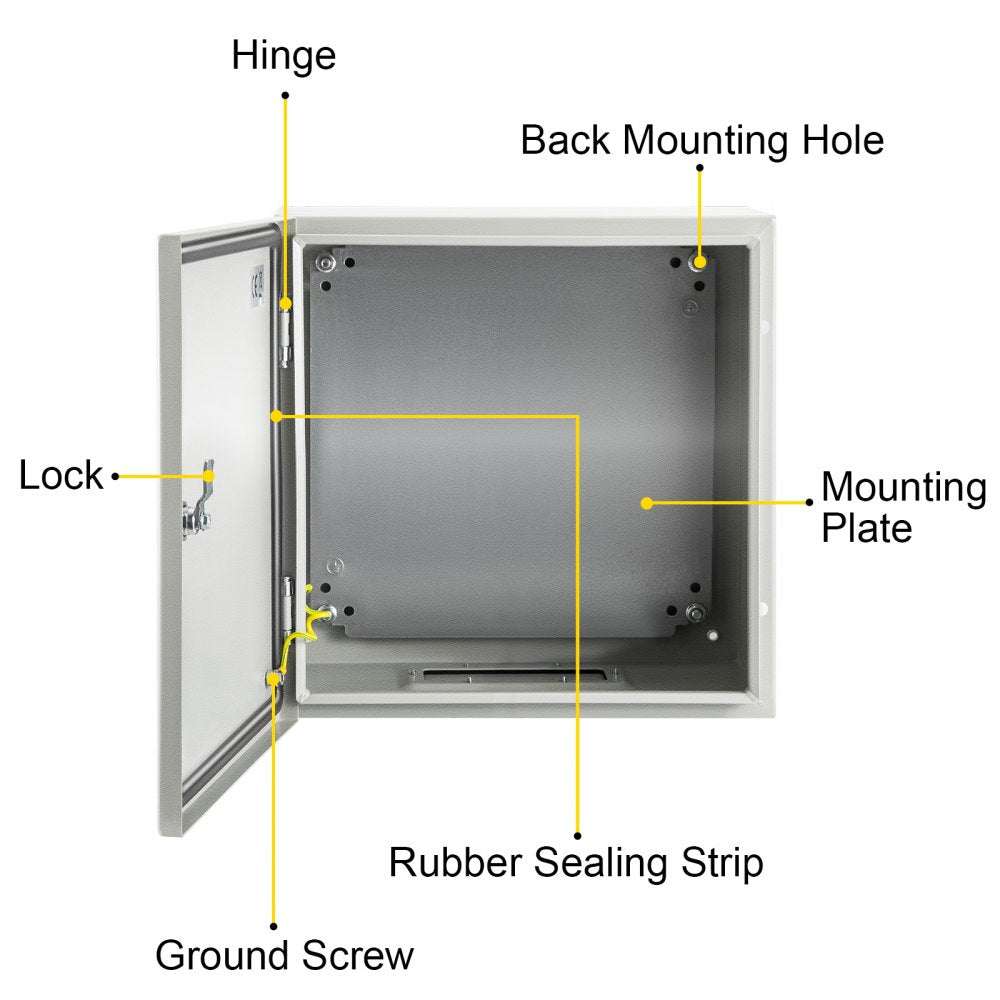

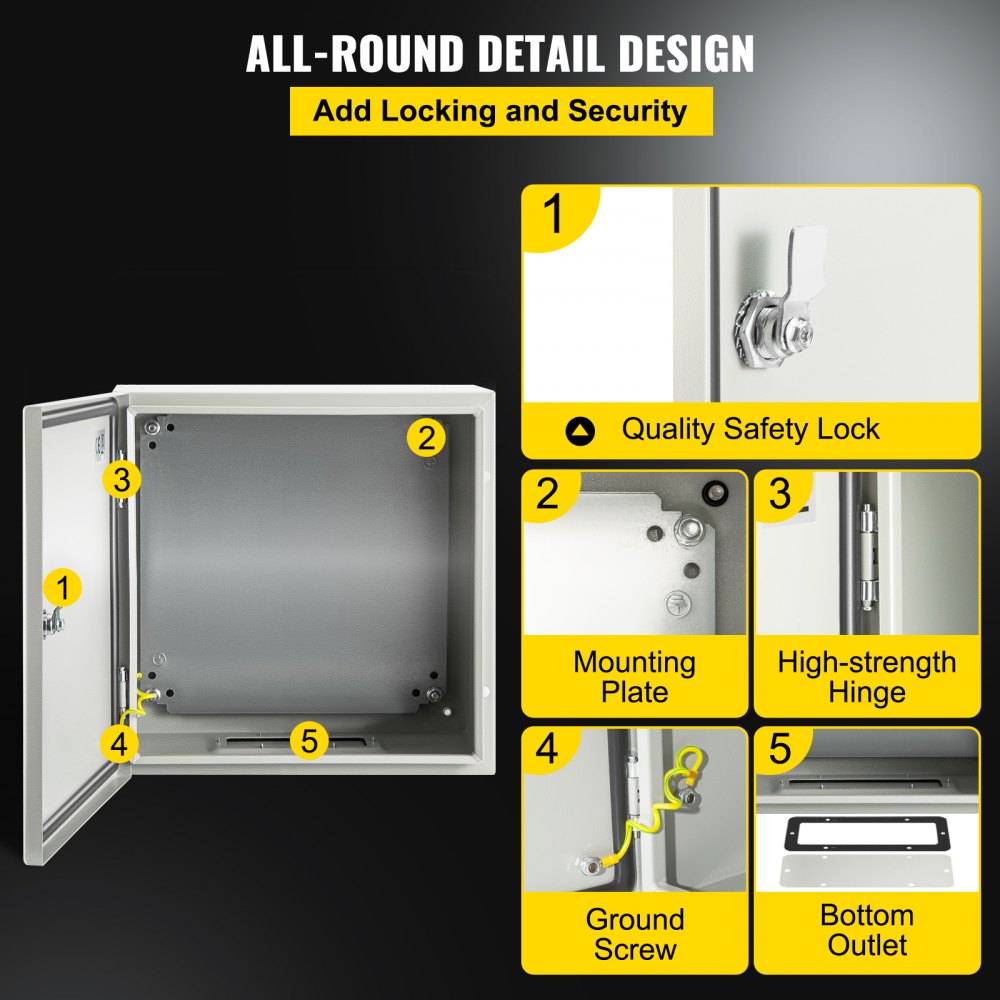

    •Reinforced lock and hinge for added security.

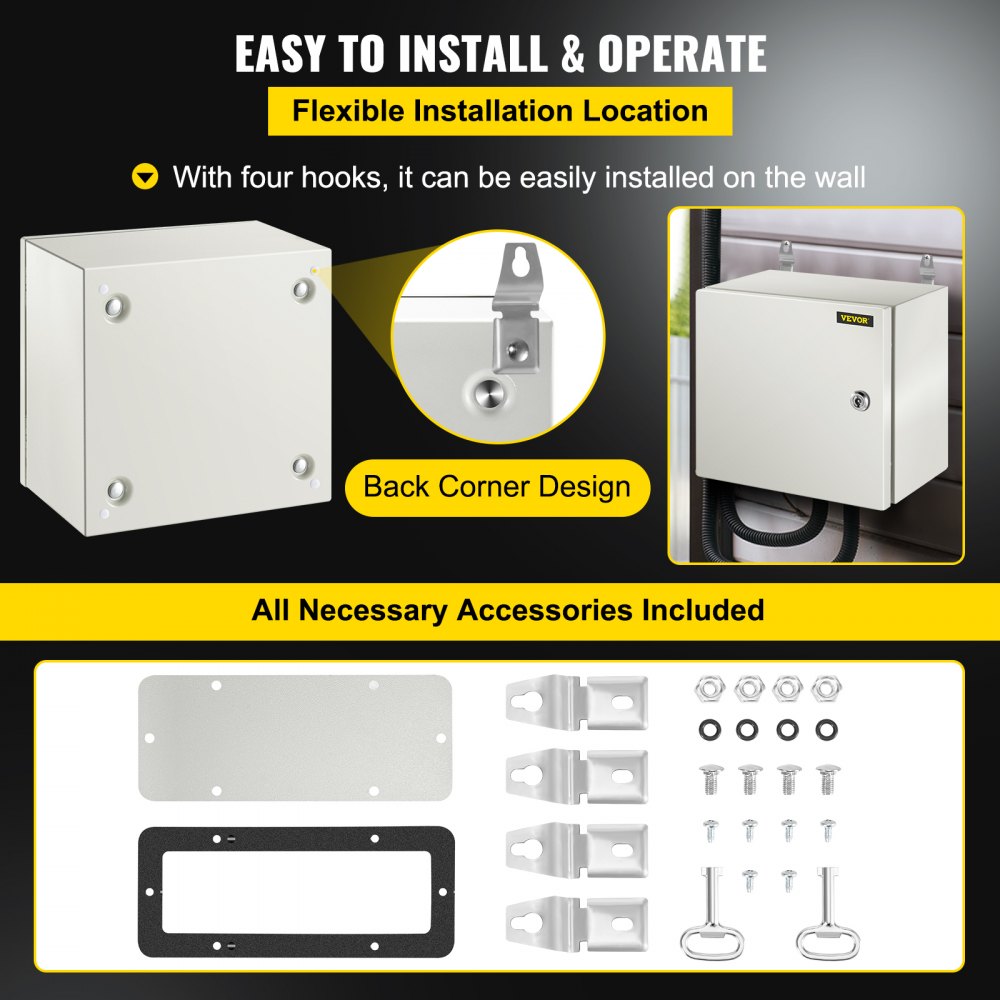

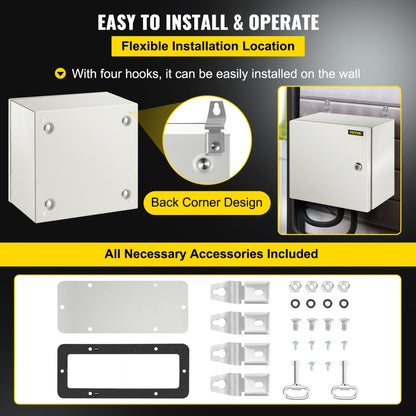

    •Effortless installation with mounting hardware included.

    •Thoughtfully designed with a detachable outlet hole for cable management.

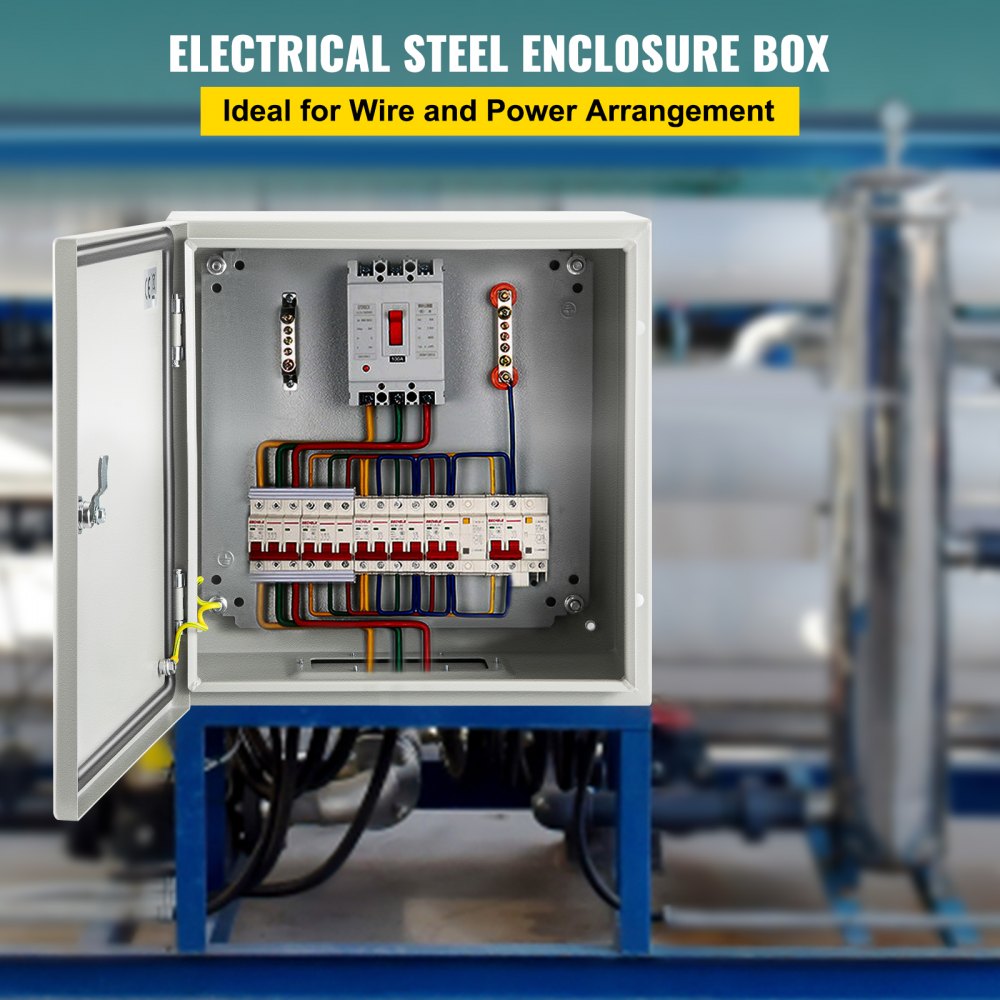

    •Ideal for indoor and outdoor electrical applications, such as solar projects and industrial use.

    •Suitable for factories, construction sites, shopping malls, residential areas, and courtyards.

Specifications:

 Model SPT

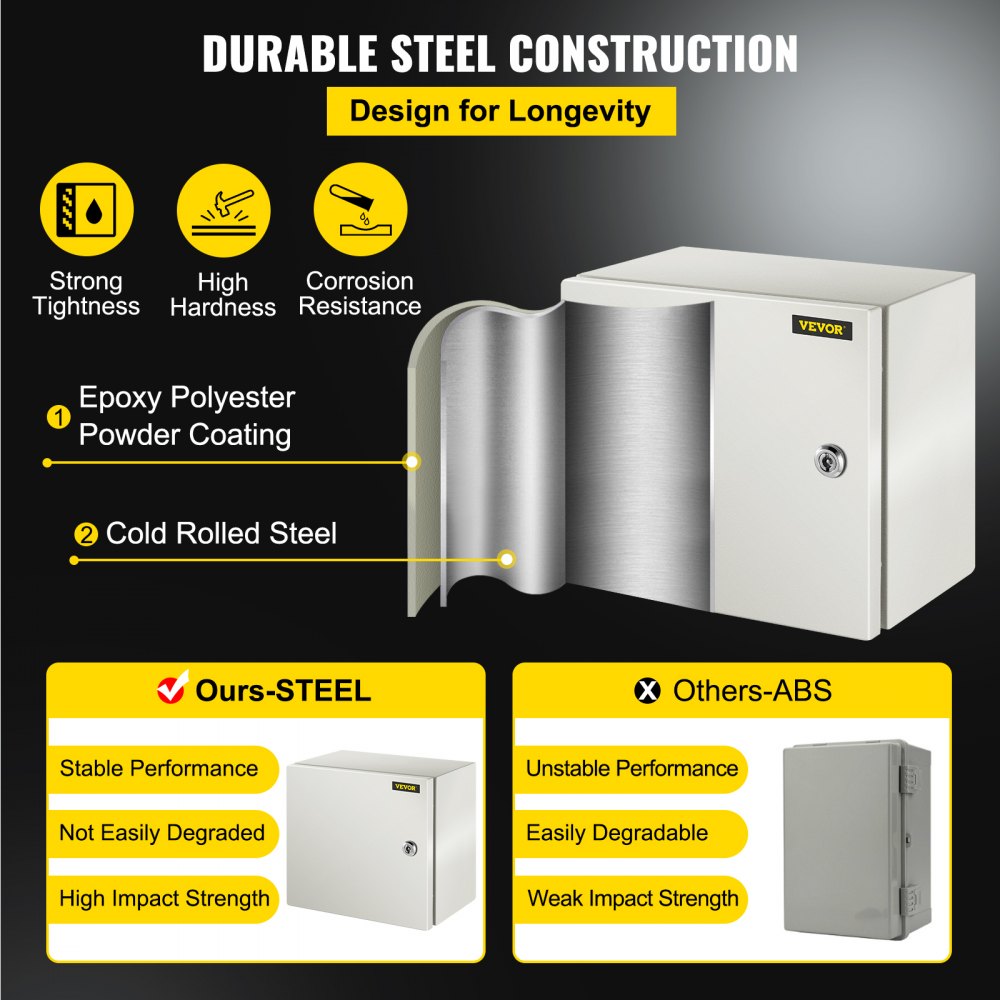

 Material 0.059'' / 1.5 mm Carbon Steel
 Coating Epoxy Polyester Powder Coating

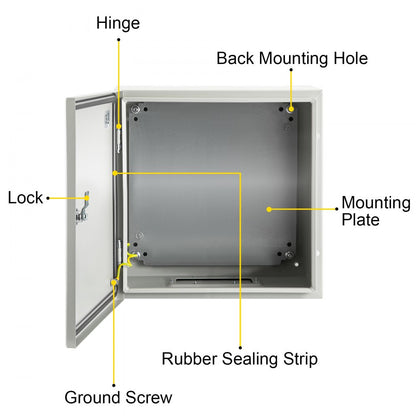

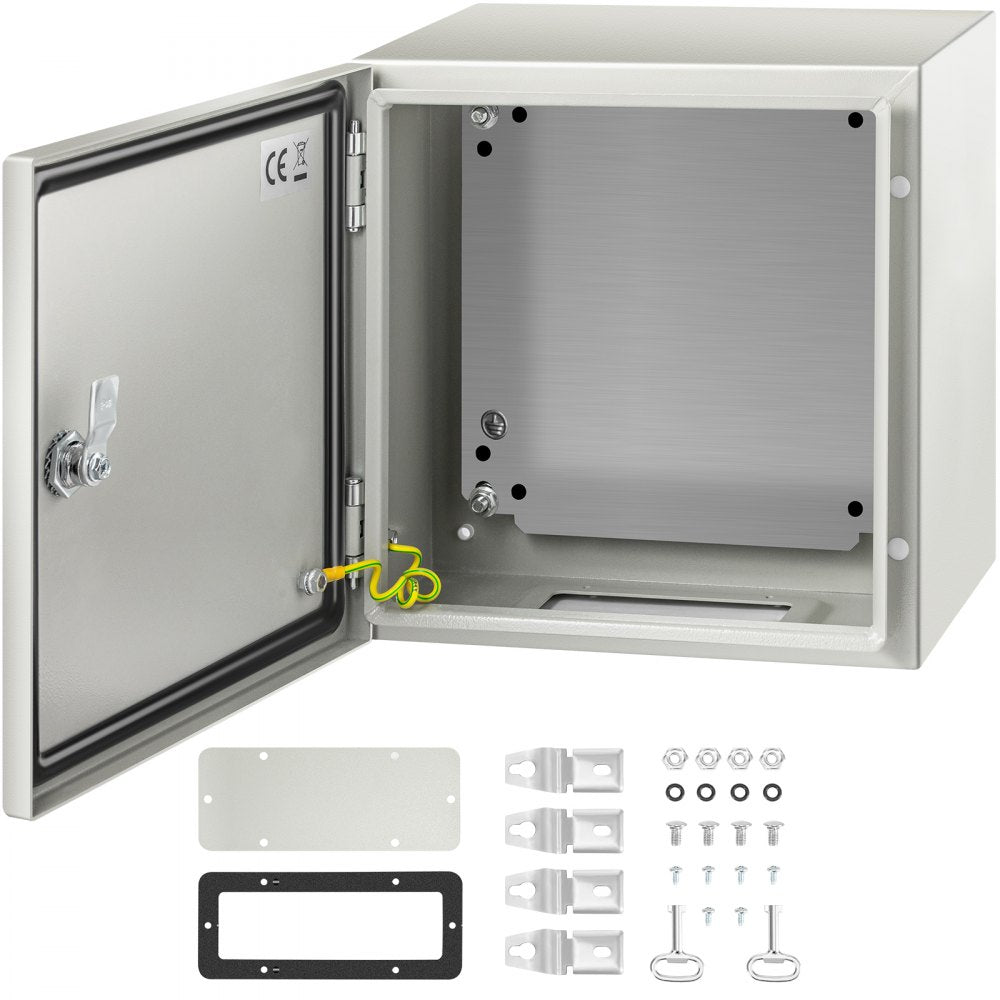

 Mounting Plate 0.079'' / 2 mm Detachable Galvanized Backplate
 IP Rating Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
 Connection Type Hinged
 Galvanized Backplate Dimensions 9.8" x 9.8" / 25 x 25 cm

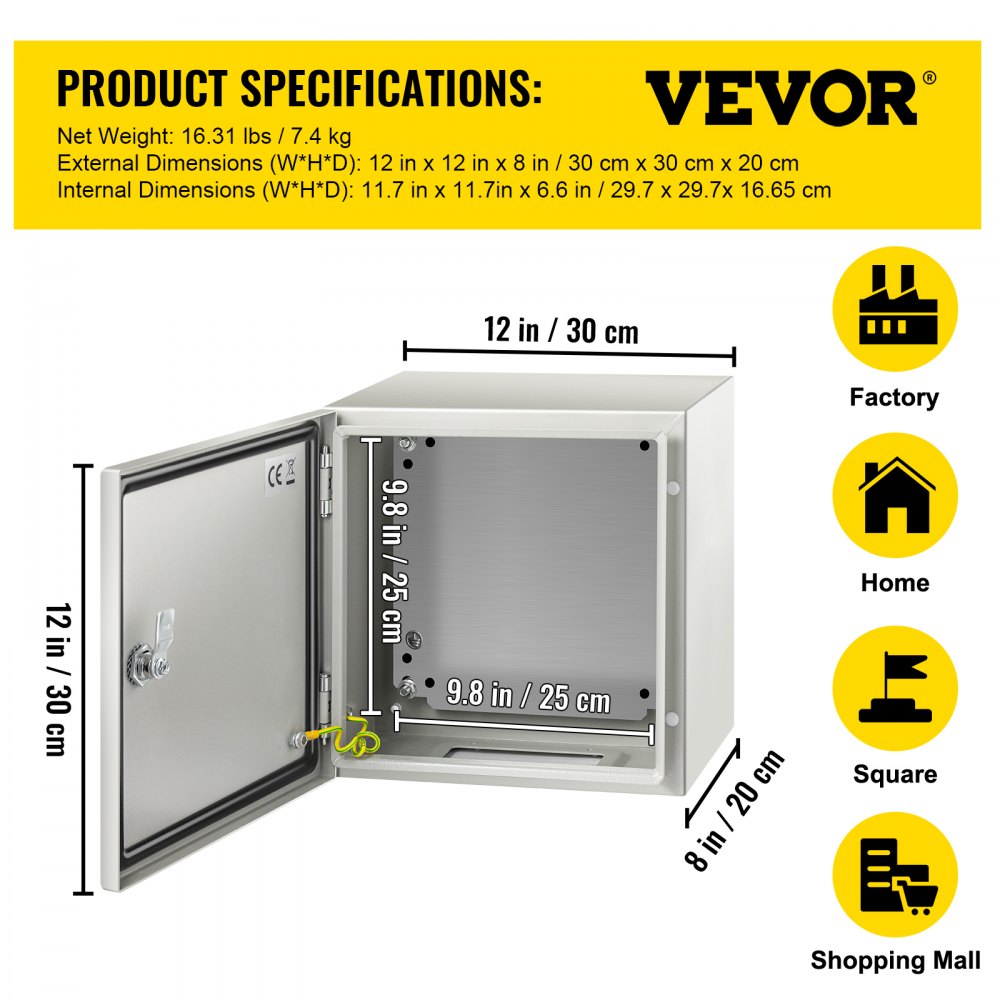

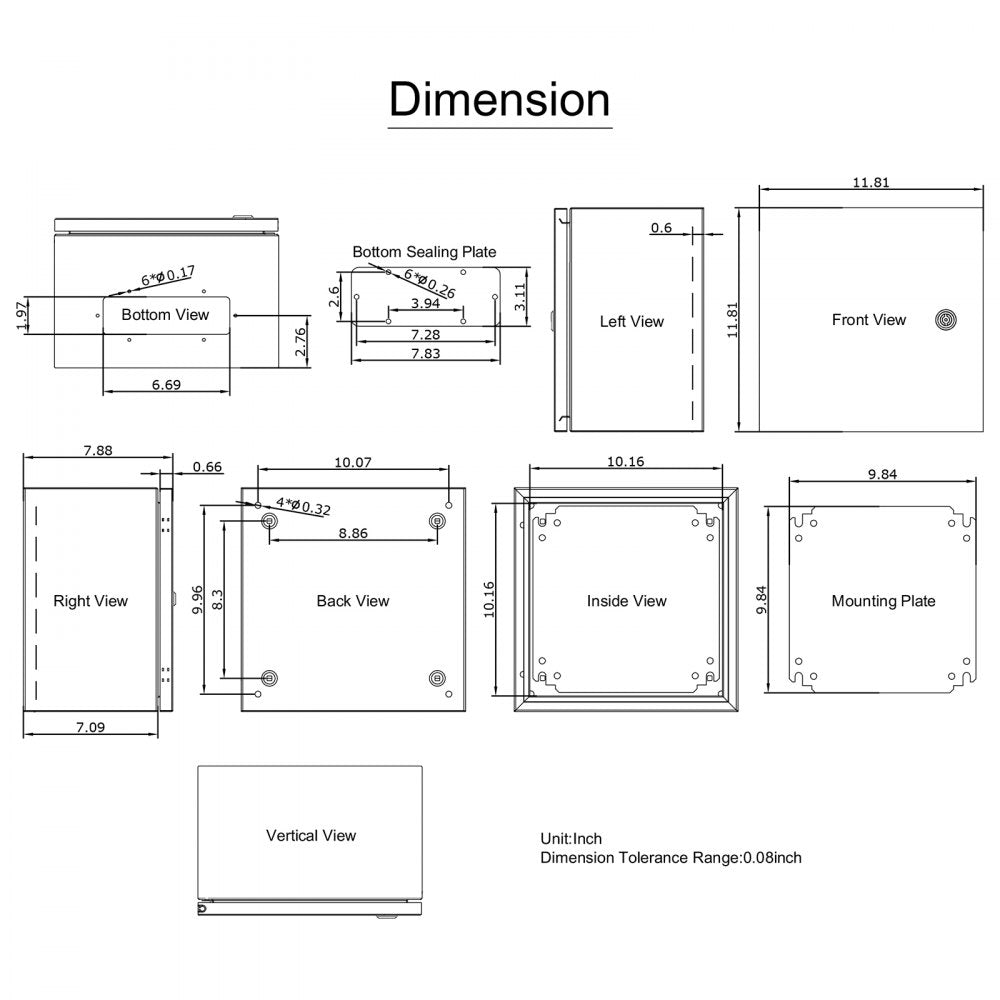

 Outer Dimensions (H x W x D) 12'' x 12'' x 8'' / 30 x 30 x 20 cm
 Inner Dimensions (H x W x D) 11.7'' x 11.7'' x 6.6'' / 29.7 x 29.7 x 16.65 cm
 Certification CE / ROHS Certification
