Description:

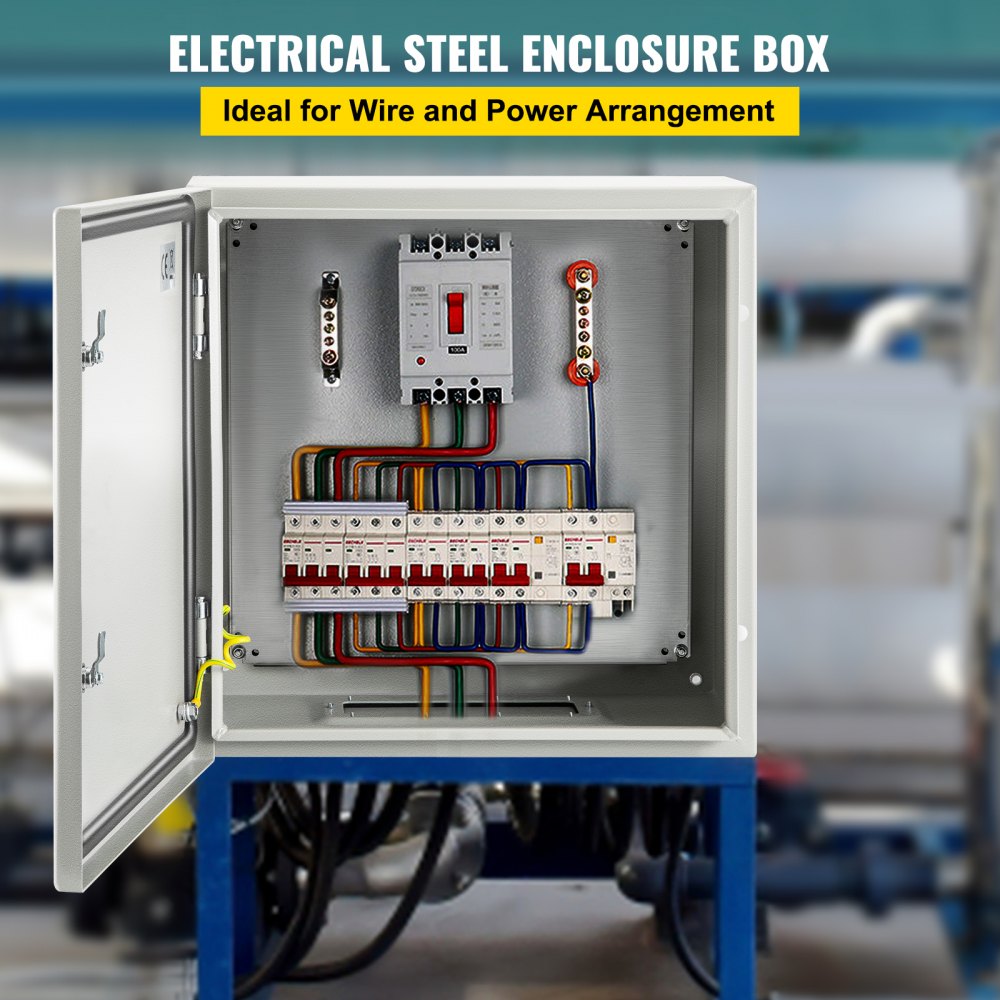

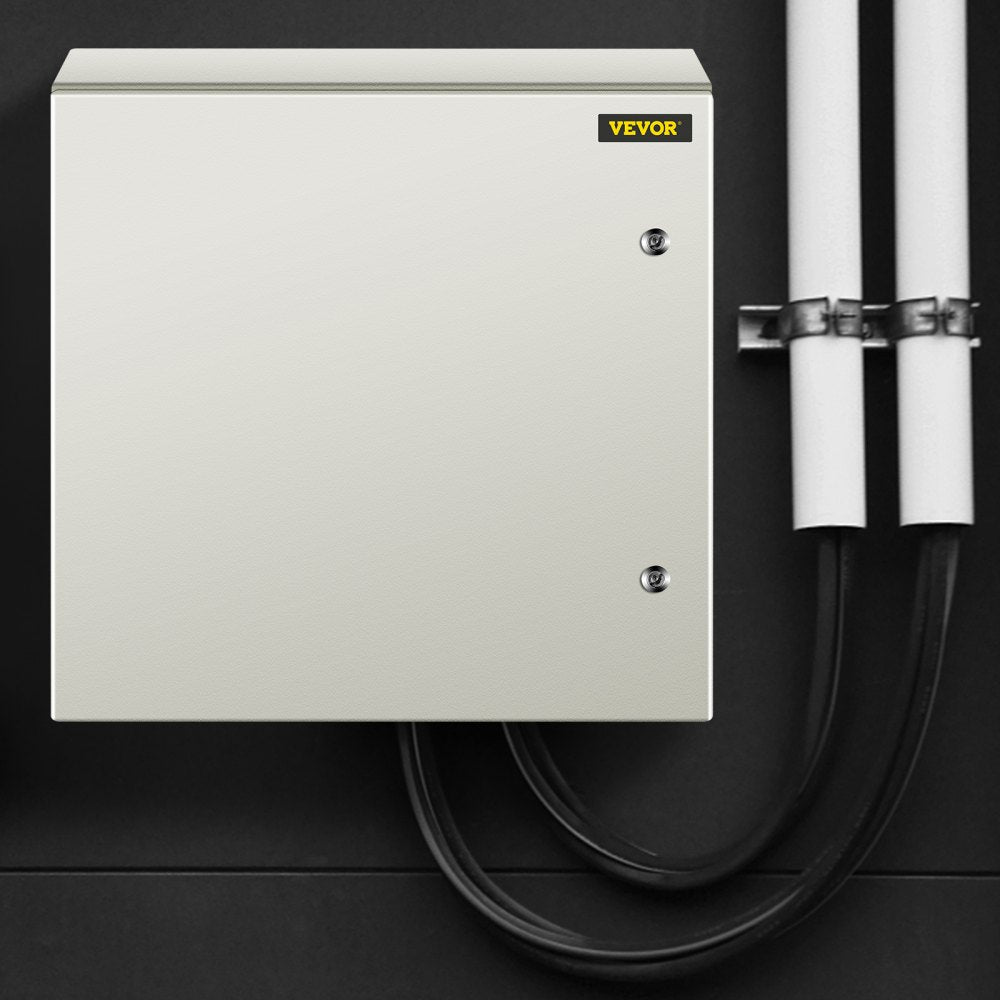

Safeguard your electrical components with the VEVOR NEMA Steel Enclosure, expertly crafted from premium carbon steel This enclosure features a reliable locking mechanism, strong hinges, and sealing strips, providing an impressive IP66 rating that protects against harsh weather conditions, including moisture and corrosion Built for longevity, it's perfect for both indoor and outdoor environments including factories, construction sites, shopping centers, and homes.

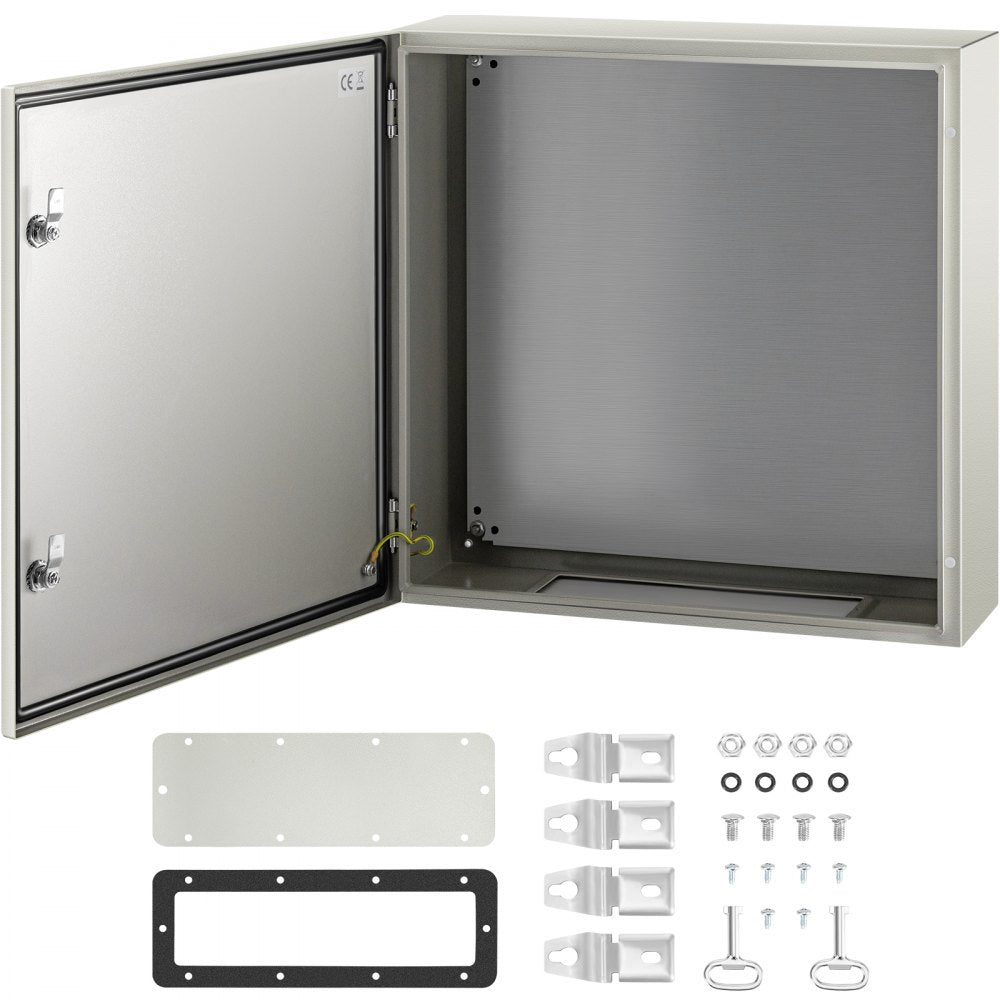

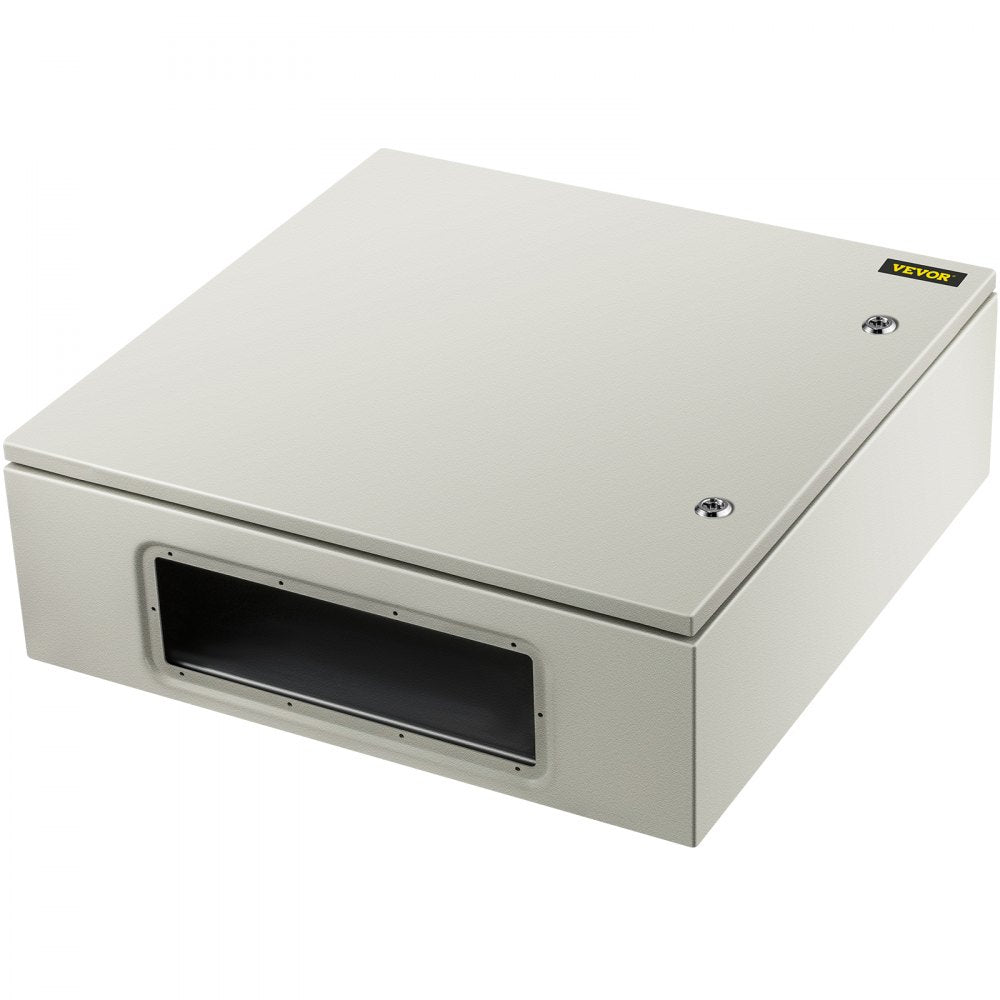

With a user-friendly design, the electrical box allows for effortless access to your components, and includes a strategically placed bottom outlet hole for easy cable management.
Features and Benefits:
•Sturdy Steel Construction.
•IP66 Waterproof Grade.

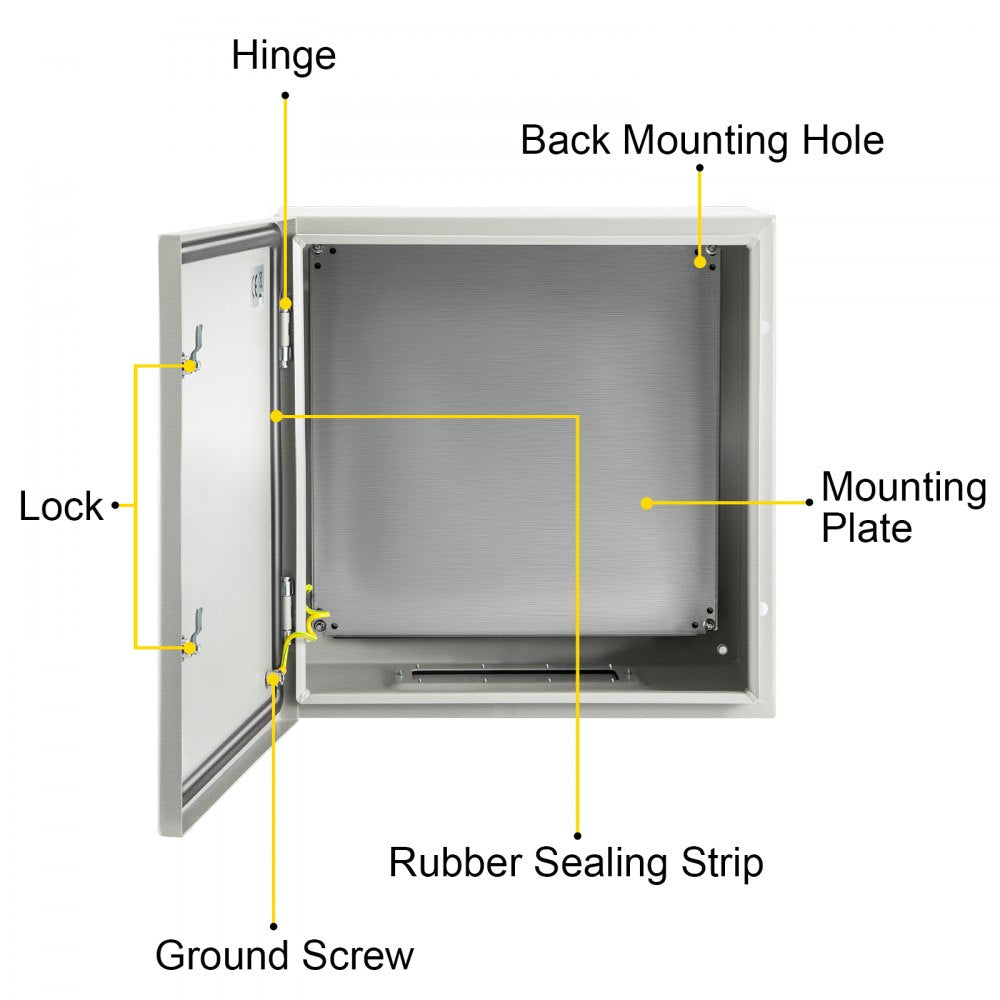

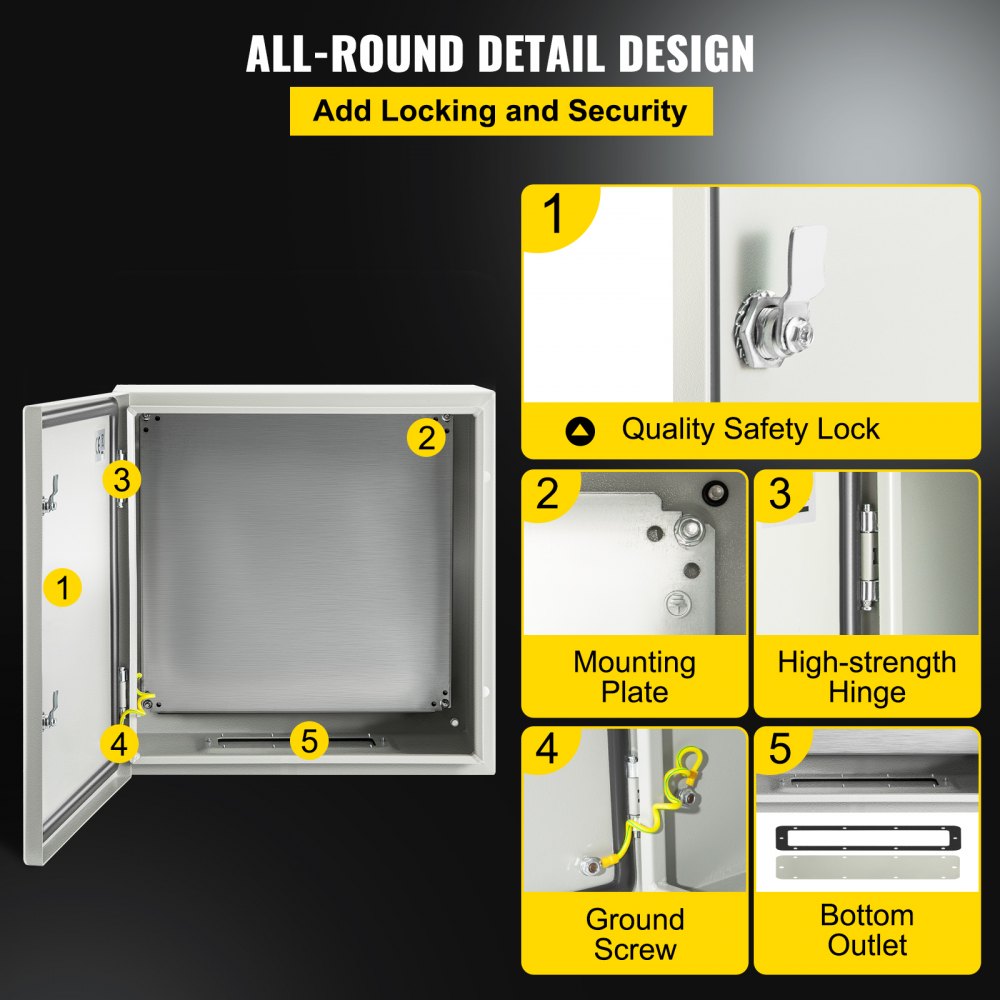

•Reinforced Lock & Hinge.
•Convenient Operation.
•Exquisite Details Design.
•Indoor and outdoor electrical applications.
•Protecting circuits from corrosion.
•Suitable for factories, construction sites, shopping malls, squares, and residential areas.
Specifications:
| Model | SPT |
| Material | 0.059'' / 1.5 mm Carbon Steel |

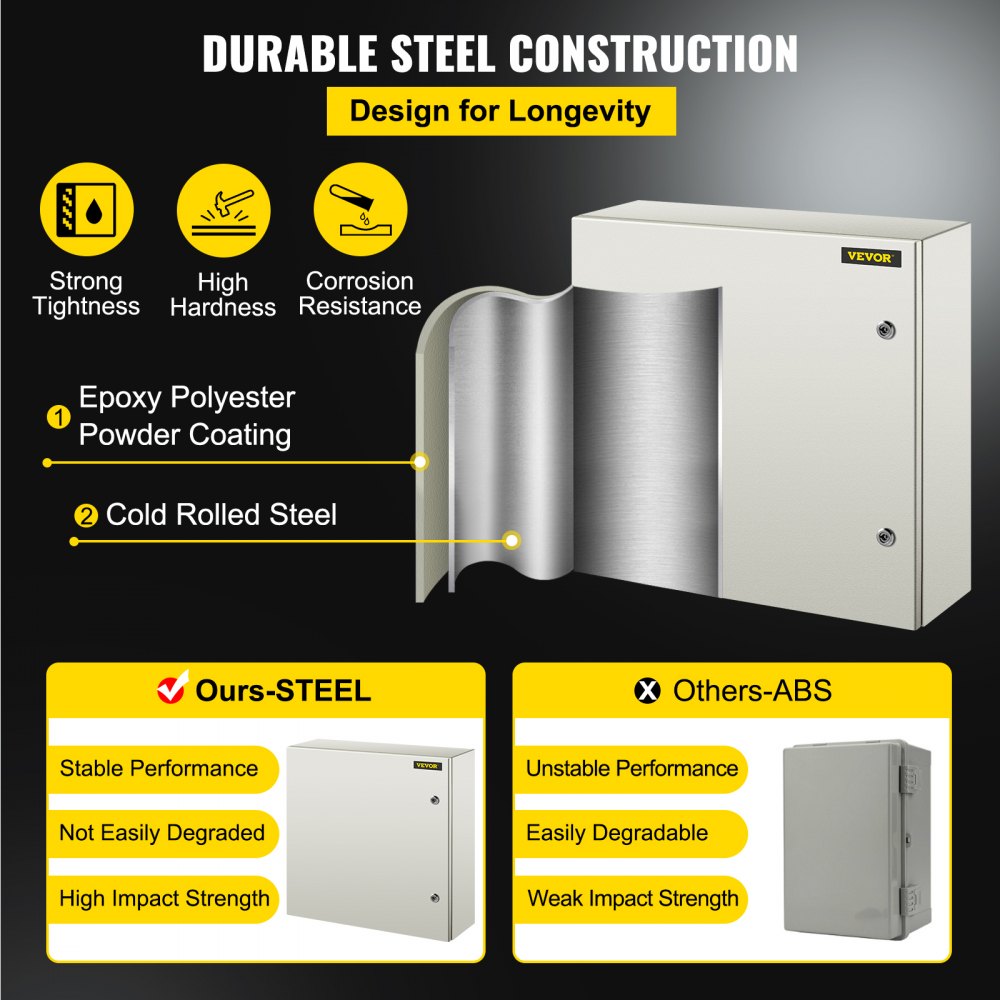

| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079'' / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |
| Galvanized Backplate Dimensions | 21.7" x 21.7" / 55 x 55 cm |

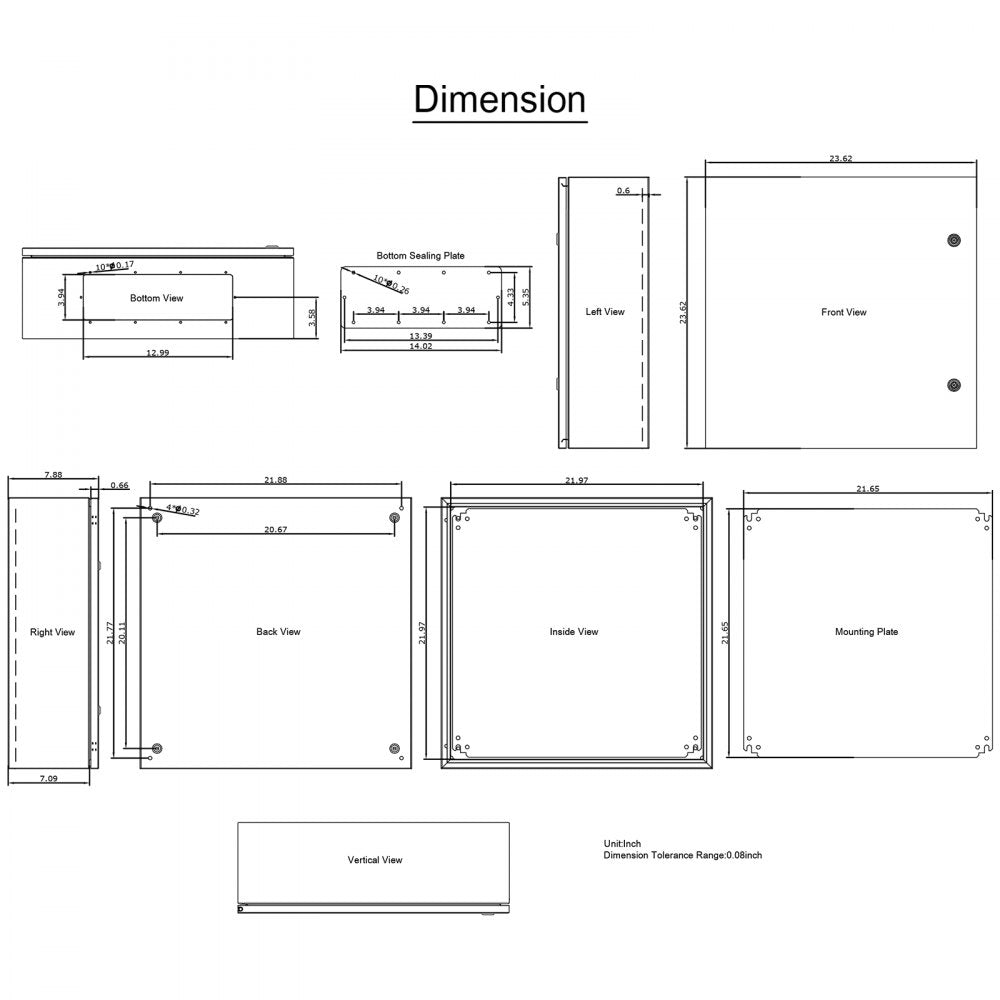

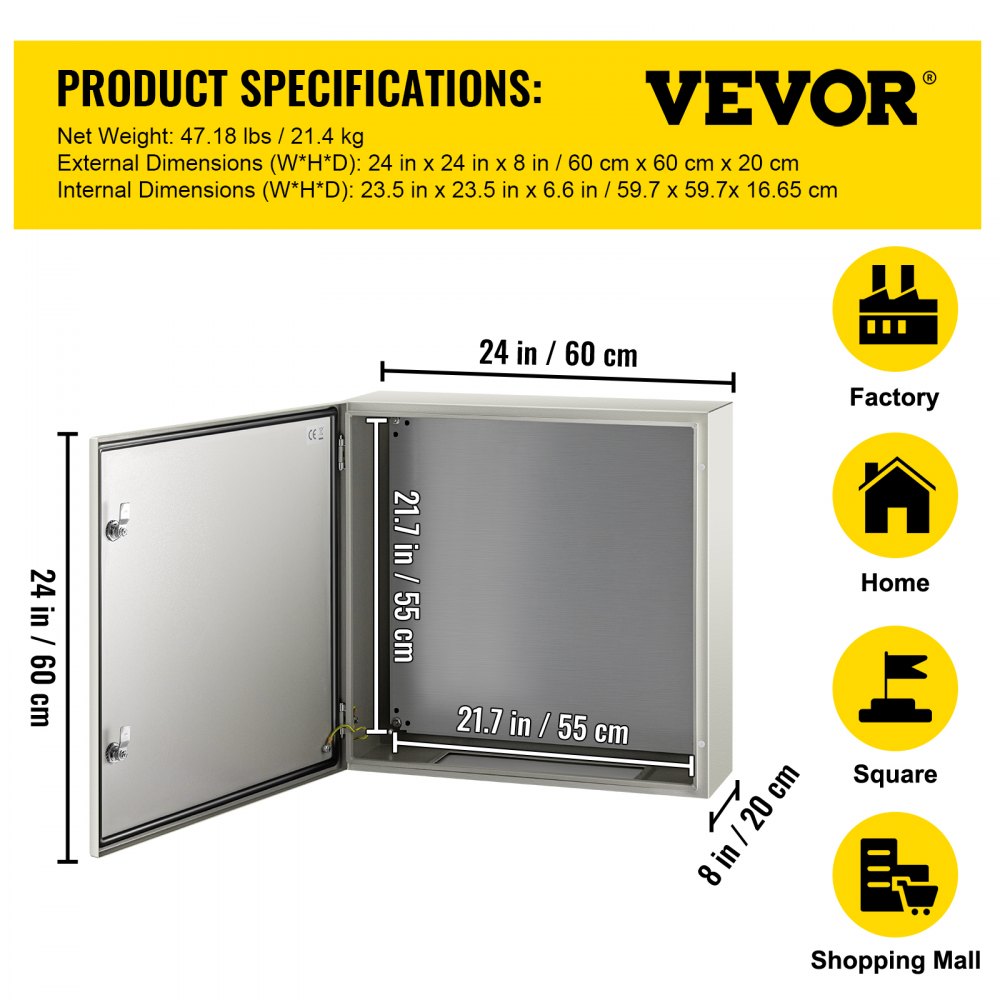

| Outer Dimensions (H x W x D) | 24'' x 24'' x 8'' / 60 x 60 x 20 cm |
| Inner Dimensions (H x W x D) | 23.5'' x 23.5'' x 6.6'' / 59.7 x 59.7 x 16.65 cm |
| Certification | CE / ROHS Certification |
