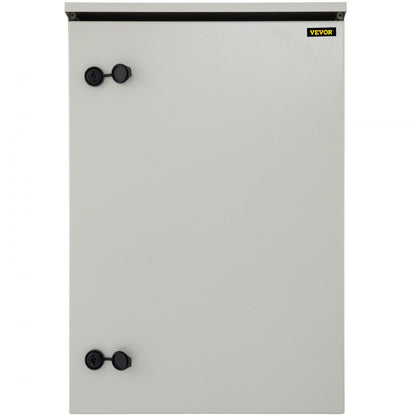

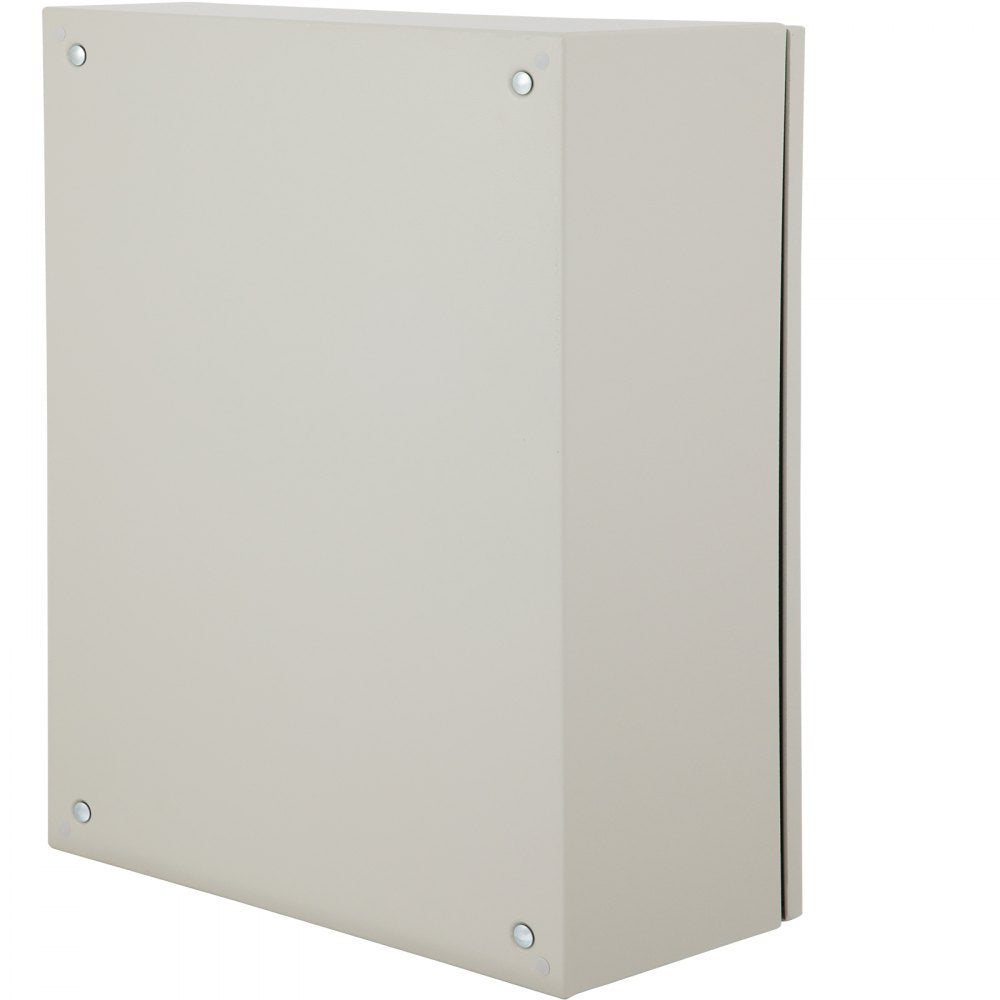

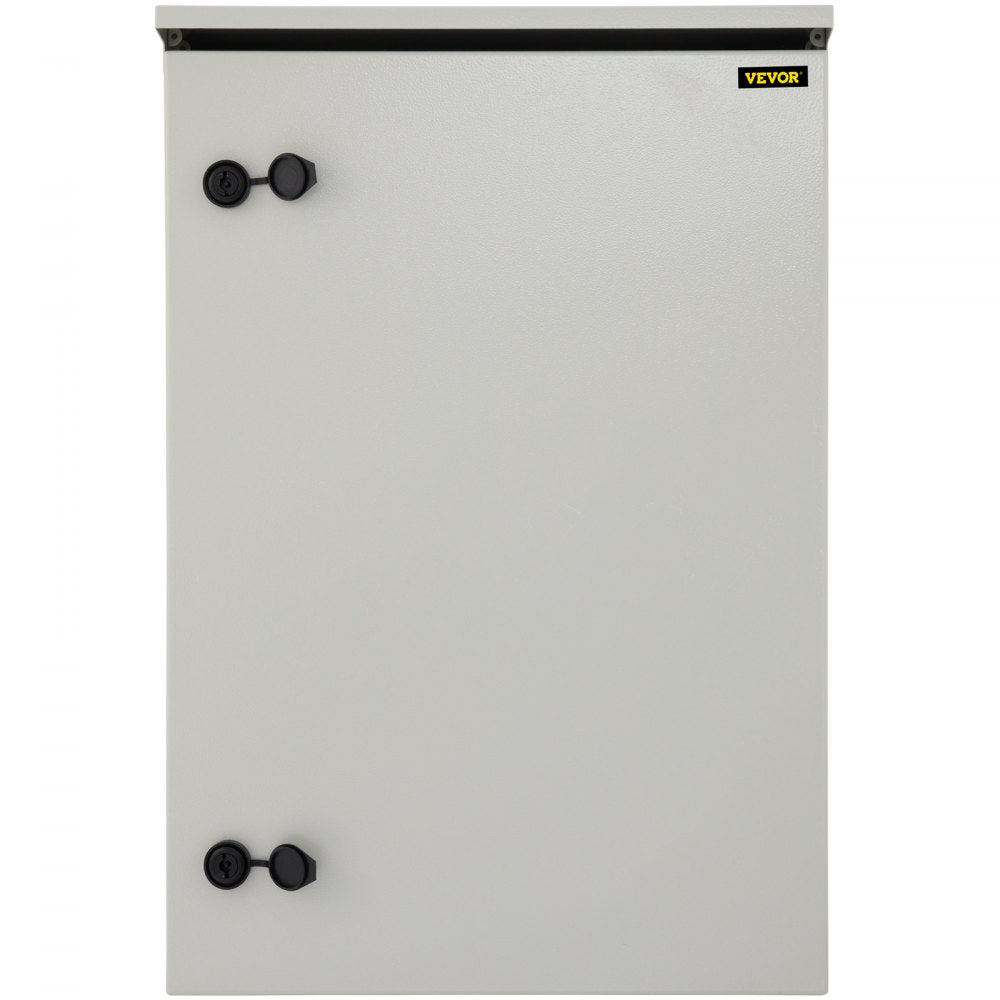

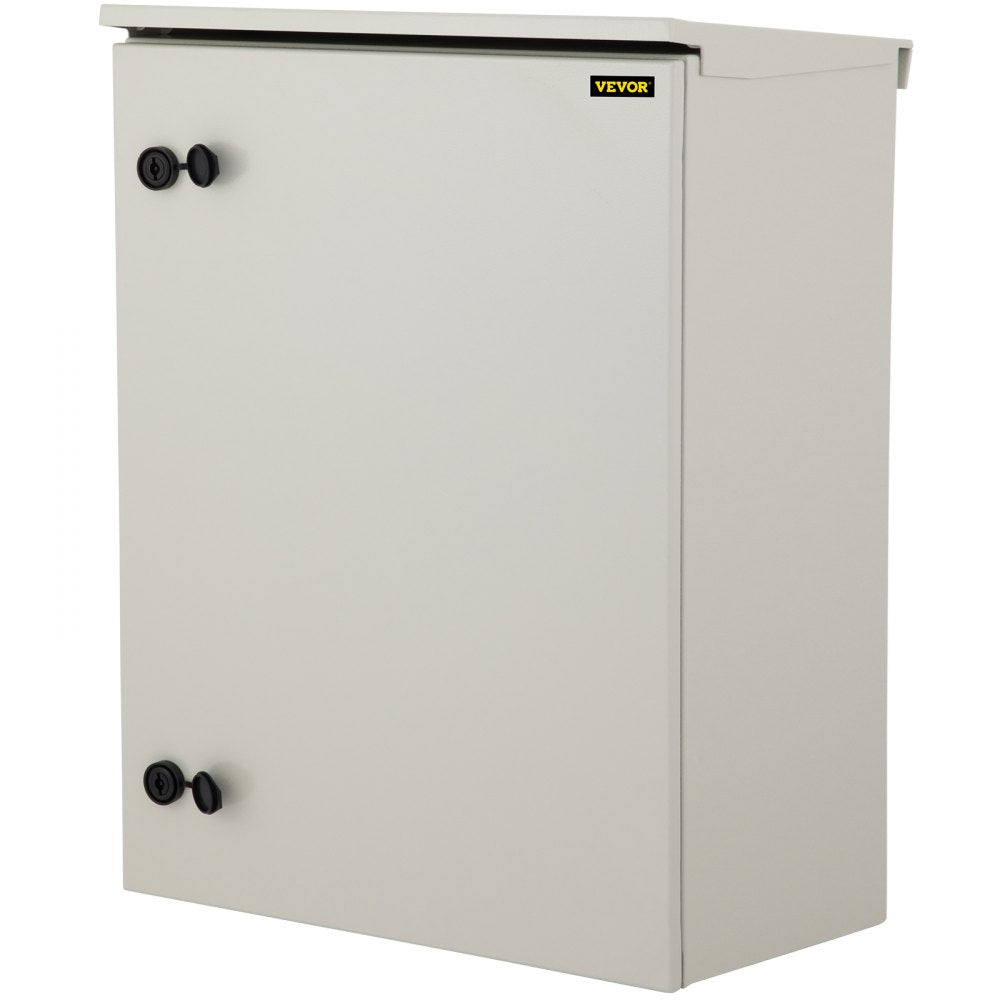

ST6430 - 24" Steel Electrical Enclosure with Advanced Lock and Rain Hood
ST6430 - 24" Steel Electrical Enclosure with Advanced Lock and Rain Hood
SKU: SKU: ST6430 Download PDF
- ST6430 - 24" Steel Electrical Enclosure with Advanced Lock and Rain Hood
- ST6430 - 24" Steel Electrical Enclosure with Advanced Lock and Rain Hood
Couldn't load pickup availability

Description:

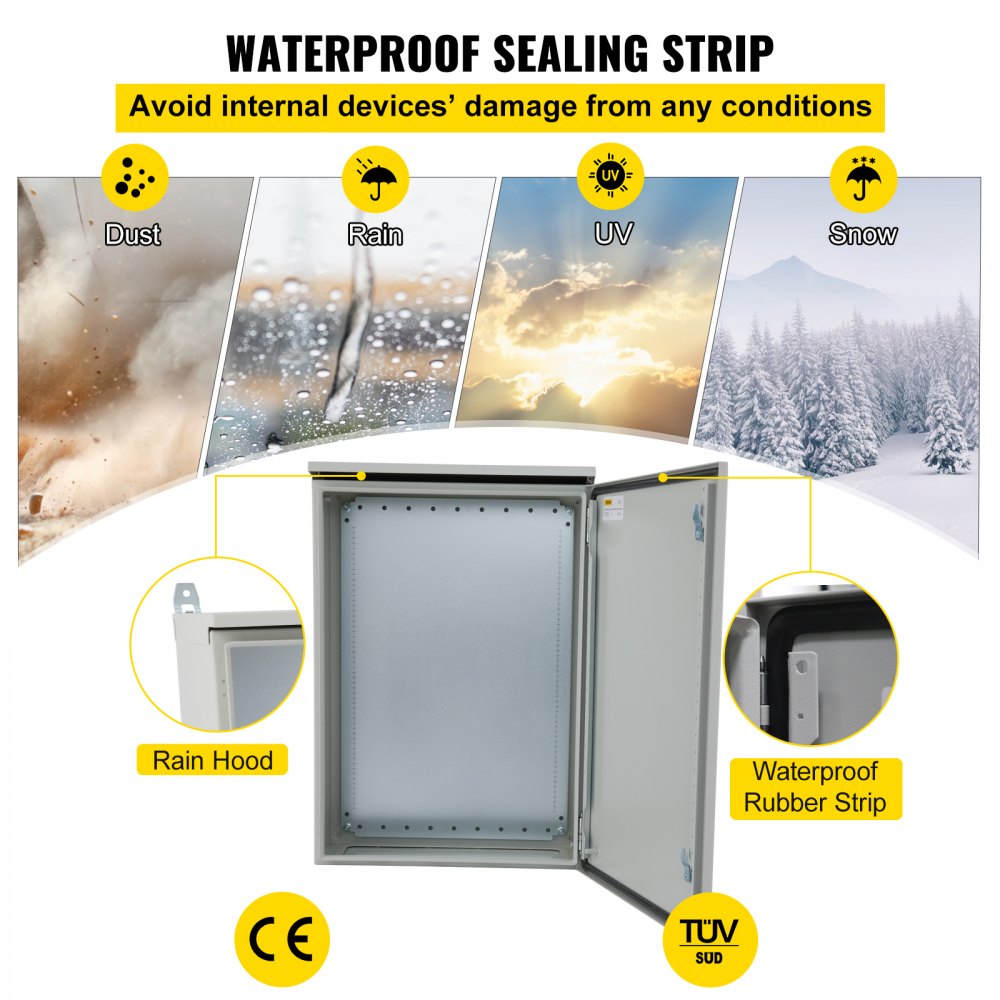

Constructed from premium cold-rolled carbon steel, the VEVOR electrical enclosure offers exceptional durability and resistance to rust Engineered with an advanced locking system, robust hinges, and a protective rain hood, this enclosure effectively protects your cables, plugs, and equipment from harsh weather conditions Suitable for a range of applications, both inside and outside, it’s ideal for electrical tasks and construction projects.
This thoughtfully designed enclosure delivers reliable protection and performance throughout the year, making it a reliable choice for your needs.
Features and Benefits:
•Crafted from high-quality carbon steel for enhanced durability.
•IP65 rating provides superior waterproofing and dustproofing.

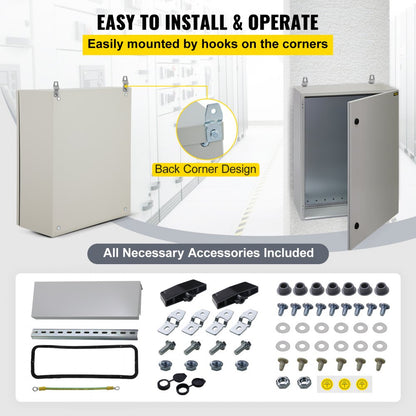

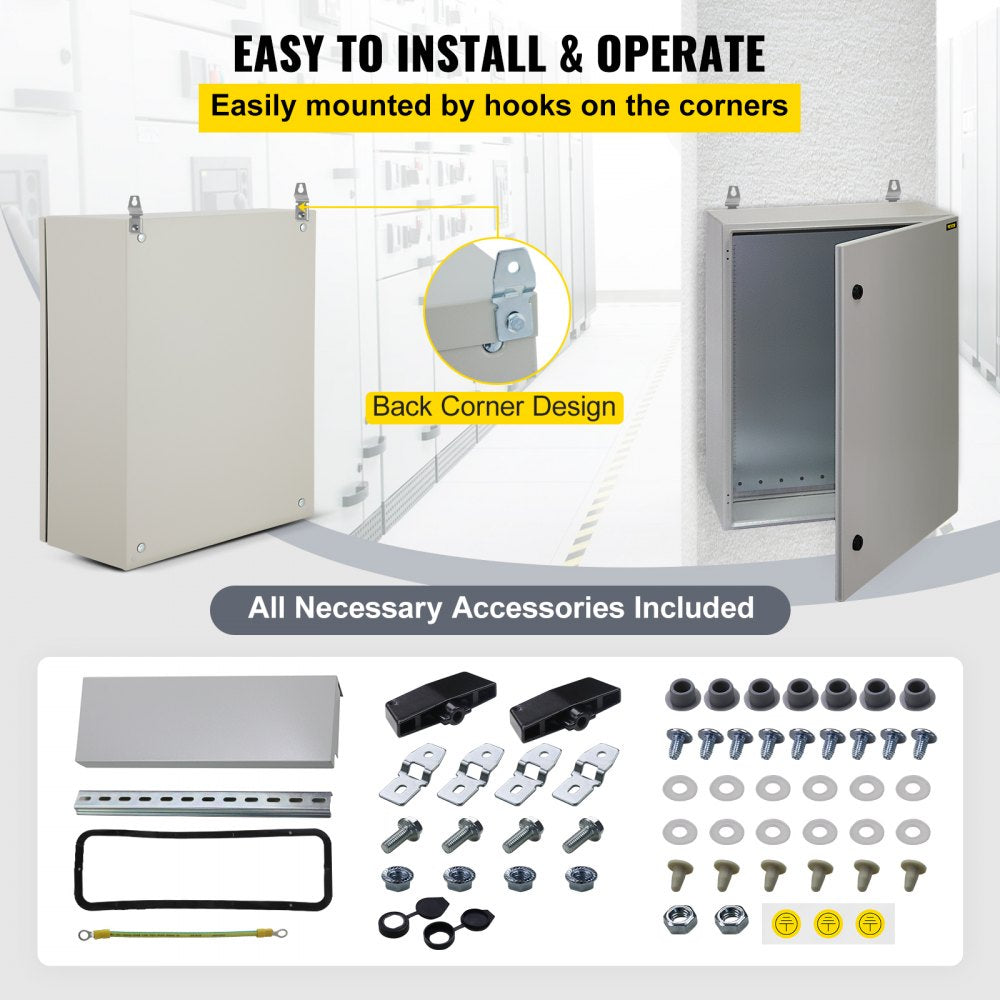

•Conveniently designed for easy operation and access.

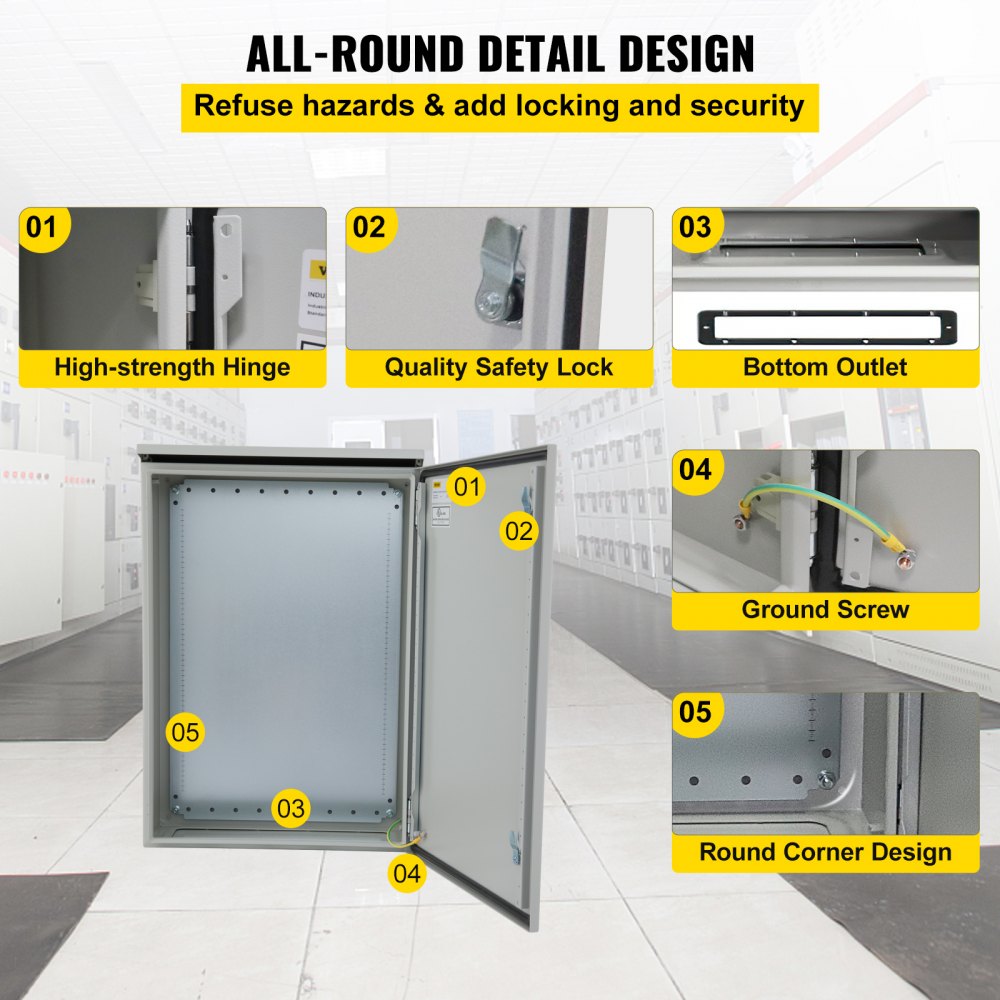

•Reinforced locks and hinges lead to increased security.
•Thoughtful details in design facilitate ease of use.

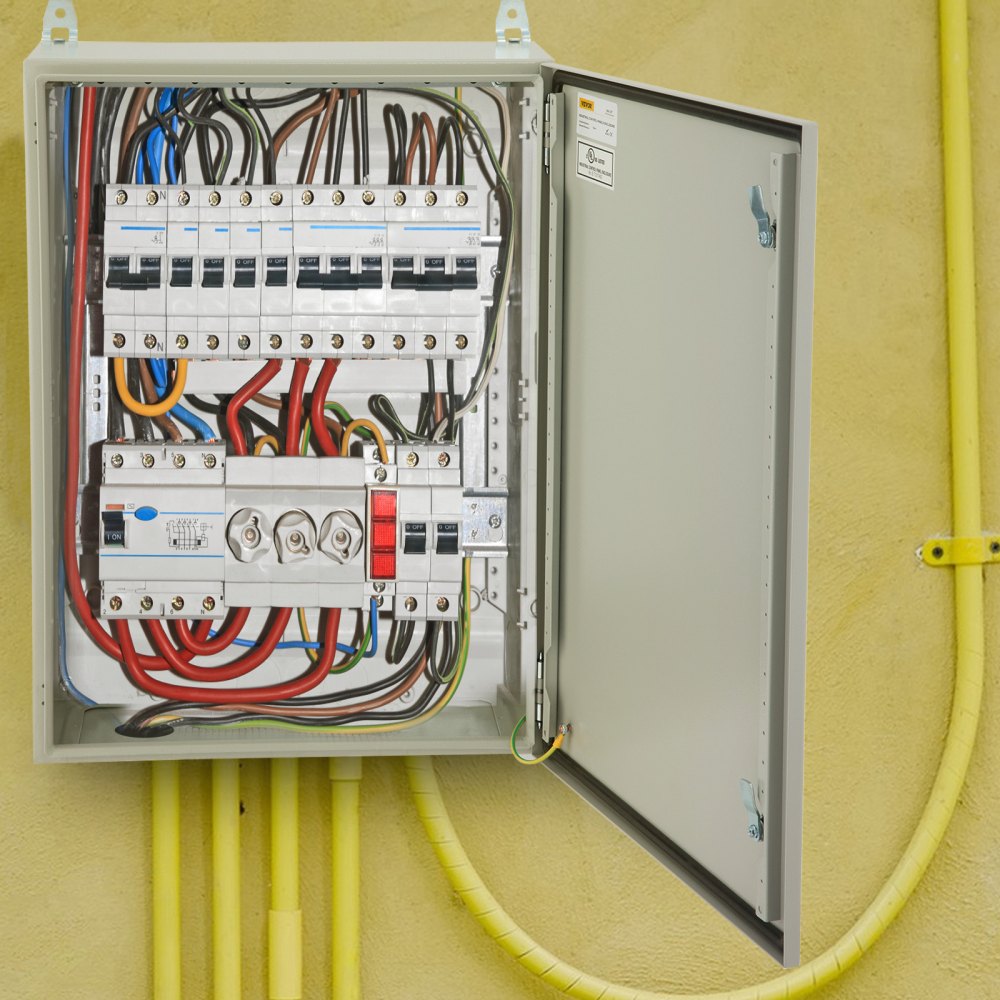

•Suitable for indoor and outdoor electrical component protection.

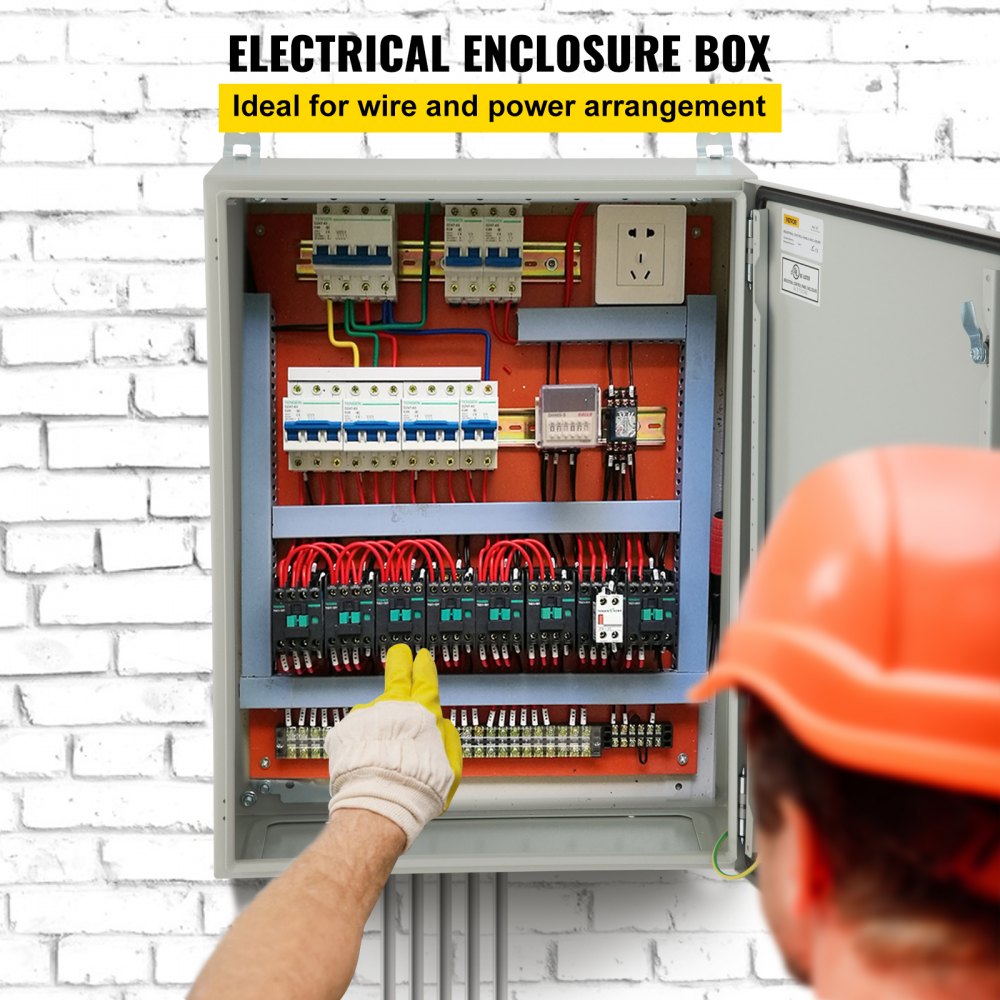

•Useful in factories, construction sites, commercial spaces, and public areas.
Specifications:
| Model | ST6430 |

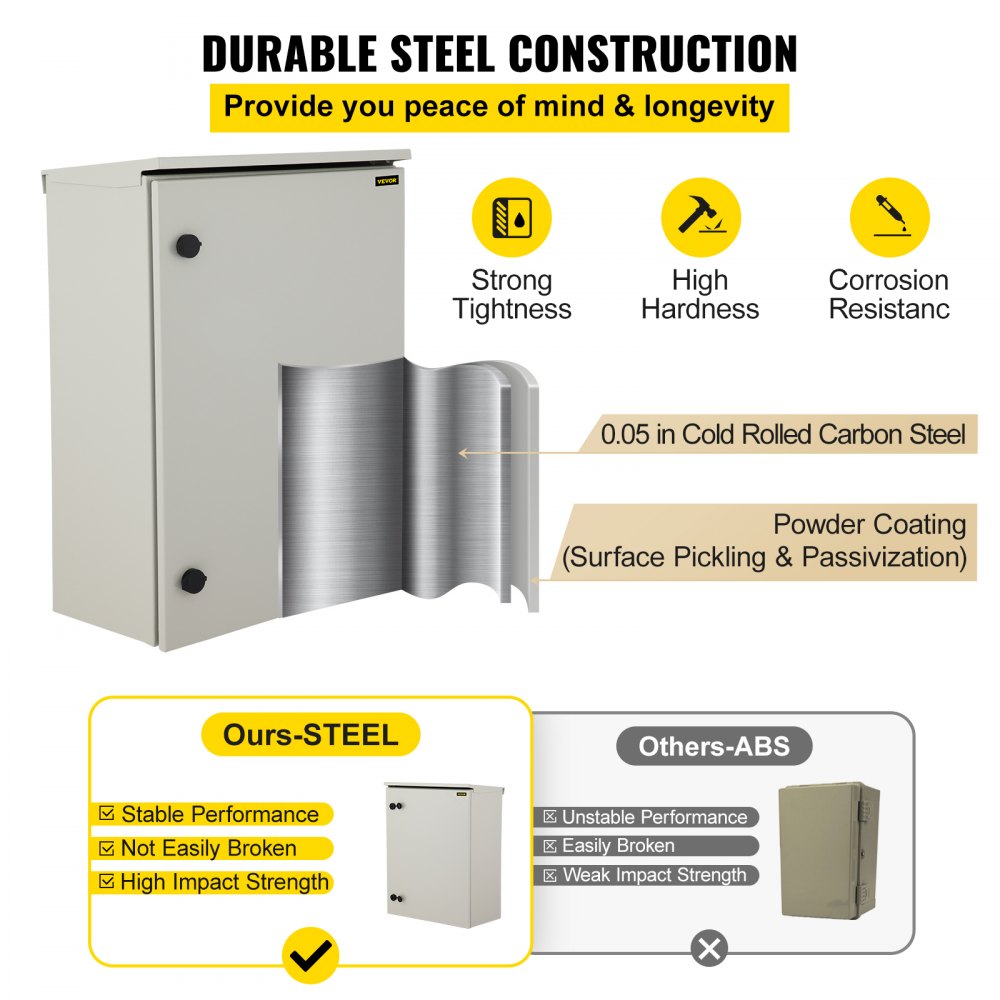

| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating (Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13.) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam / Nylon (washer or plug) |

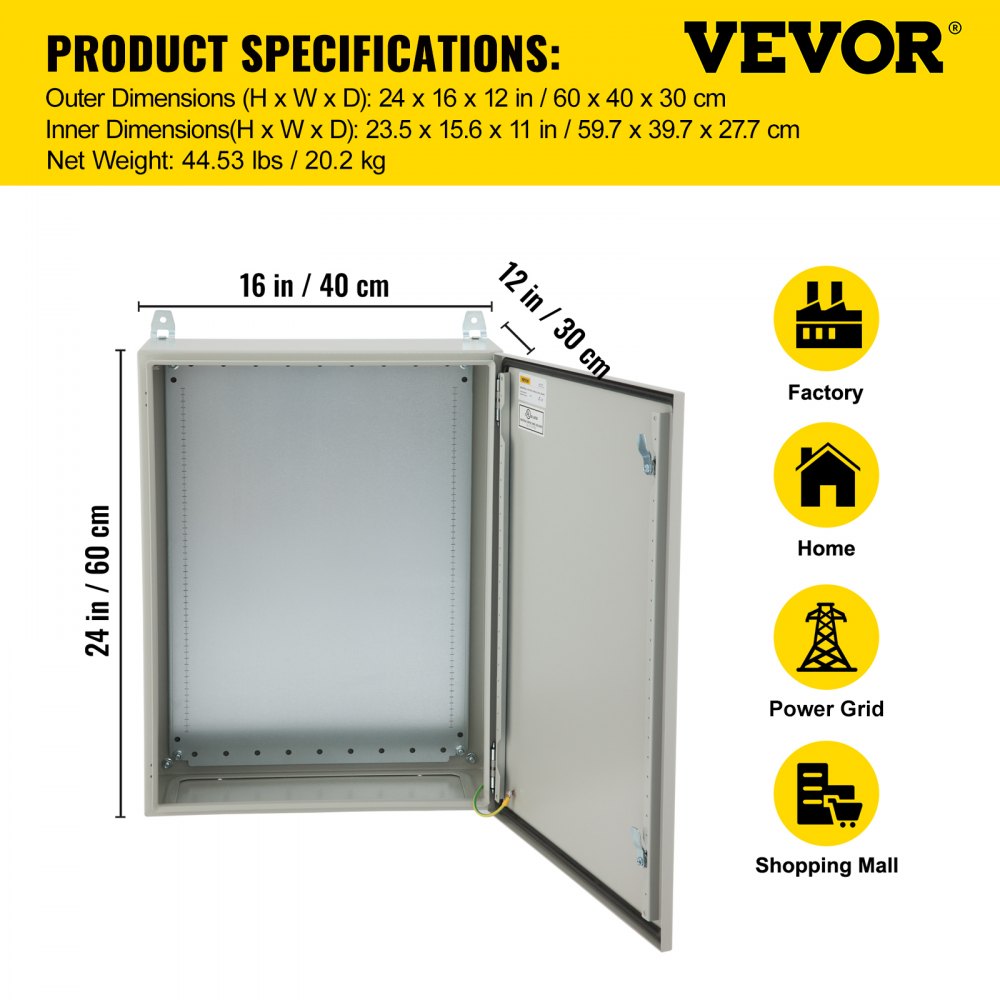

| Outer Dimensions (H x W x D) | 24 x 16 x 12 in / 60 x 40 x 30 cm |
| Inner Dimensions (H x W x D) | 23.5 x 15.6 x 11 in / 59.7 x 39.7 x 27.7 cm |

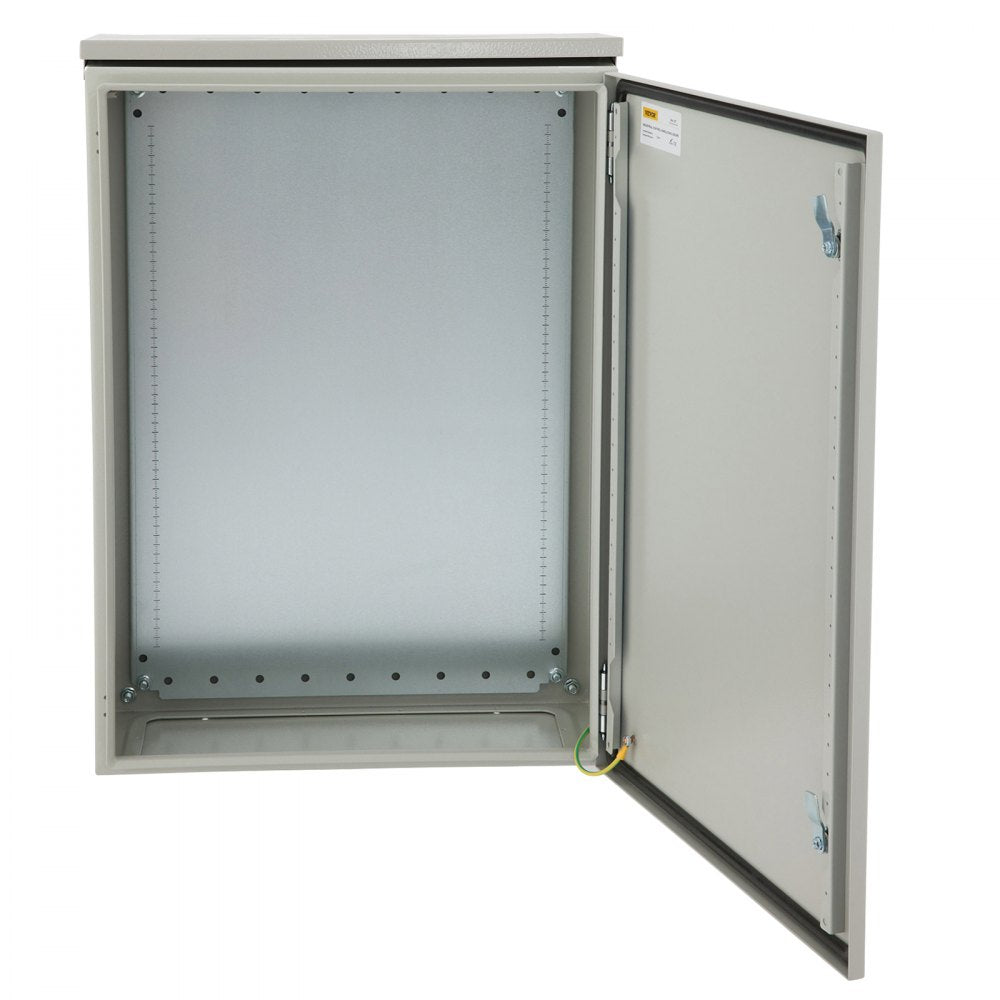

| Galvanized Backplate Dimensions (H x W) | 22.2 x 14 in / 56.5 x 35 cm |
| Mounting Hole Diameter (± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 44.53 lbs / 20.2 kg |
