ST4415 - Durable 16x16 Carbon Steel Electrical Enclosure with Lock and Rain Hood
ST4415 - Durable 16x16 Carbon Steel Electrical Enclosure with Lock and Rain Hood
SKU: SKU: ST4415 Download PDF
- ST4415 - Durable 16x16 Carbon Steel Electrical Enclosure with Lock and Rain Hood
- ST4415 - Durable 16x16 Carbon Steel Electrical Enclosure with Lock and Rain Hood
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

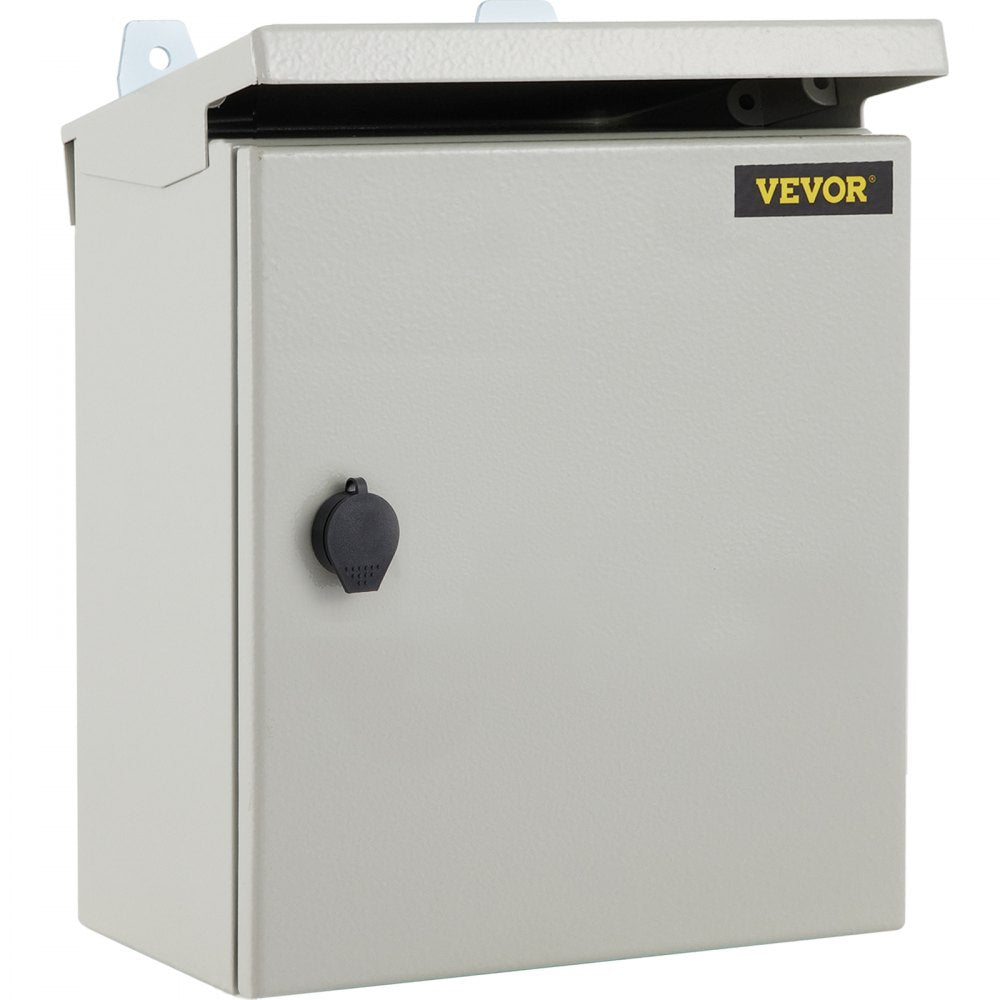

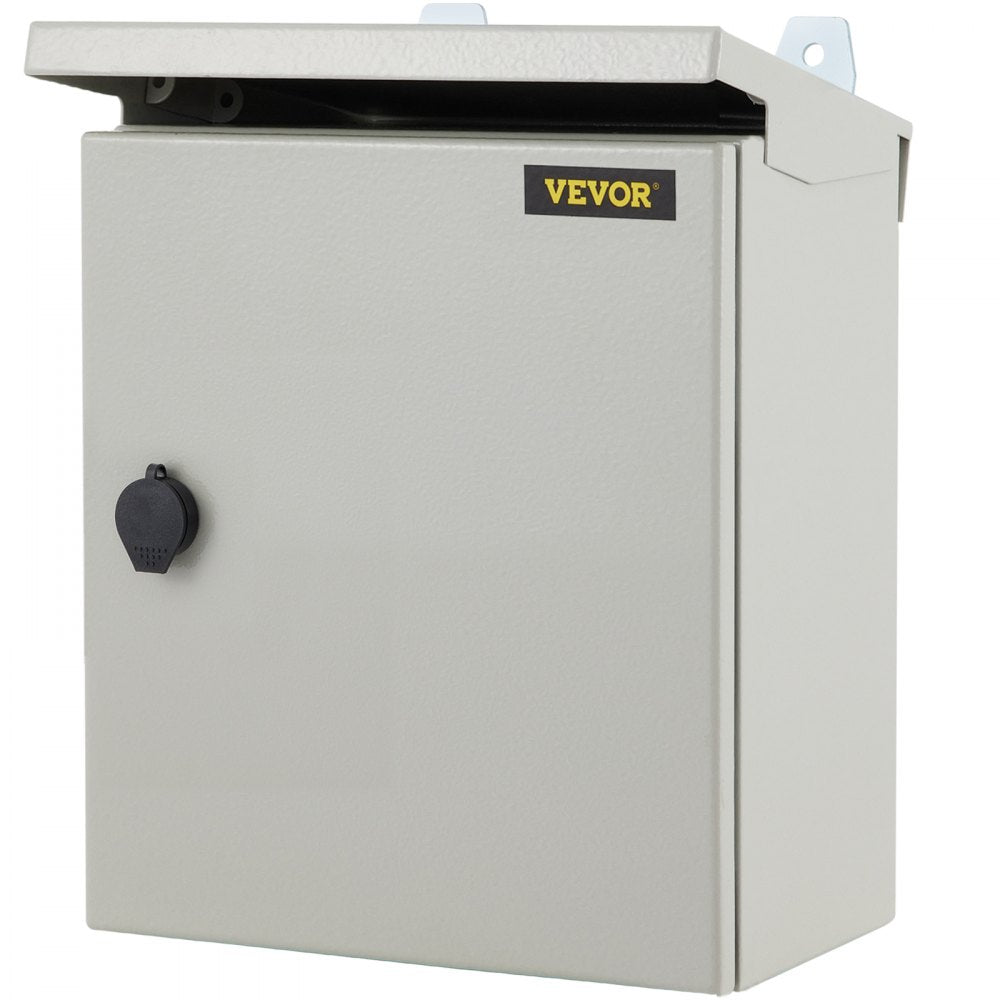

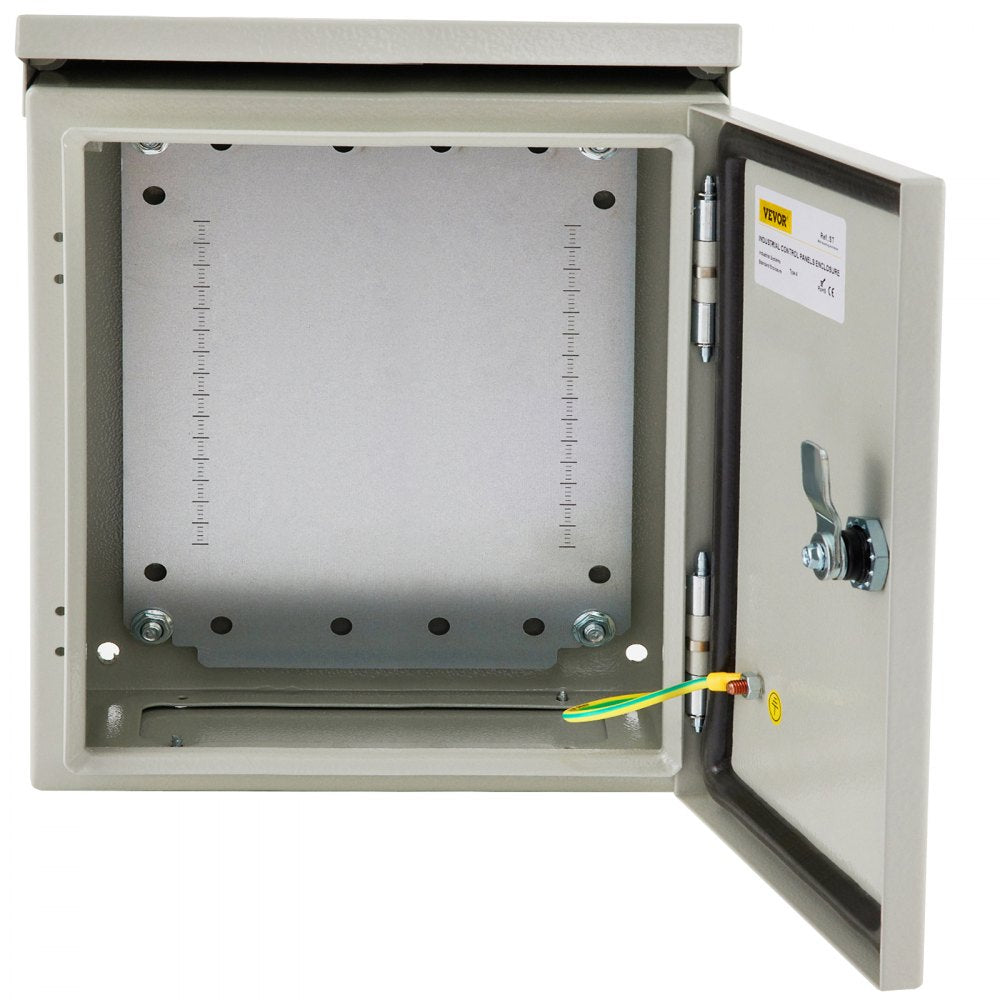

Optimize your security measures with the VEVOR Electrical Enclosure, expertly crafted from premium carbon steel Its precision lock system and durable hinges provide enhanced protection, while a rain hood shields electrical connections, power cords, and equipment from harsh weather conditions Suitable for both indoor and outdoor environments, this enclosure is widely used in sectors such as electricity, construction, and more.
With its resilient construction, it guarantees exceptional protection and reliable performance all year round, making it an essential choice for safeguarding your valuable equipment.
Features and Benefits:

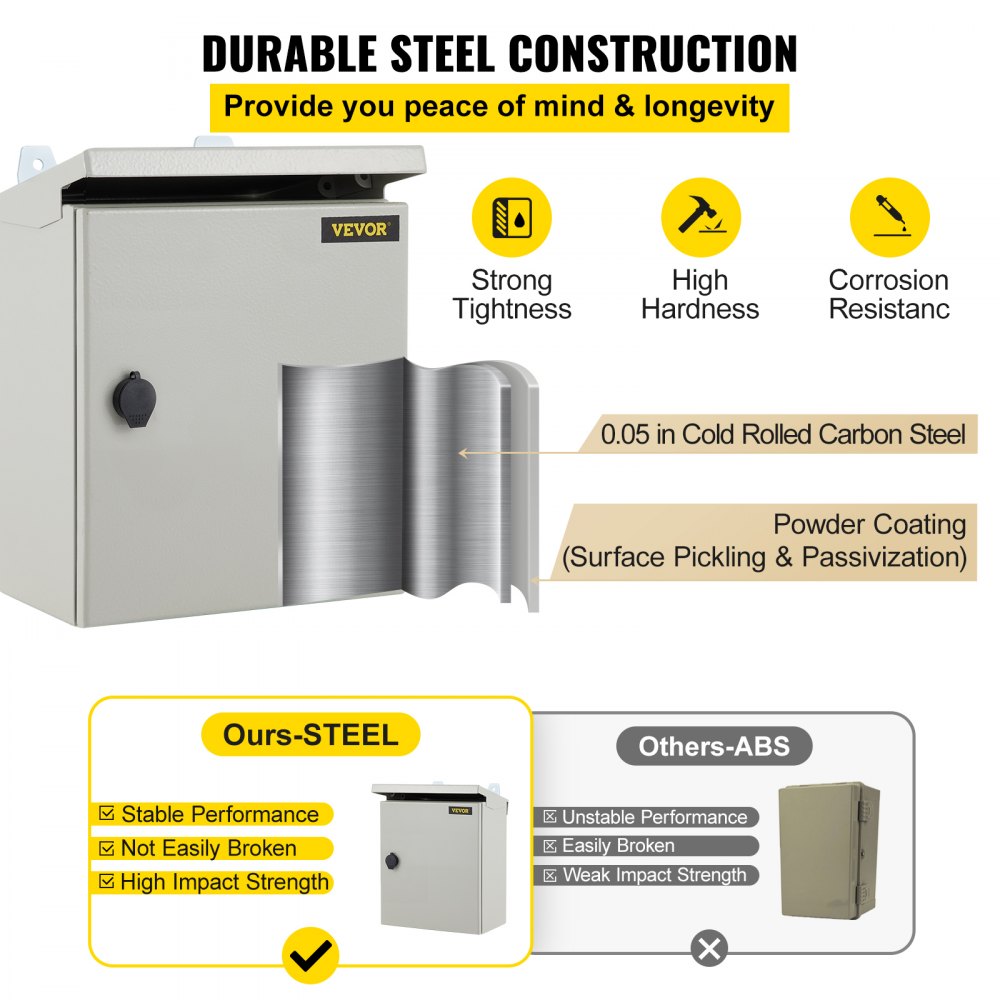

•Crafted from durable cold-rolled carbon steel for impact resistance.

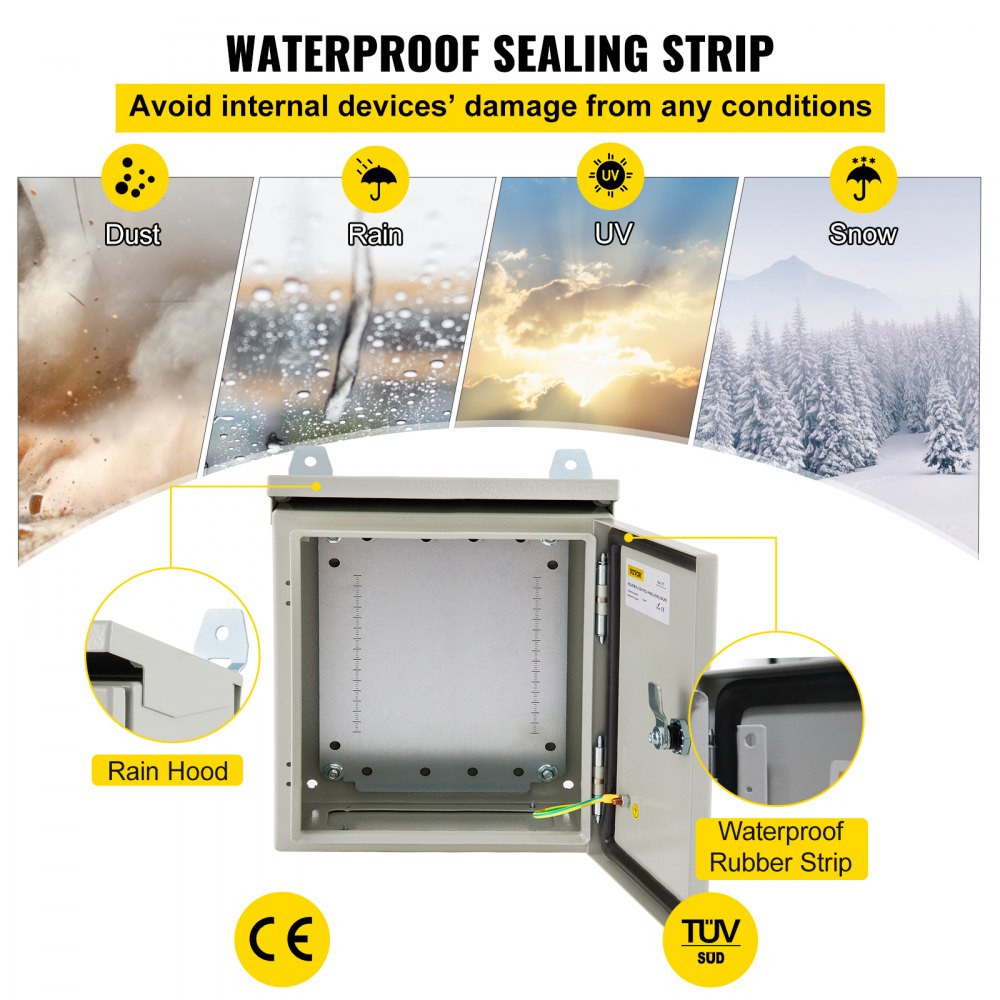

•IP65 waterproof grade for protection against dust and water.

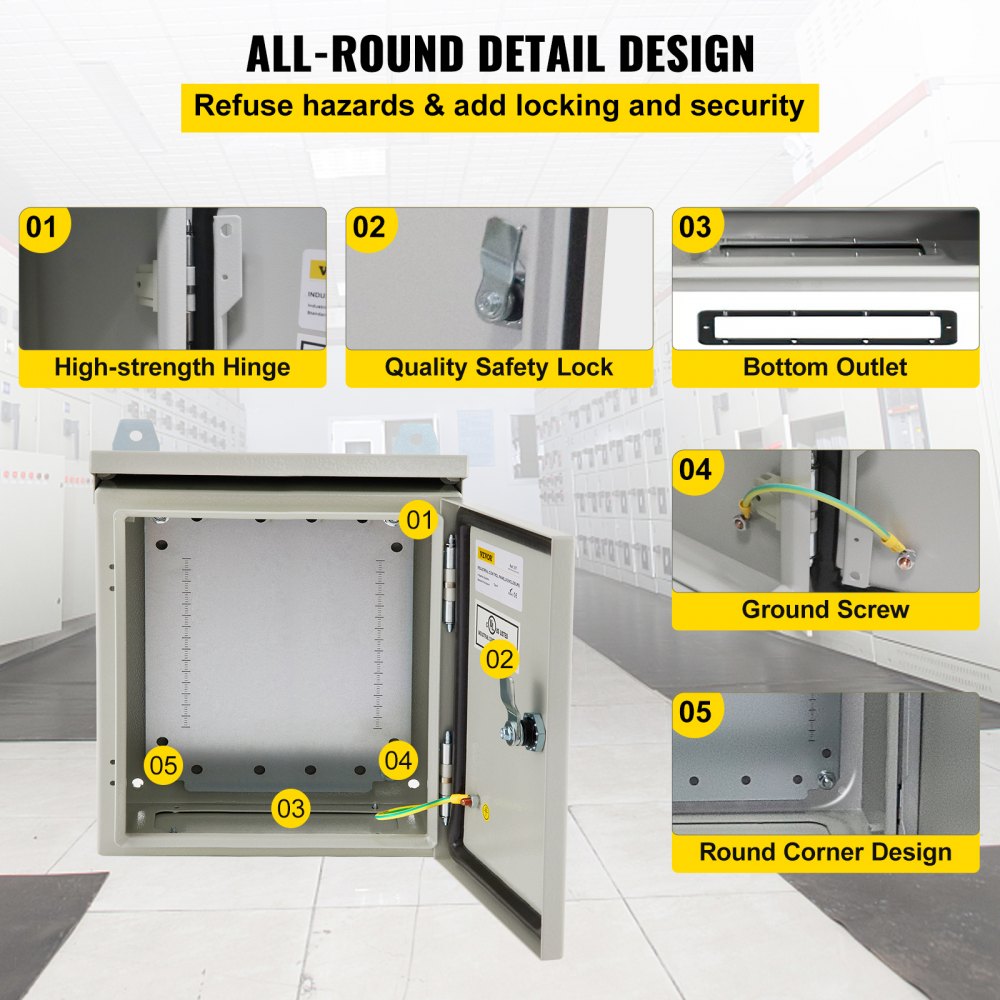

•Reinforced lock core for enhanced security and tamper resistance.

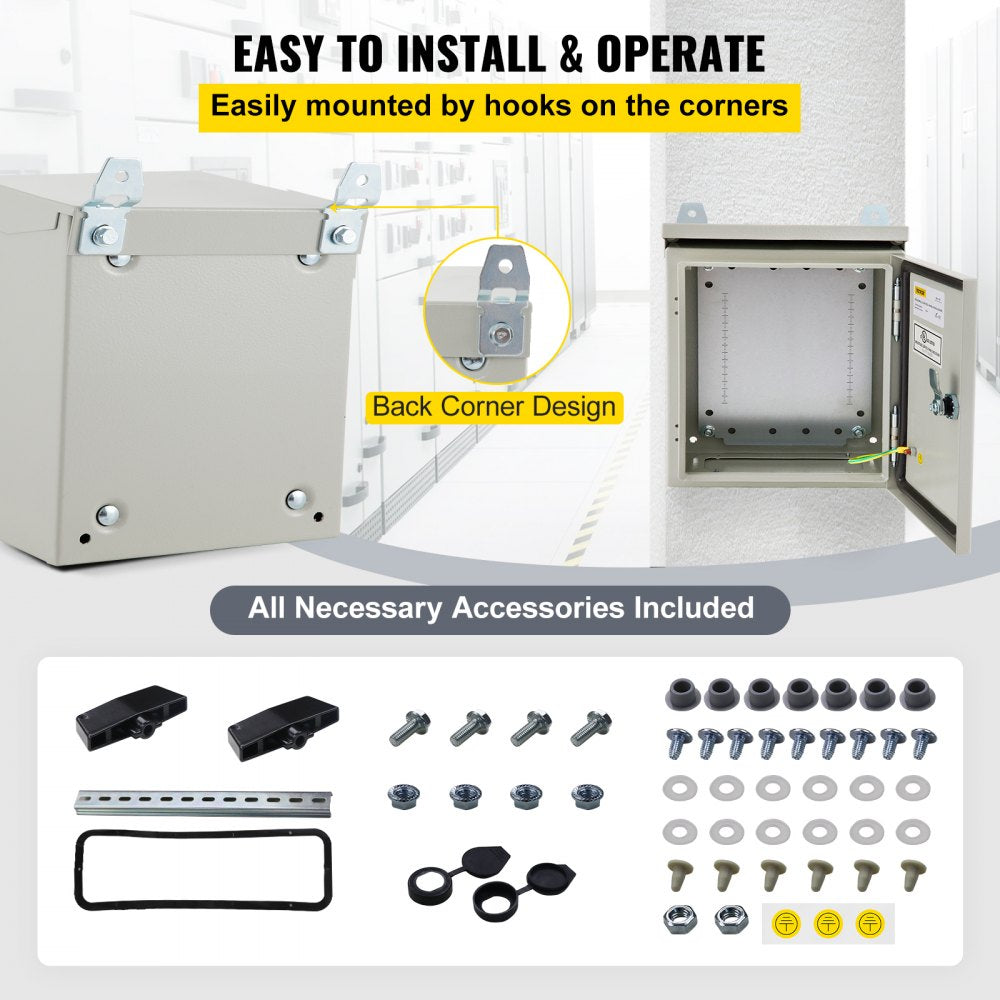

•Conveniently designed with a detachable backplate for easy installation.

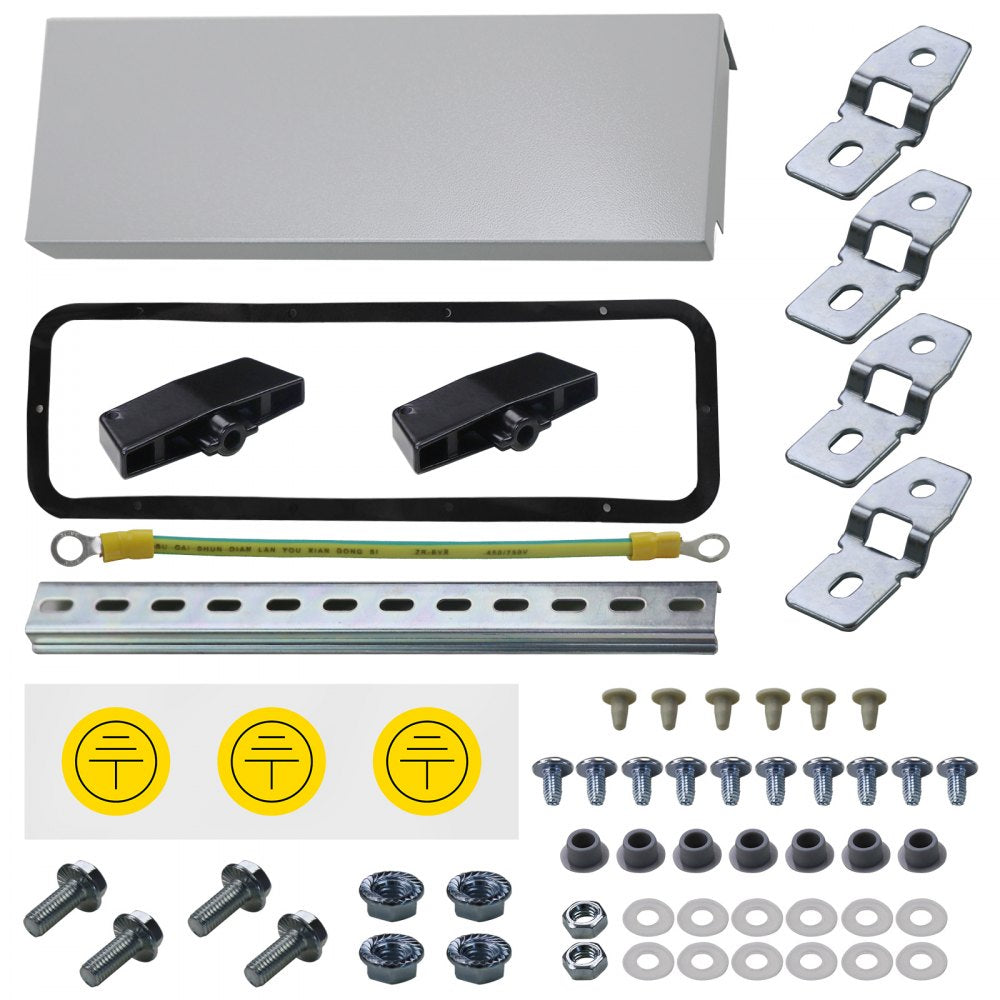

•Thoughtful design includes cable entry options and pre-installed grounding screws.

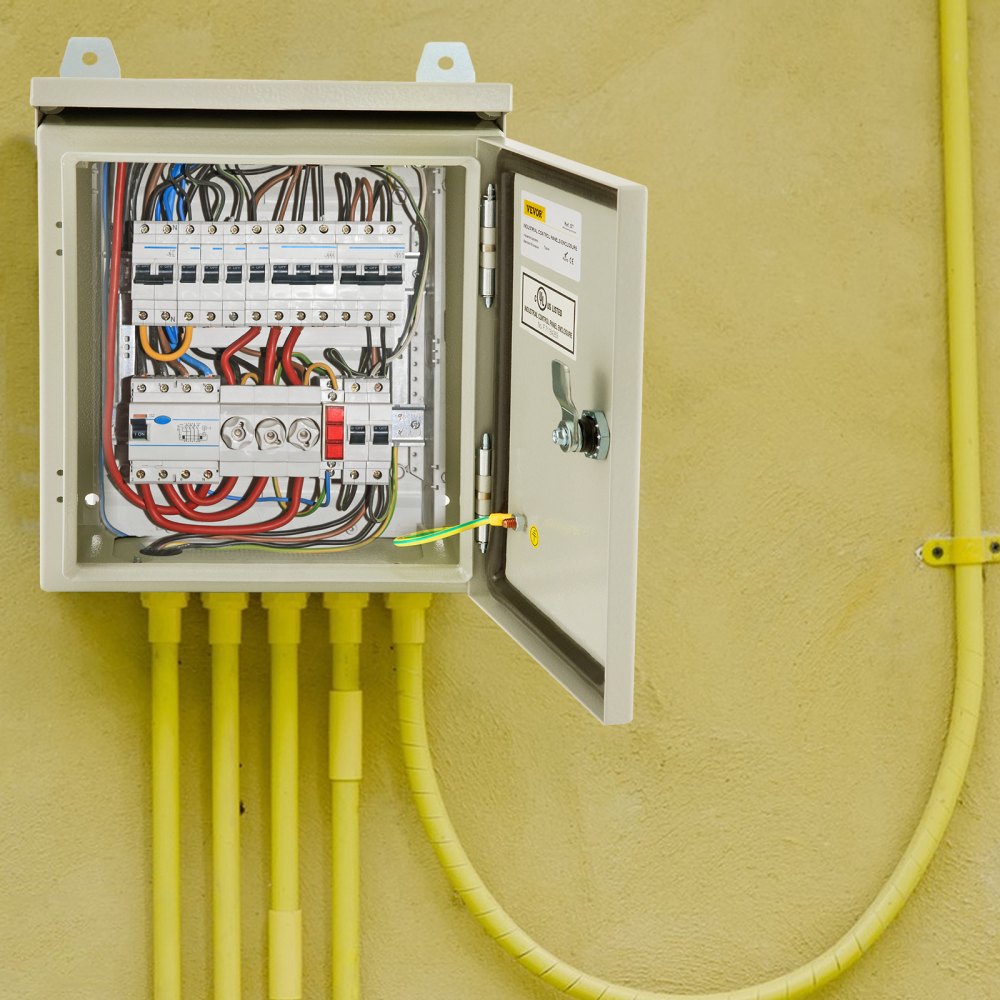

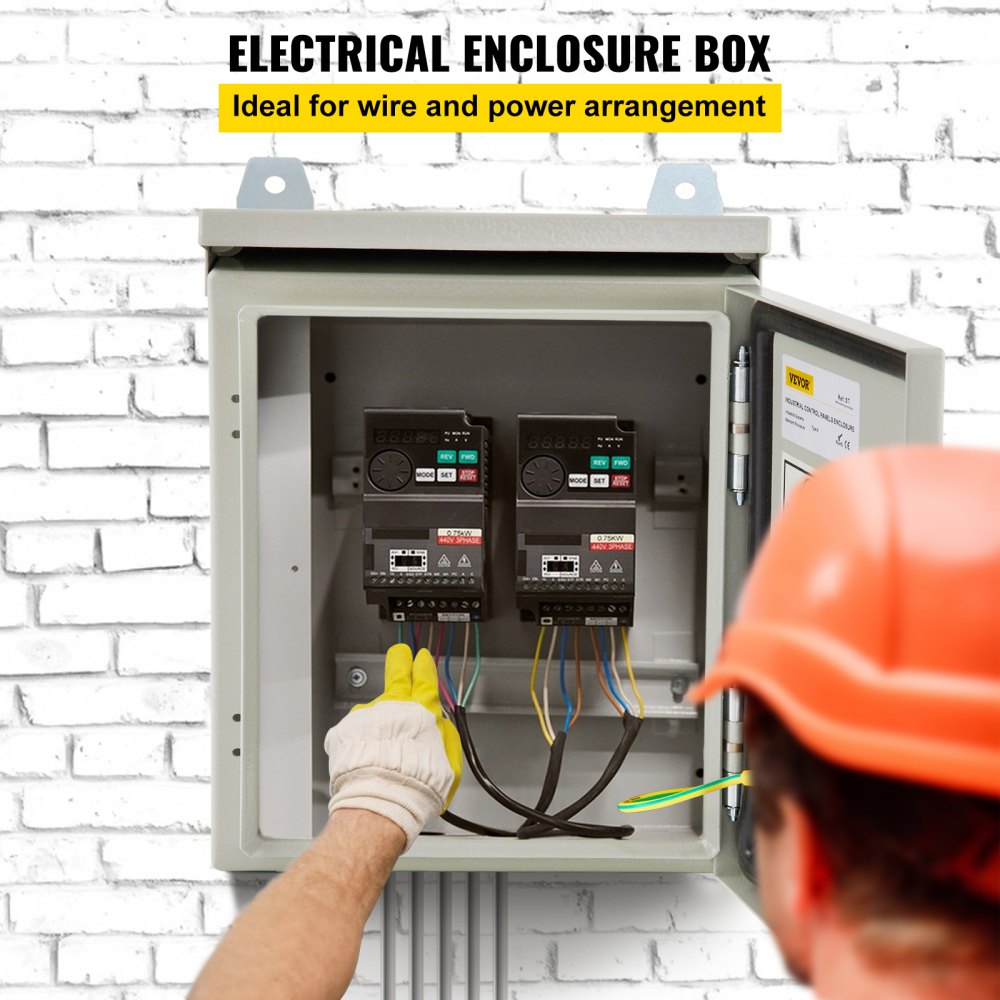

•Electrical installations in factories.
•Construction sites.
•Shopping malls.
•Public squares.
Specifications:
| Model | ST4415 |
| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating (Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam / Nylon (washer or plug) |

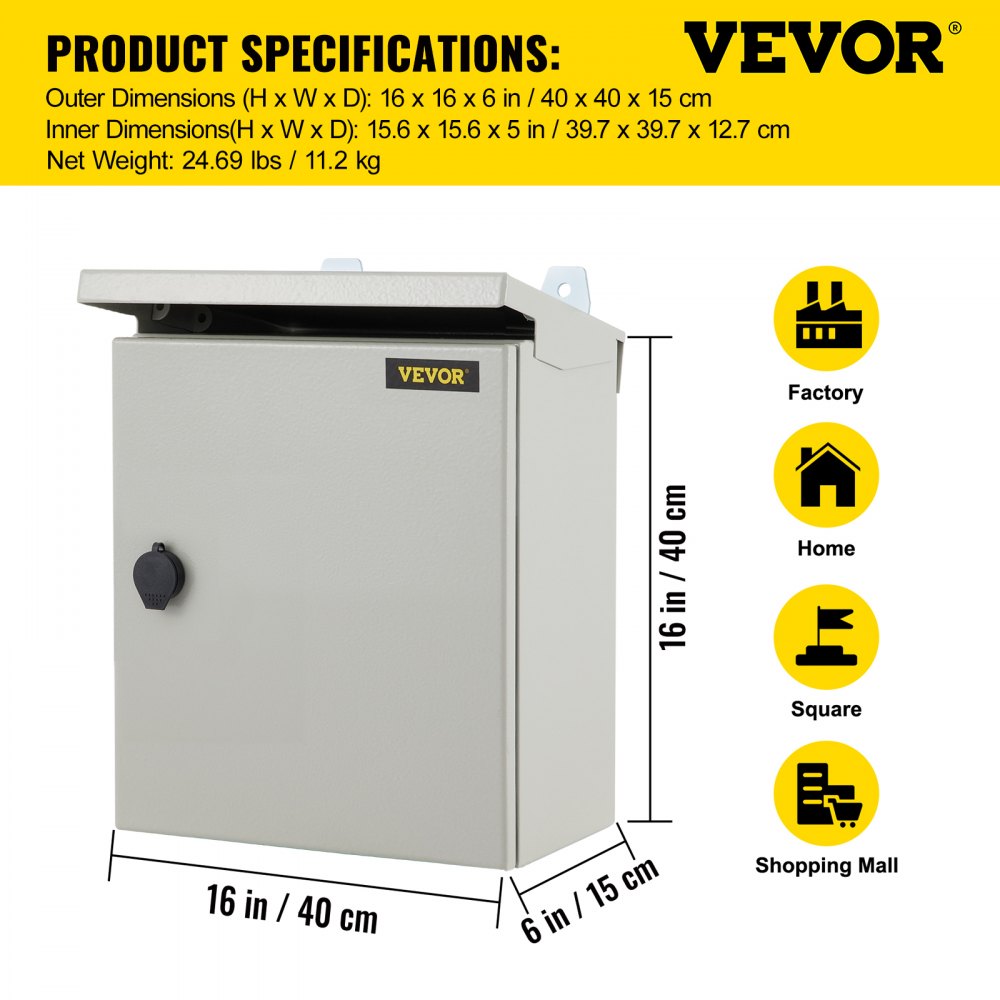

| Outer Dimensions (H x W x D) | 16 x 16 x 6 in / 40 x 40 x 15 cm |
| Inner Dimensions (H x W x D) | 15.6 x 15.6 x 5 in / 39.7 x 39.7 x 12.7 cm |
| Galvanized Backplate Dimensions (H x W) | 14.4 x 14 in / 36.5 x 35 cm |
| Mounting Hole Diameter | 0.35 in / 0.9 cm |
