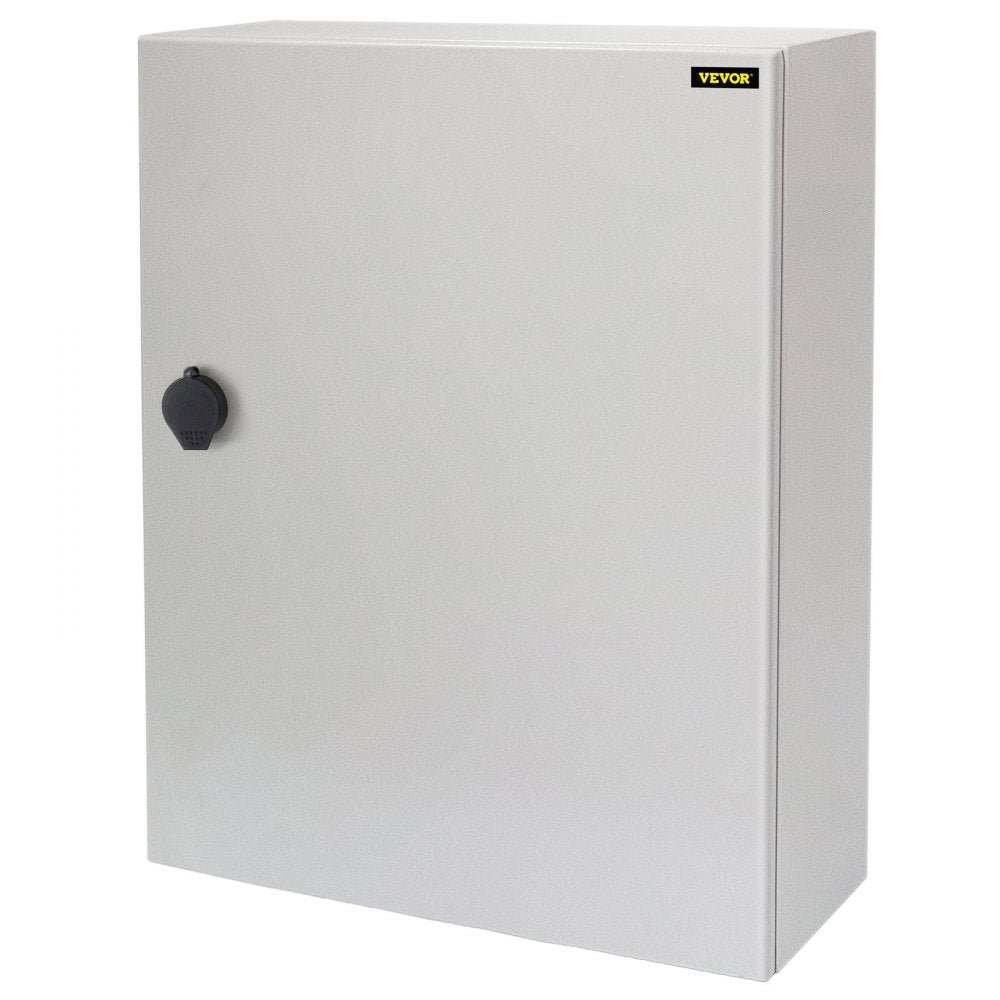

ST5515 - 20"x20" Outdoor Electrical Enclosure Box with Locking Mechanism

ST5515 - 20"x20" Outdoor Electrical Enclosure Box with Locking Mechanism

SKU: SKU: ST5515   Download PDF

Select a Variant:
  • ST5515 - 20"x20" Outdoor Electrical Enclosure Box with Locking Mechanism
Qty:
Regular price Now $117.30   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $117.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

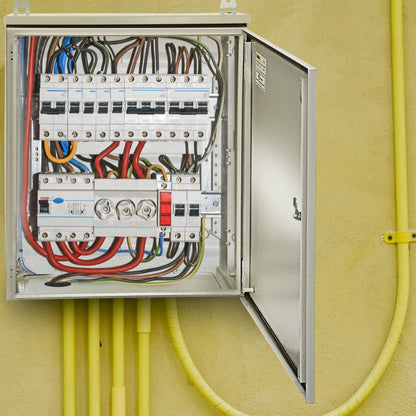

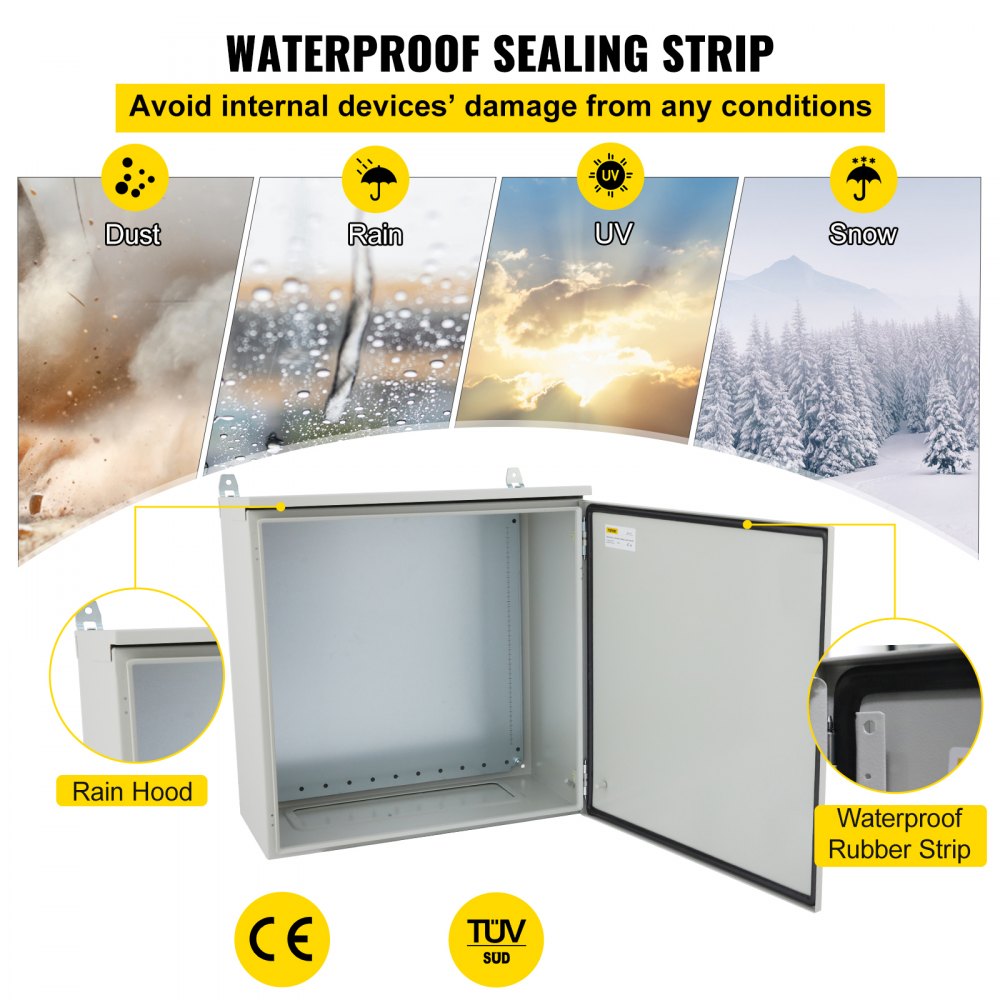

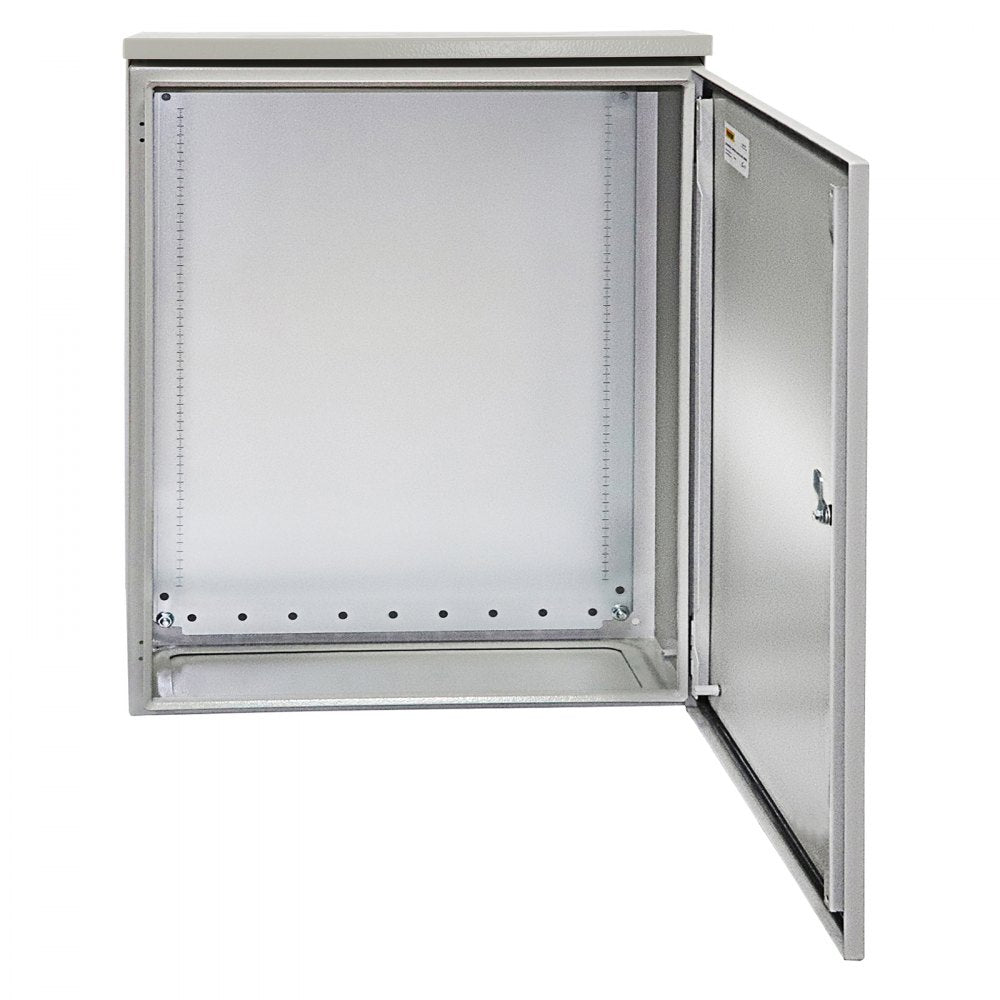

Introducing the VEVOR electrical enclosure box, crafted for outdoor applications with dimensions of 20 x 20 x 6 inches Built from premium carbon steel, this enclosure is designed to withstand harsh weather conditions while adhering to UL standards It features a secure locking system, reliable hinges, and an integrated rain hood, ensuring that your electrical devices, including plugs and power cords, are well-protected from the elements.

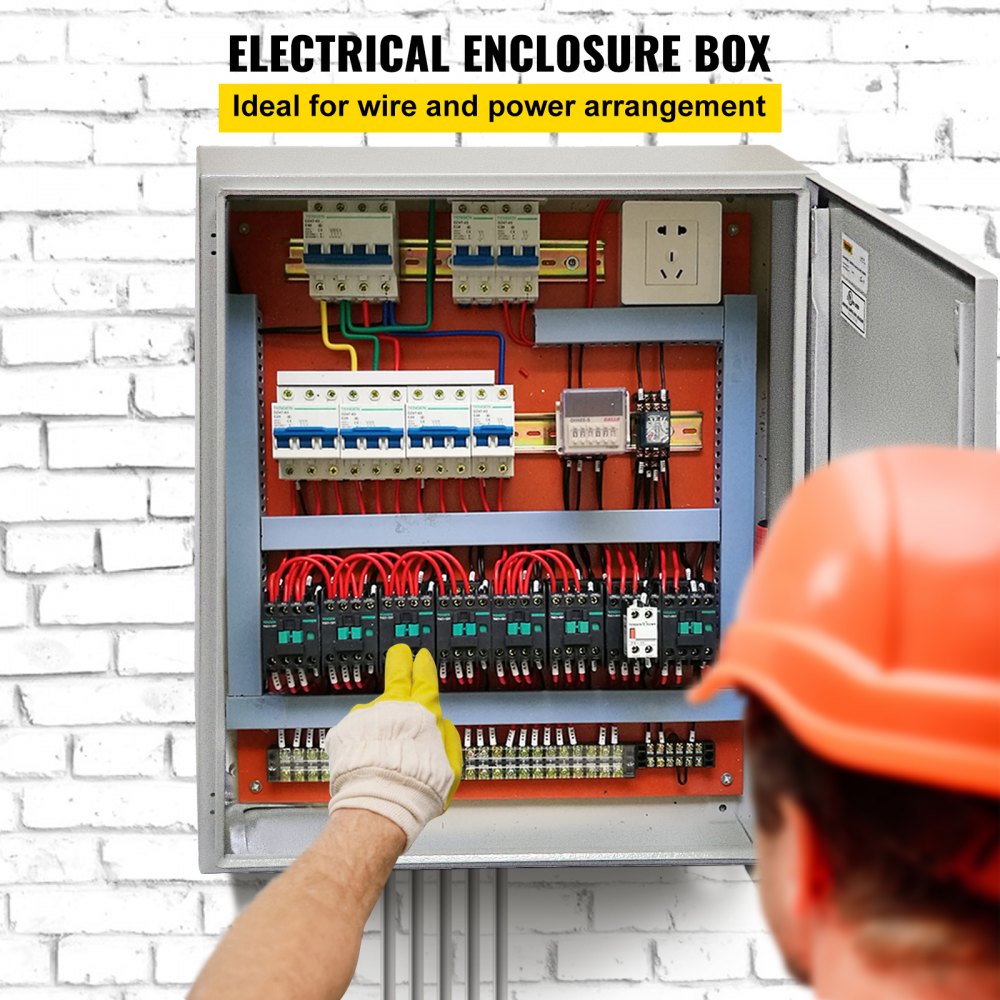

Suitable for a wide range of uses in both indoor and outdoor settings, this durable electrical box is perfect for construction, electrical systems, and various industrial needs With its sturdy construction, you can rely on this enclosure for ongoing performance and superior protection year-round.

Features and Benefits:

    •Sturdy construction made from cold-rolled carbon steel.

    •IP65 grade for superior waterproofing.

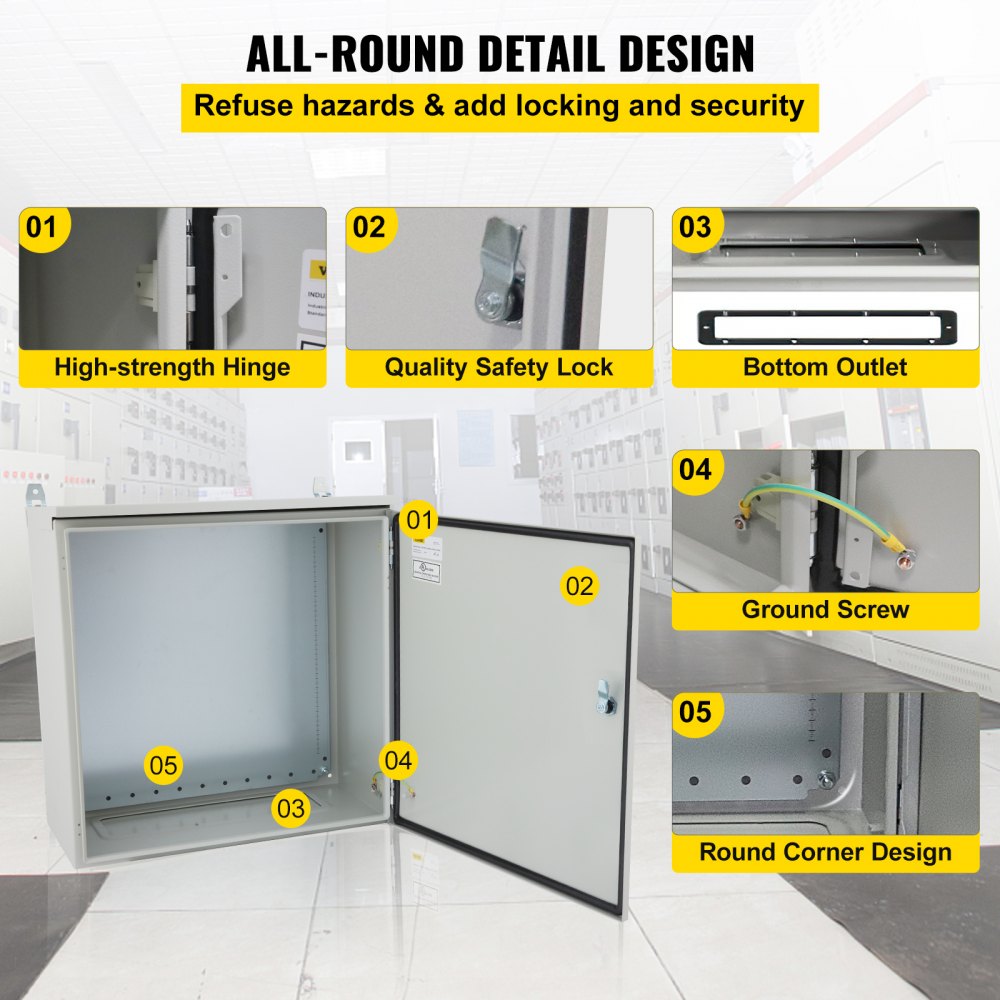

    •High-quality reinforced lock and hinge for increased security.

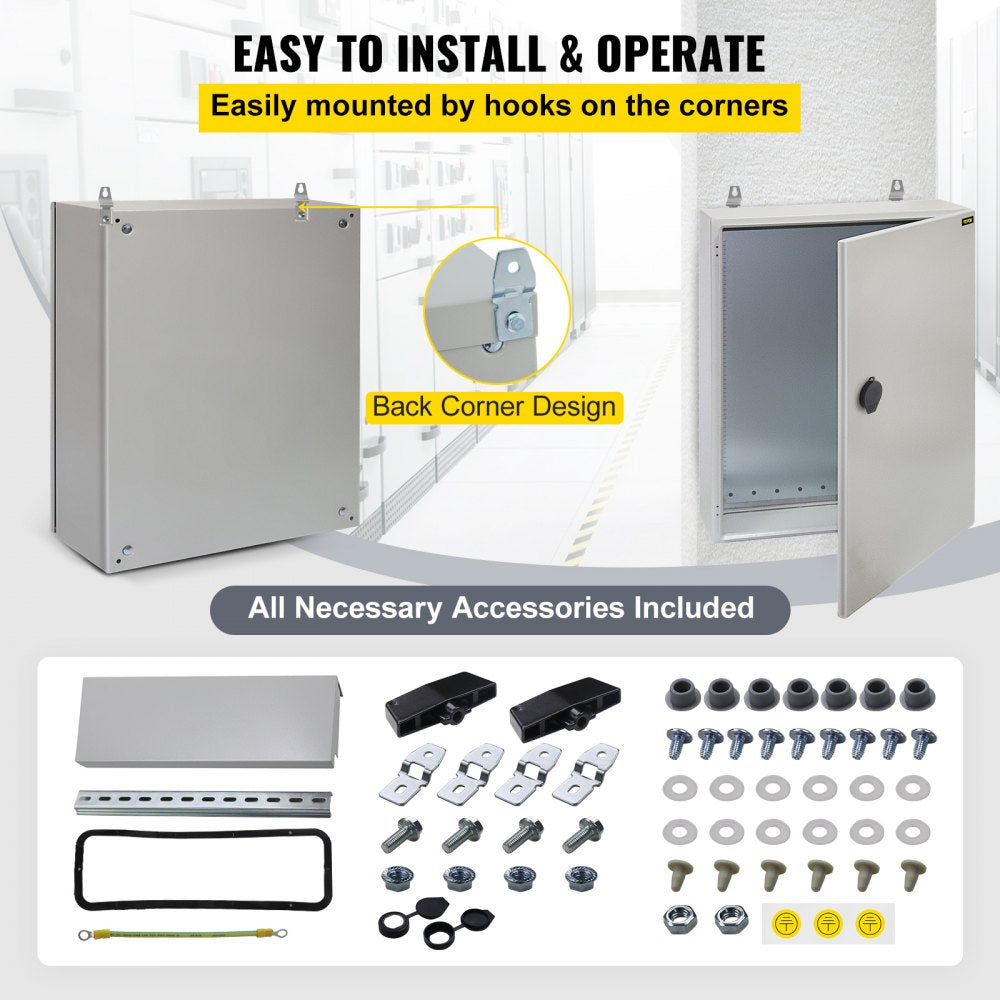

    •Convenient design for easy operation and access.

    •Thoughtfully designed details for enhanced usability.

    •Suitable for indoor and outdoor applications requiring circuit and equipment protection.

    •Applicable in factories, construction sites, shopping malls, and public squares.

Specifications:

 Model ST5515
 Body Material 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
 Inner Plate 0.06 in / 0.15 cm Galvanized Plate
 Finish Powder Coating(Surface Pickling and Passivization)
 Certification TUV, CE, 508A (CSA C22.2 No. 14-13.)
 Ratings NEMA Type 4
 Protection Grade IP65, IK10
 Construction Continuously Welded
 Ambient Temperature -40 to 122℉ / -40 to 55°C
 Gasket Material Seamless Foam/ Nylon (washer or plug)

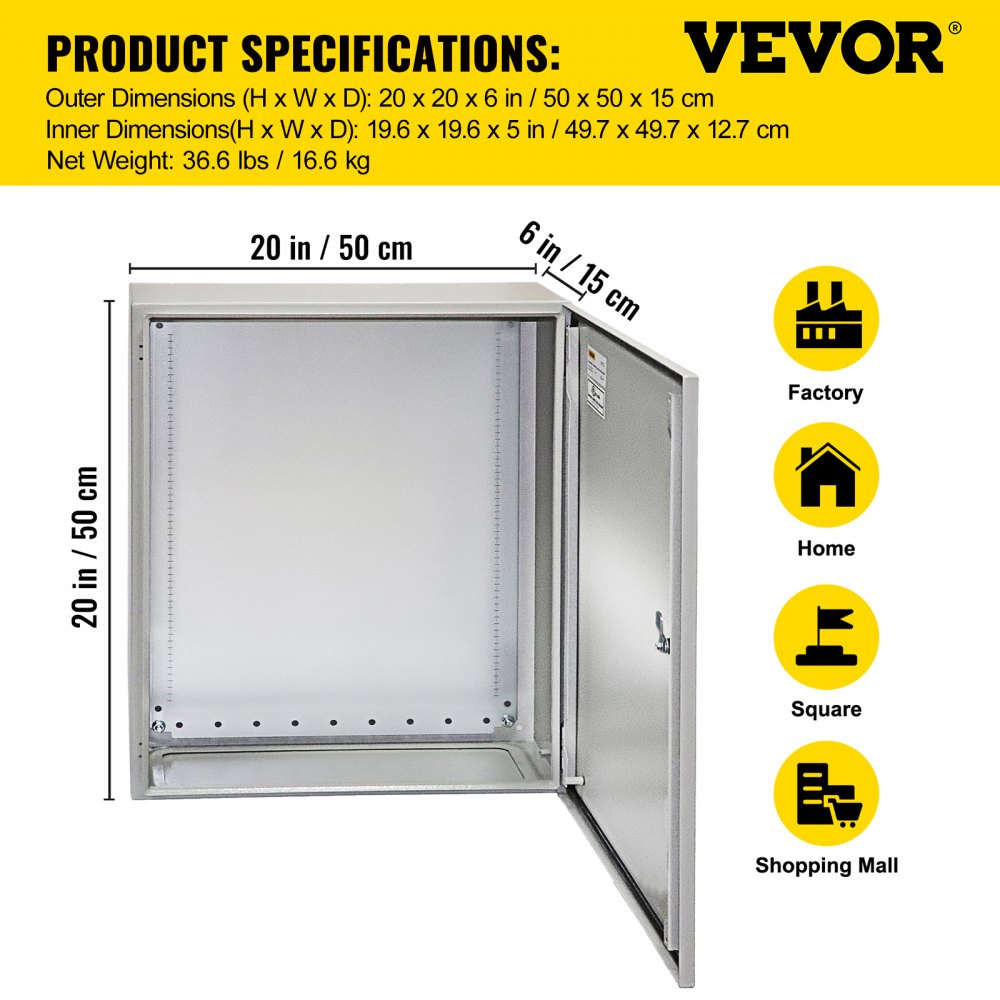

 Outer Dimensions(H x W x D) 20 x 20 x 6 in / 50 x 50 x 15 cm
 Inner Dimensions(H x W x D) 19.6 x 19.6 x 5 in / 49.7 x 49.7 x 12.7 cm
 Galvanized Backplate Dimensions(H x W) 18.3 x 18 in / 46.5 x 45 cm
 Mounting Hole Diameter(± 0.2 cm) 0.35 in / 0.9 cm
 Net Weight 36.6 lbs / 16.6 kg
