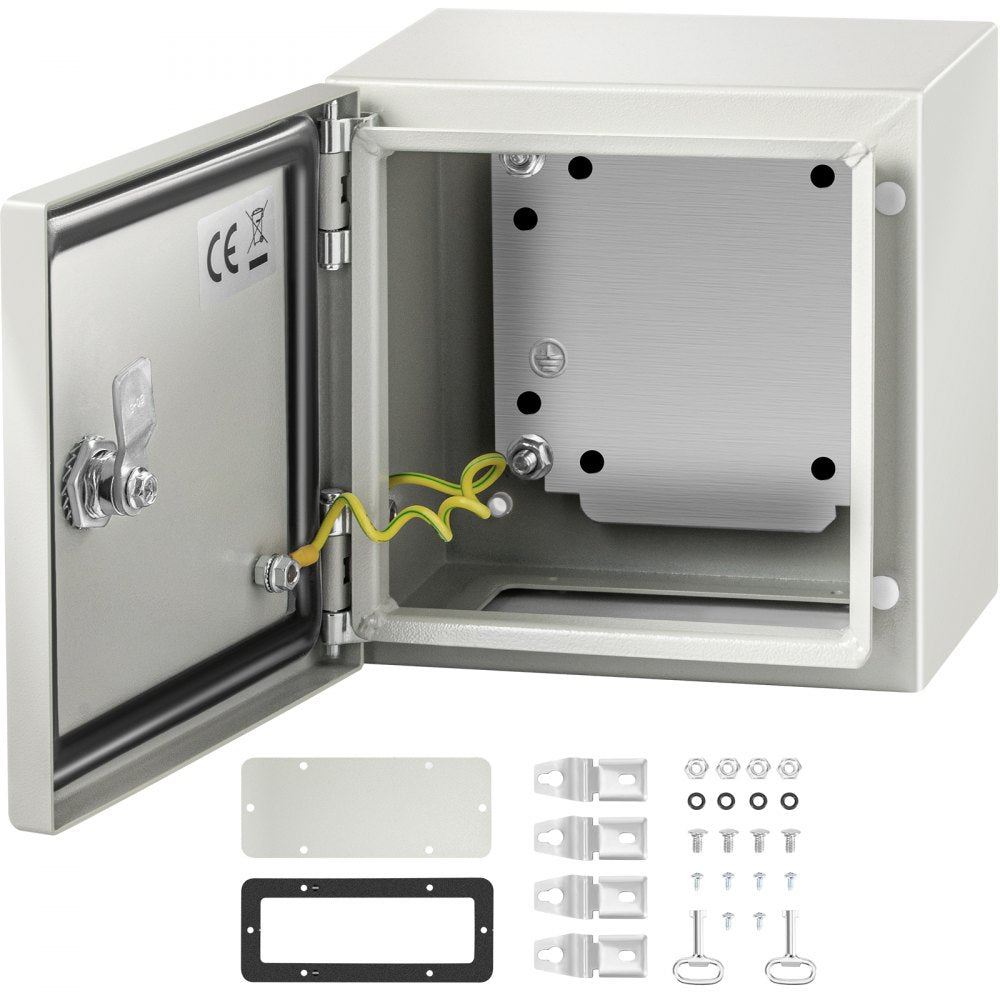

SPT - IP66 NEMA Steel Enclosure 8"x8"x6" with Lock and Backplate

SPT - IP66 NEMA Steel Enclosure 8"x8"x6" with Lock and Backplate

SKU: SKU: SPT   Download PDF

Select a Variant:
  • SPT - IP66 NEMA Steel Enclosure 8"x8"x6" with Lock and Backplate
Qty:
Regular price Now $43.98   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $43.98 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Shield your electrical devices with the VEVOR NEMA Steel Enclosure, crafted from premium carbon steel for outstanding durability This enclosure boasts a reinforced locking and hinge mechanism, offering supreme security for your valuable equipment With an IP66 rating, it effectively protects against dust and moisture, making it ideal for various weather conditions Its sturdy design, combined with a precise locking system, keeps your electrical components safe from harsh elements.

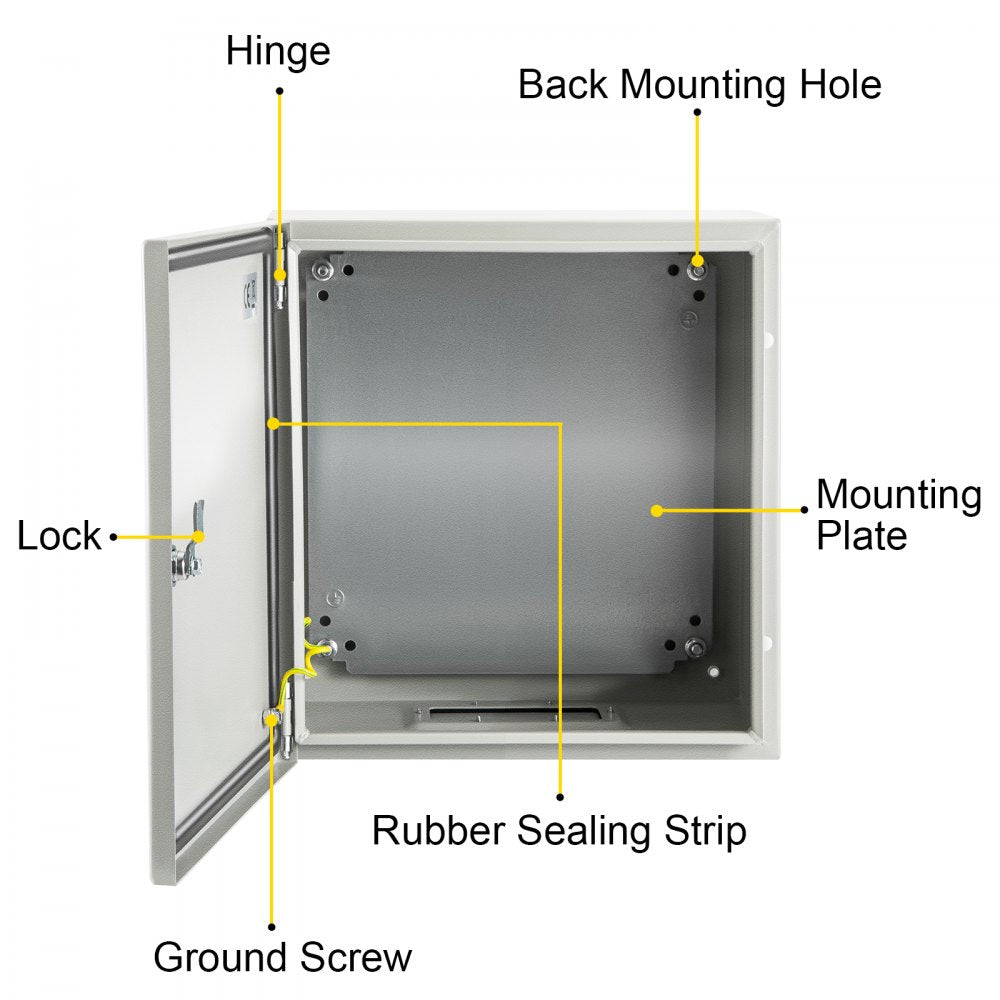

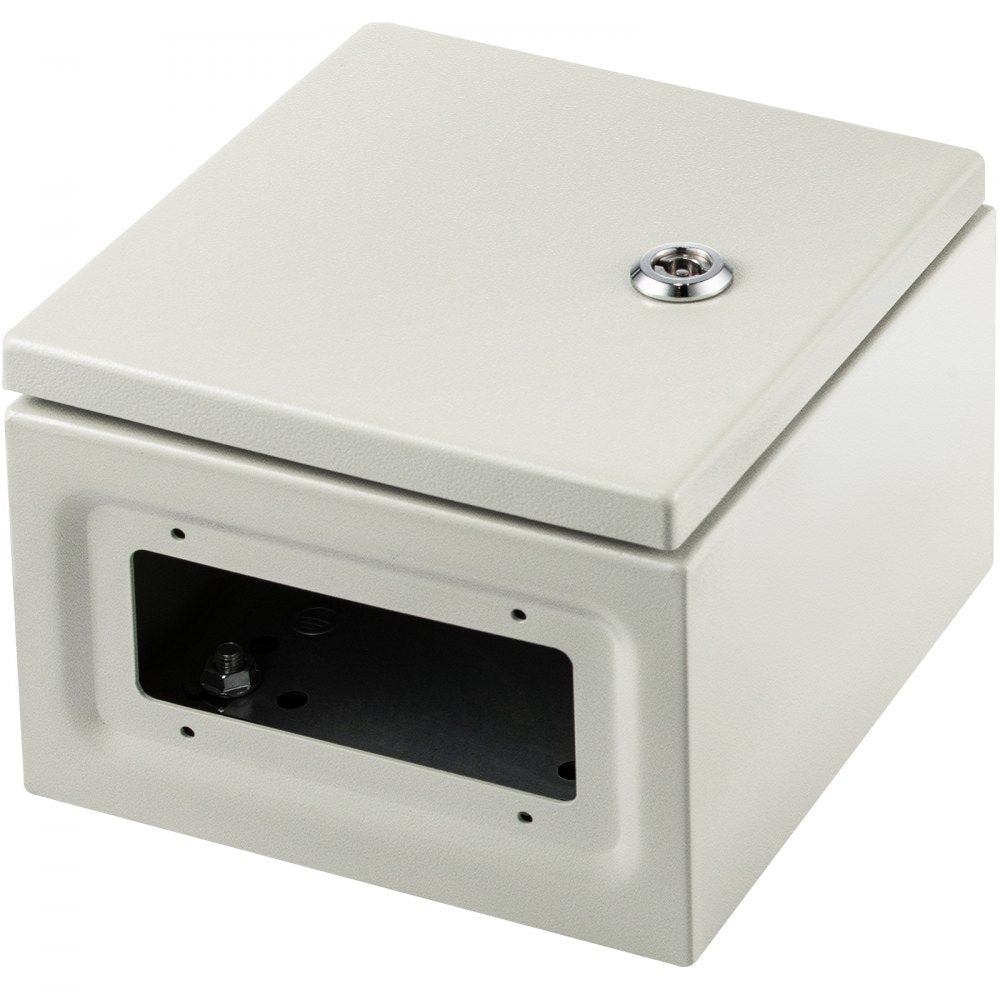

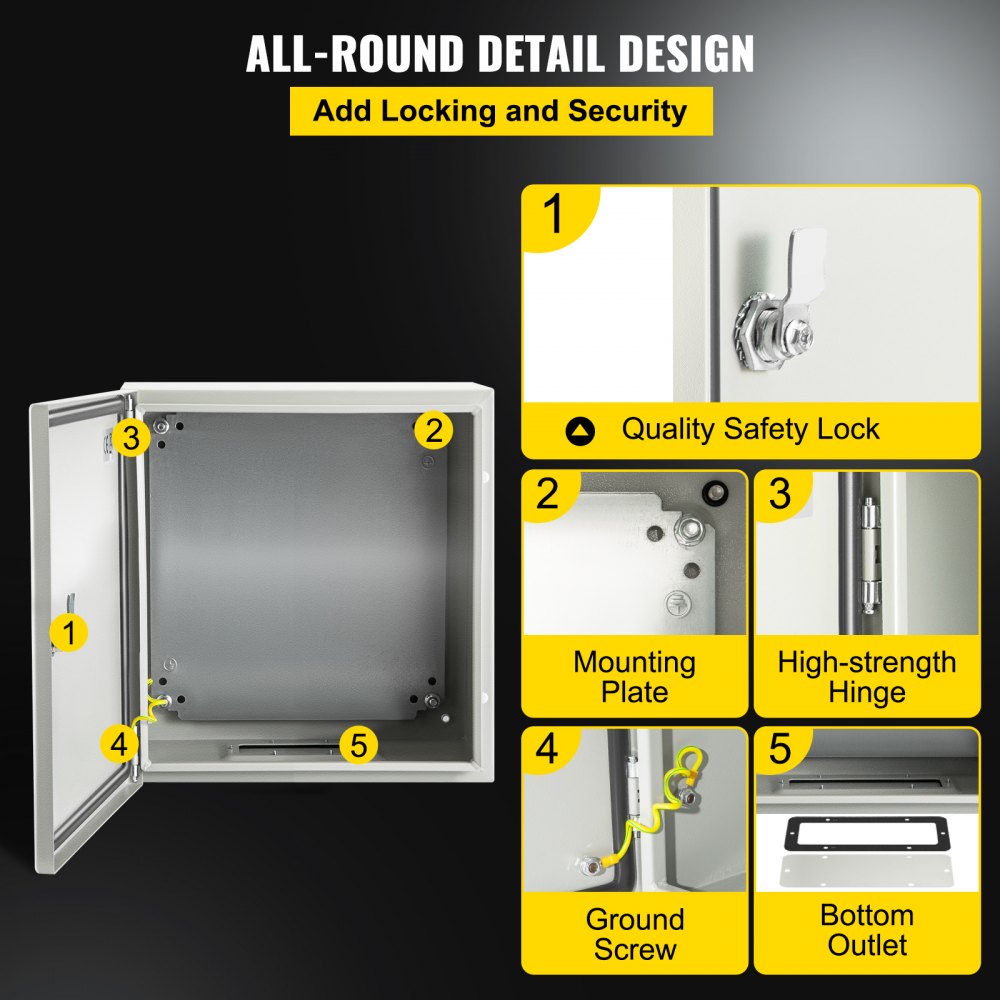

Installation is a breeze, thanks to the removable galvanized backplate, while a specially designed outlet hole allows for effortless cable access along with pre-installed ground wiring This versatile enclosure is suitable for both indoor and outdoor use, perfect for environments such as factories, construction sites, shopping centers, and homes.

Features and Benefits:

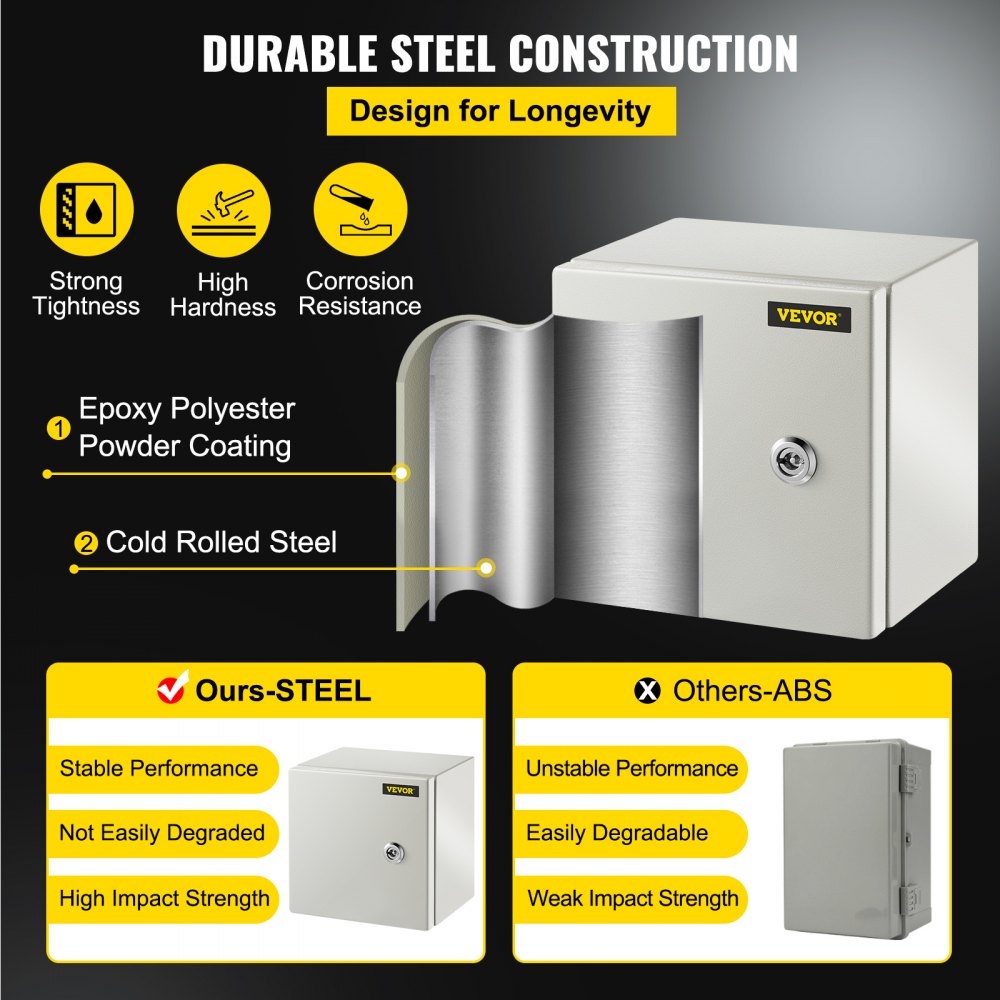

    •Sturdy steel construction offers high toughness and pressure resistance.

    •Corrosion-resistant epoxy polyester powder coating enhances durability.

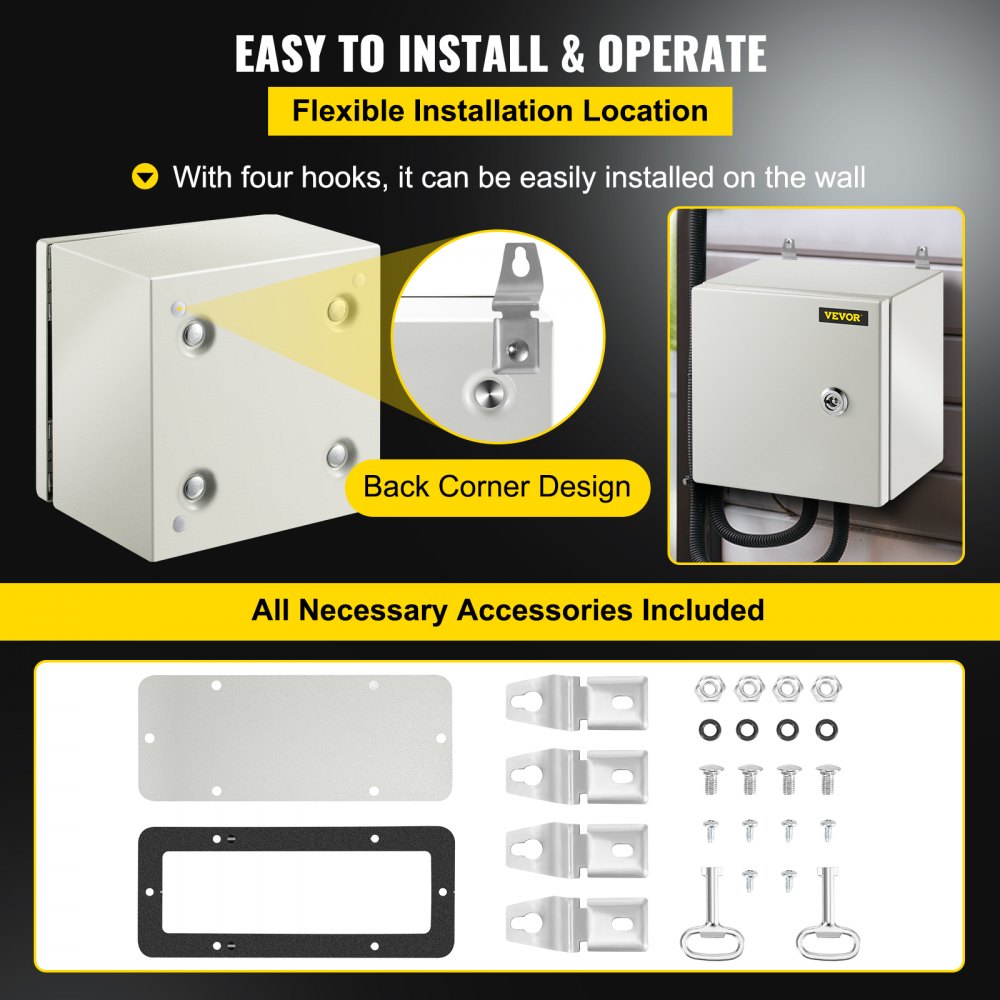

    •Easy installation and mounting with detachable backplate.

    •Waterproof and dustproof design ideal for outdoor applications.

    •Lockable feature for increased security.

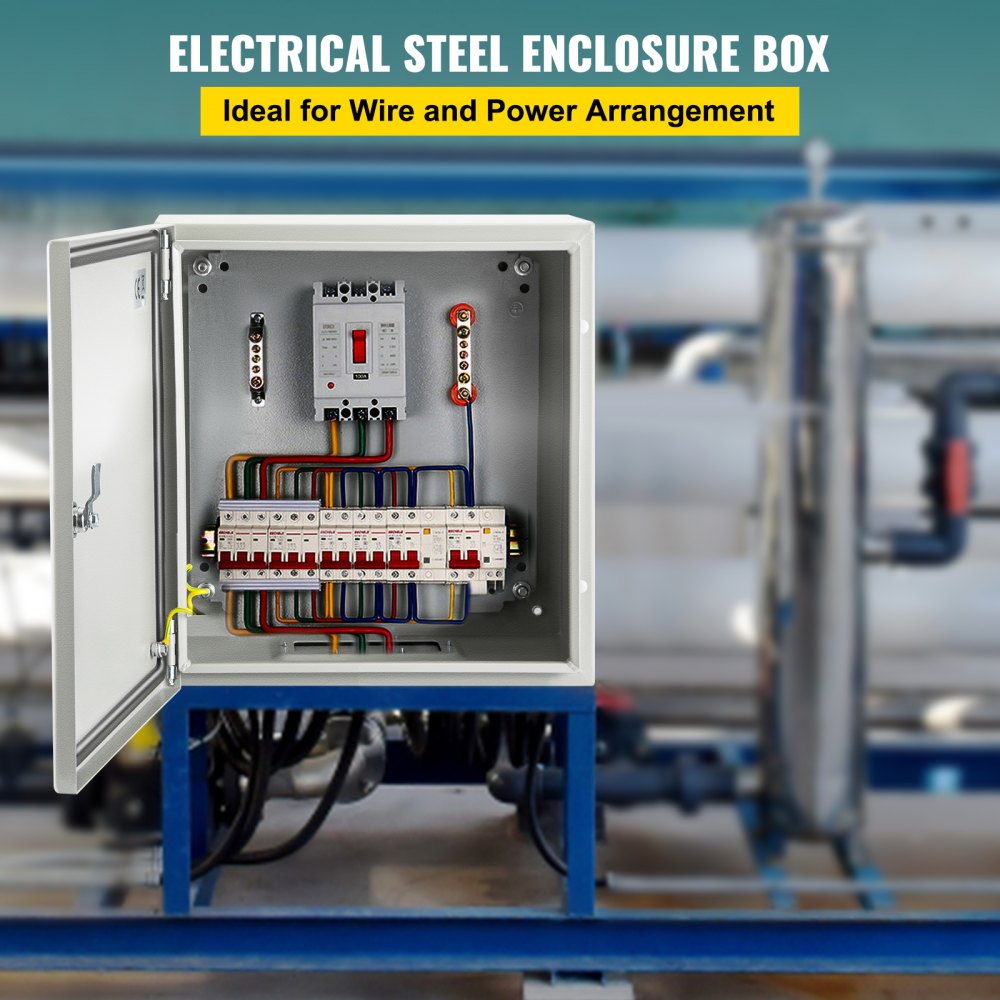

    •Electrical junction box enclosures for indoor and outdoor use.

    •Applications in factories, construction sites, shopping malls, residential areas, and courtyards.

Specifications:

 Model SPT
 Color Gray White(RAL7035)
 Material 0.059'' / 1.5 mm Carbon Steel
 Coating Epoxy Polyester Powder Coating
 Mounting Plate 0.079'' / 2 mm Detachable Galvanized Backplate
 IP Rating IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
 Connection Type Hinged
 Feature Lockable, Waterproof
 Galvanized Backplate Dimensions 6" x 6" / 15 x 15 cm

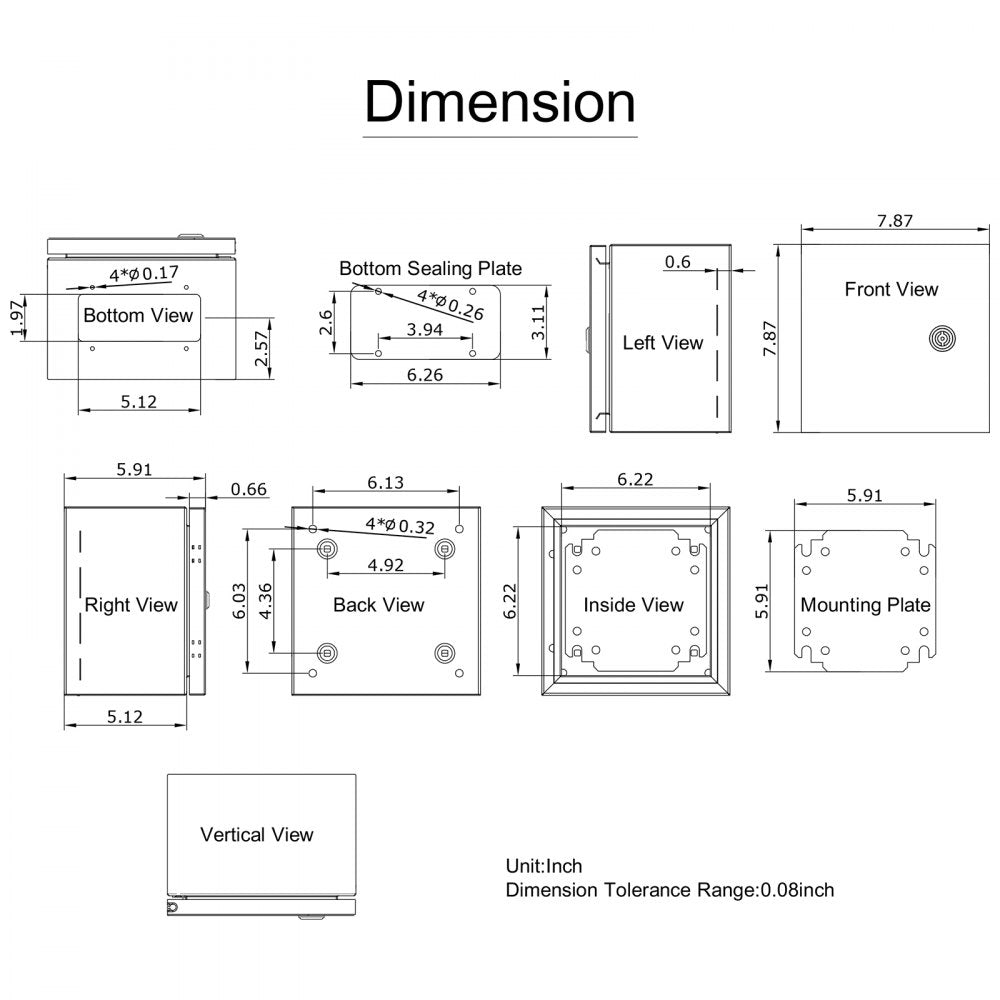

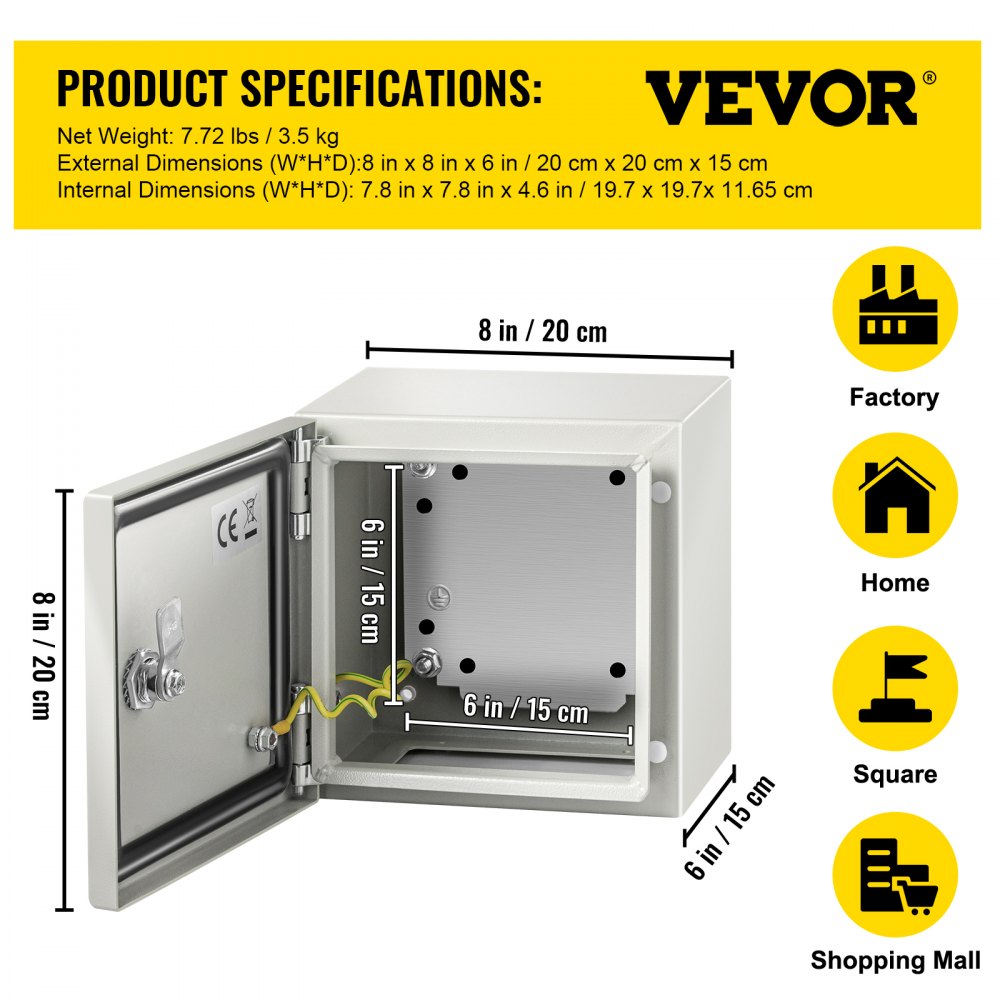

 Outer Dimensions (H x W x D) 8'' x 8'' x 6'' / 20 x 20 x 15 cm
 Inner Dimensions (H x W x D) 7.8'' x 7.8'' x 4.6'' / 19.7 x 19.7 x 11.65 cm
 Product Weight 7.72 lbs / 3.5 kg
 Certification CE / ROHS Certification
