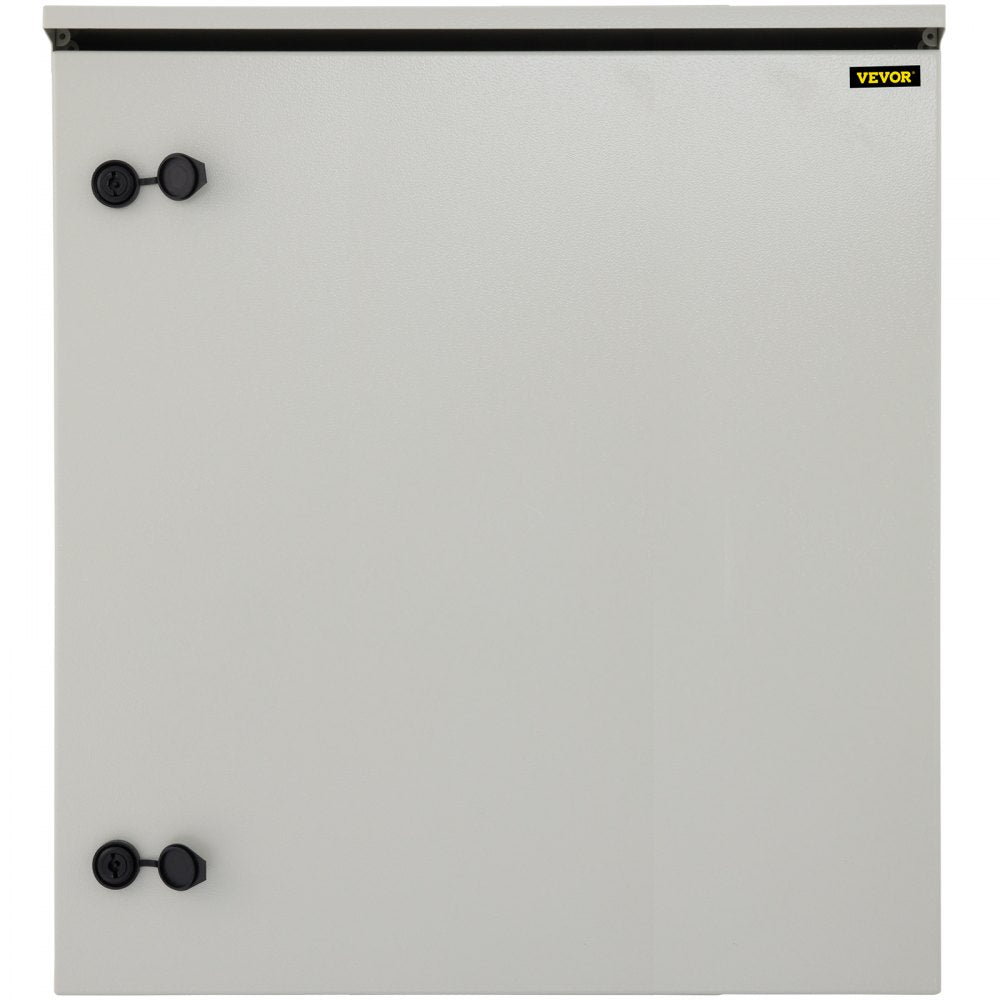

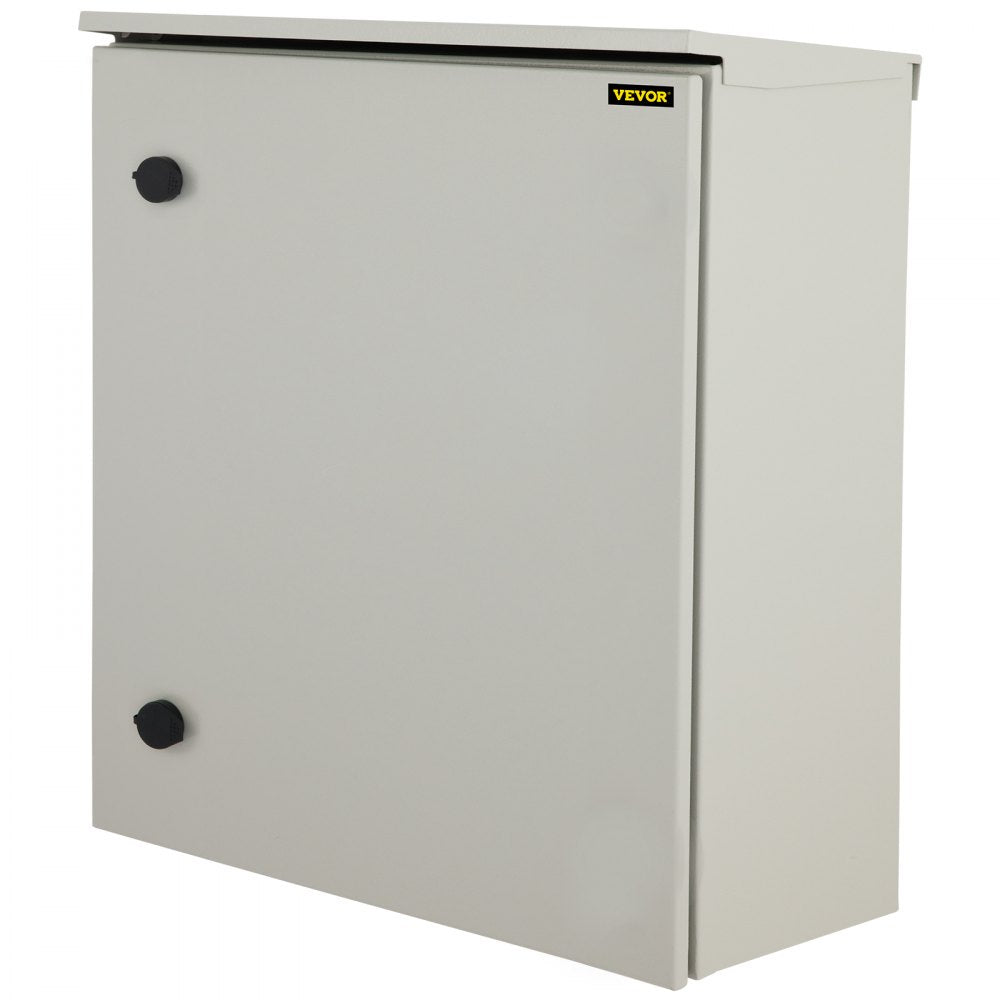

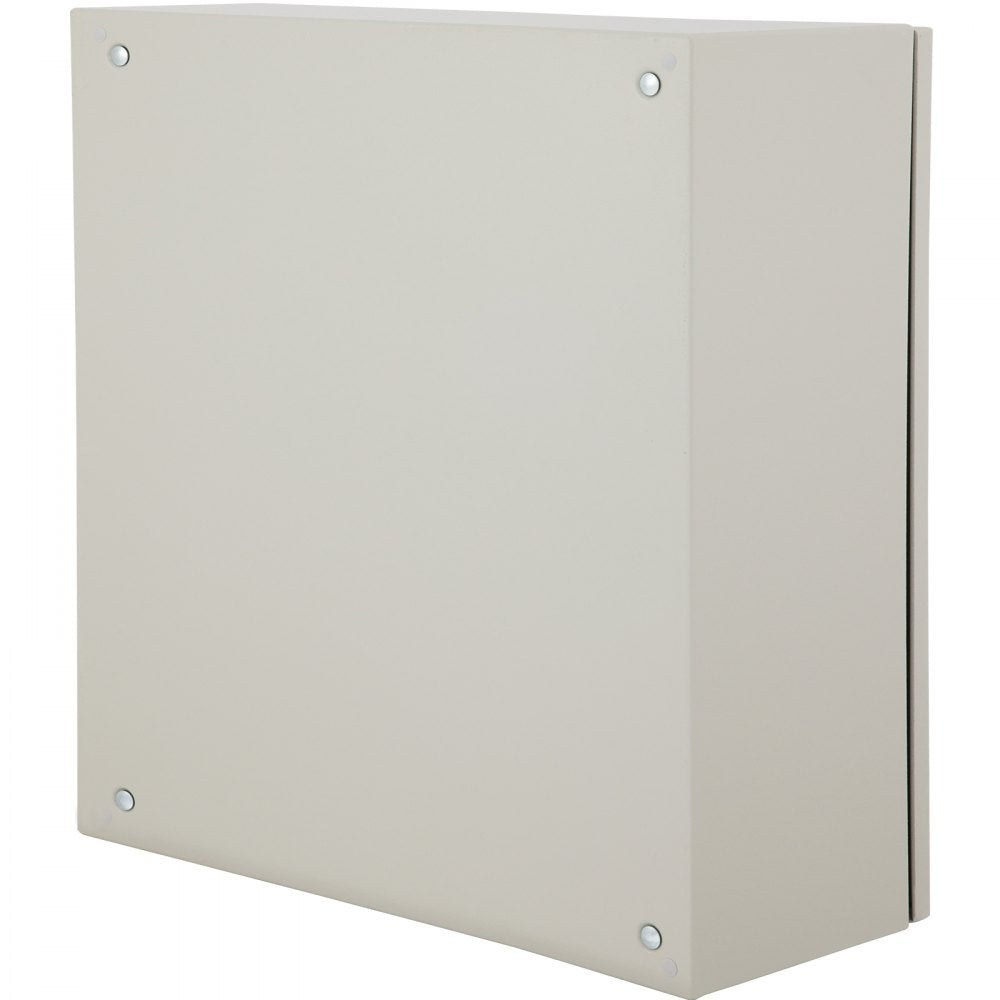

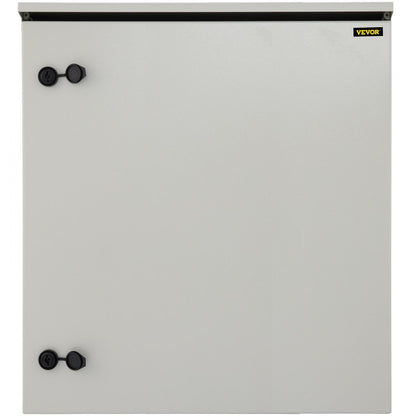

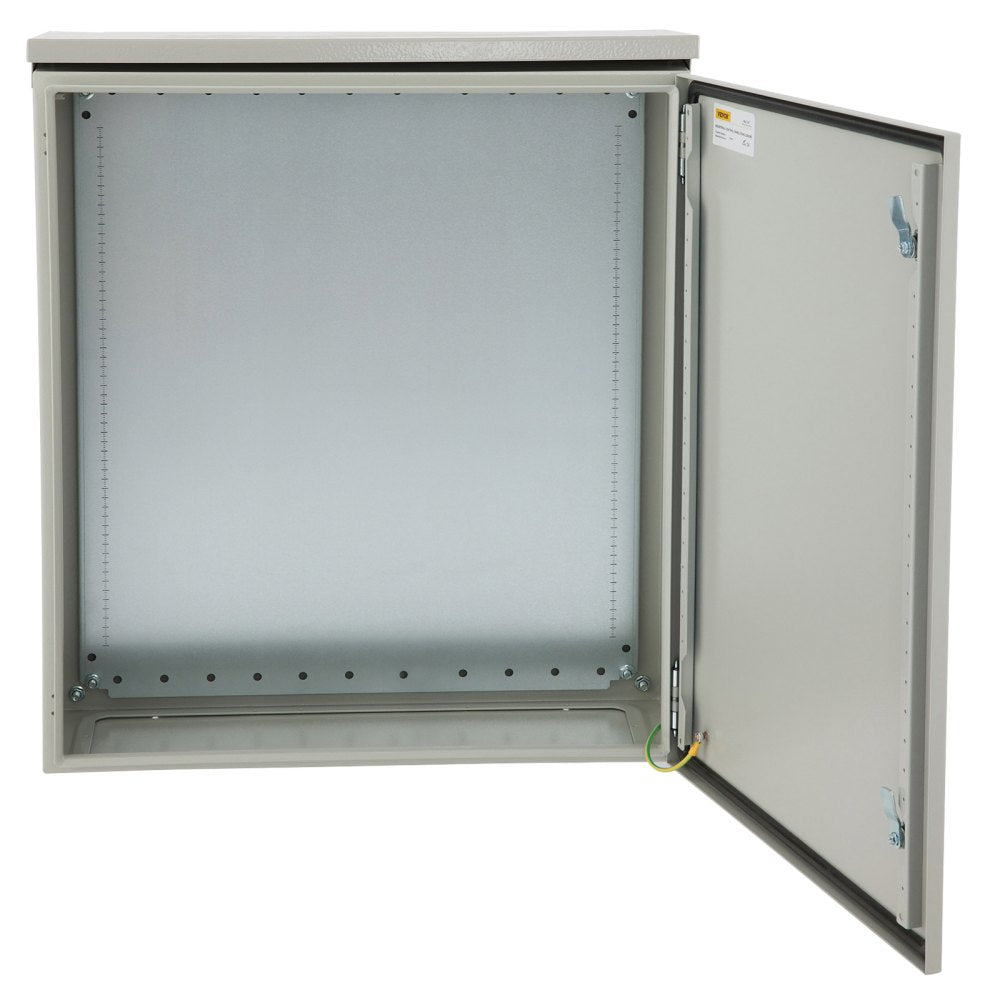

ST6630 - Durable 24x24x12 Steel Electrical Enclosure with Locking Mechanism

ST6630 - Durable 24x24x12 Steel Electrical Enclosure with Locking Mechanism

SKU: SKU: ST6630 Download PDF

Variant:
  • ST6630 - Durable 24x24x12 Steel Electrical Enclosure with Locking Mechanism
Regular price Now $227.28
Regular price BEFORE   $0.00 Sale price Now $227.28
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

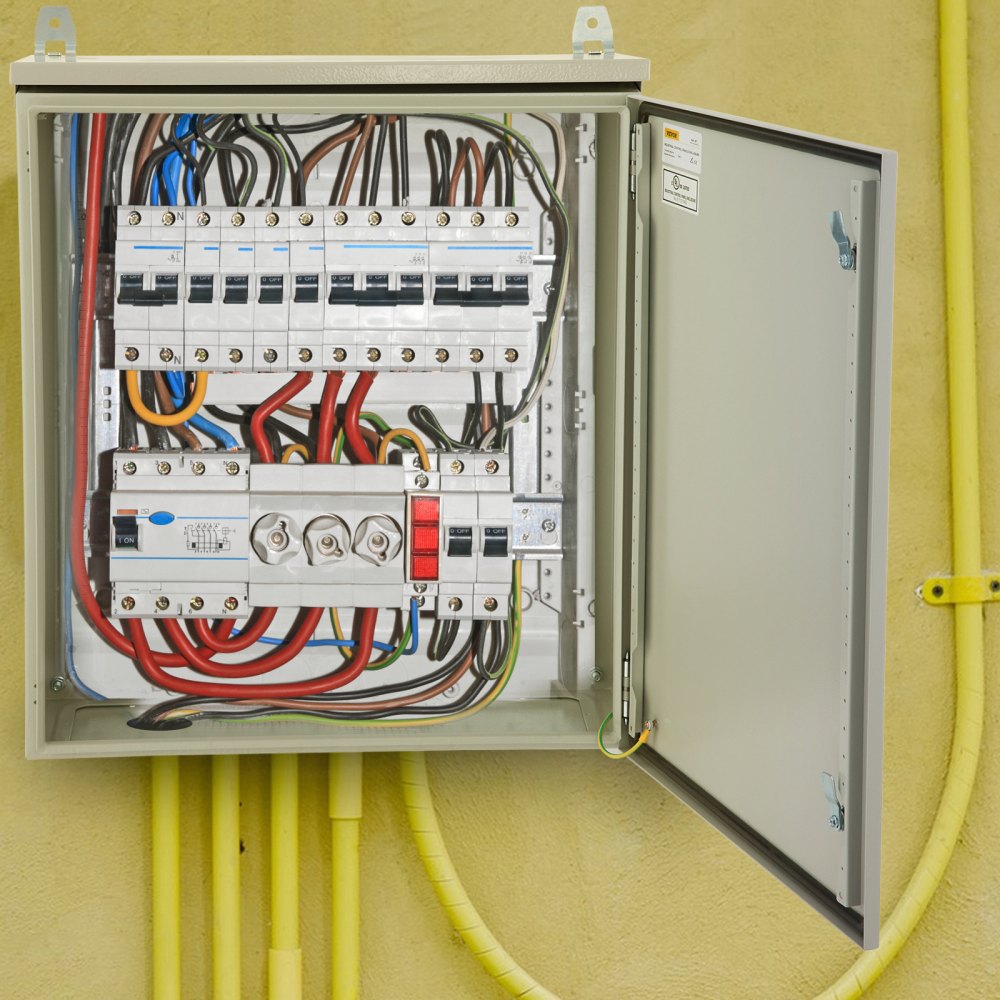

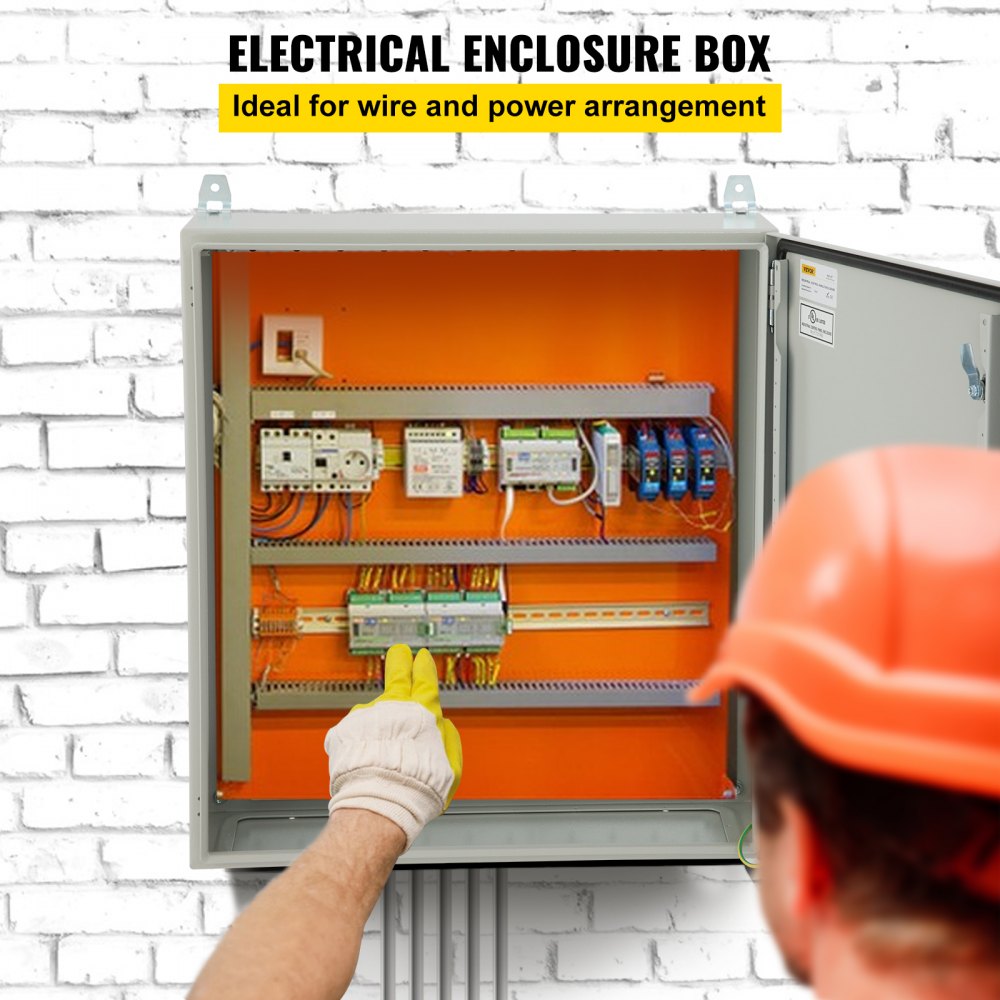

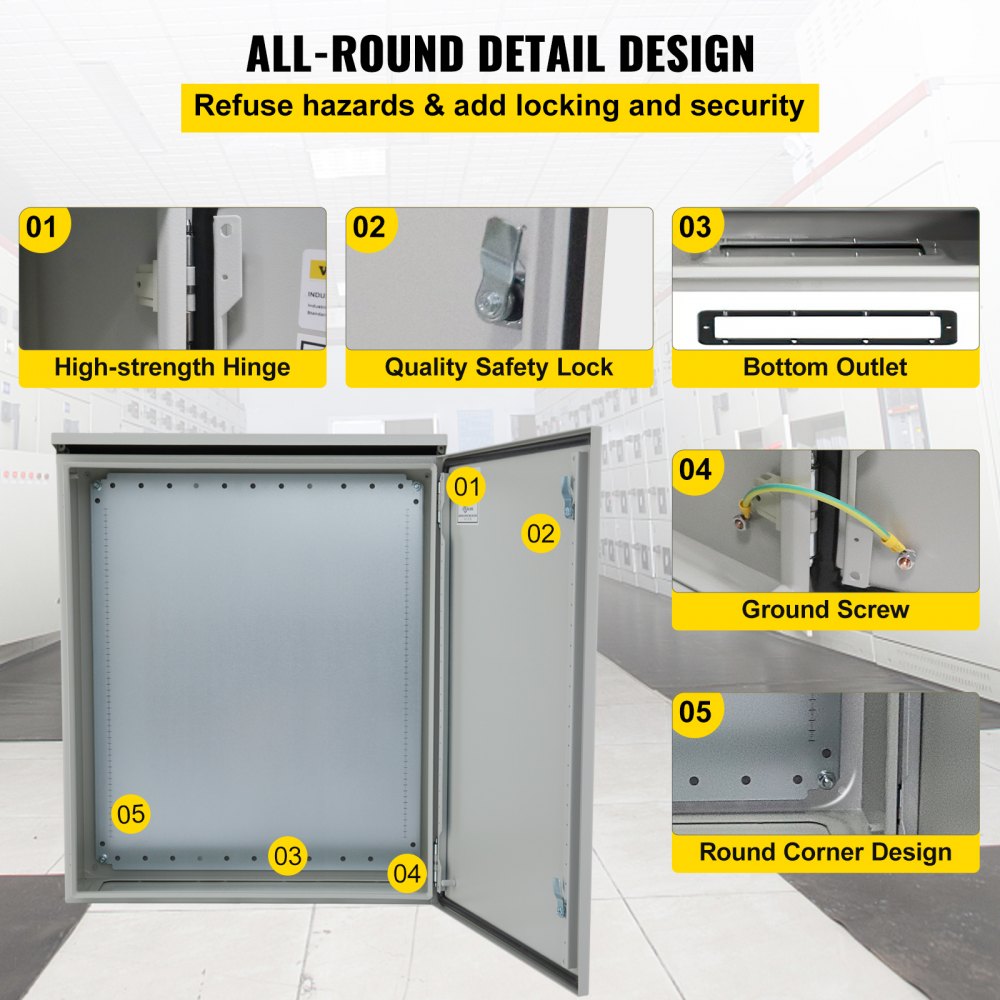

Introducing the VEVOR electrical enclosure, crafted from premium cold-rolled carbon steel for optimal durability and resilience against tough weather conditions This enclosure is equipped with a robust locking mechanism and heavy-duty hinges, alongside a protective rain hood to shield your valuable electrical equipment from environmental elements Suitable for both indoor and outdoor applications, it caters to a variety of industries, including construction and electrical, promising dependable performance throughout the year.

Features and Benefits:

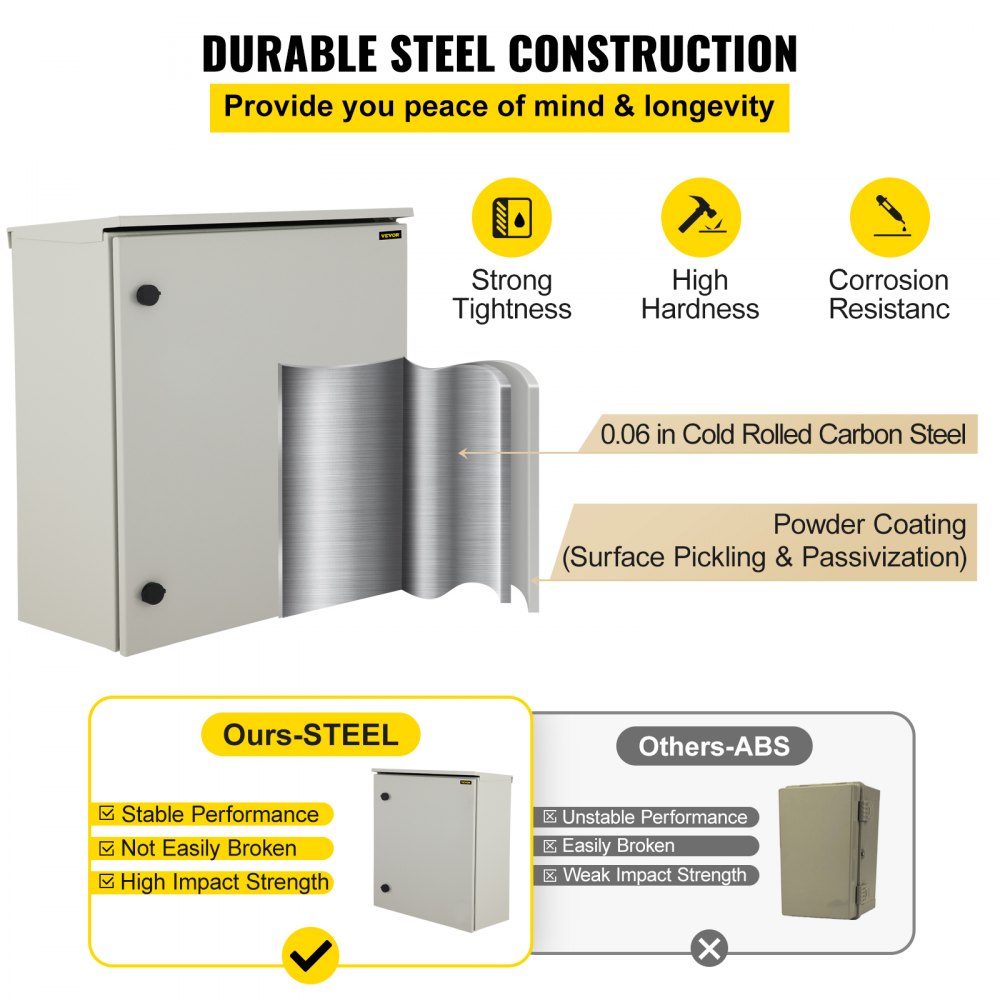

    •Crafted from robust cold-rolled carbon steel for enhanced toughness.

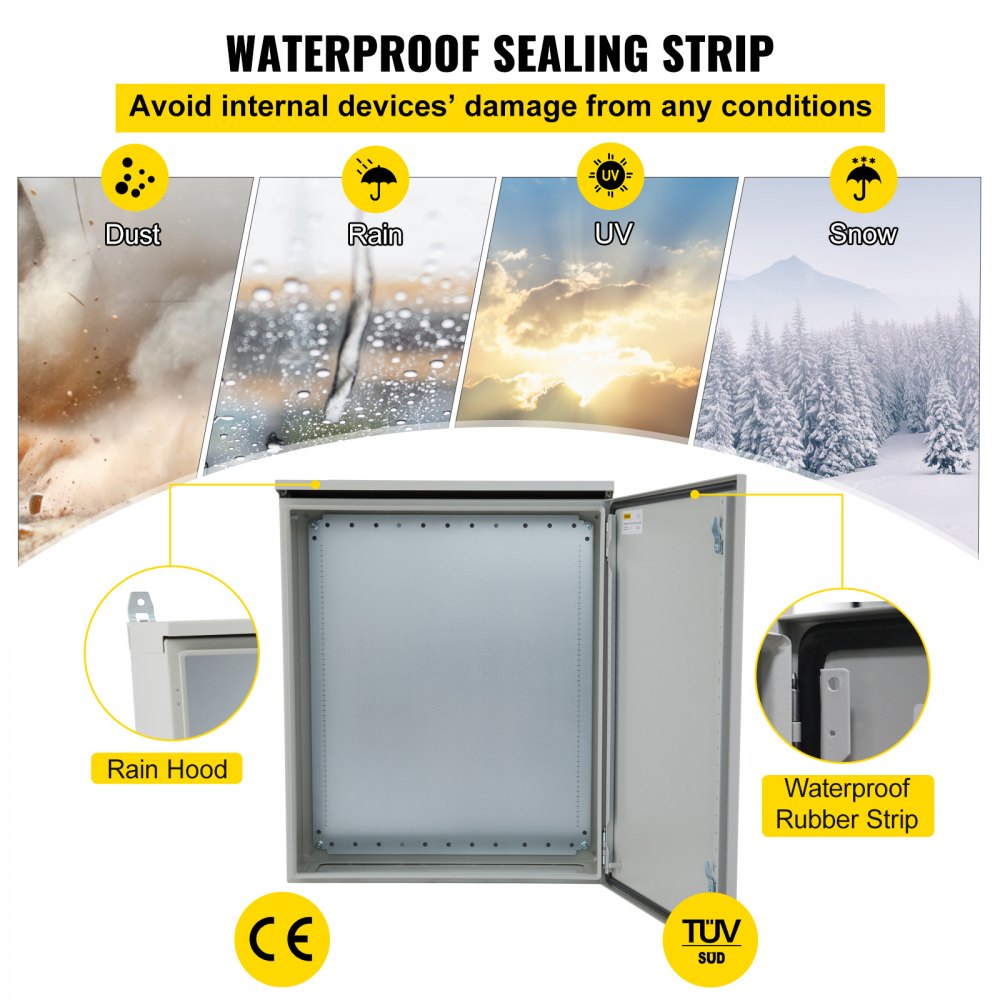

    •Designed with an IP65 waterproof grade to keep equipment dry.

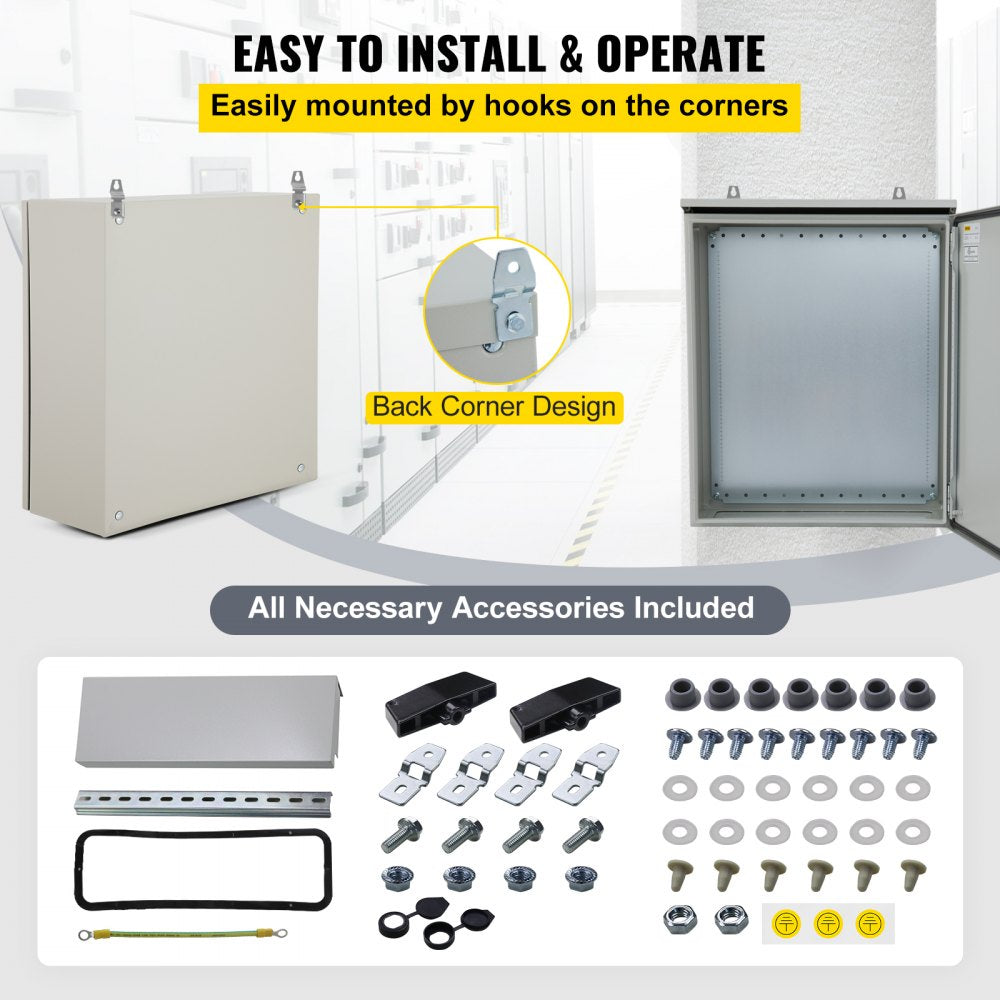

    •Easy installation with detachable galvanized backplate and multiple mounting options.

    •Removable door and panels for convenient access and maintenance.

    •Cost-effective compared to local suppliers without compromising on quality.

    •Quick and effective customer service for user satisfaction.

    •Suitable for factories, construction sites, shopping malls, and outdoor installations.

    •Ideal for housing EV chargers and solar arrays.

Specifications:

 Model ST6630
 Body Material 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
 Inner Plate 0.06 in / 0.15 cm Galvanized Plate
 Finish Powder Coating (Surface Pickling and Passivization)
 Certification TUV, CE, 508A (CSA C22.2 No. 14-13)
 Ratings NEMA Type 4
 Protection Grade IP65, IK10
 Construction Continuously Welded
 Ambient Temperature -40 to 122℉ / -40 to 55°C
 Gasket Material Seamless Foam / Nylon (washer or plug)

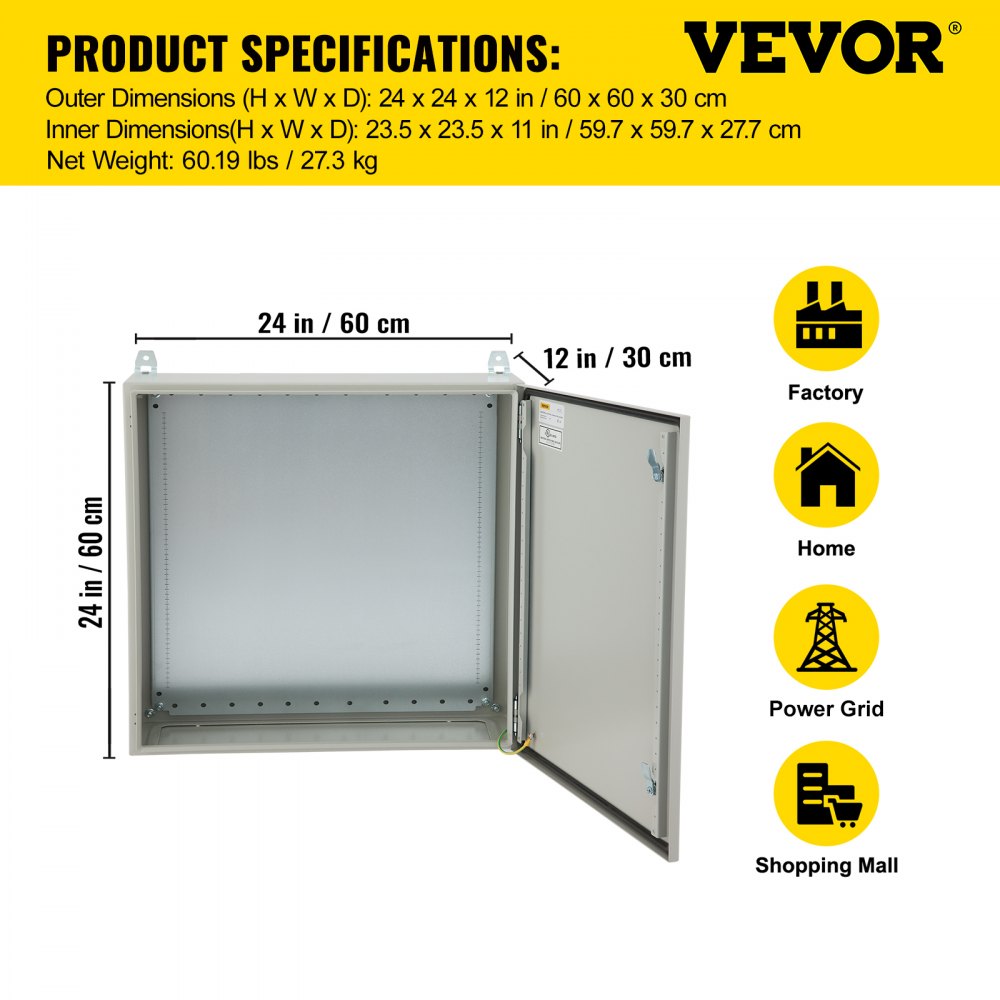

 Outer Dimensions (H x W x D) 24 x 24 x 12 in / 60 x 60 x 30 cm
 Inner Dimensions (H x W x D) 23.5 x 23.5 x 11 in / 59.7 x 59.7 x 27.7 cm
 Galvanized Backplate Dimensions (H x W) 22.2 x 22 in / 56.5 x 55 cm
 Mounting Hole Diameter (± 0.2 cm) 0.35 in / 0.9 cm
