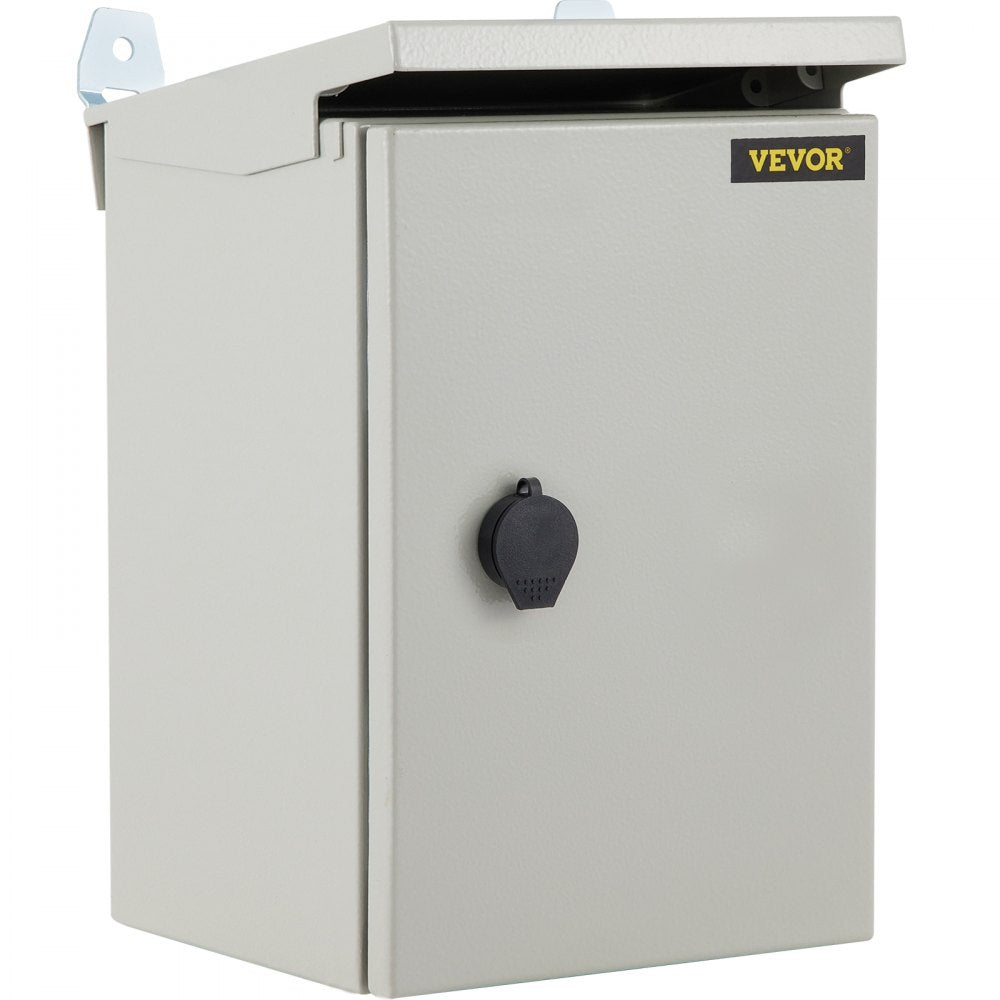

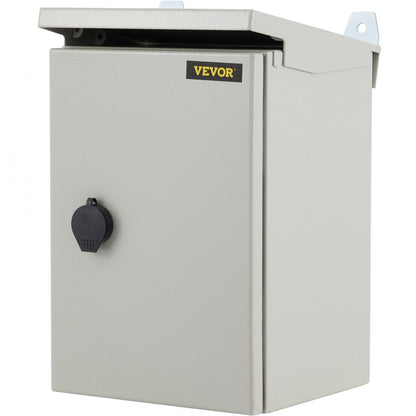

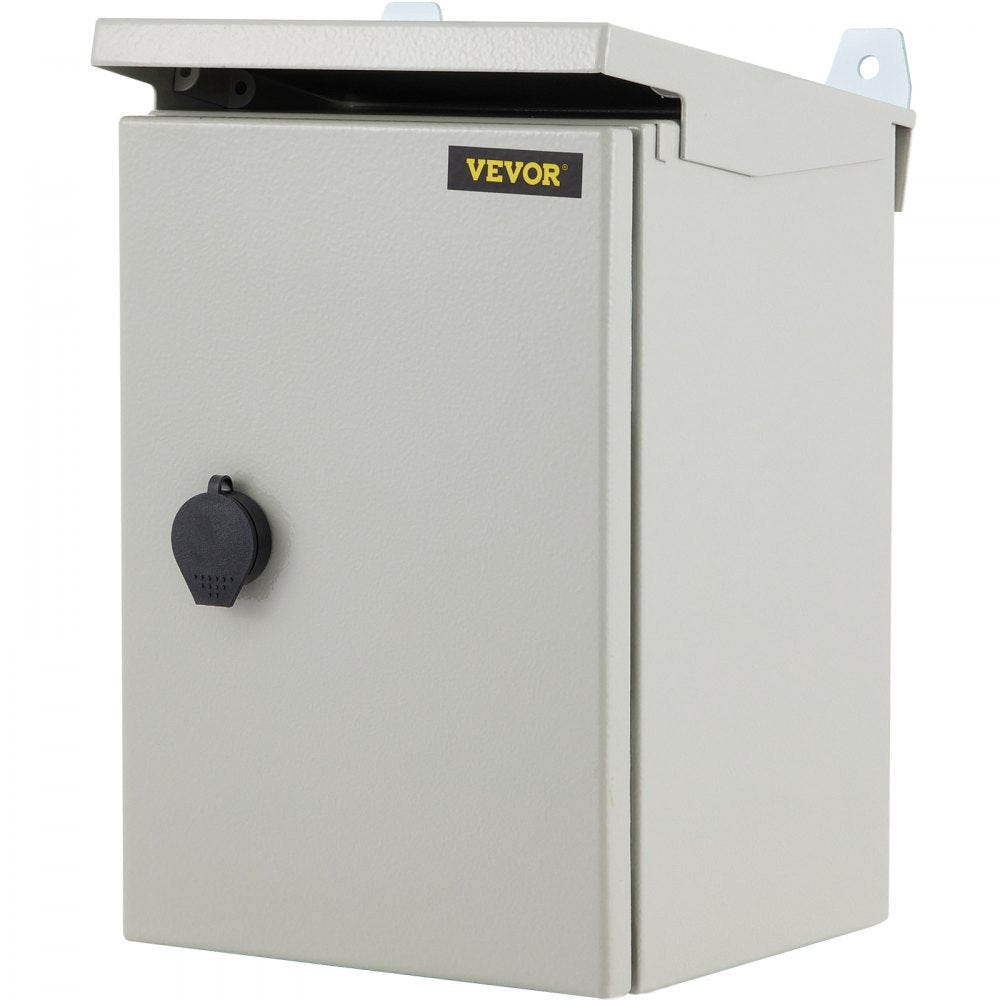

ST3220 - 12x8x8 Carbon Steel Electrical Enclosure with Rain Hood
ST3220 - 12x8x8 Carbon Steel Electrical Enclosure with Rain Hood
SKU: SKU: ST3220 Download PDF
- ST3220 - 12x8x8 Carbon Steel Electrical Enclosure with Rain Hood
- ST3220 - 12x8x8 Carbon Steel Electrical Enclosure with Rain Hood
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

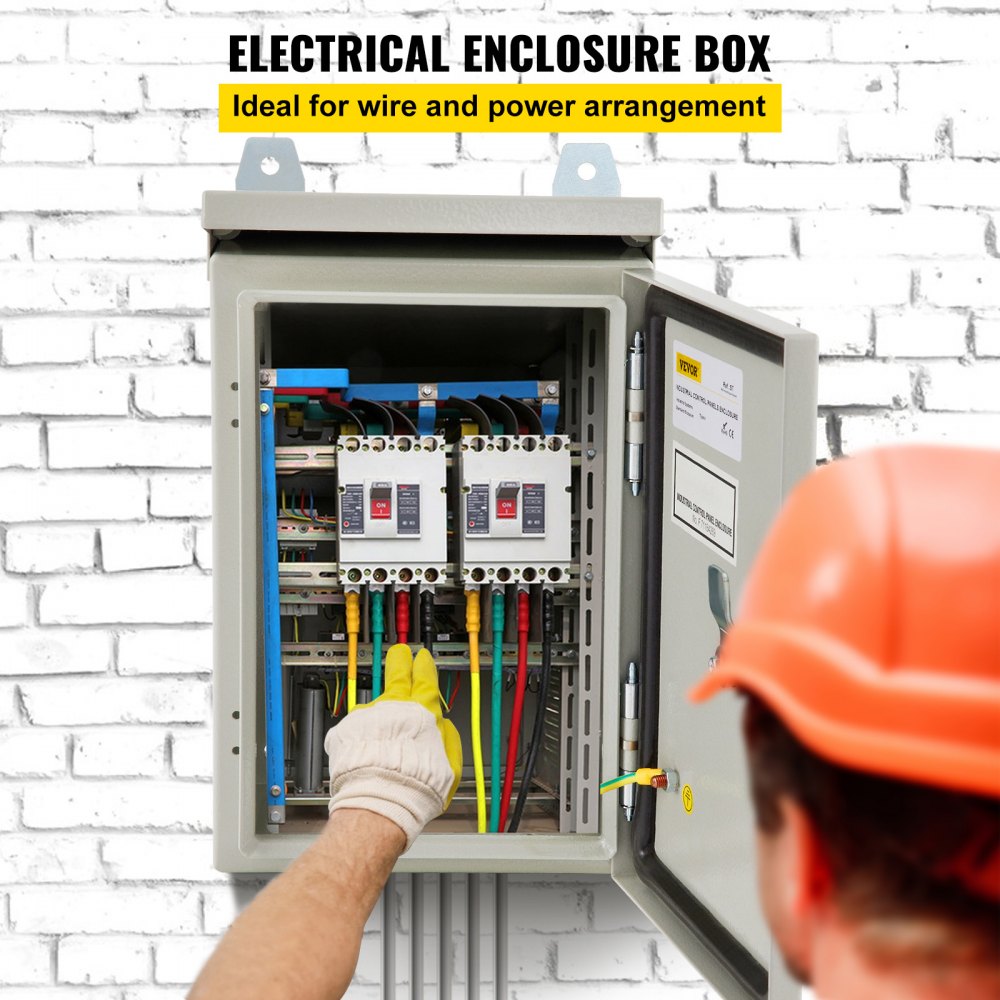

Introducing a robust electrical enclosure box, expertly crafted from premium carbon steel Featuring a reliable lock design, heavy-duty hinges, and a rain hood, this enclosure effectively safeguards your electrical equipment and power cords against harsh weather elements It is suitable for both indoor and outdoor settings, making it an excellent choice for various industries, including electrical and construction.
Designed to provide exceptional protection, this enclosure ensures dependable performance year-round.
Features and Benefits:
•Sturdy Steel Construction.

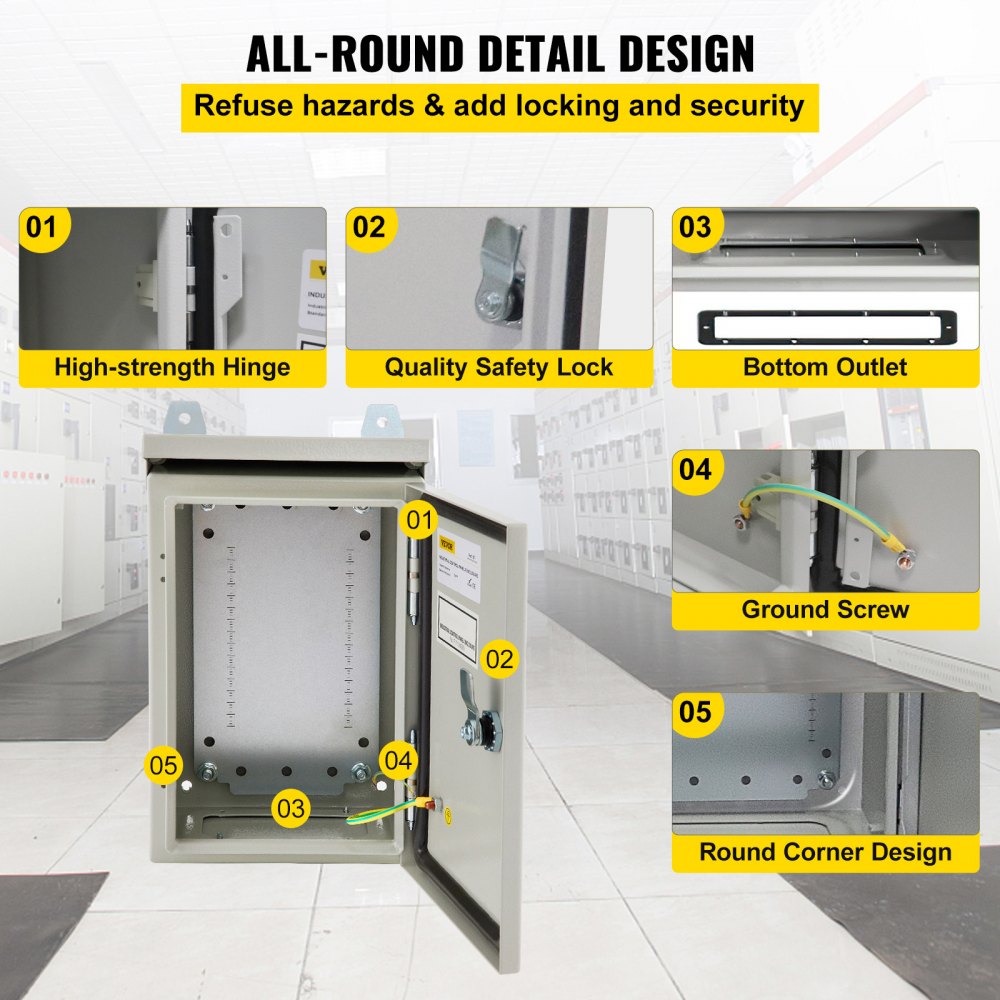

•Reinforced Lock & Hinge.

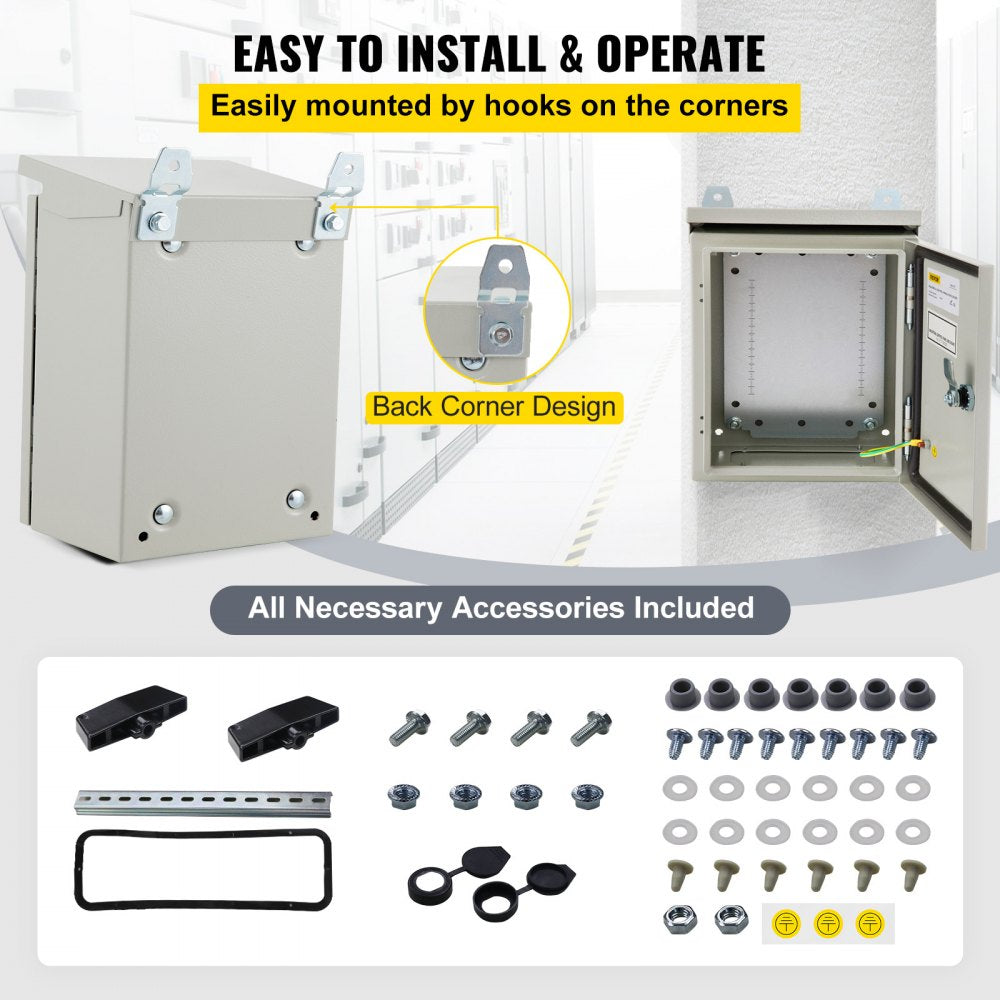

•Effortless Installation.
•Thoughtful Design.
•Convenient Operation.
•Cost-Effective Solution.
•User-Friendly Features.

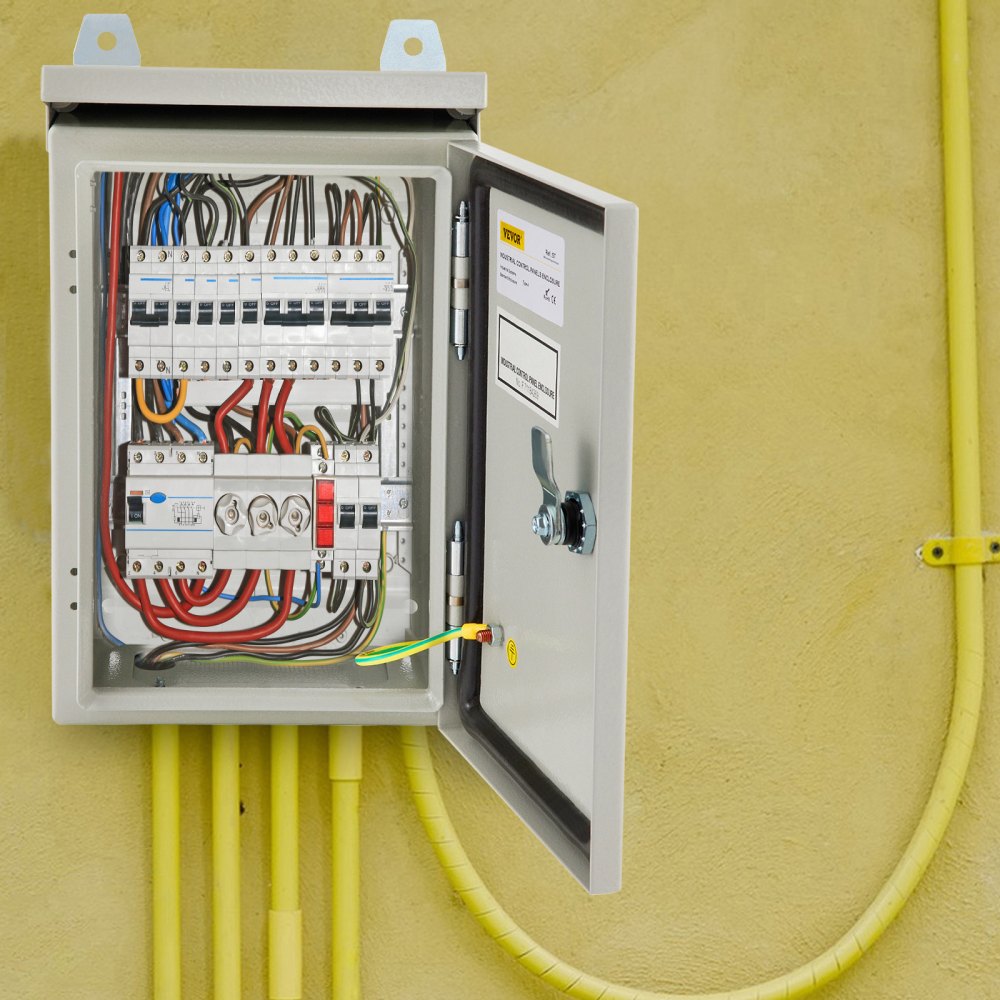

•Suitable for indoor and outdoor applications, including electricity, construction, securing EV chargers, housing batteries, and solar charging..
Specifications:
| Model | ST3220 |

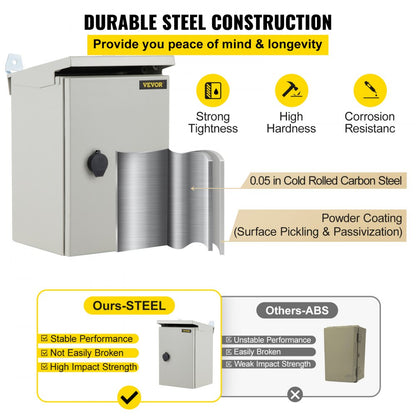

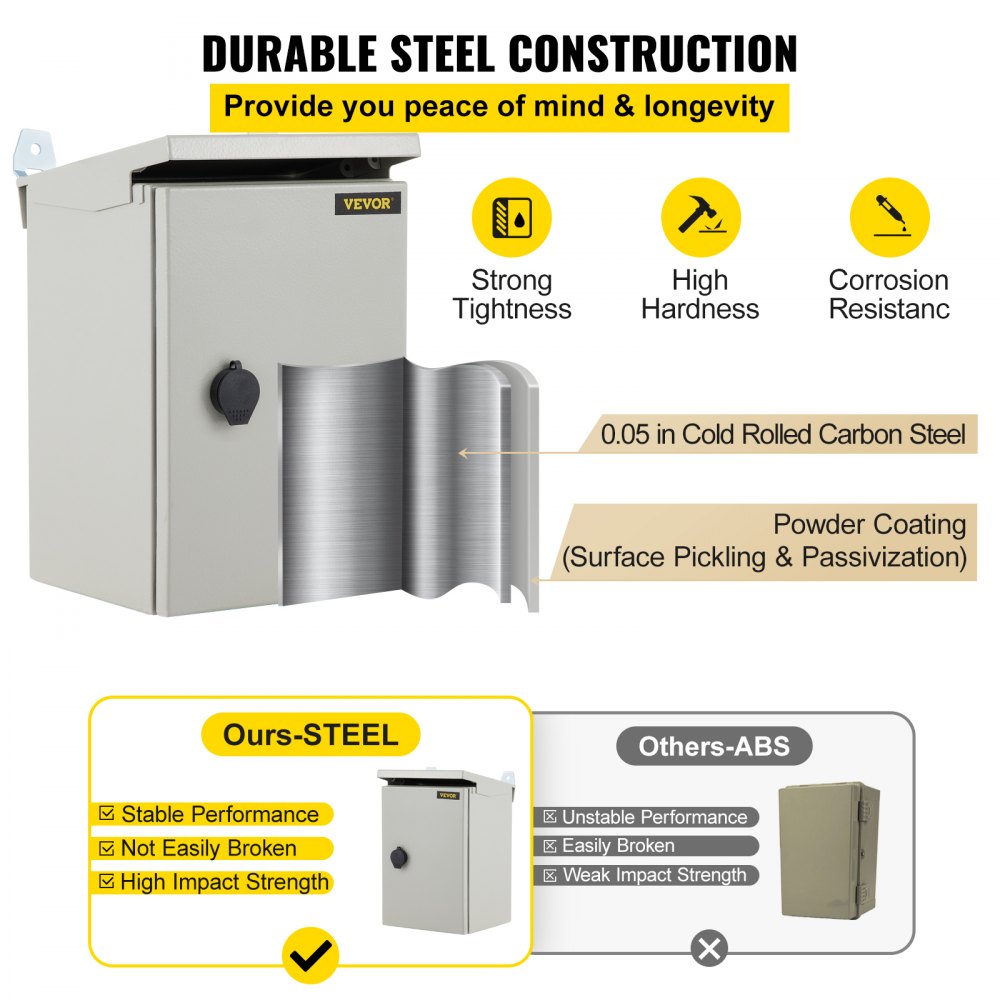

| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating(Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13.) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |

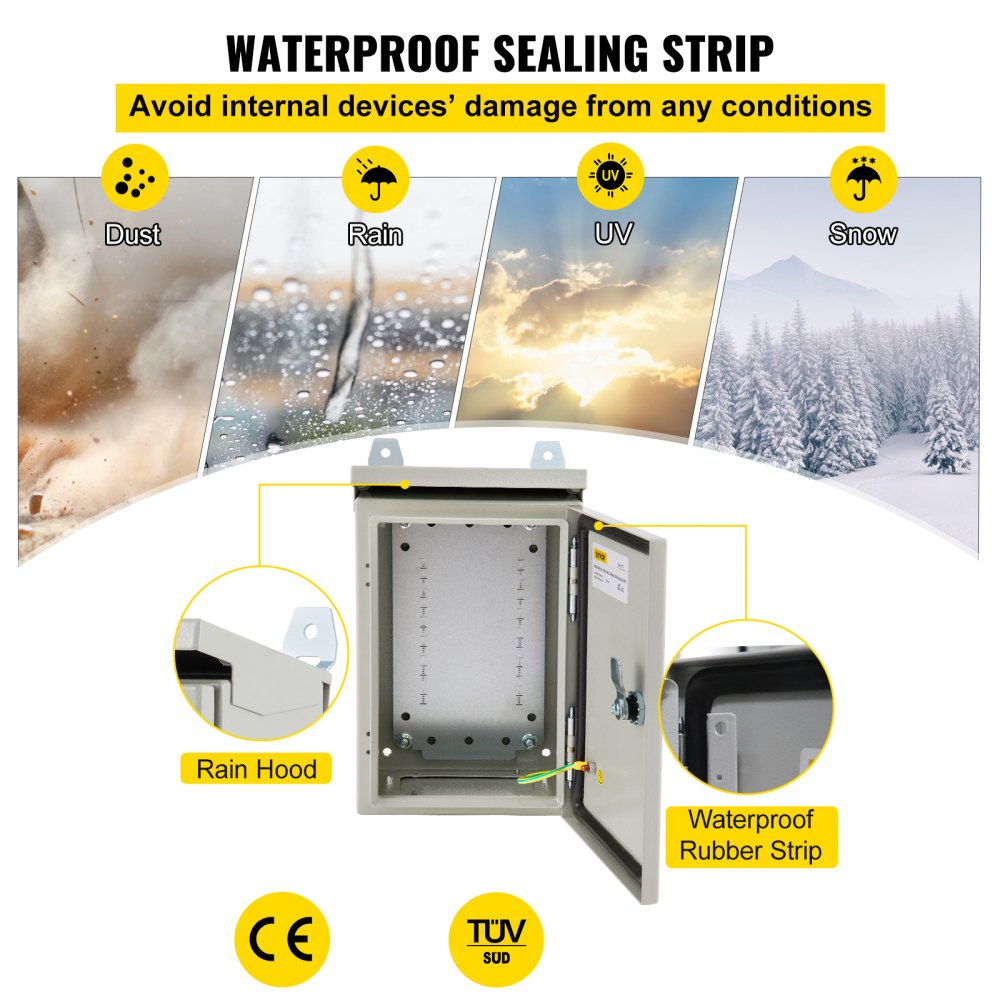

| Gasket Material | Seamless Foam/ Nylon(washer or plug) |

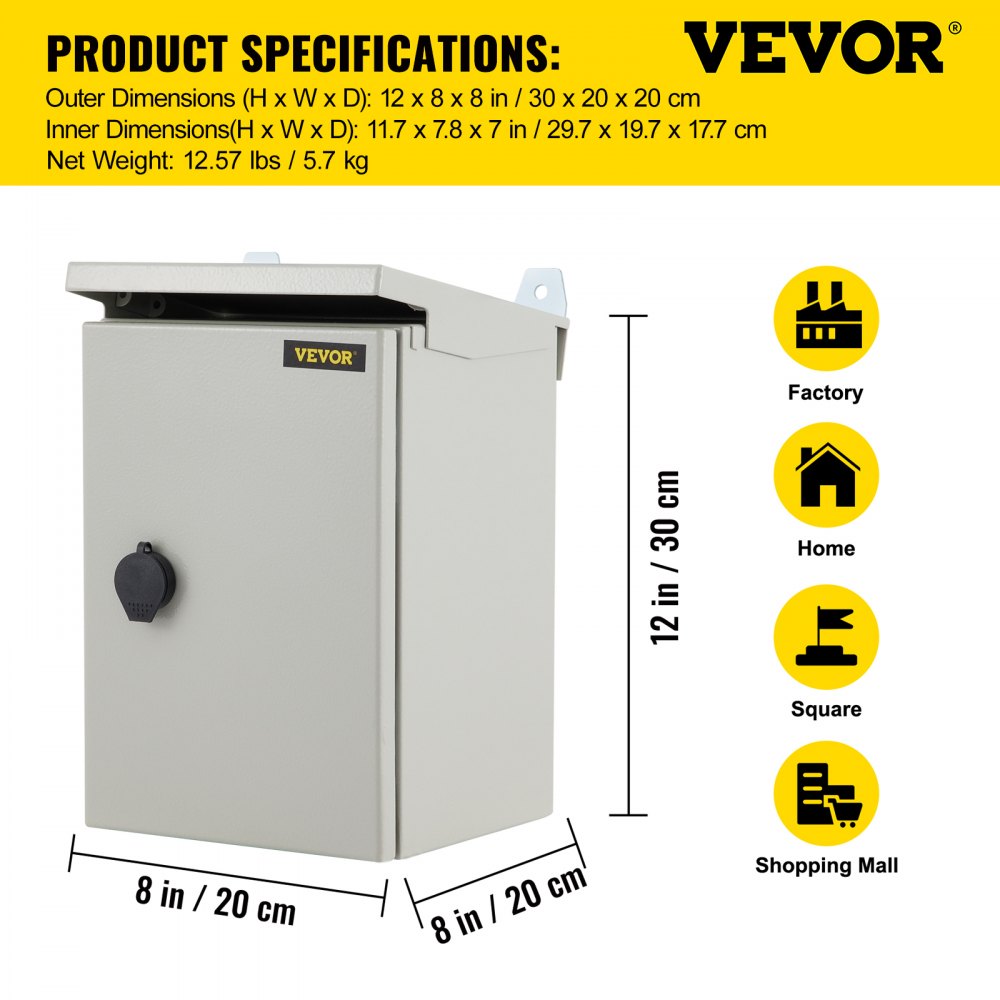

| Outer Dimensions(H x W x D) | 12 x 8 x 8 in / 30 x 20 x 20 cm |
| Inner Dimensions(H x W x D) | 11.7 x 7.8 x 7 in / 29.7 x 19.7 x 17.7 cm |

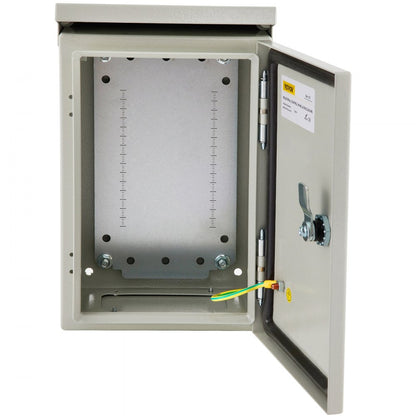

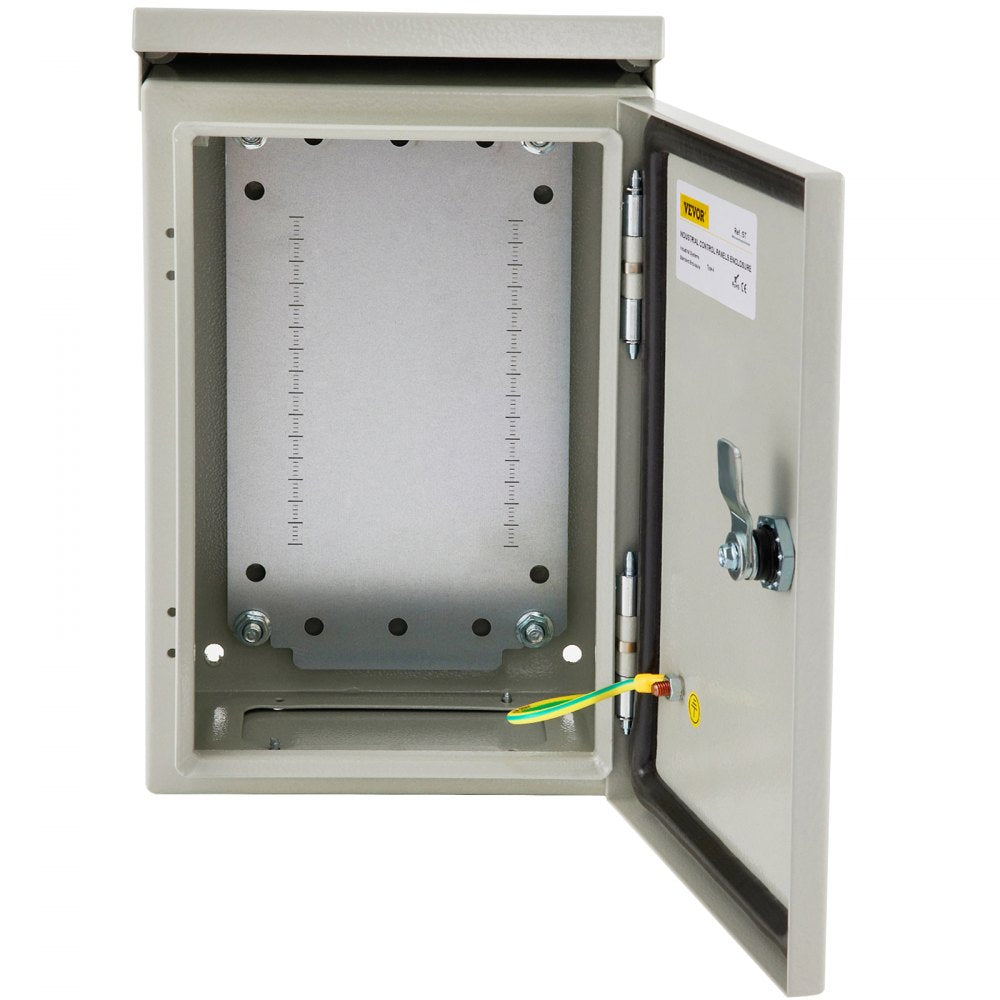

| Galvanized Backplate Dimensions(H x W) | 10.4 x 6 in / 26.5 x 15 cm |
| Mounting Hole Diameter(± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 12.57 lbs / 5.7 kg |
