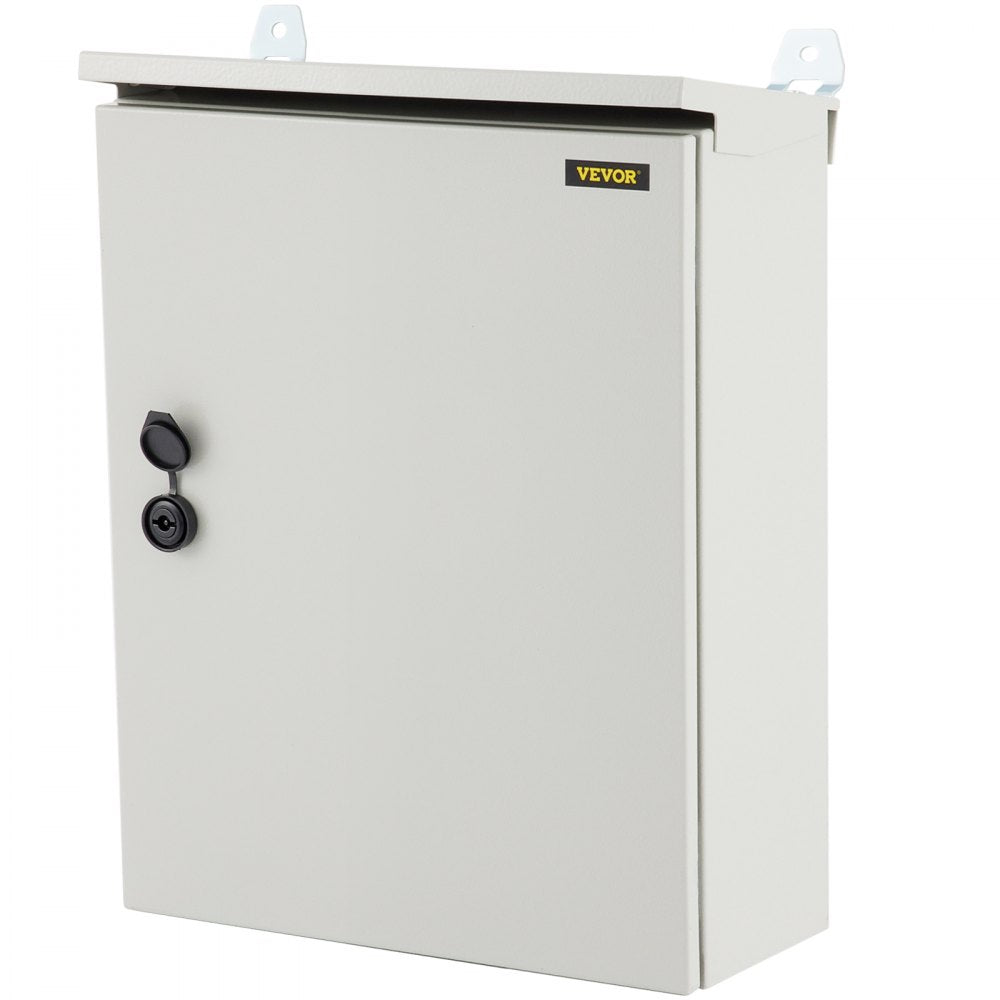

ST5420 - IP65 Rated 20x16x8" Steel Electrical Enclosure with Locking Mechanism

ST5420 - IP65 Rated 20x16x8" Steel Electrical Enclosure with Locking Mechanism

SKU: SKU: ST5420   Download PDF

Select a Variant:
  • ST5420 - IP65 Rated 20x16x8" Steel Electrical Enclosure with Locking Mechanism
Qty:
Regular price Now $122.19   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $122.19 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the VEVOR Electrical Enclosure, a robust solution for protecting your electrical components Measuring 20x16x8 inches and boasting an IP65 rating, this enclosure is crafted from high-quality cold-rolled carbon steel, ensuring exceptional durability even in challenging environments With a sophisticated locking system and reinforced hinges, it provides enhanced security against external elements.

This versatile enclosure is suitable for a range of indoor and outdoor tasks—particularly in electrical and construction settings—offering reliable protection and performance throughout the year.

Features and Benefits:

    •Sturdy steel construction for enhanced durability.

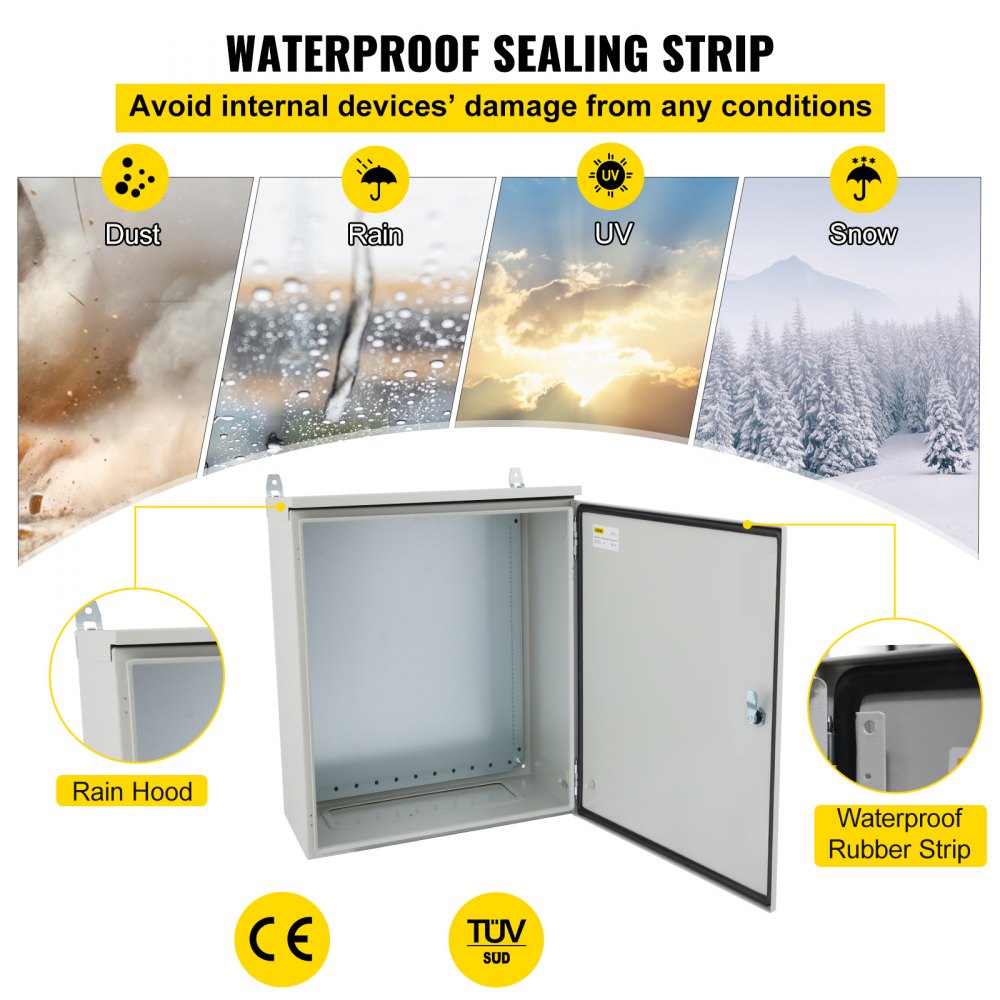

    •IP65 waterproof grade for superior protection against dust and moisture.

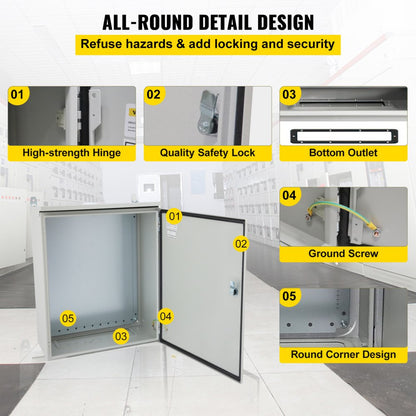

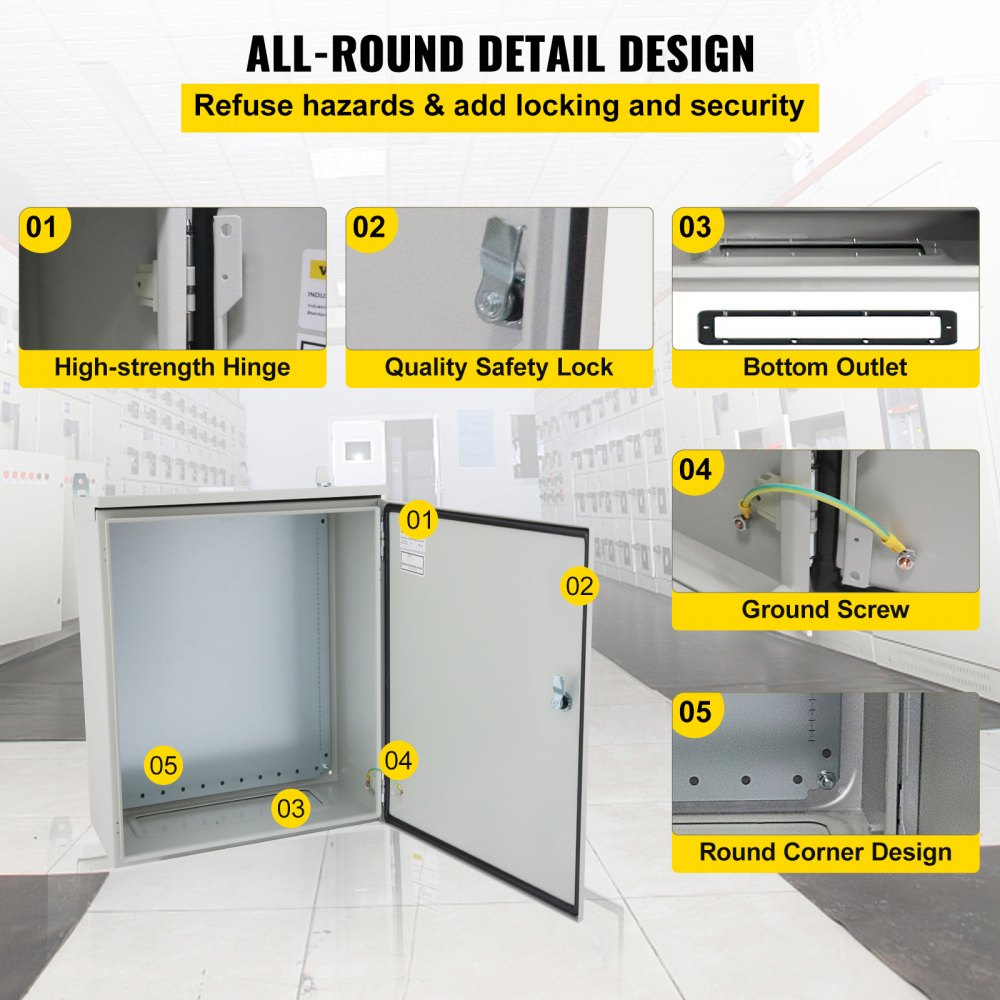

    •Reinforced lock and hinge for increased security.

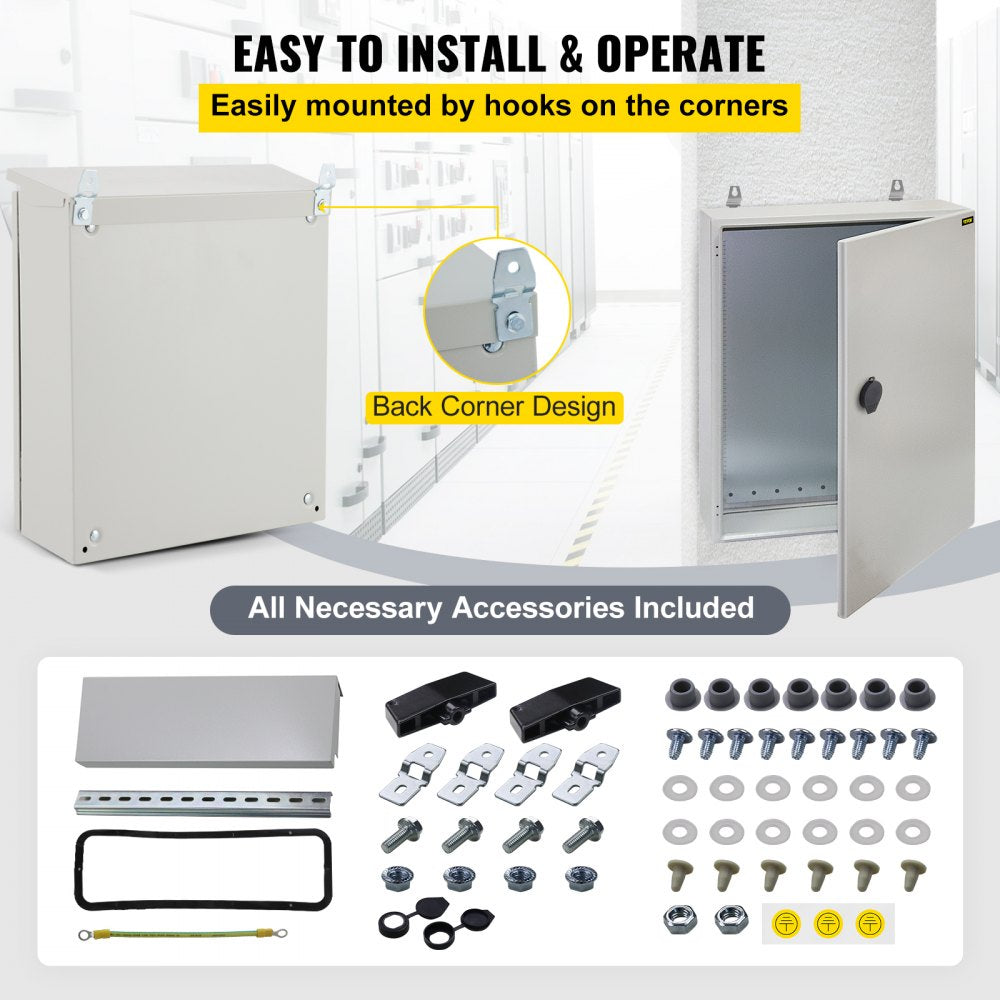

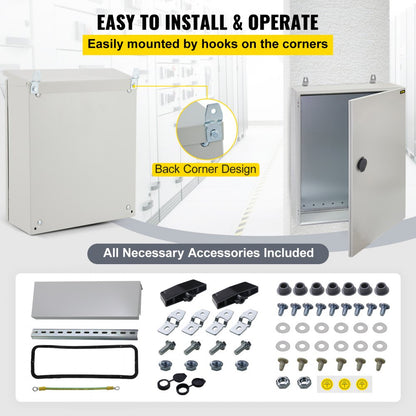

    •Easy operation with a detachable galvanized mounting backplate.

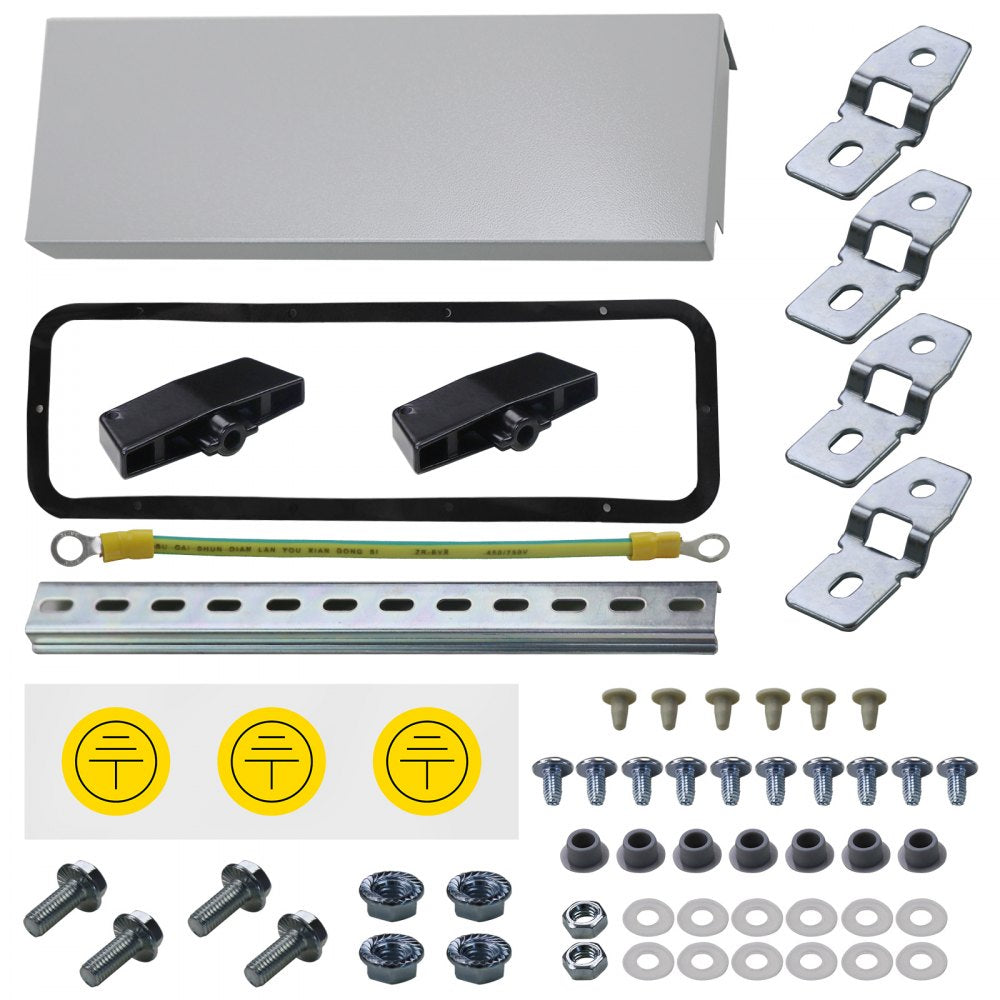

    •Thoughtful design with pre-installed components for convenience.

    •Electricity and construction industries.

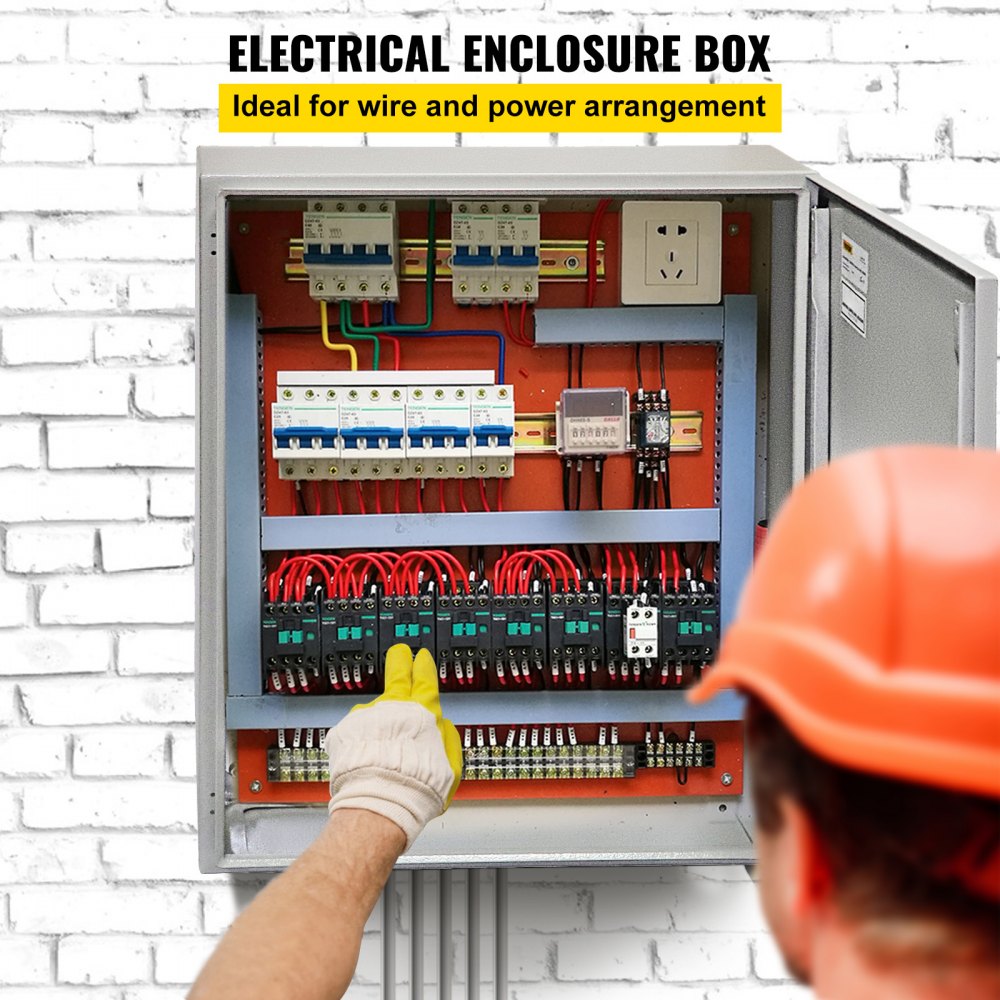

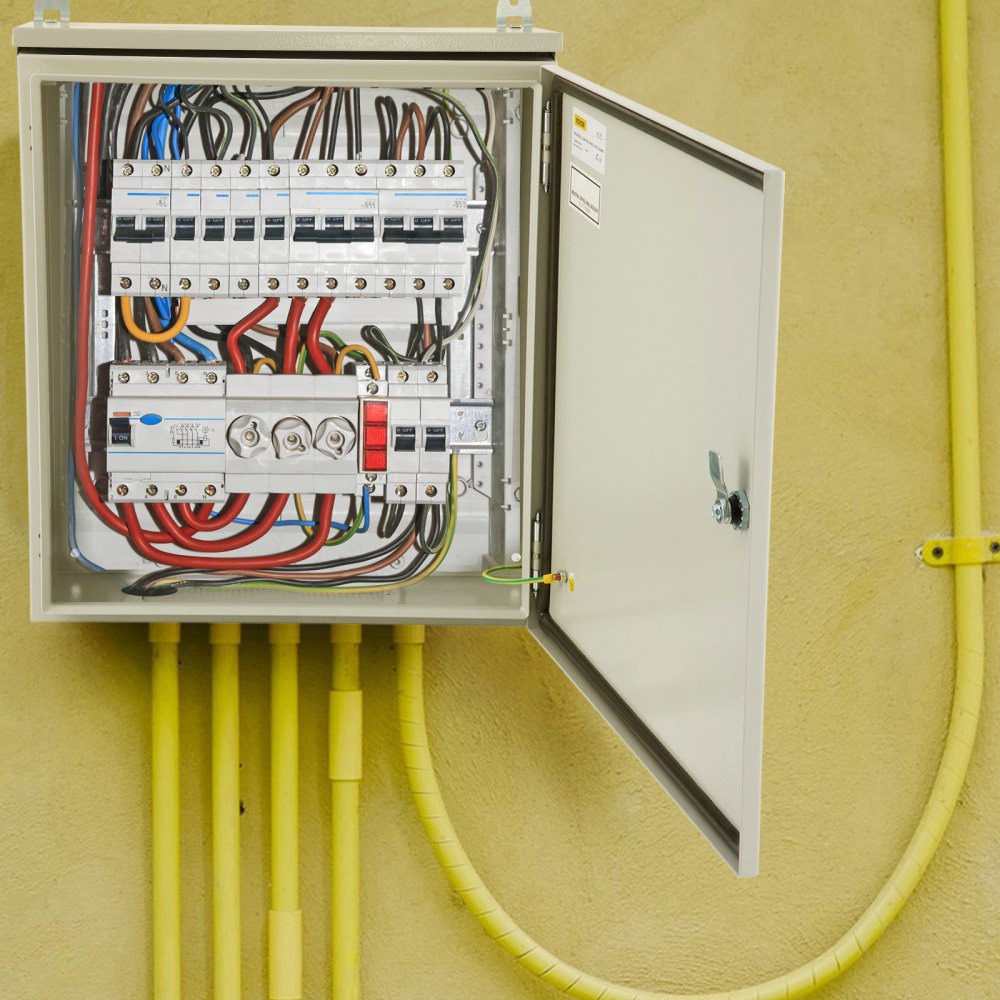

    •Secure housing for sensitive electrical equipment.

    •Applications in factories, construction sites, shopping malls, and public squares.

Specifications:

 Model ST5420

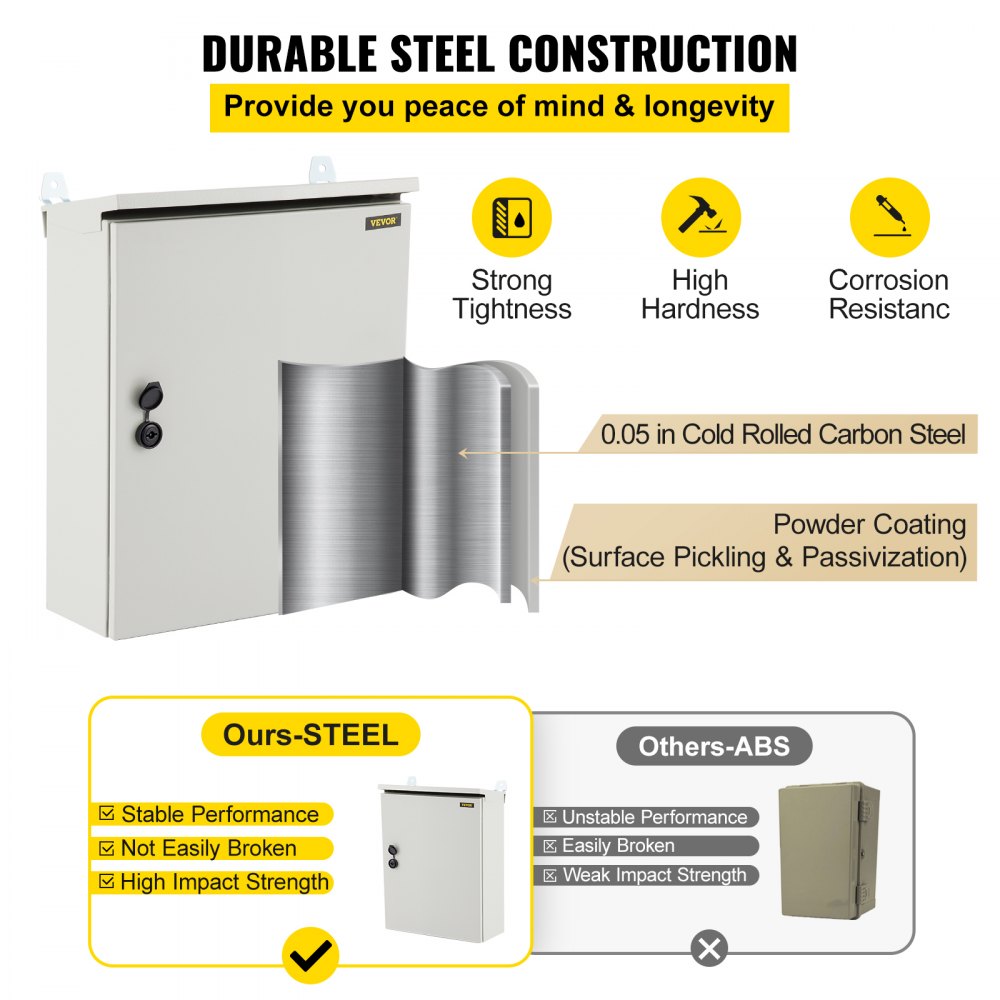

 Body Material 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
 Inner Plate 0.06 in / 0.15 cm Galvanized Plate
 Finish Powder Coating (Surface Pickling and Passivization)
 Certification TUV, CE, 508A (CSA C22.2 No. 14-13.)
 Ratings NEMA Type 4
 Protection Grade IP65, IK10
 Construction Continuously Welded
 Ambient Temperature -40 to 122℉ / -40 to 55°C
 Gasket Material Seamless Foam/Nylon (washer or plug)

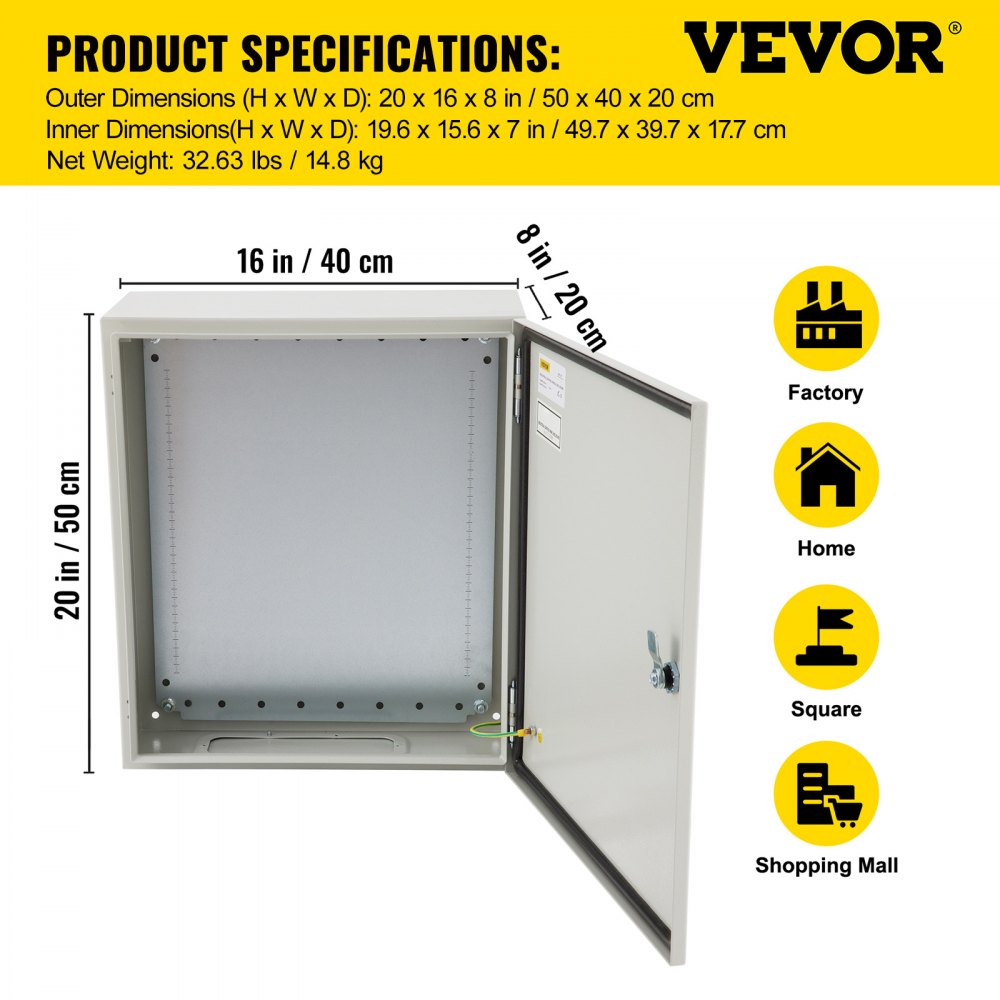

 Outer Dimensions (H x W x D) 20 x 16 x 8 in / 50 x 40 x 20 cm
 Inner Dimensions (H x W x D) 19.6 x 15.6 x 7 in / 49.7 x 39.7 x 17.7 cm
 Galvanized Backplate Dimensions (H x W) 18.3 x 14 in / 46.5 x 35 cm
 Mounting Hole Diameter (± 0.2 cm) 0.35 in / 0.9 cm
 Net Weight 32.63 lbs / 14.8 kg
