ST4320 - NEMA 4 Waterproof Electrical Enclosure, 16x12x8 Inch Steel Cabinet
ST4320 - NEMA 4 Waterproof Electrical Enclosure, 16x12x8 Inch Steel Cabinet
SKU: SKU: ST4320 Download PDF
- ST4320 - NEMA 4 Waterproof Electrical Enclosure, 16x12x8 Inch Steel Cabinet
- ST4320 - NEMA 4 Waterproof Electrical Enclosure, 16x12x8 Inch Steel Cabinet
Couldn't load pickup availability
Description:

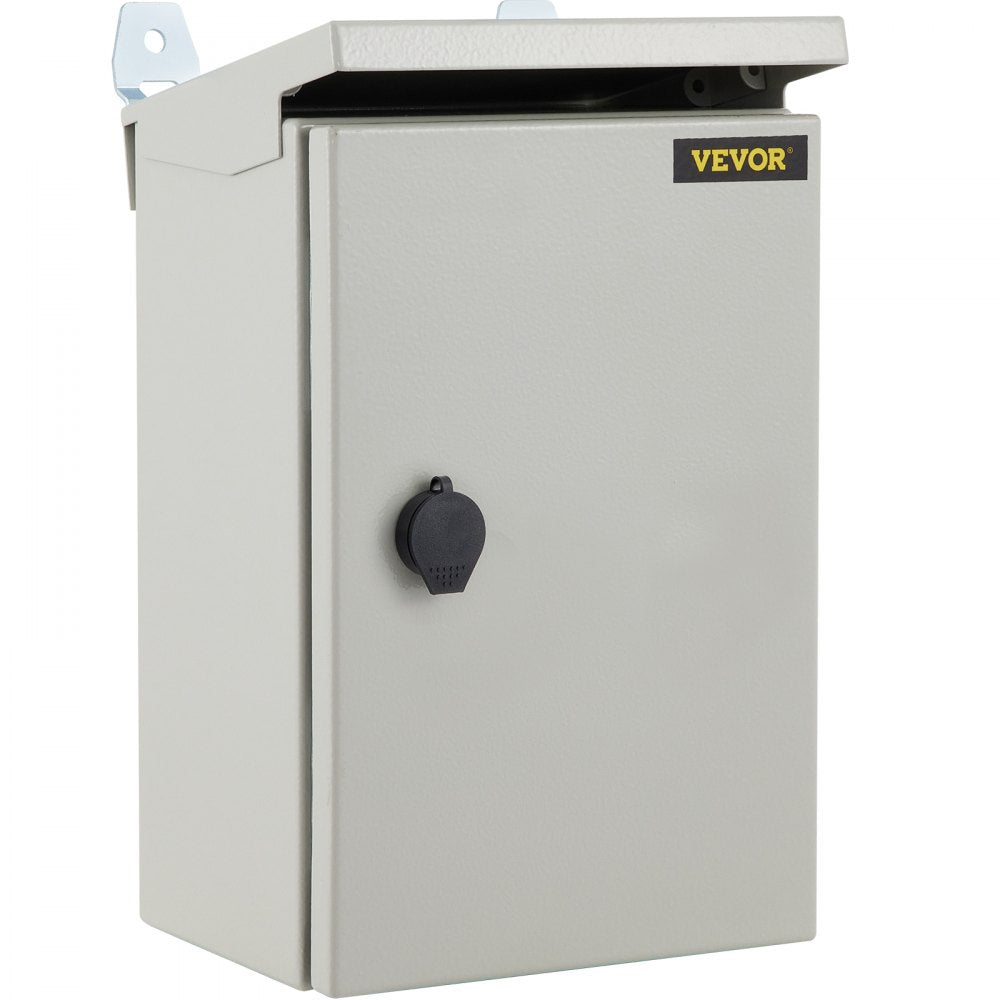

Protect your valuable equipment with the VEVOR electrical enclosure, measuring 16 x 12 x 8 inches Crafted from high-quality cold-rolled carbon steel, this enclosure meets UL standards NEMA 4, providing exceptional defense against harsh weather conditions With an IP65 rating, it is both waterproof and dustproof, making it suitable for a variety of settings, whether indoors or outdoors This versatile enclosure is designed for multiple applications, including electrical and construction uses, ensuring consistent performance all year round.
Features and Benefits:
•Sturdy steel construction for enhanced durability.

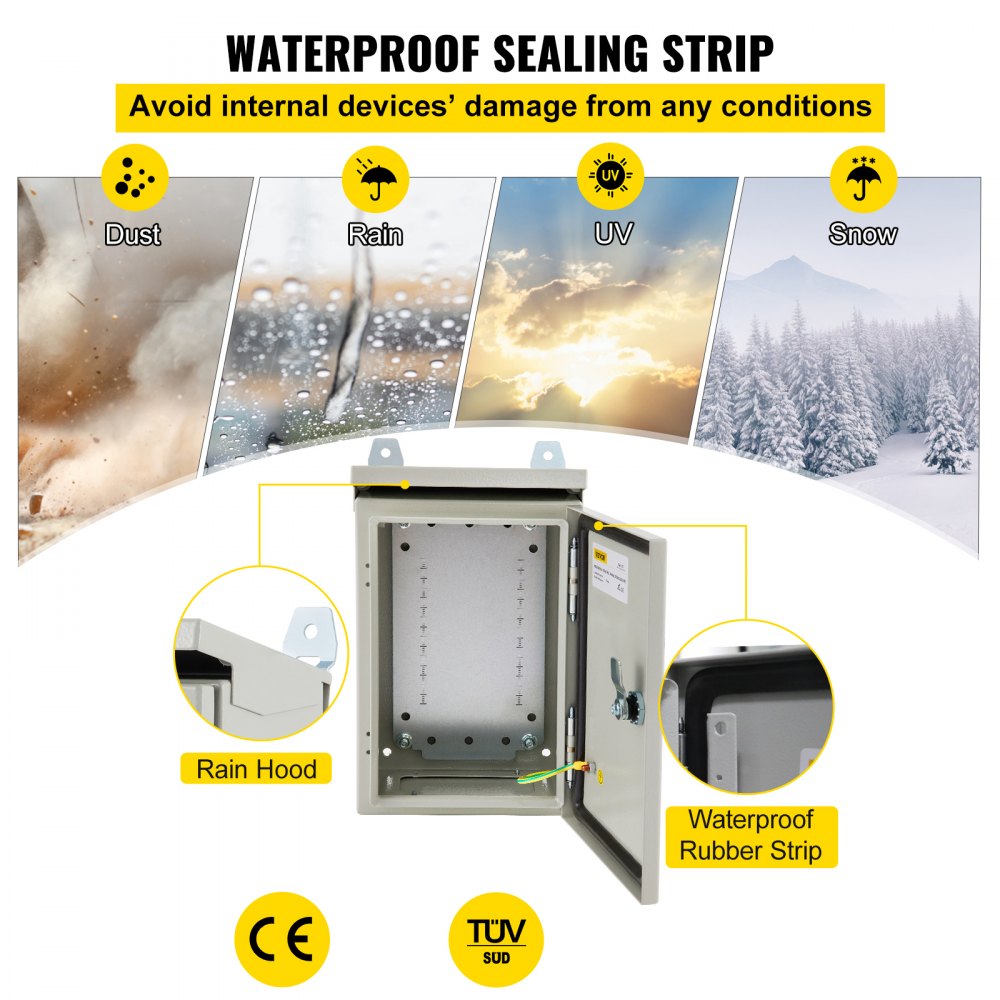

•IP65 waterproof grade ensures equipment safety from moisture and dust.

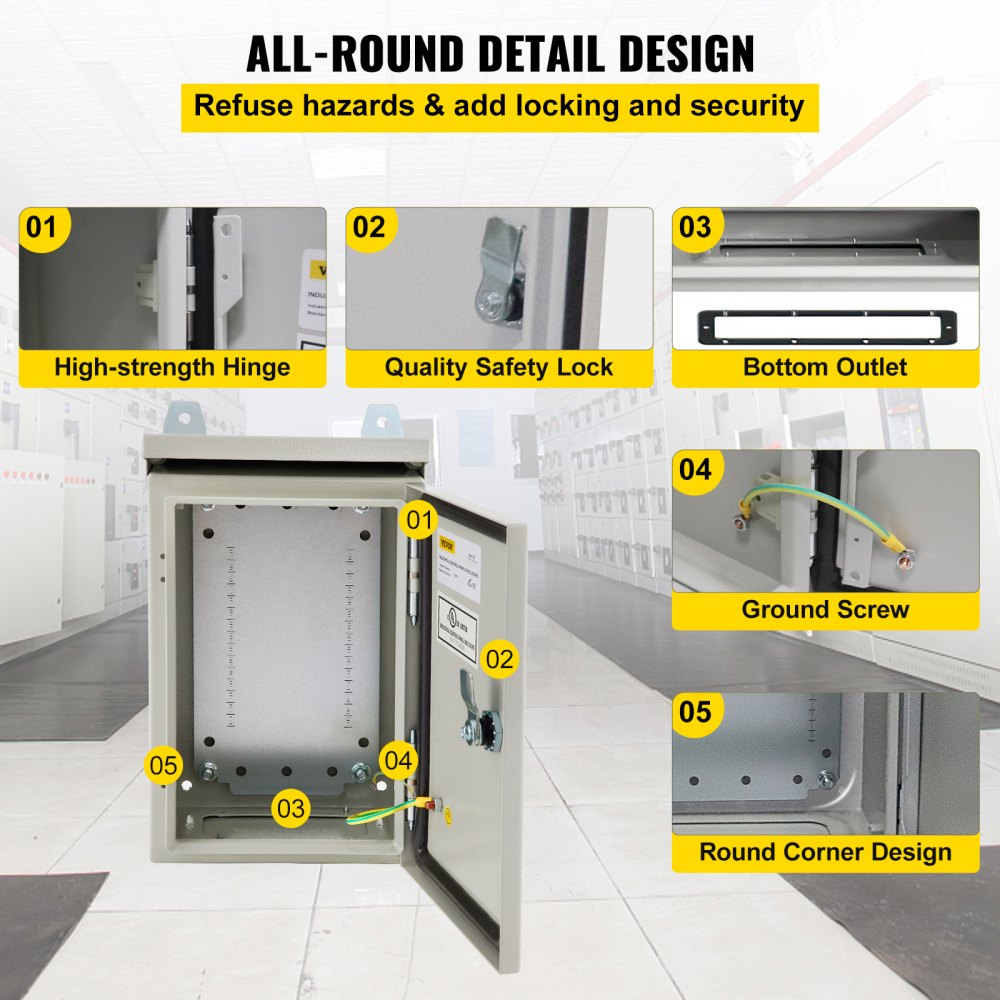

•Reinforced lock and hinge design enhances security.

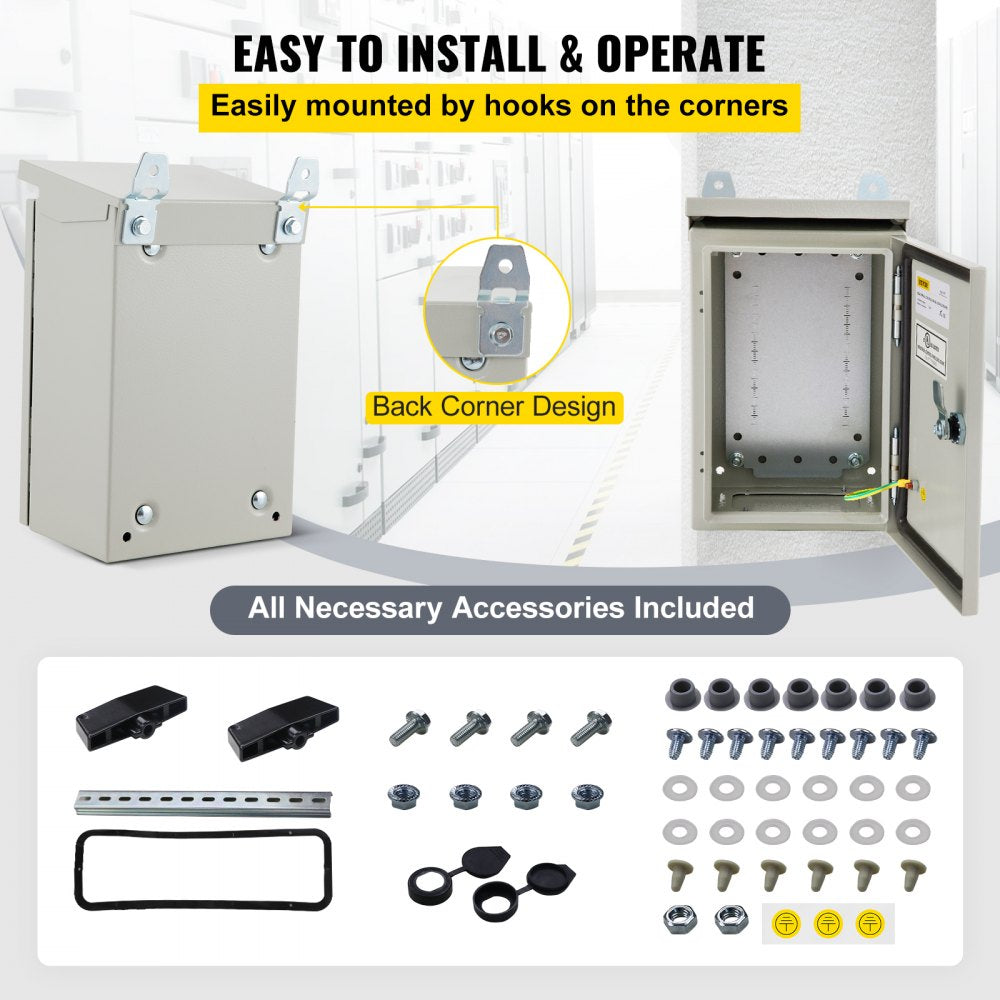

•Convenient operation with easy installation features.
•Thoughtfully designed for practical use.

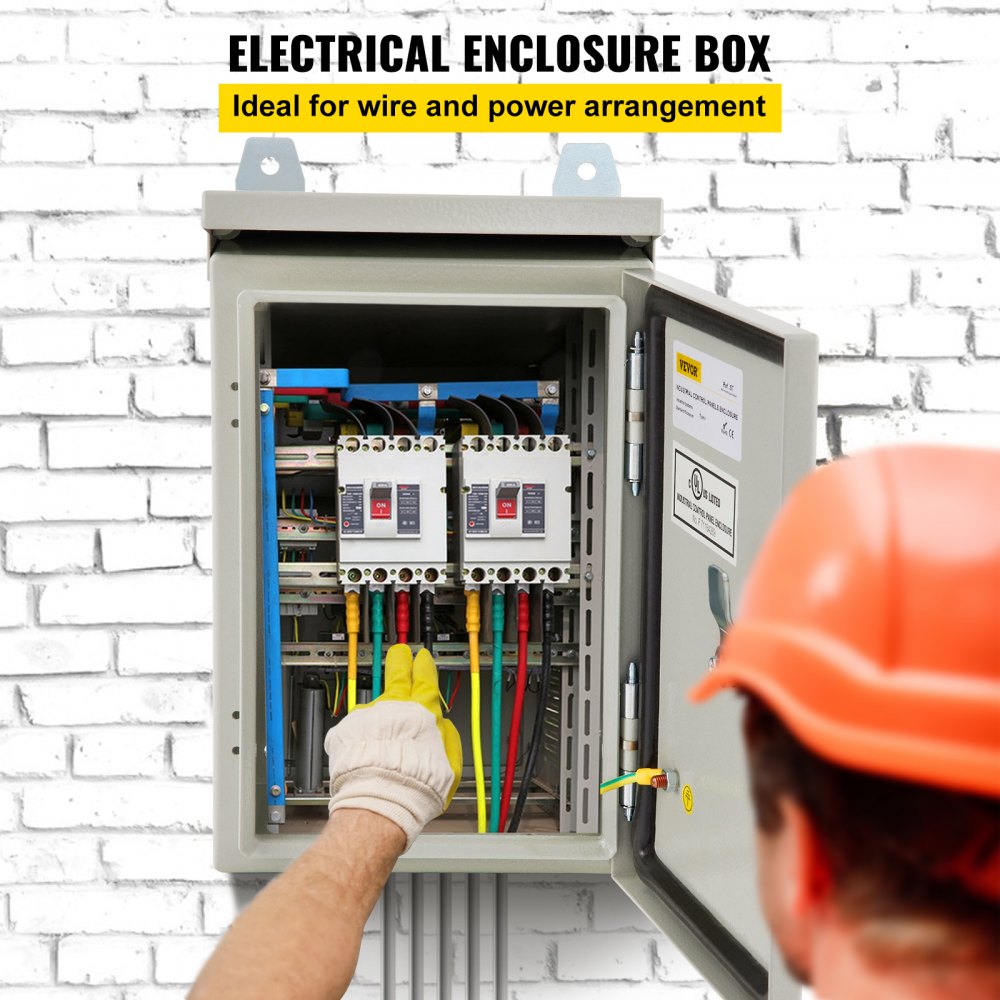

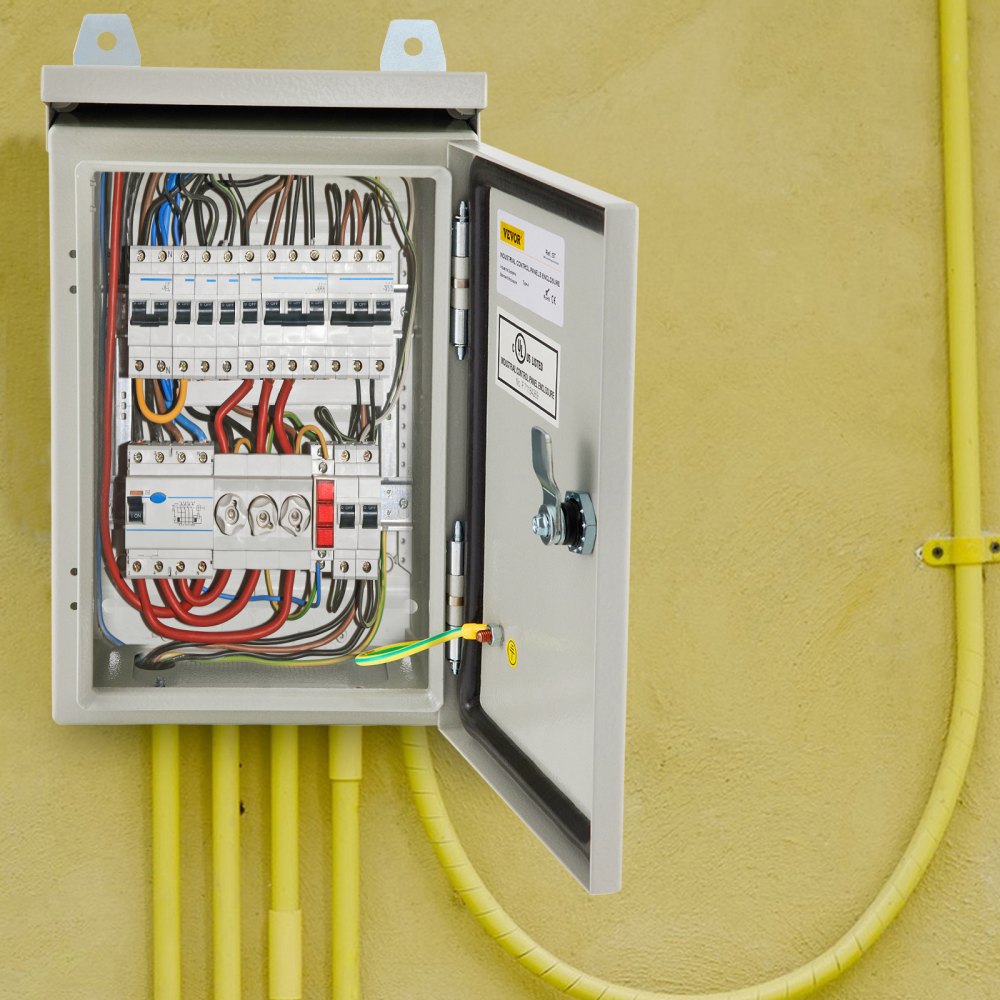

•Indoor and outdoor electrical setups.
•Construction sites.
•Industrial and retail applications.
Specifications:
| Model | ST4320 |

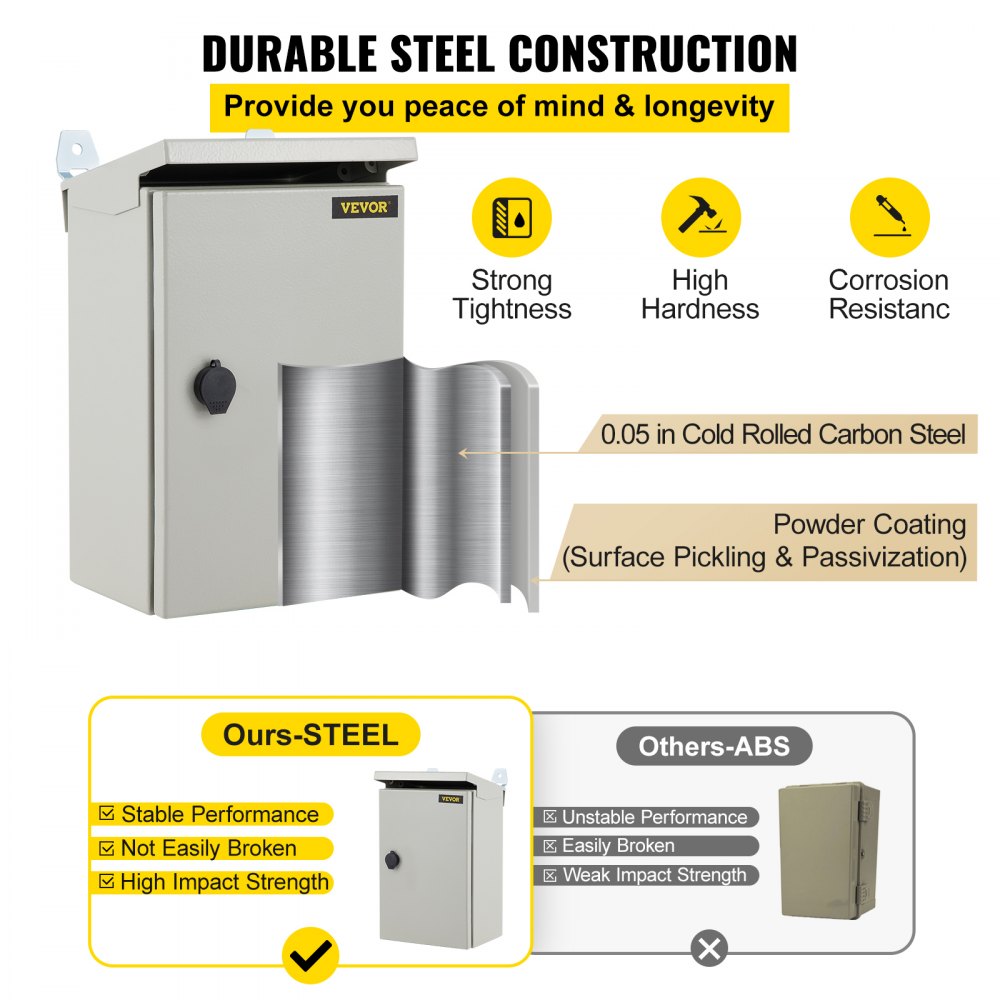

| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating (Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13.) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam/ Nylon (washer or plug) |

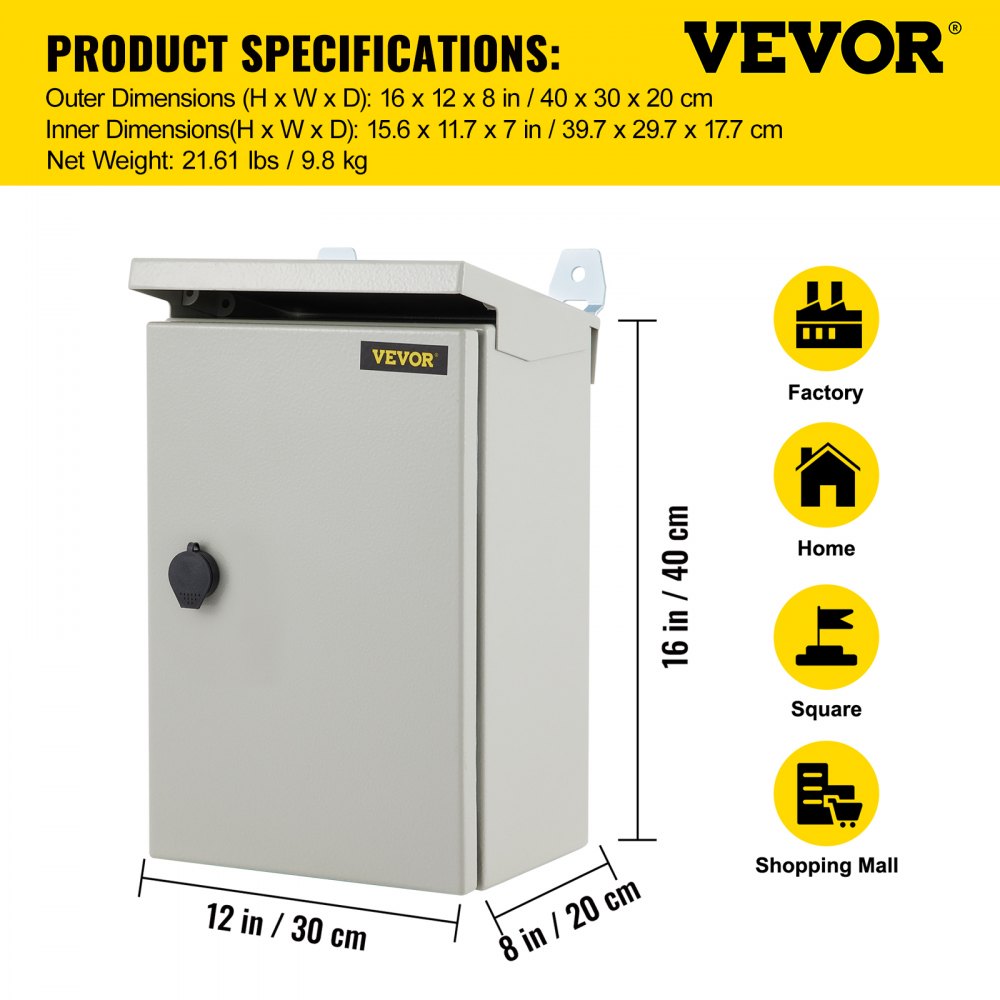

| Outer Dimensions (H x W x D) | 16 x 12 x 8 in / 40 x 30 x 20 cm |
| Inner Dimensions (H x W x D) | 15.6 x 11.7 x 7 in / 39.7 x 29.7 x 17.7 cm |
| Galvanized Backplate Dimensions (H x W) | 14.4 x 10 in / 36.5 x 25 cm |
| Mounting Hole Diameter (± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 21.61 lbs / 9.8 kg |
