Description:

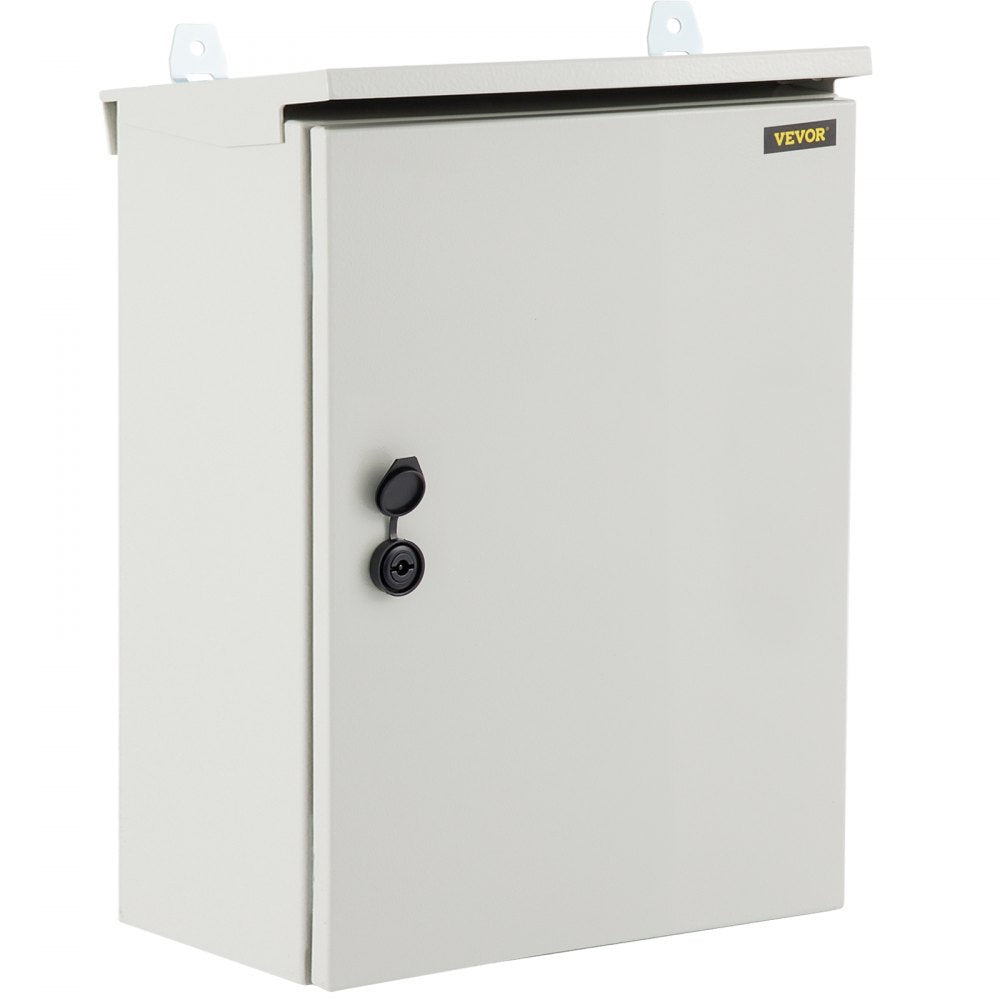

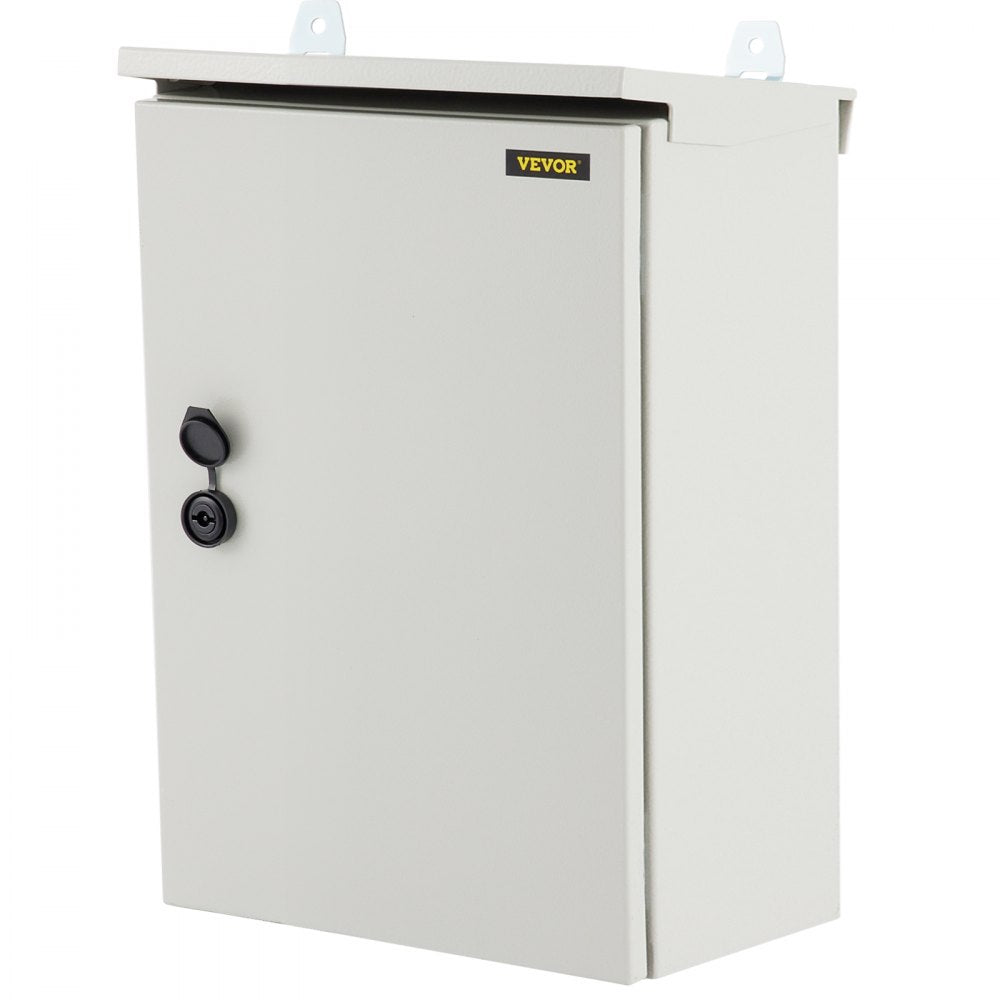

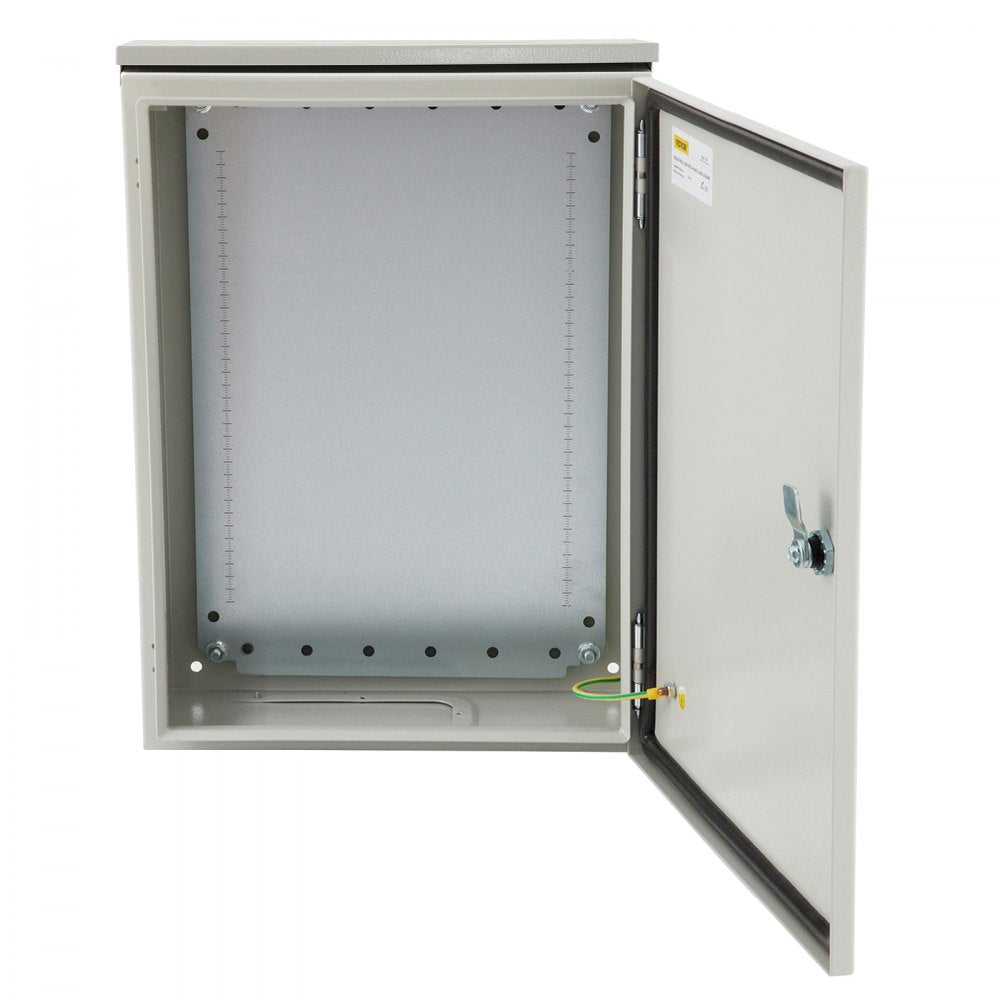

Safeguard your electrical components with the VEVOR Electrical Enclosure, measuring 20 x 12 x 10 inches Designed to meet UL standards and boasting an IP65 waterproof rating, this enclosure is ideal for outdoor applications Made from robust cold-rolled carbon steel, it features a dependable locking system, sturdy hinges, and a rain hood to protect your equipment from harsh weather conditions Versatile in nature, this enclosure is perfect for both indoor and outdoor environments, making it a favored choice in electrical and construction industries.
Its resilient construction promises outstanding protection and consistent performance year-round.
Features and Benefits:

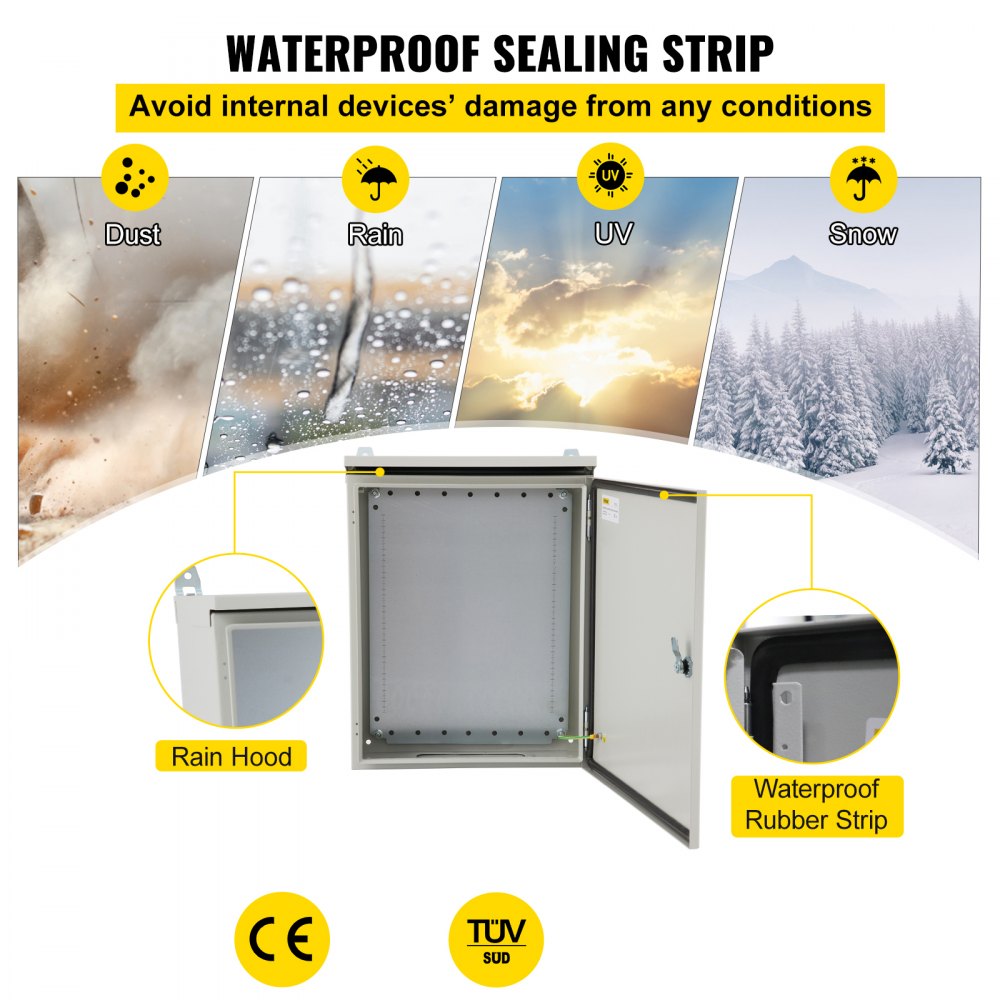

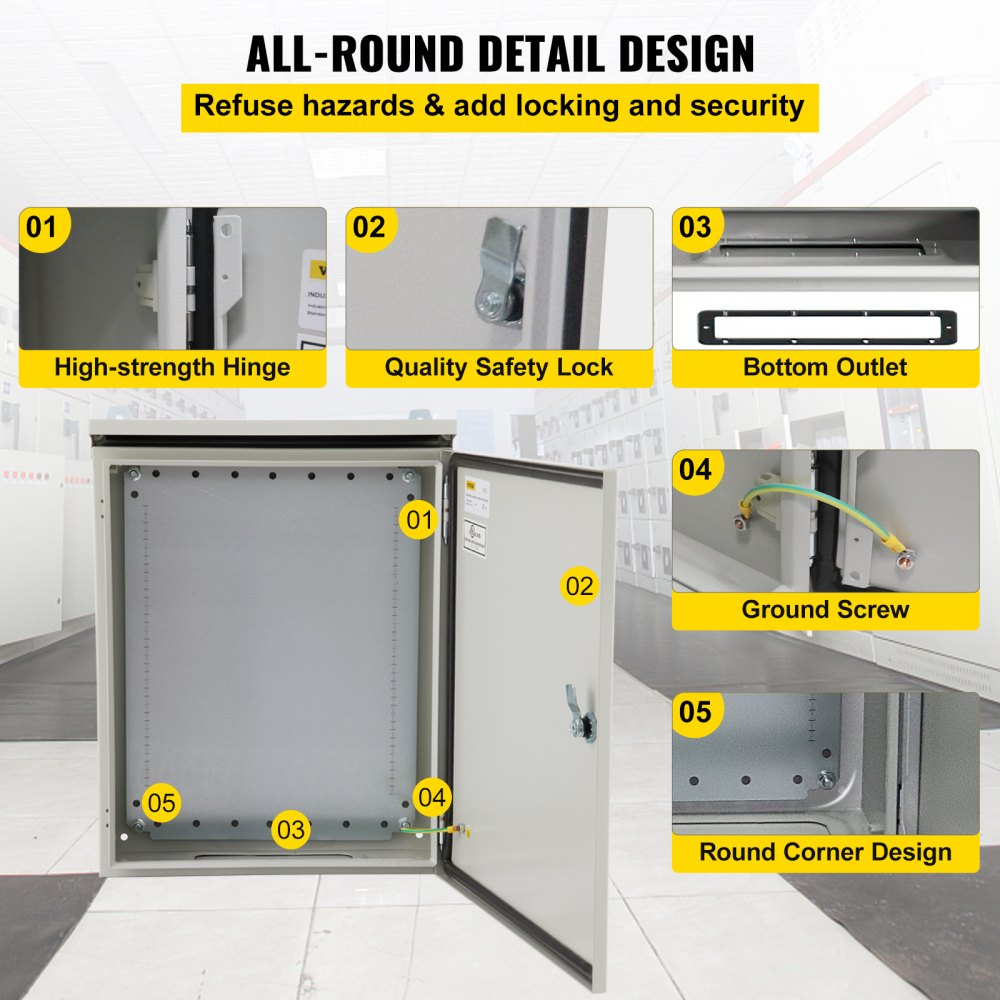

•High-strength hinges and rain hood provide superior weather resistance.

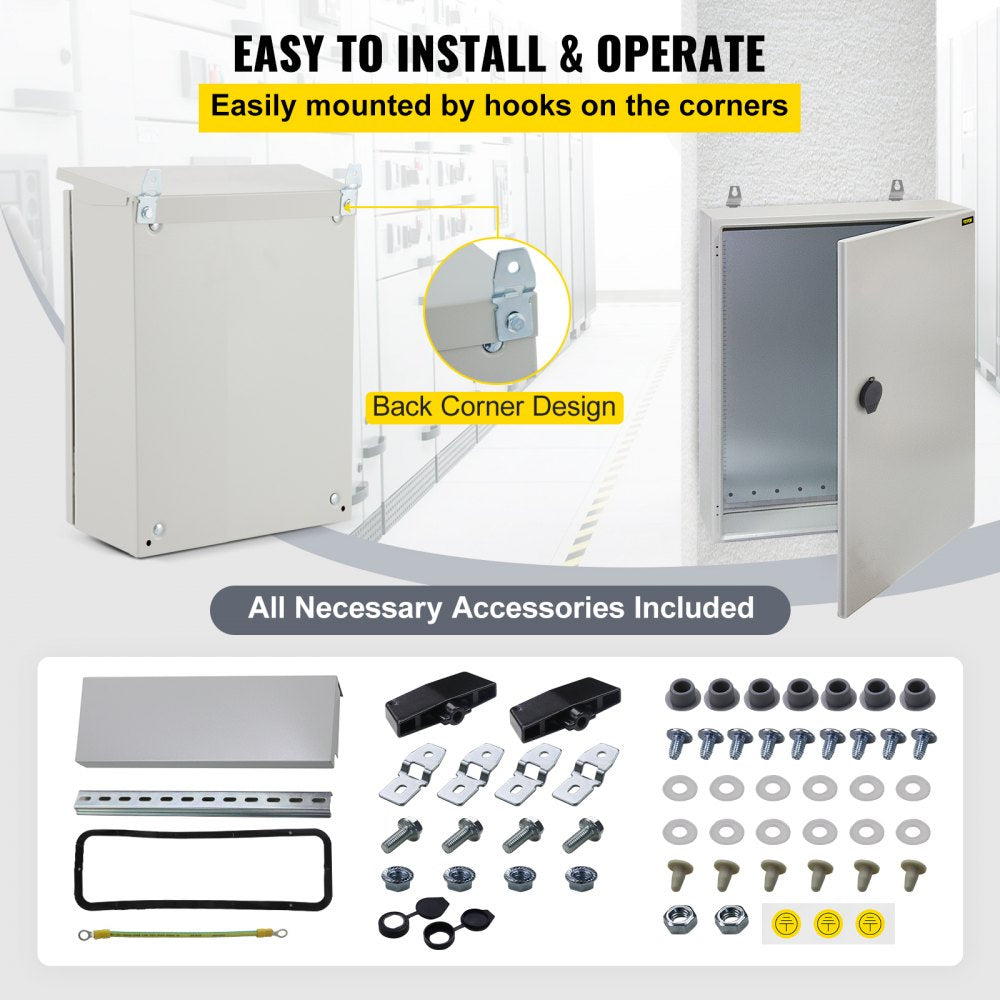

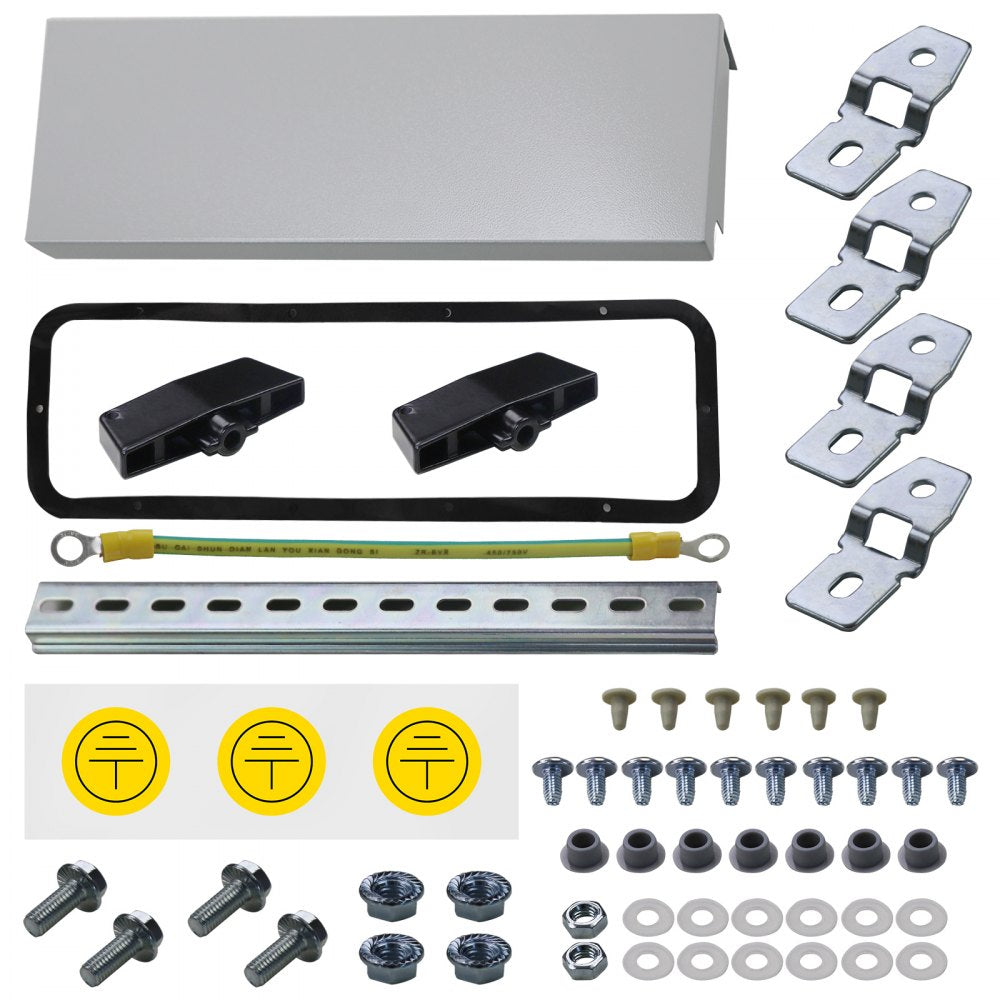

•Detachable galvanized backplate aids in easy installation of electrical components.
•Design includes rounded corners to prevent cable damage.
•Convenient outlet hole for easy cable management.

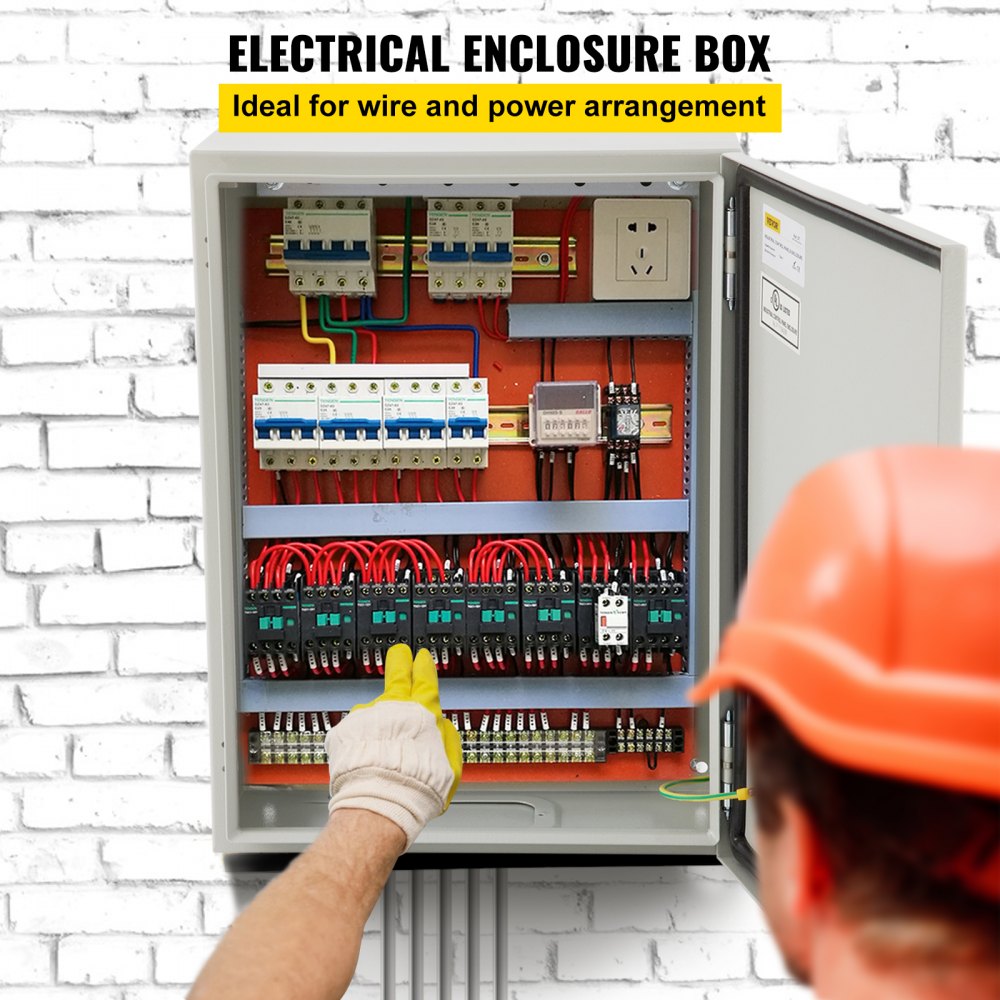

•Industrial equipment protection.
•Home device security.
•Construction sites.
•Factories.
•Shopping malls.
Specifications:
| Model | ST5325 |

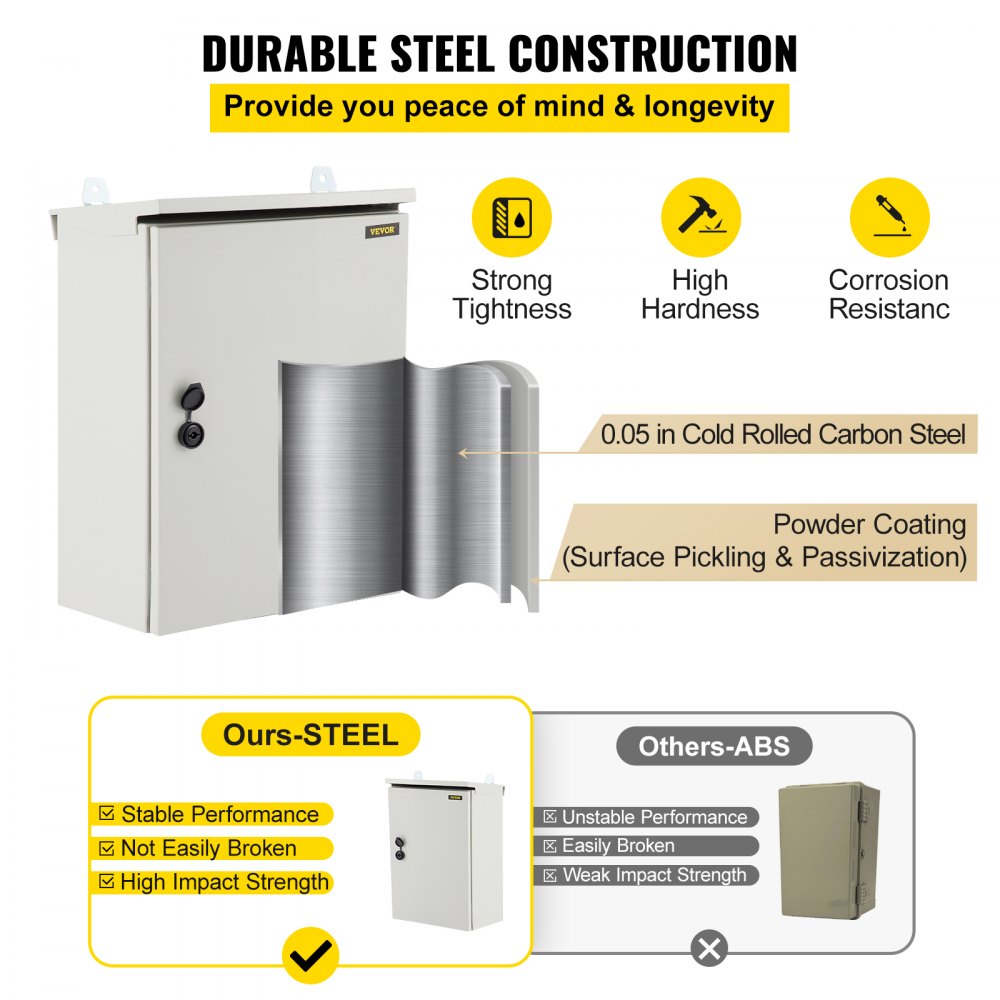

| Body Material | 0.05 in / 0.12 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating(Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13.) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |
| Gasket Material | Seamless Foam/ Nylon(washer or plug) |

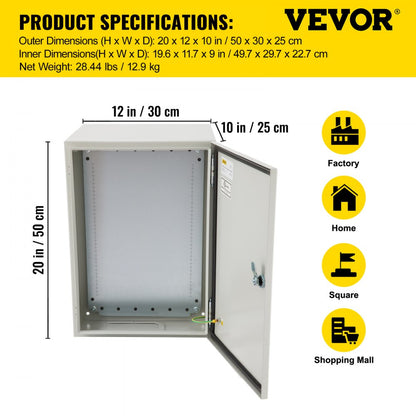

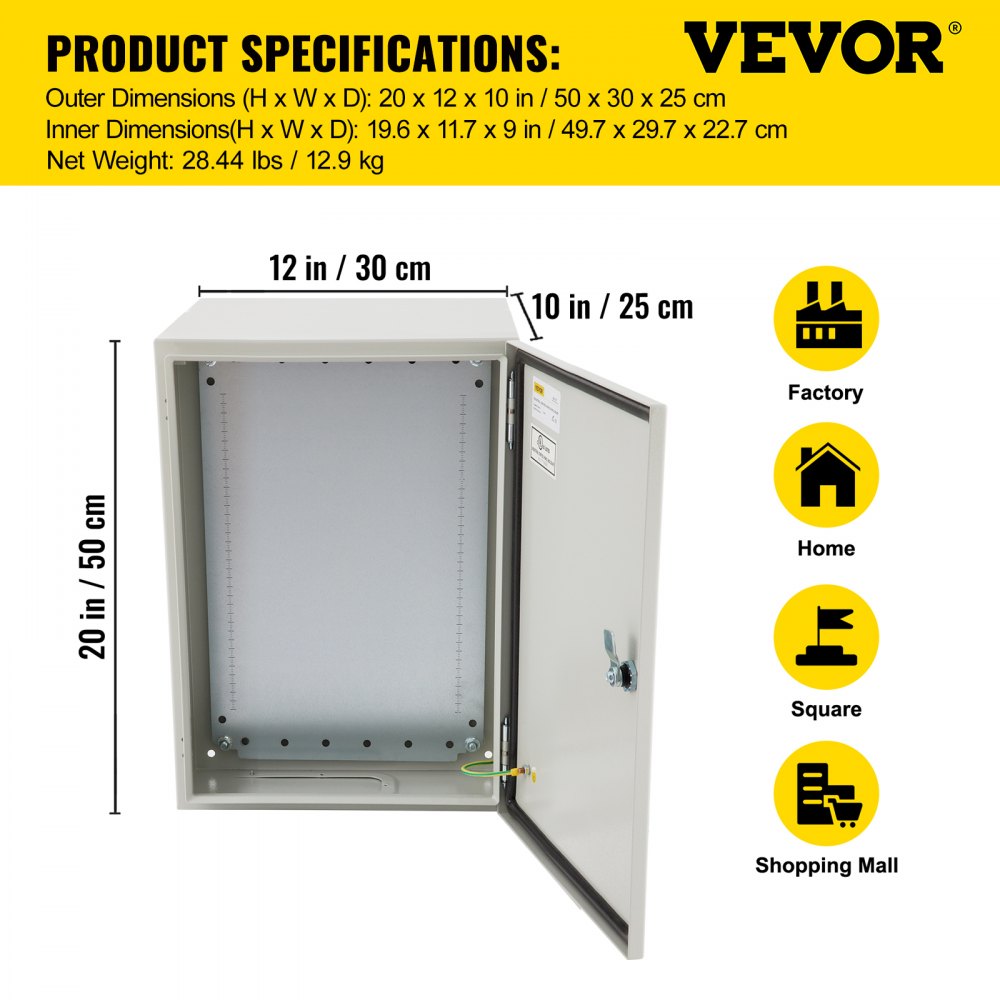

| Outer Dimensions(H x W x D) | 20 x 12 x 10 in / 50 x 30 x 25 cm |
| Inner Dimensions(H x W x D) | 19.6 x 11.7 x 9 in / 49.7 x 29.7 x 22.7 cm |
| Galvanized Backplate Dimensions(H x W) | 18.3 x 10 in / 46.5 x 25 cm |
| Mounting Hole Diameter(± 0.2 cm) | 0.35 in / 0.9 cm |
