Description:

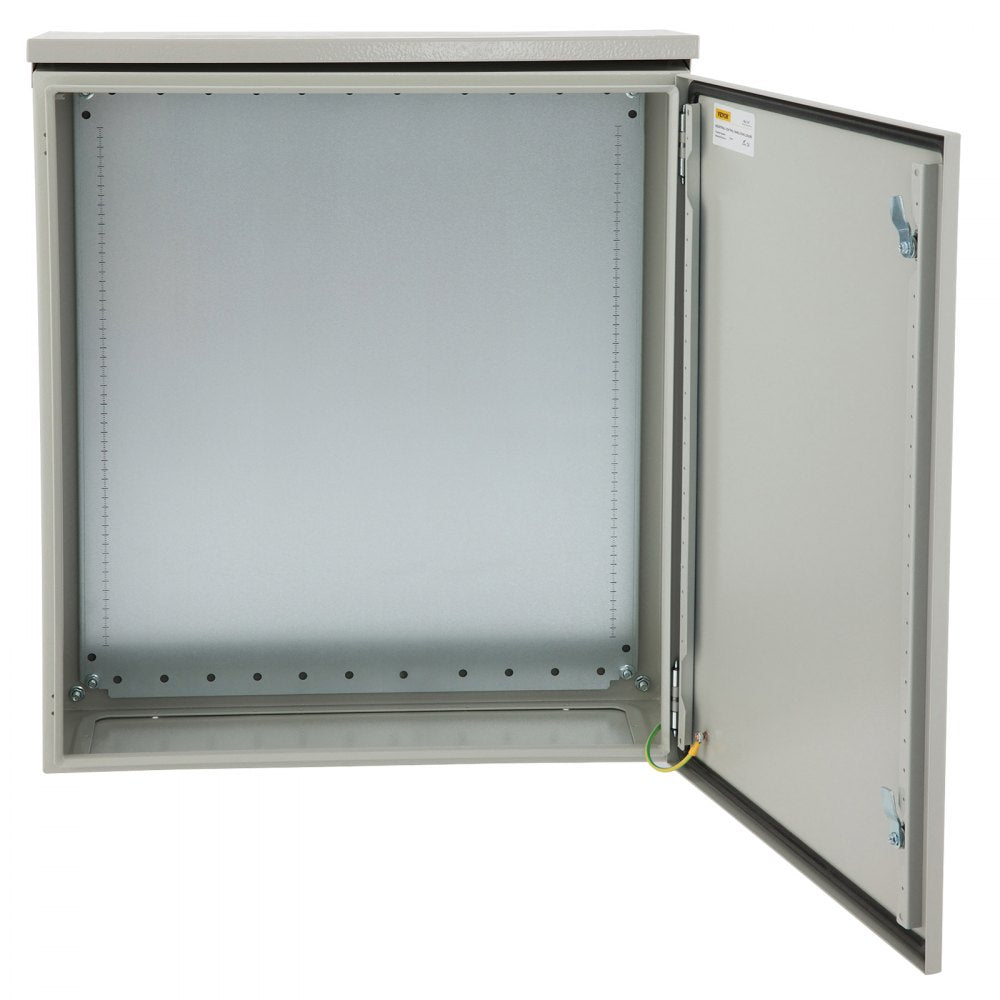

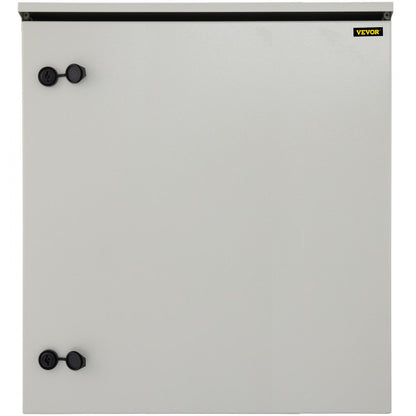

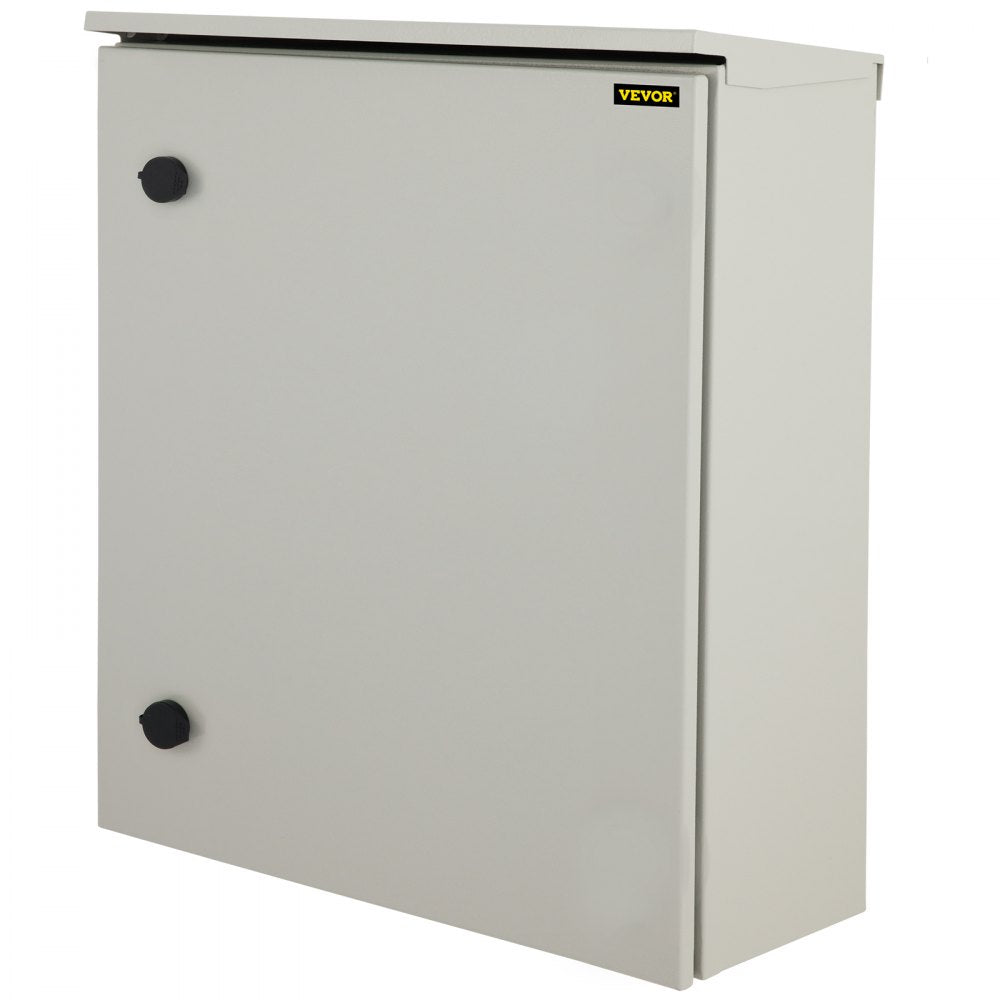

Introducing the VEVOR electrical enclosure box, designed for durability and functionality Measuring 24 x 24 x 8 inches, this enclosure is constructed from premium cold-rolled carbon steel, promising long-lasting performance It is equipped with a reliable locking system, robust hinges, and a rain hood for superior protection against harsh weather Perfect for both indoor and outdoor use, this enclosure is ideal for managing electrical systems and safeguarding your equipment all year round.
Features and Benefits:

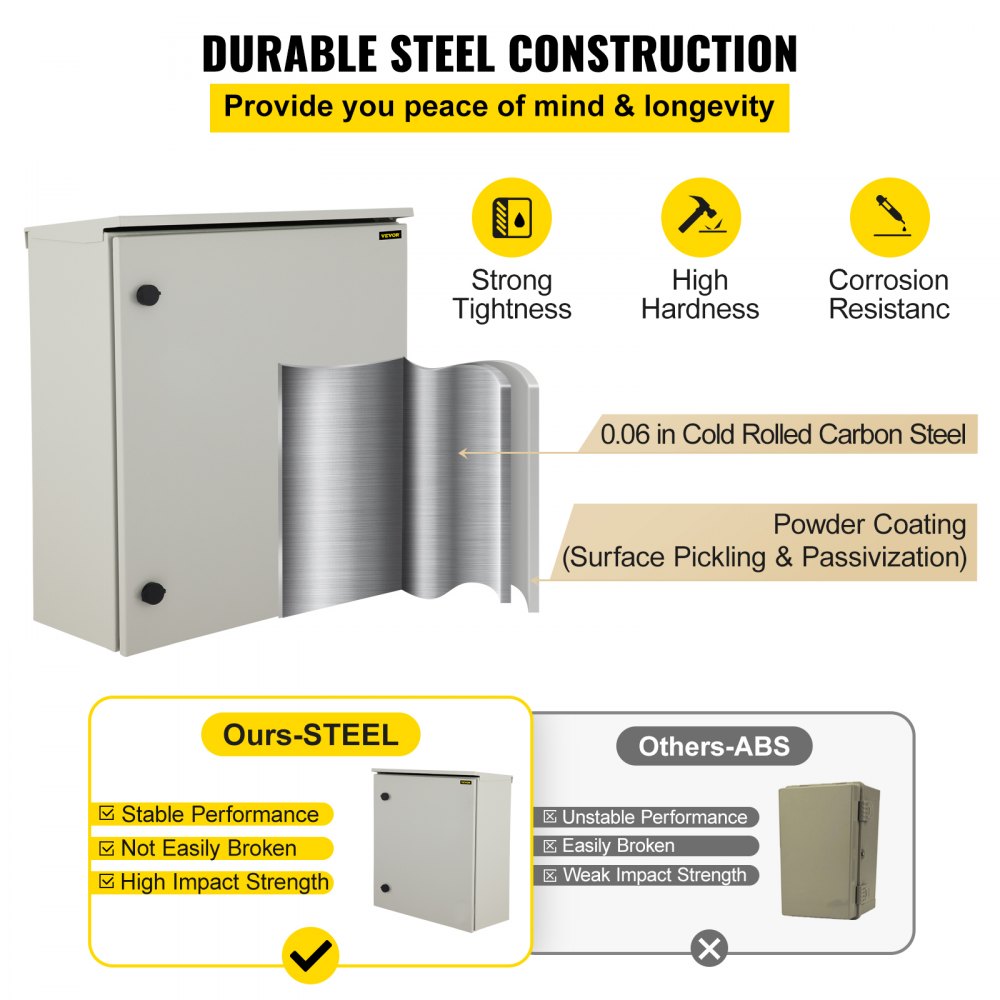

•Sturdy steel construction with high toughness and rust resistance.
•IP65 protection grade that shields from dust and water.

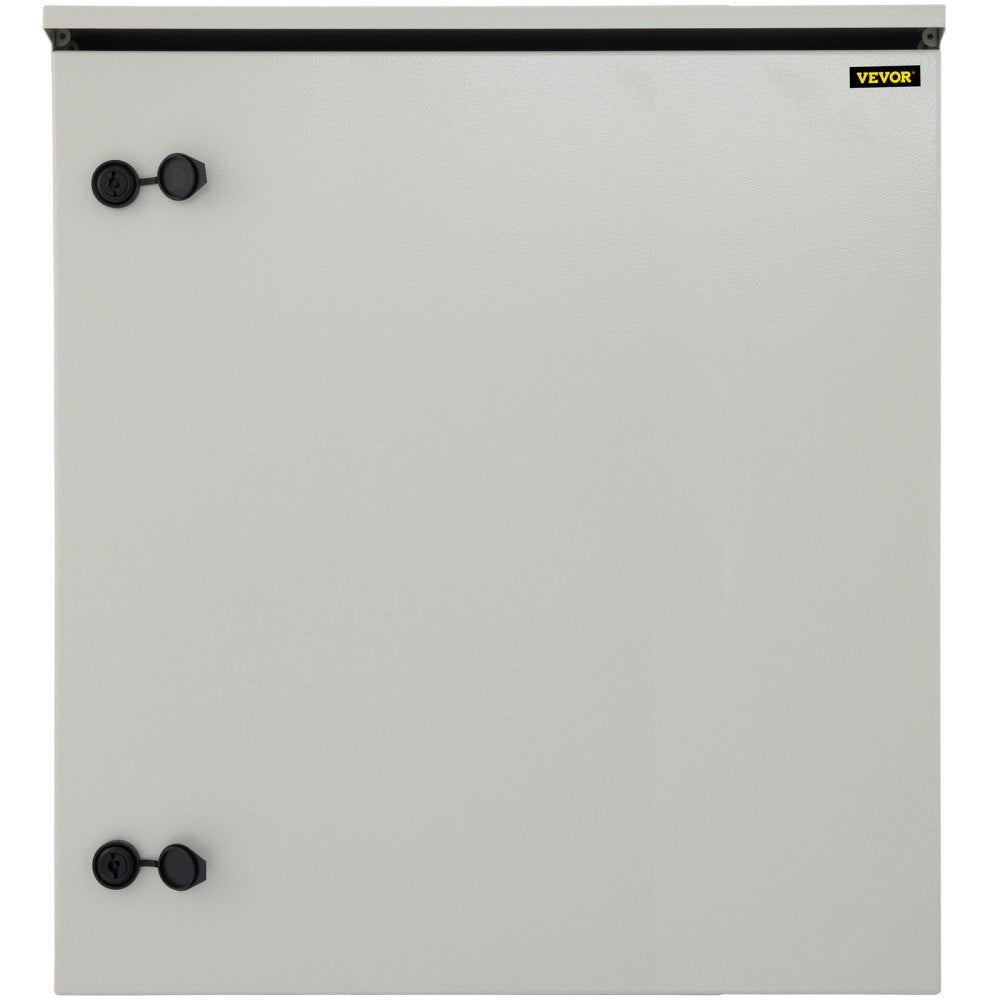

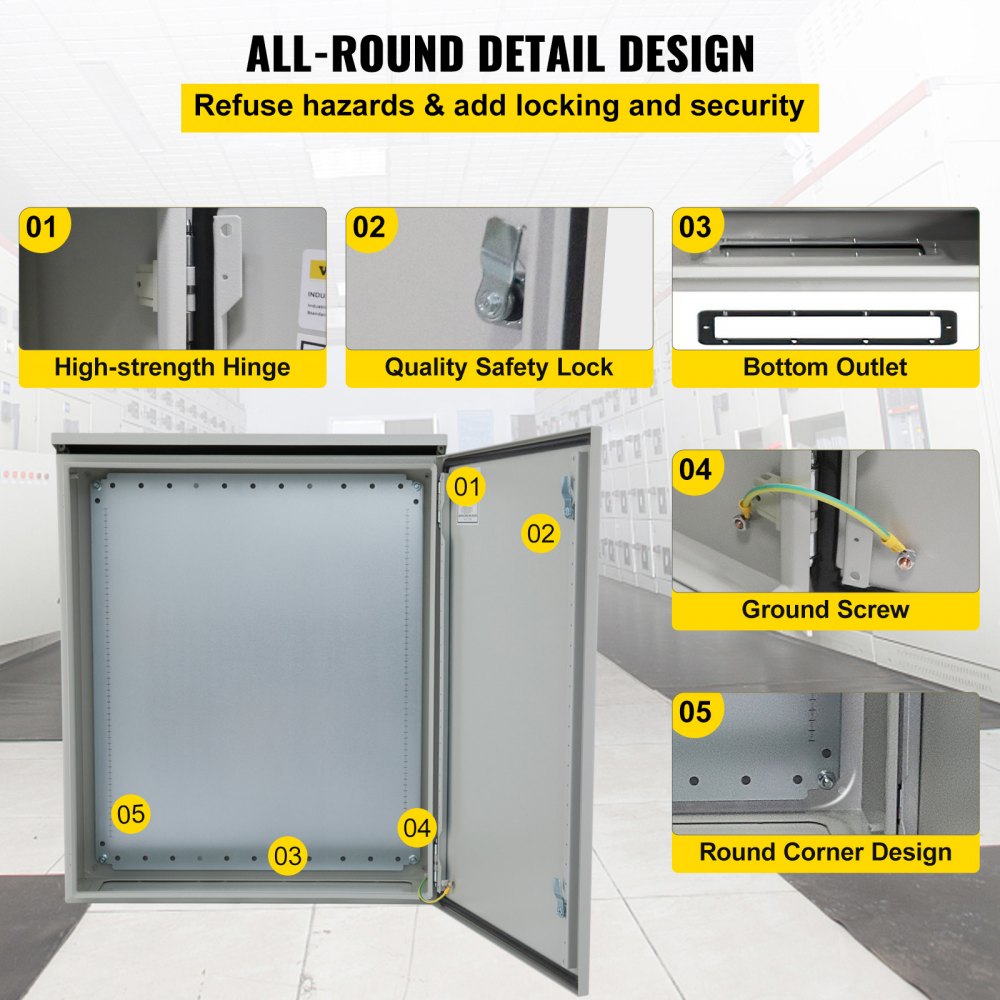

•Reinforced locking mechanism enhances security.

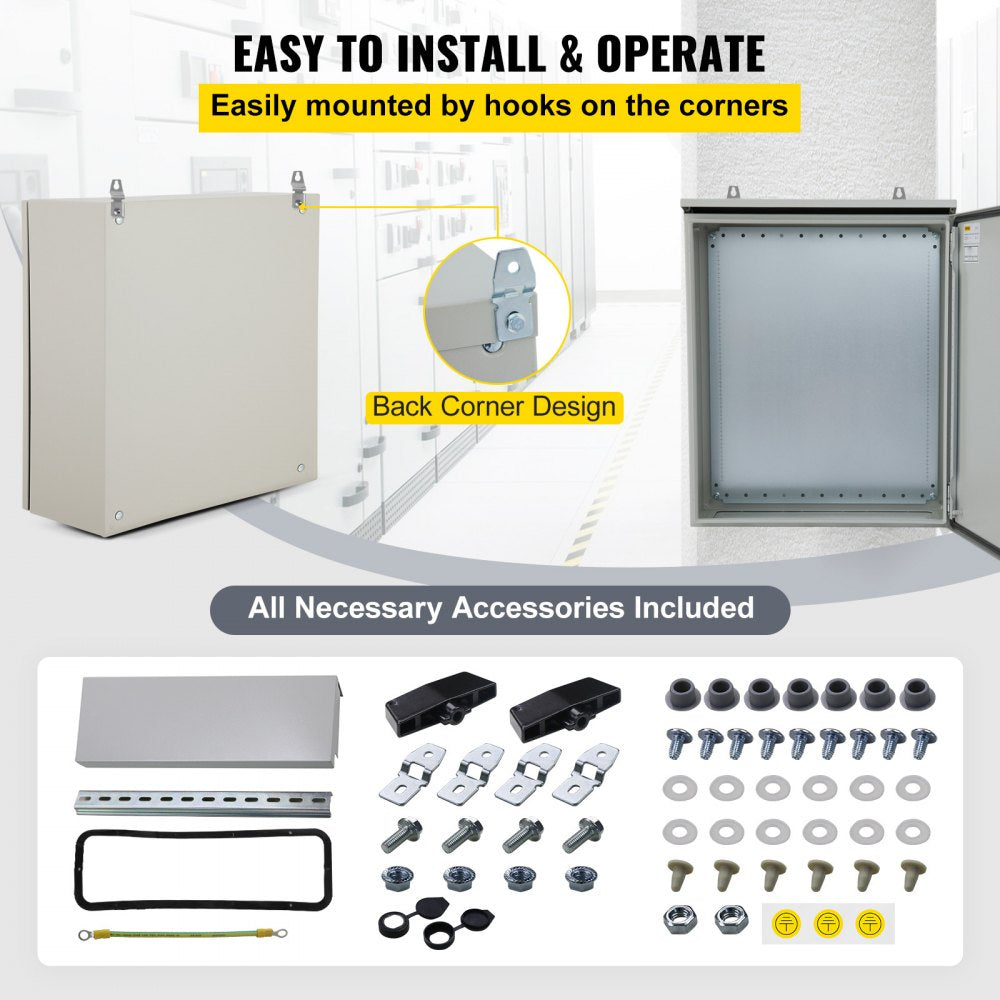

•Detachable mounting backplate for easy installation.
•Convenient cable entry design with rounded corners to protect wiring.

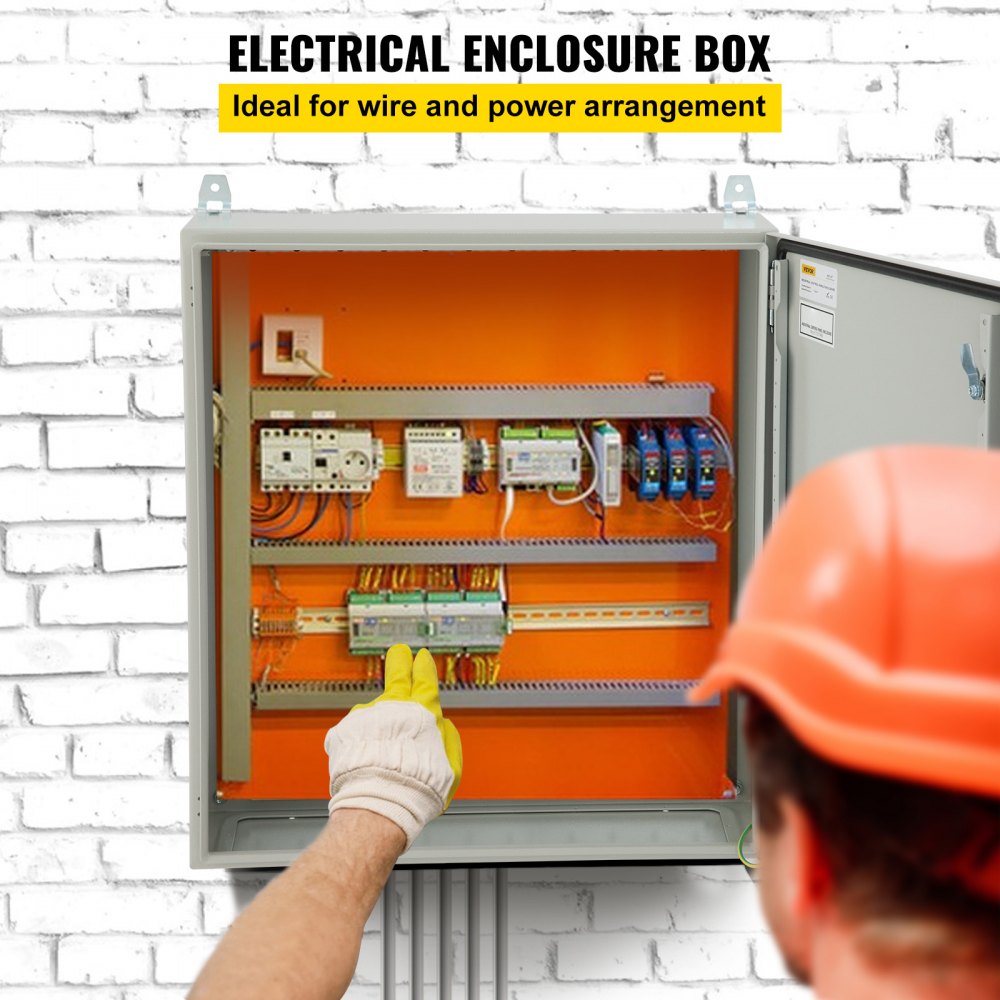

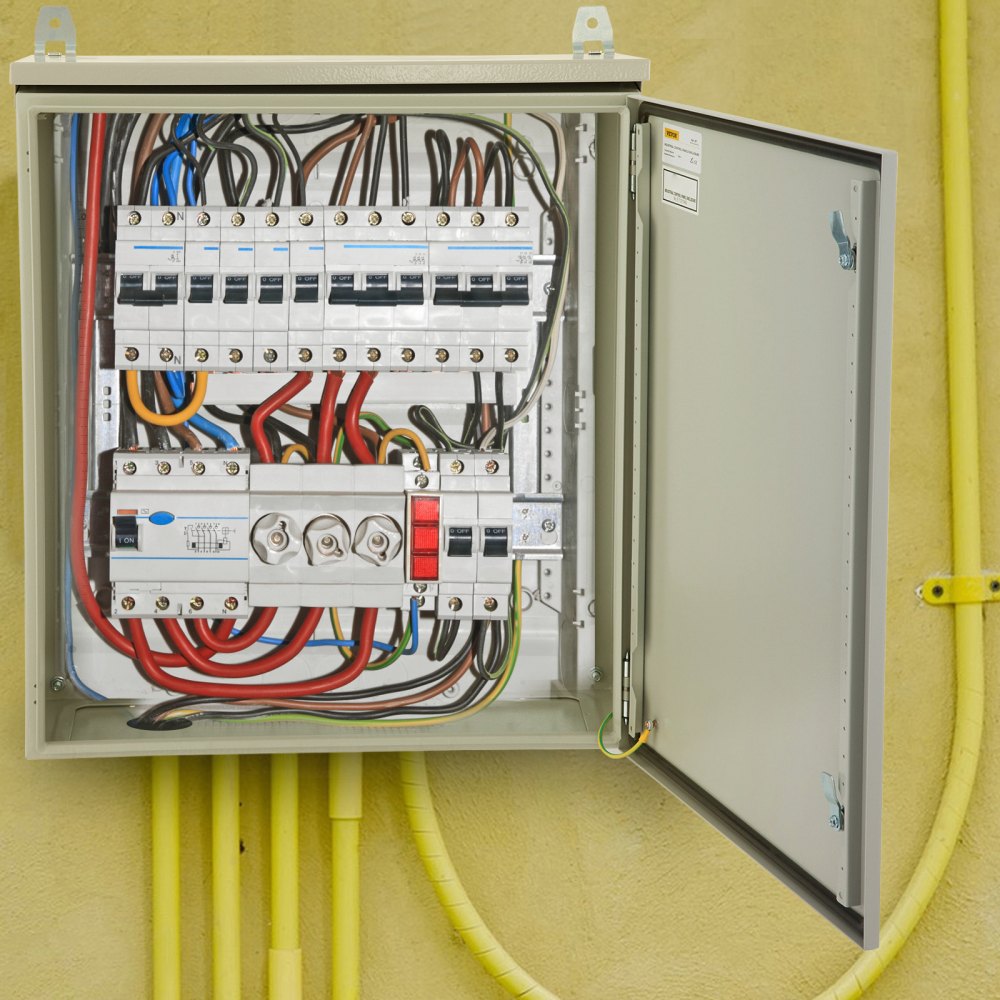

•Electrical projects both indoors and outdoors.
•Protection of EV chargers and solar chargers.
•Use in construction sites, factories, shopping malls, and public squares.
Specifications:
| Model | ST6620 |
| Body Material | 0.06 in / 0.15 cm Cold-Rolled Carbon Steel |
| Inner Plate | 0.06 in / 0.15 cm Galvanized Plate |
| Finish | Powder Coating (Surface Pickling and Passivization) |
| Certification | TUV, CE, 508A (CSA C22.2 No. 14-13.) |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Construction | Continuously Welded |
| Ambient Temperature | -40 to 122℉ / -40 to 55°C |

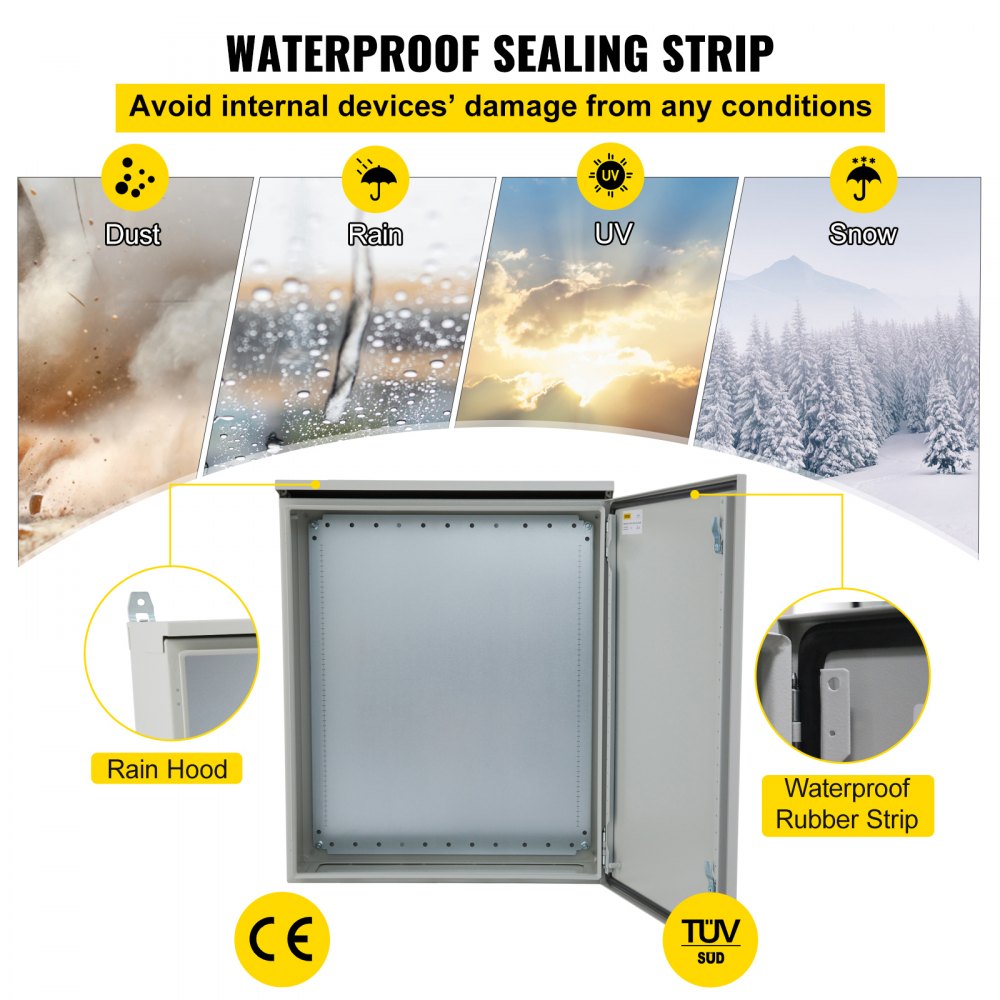

| Gasket Material | Seamless Foam/ Nylon(washer or plug) |

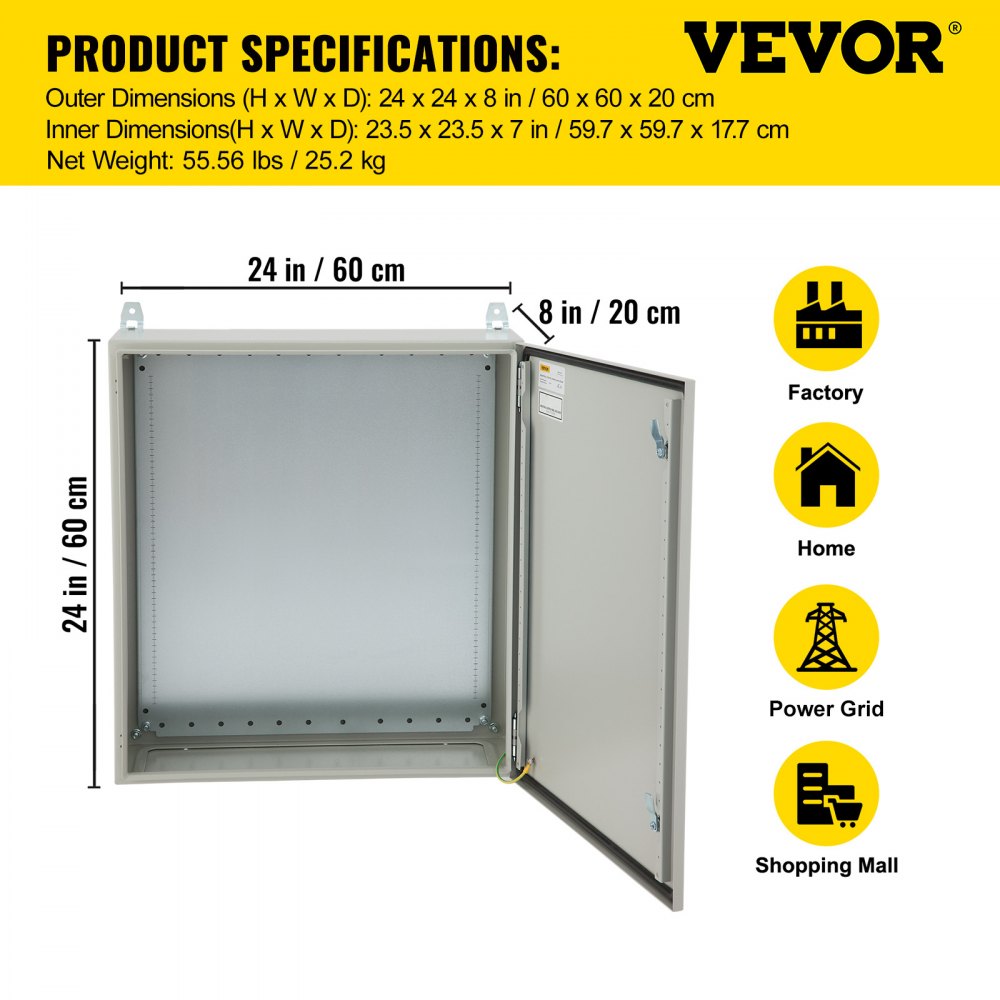

| Outer Dimensions (H x W x D) | 24 x 24 x 8 in / 60 x 60 x 20 cm |
| Inner Dimensions (H x W x D) | 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm |
| Galvanized Backplate Dimensions (H x W) | 22.2 x 22 in / 56.5 x 55 cm |
| Mounting Hole Diameter (± 0.2 cm) | 0.35 in / 0.9 cm |
| Net Weight | 55.56 lbs / 25.2 kg |
