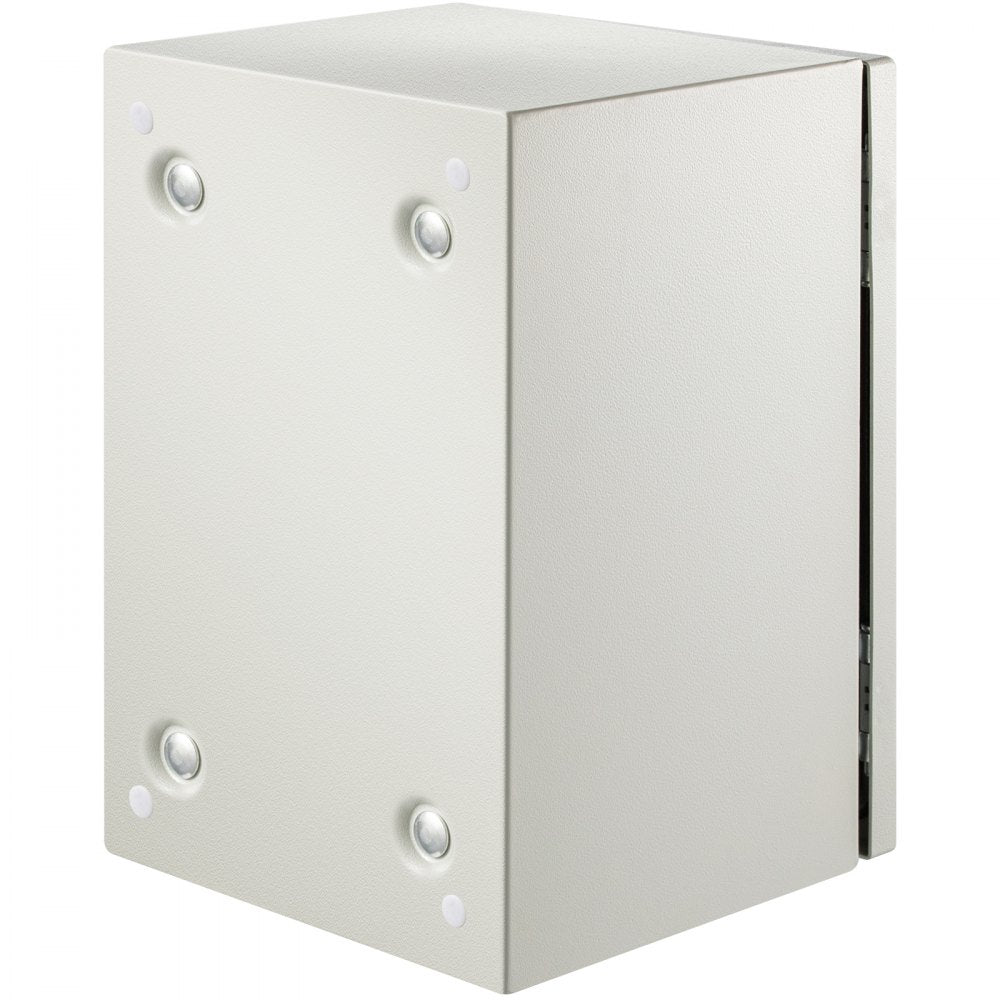

SPT - Durable IP66 Steel Enclosure, 12x8x8'' for Electrical Protection
SPT - Durable IP66 Steel Enclosure, 12x8x8'' for Electrical Protection
SKU: SKU: SPT Download PDF
- SPT - Durable IP66 Steel Enclosure, 12x8x8'' for Electrical Protection
- SPT - Durable IP66 Steel Enclosure, 12x8x8'' for Electrical Protection
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

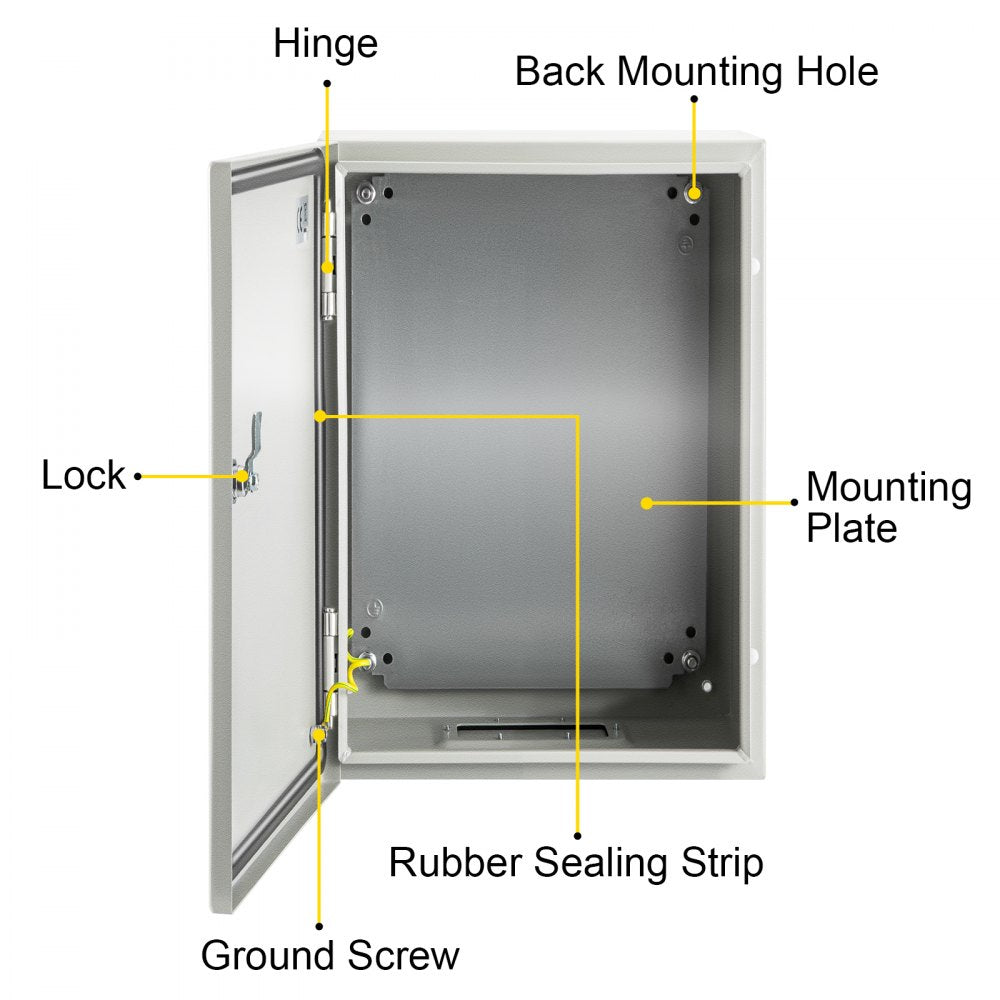

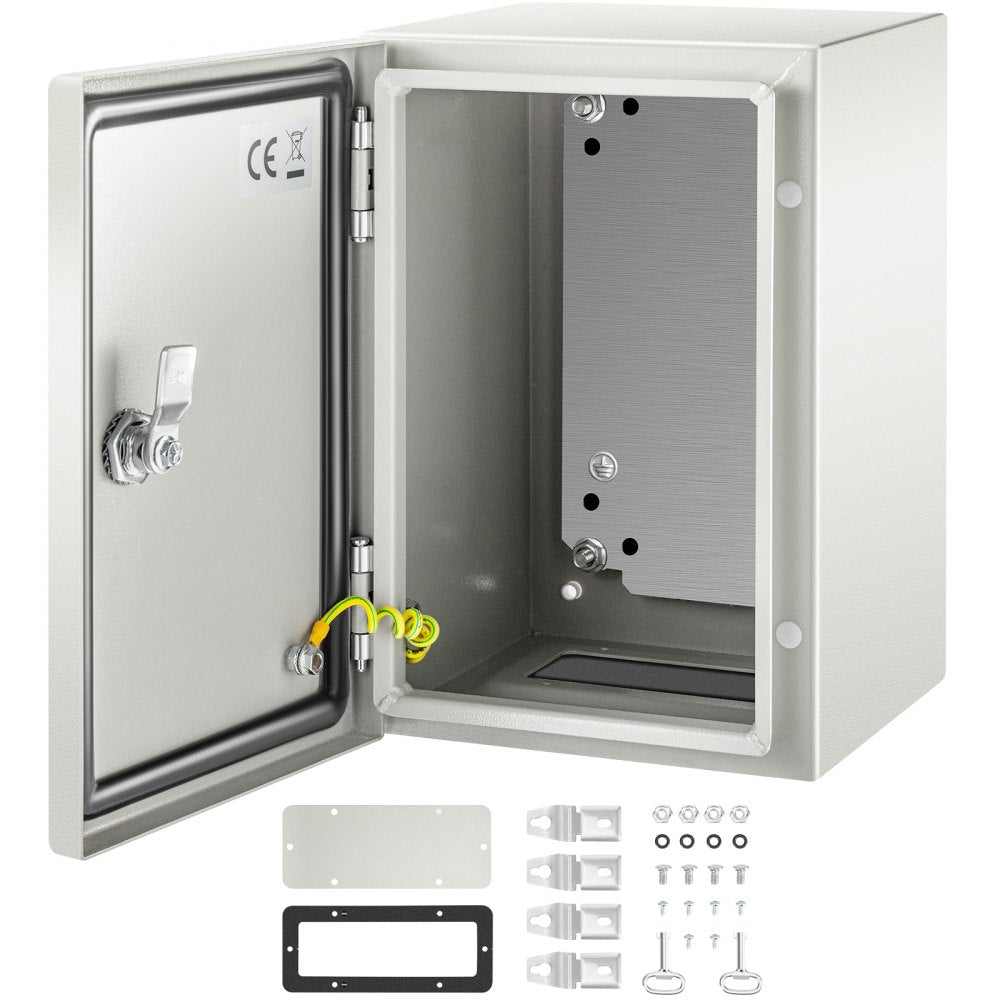

Safeguard your electrical components with the VEVOR NEMA Steel Enclosure, expertly crafted from premium carbon steel This enclosure provides exceptional protection against water, dust, and corrosion, boasting an impressive IP66 rating Equipped with reliable locks, robust hinges, and durable sealing strips, it is designed for both outdoor and indoor use, ensuring versatility in mounting options This sturdy enclosure is ideal for securing your circuits and equipment, making it a dependable choice for all your electrical projects.
Features and Benefits:
•IP66 waterproof grade.

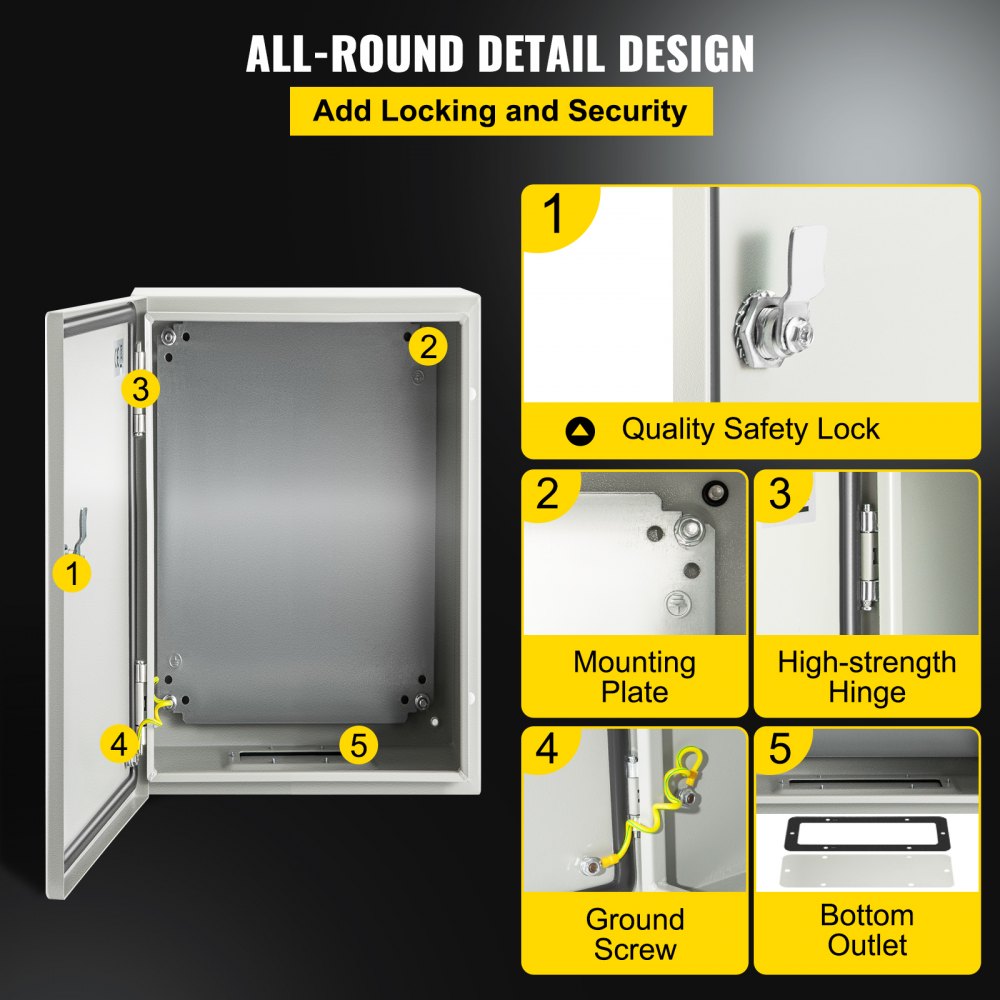

•Reinforced lock and hinge for added security.
•Easy installation with a detachable backplate.
•Provides protection against dust, moisture, rain, snow, and oil.
•Thoughtful design with rounded corners to avoid cable damage.
•Lockable design enhances safety and prevents unauthorized access.
•Suitable for factories.
•Construction sites.
•Shopping malls.
•Squares.
•Residential areas.
•Courtyards.
Specifications:
| Model | SPT |
| Material | 0.059'' / 1.5 mm Carbon Steel |

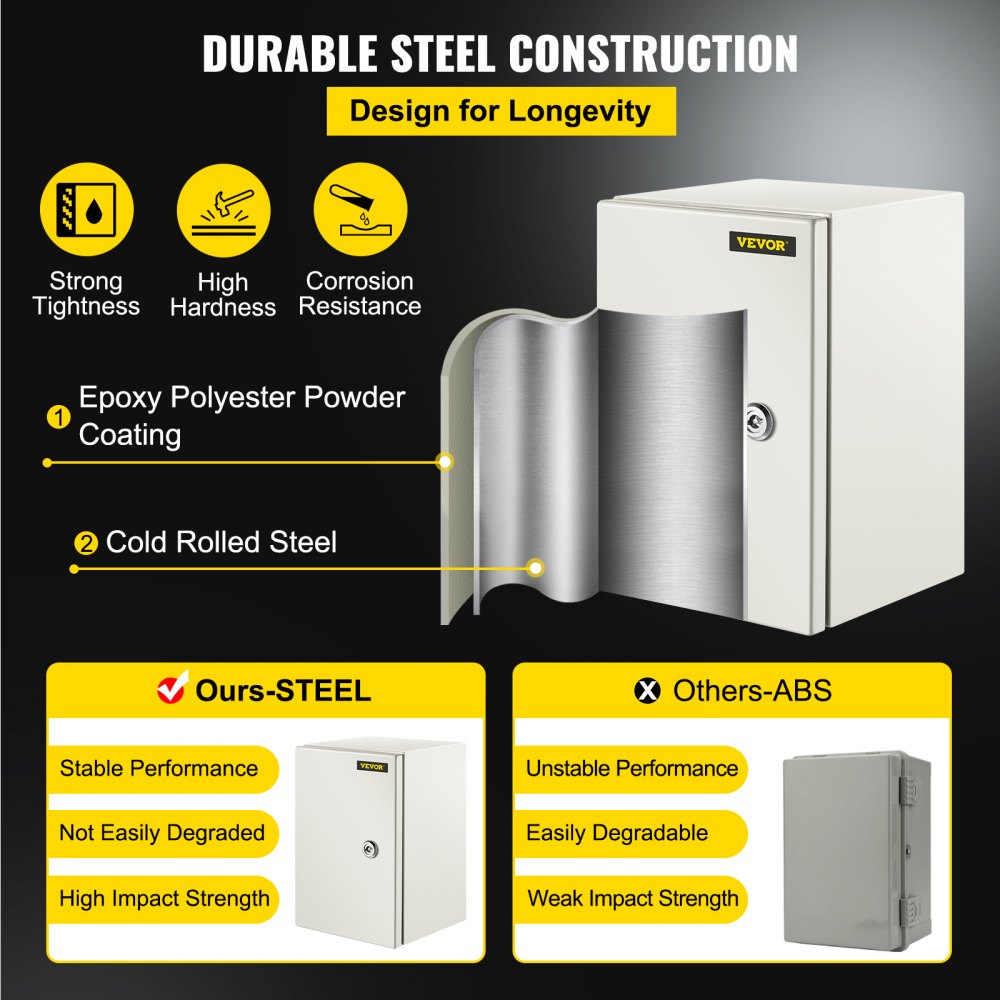

| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079'' / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |
| Galvanized Backplate Dimensions | 9.8" x 6" / 25 x 15 cm |

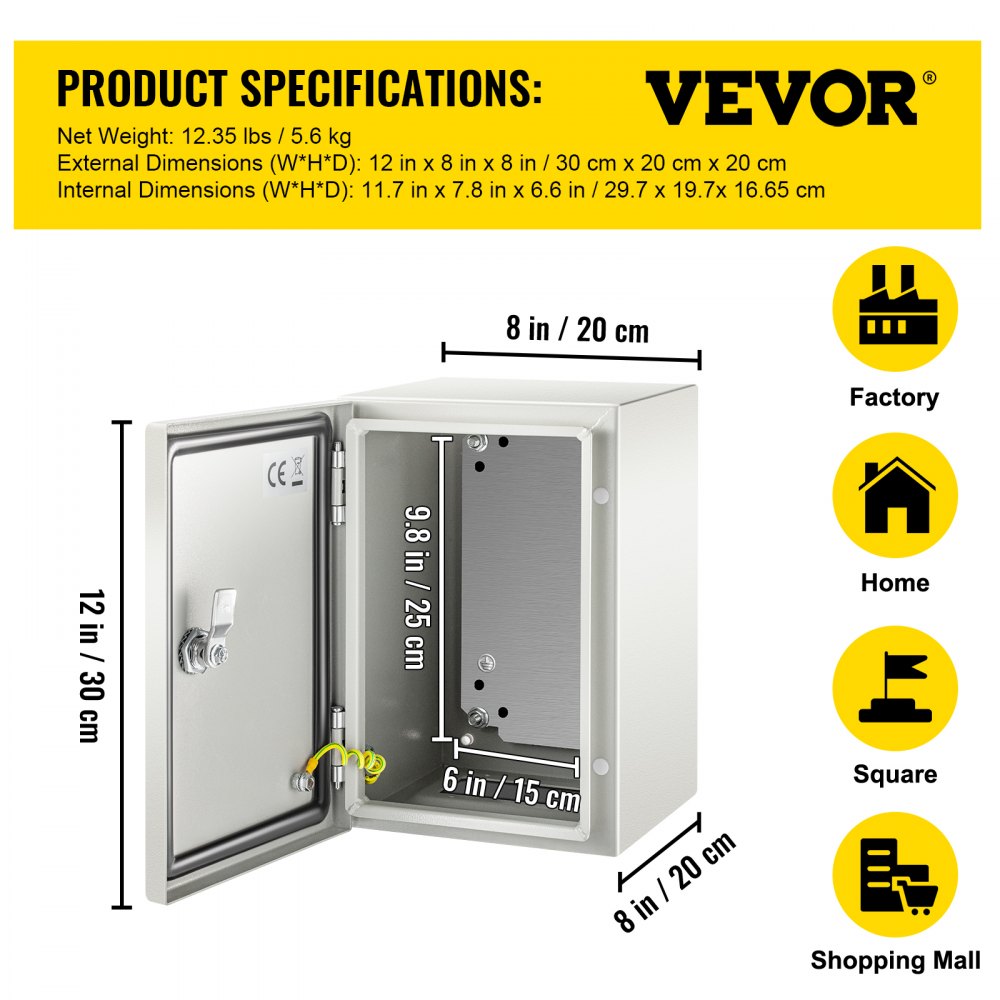

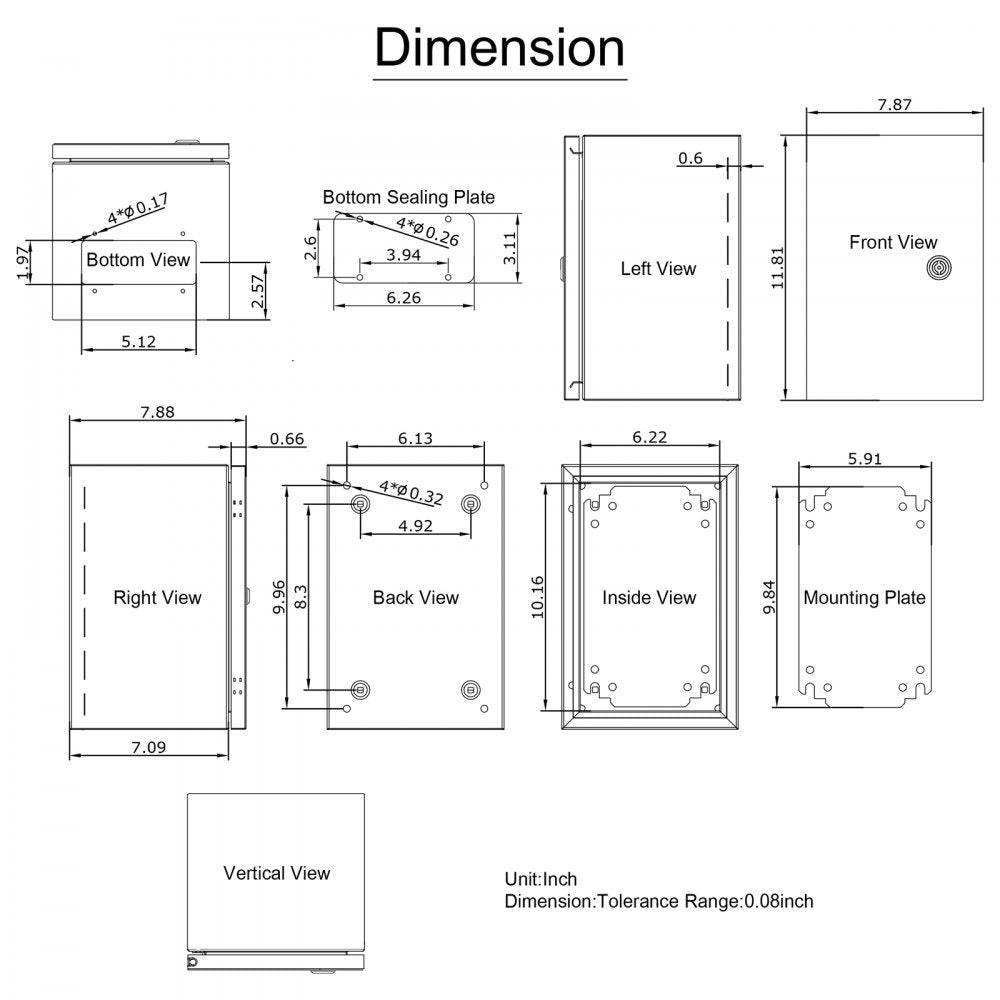

| Outer Dimensions (H x W x D) | 12'' x 8'' x 8'' / 30 x 20 x 20 cm |
| Inner Dimensions (H x W x D) | 11.7'' x 7.8'' x 6.6'' / 29.7 x 19.7 x 16.65 cm |
| Certification | CE / ROHS Certification |
