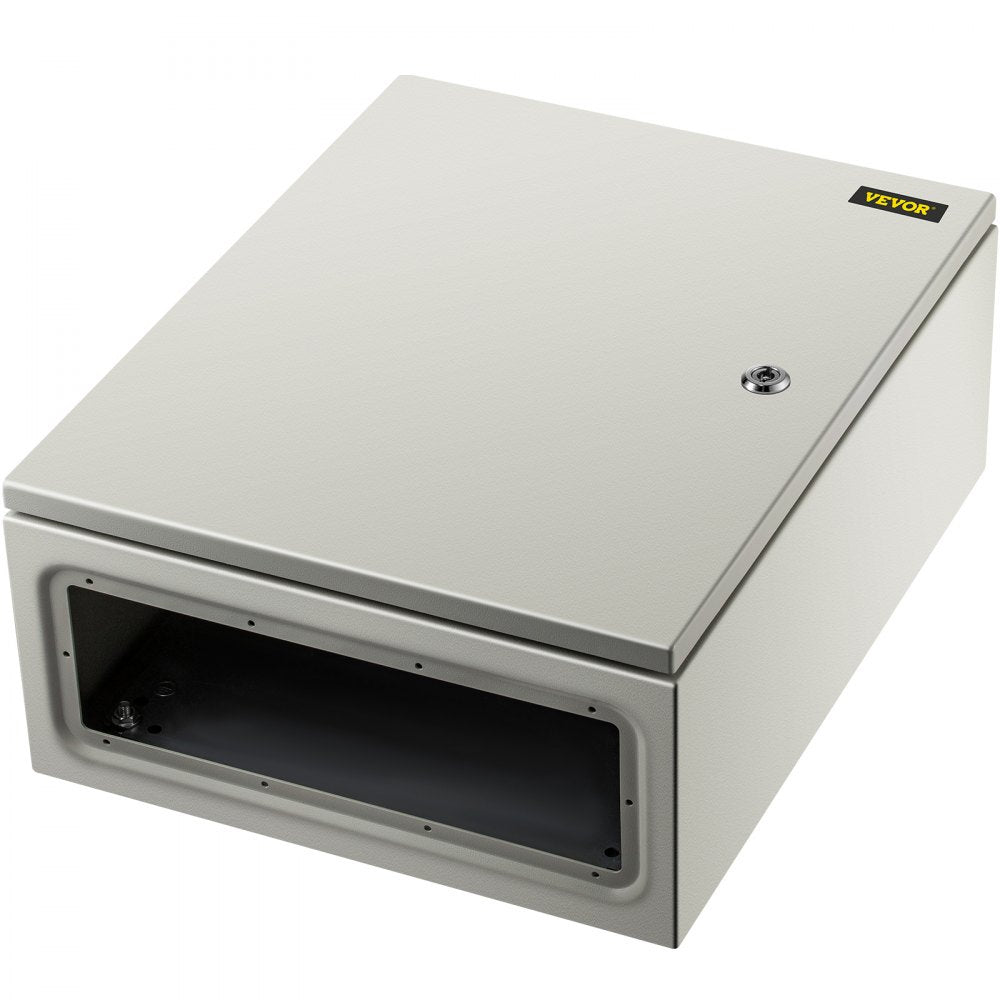

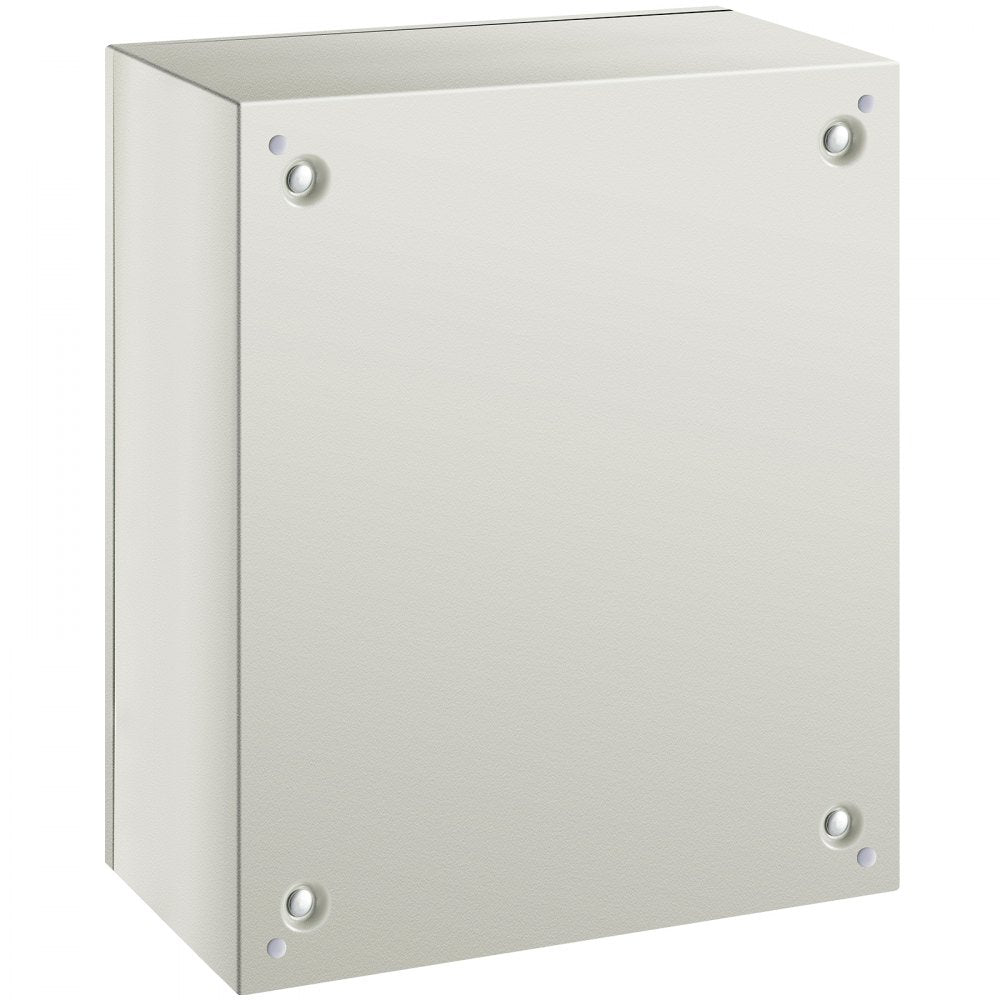

SPT - 20"x16"x8" IP66 NEMA Steel Enclosure for Outdoor Use
SPT - 20"x16"x8" IP66 NEMA Steel Enclosure for Outdoor Use
SKU: SKU: SPT Download PDF
- SPT - 20"x16"x8" IP66 NEMA Steel Enclosure for Outdoor Use
- SPT - 20"x16"x8" IP66 NEMA Steel Enclosure for Outdoor Use
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the VEVOR NEMA steel enclosure, crafted with safety in mind This sturdy enclosure is made from premium carbon steel and boasts an impressive IP66 protection rating, ensuring your devices are safeguarded against harsh environmental conditions It features secure locks, heavy-duty hinges, and effective sealing strips, protecting your plugs and cords from moisture and corrosion Ideal for a variety of indoor and outdoor applications, this versatile structure enhances the safety of your electrical components.
Features and Benefits:
•High-quality carbon steel construction.
•IP66 waterproof and dustproof rating.

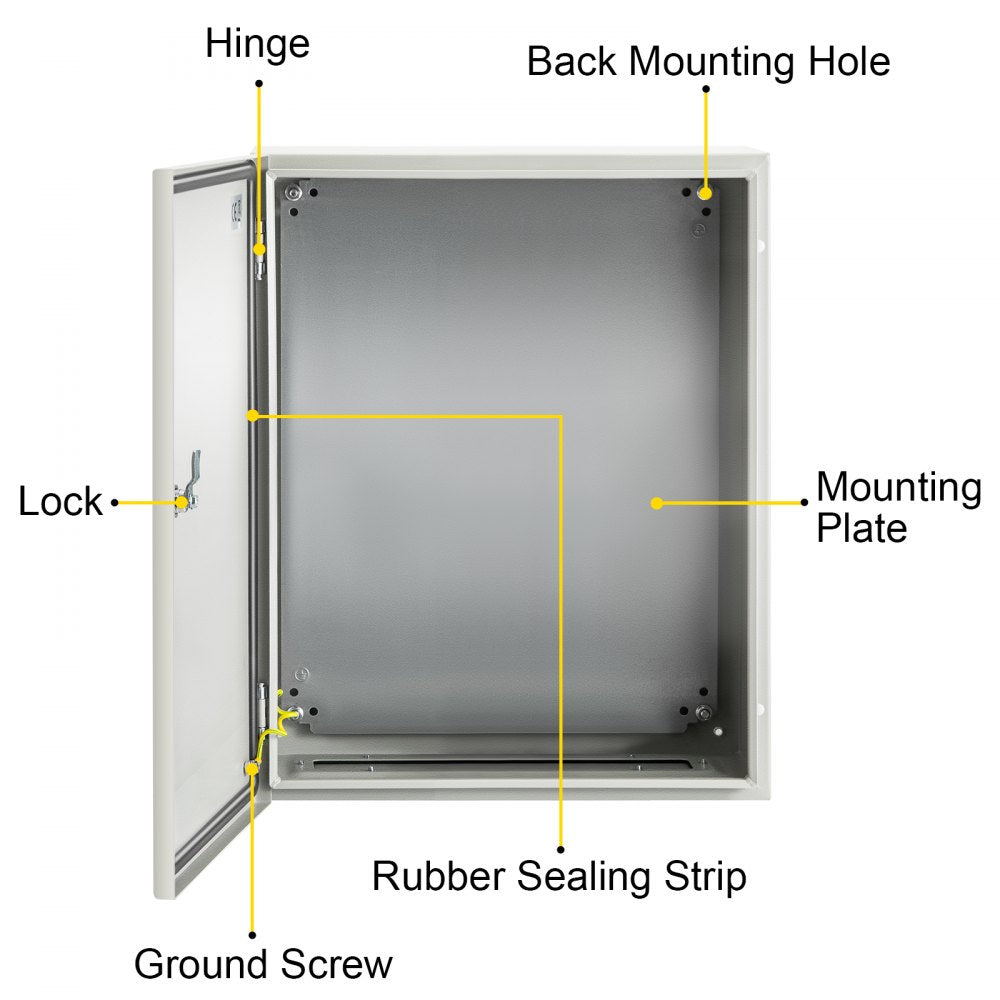

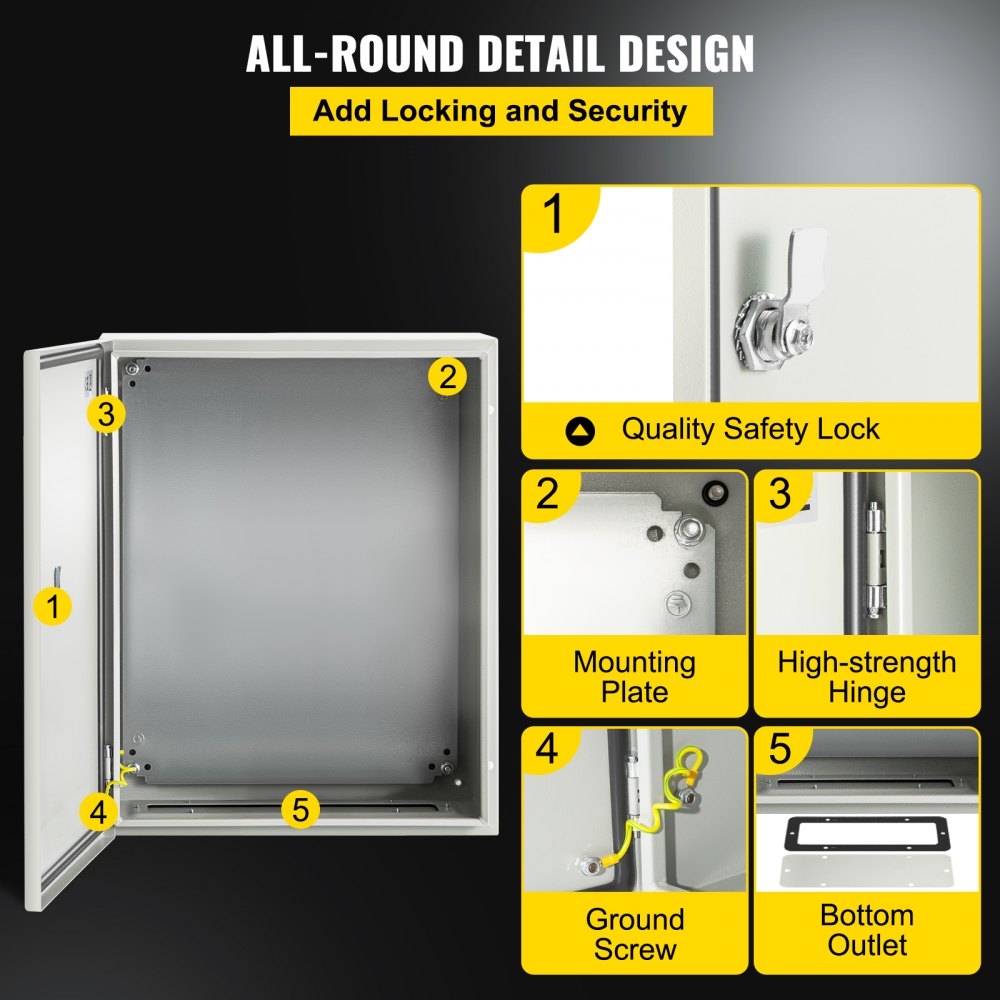

•Reinforced lock and hinge for security.

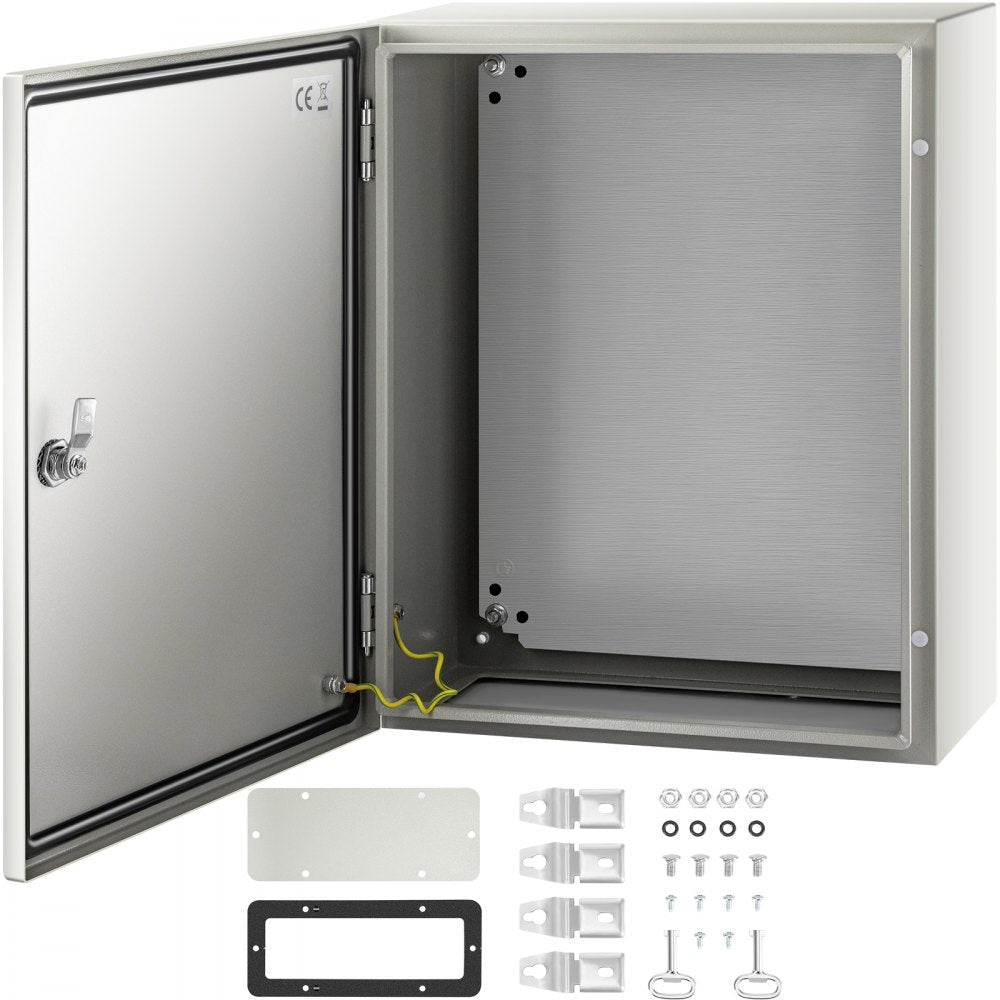

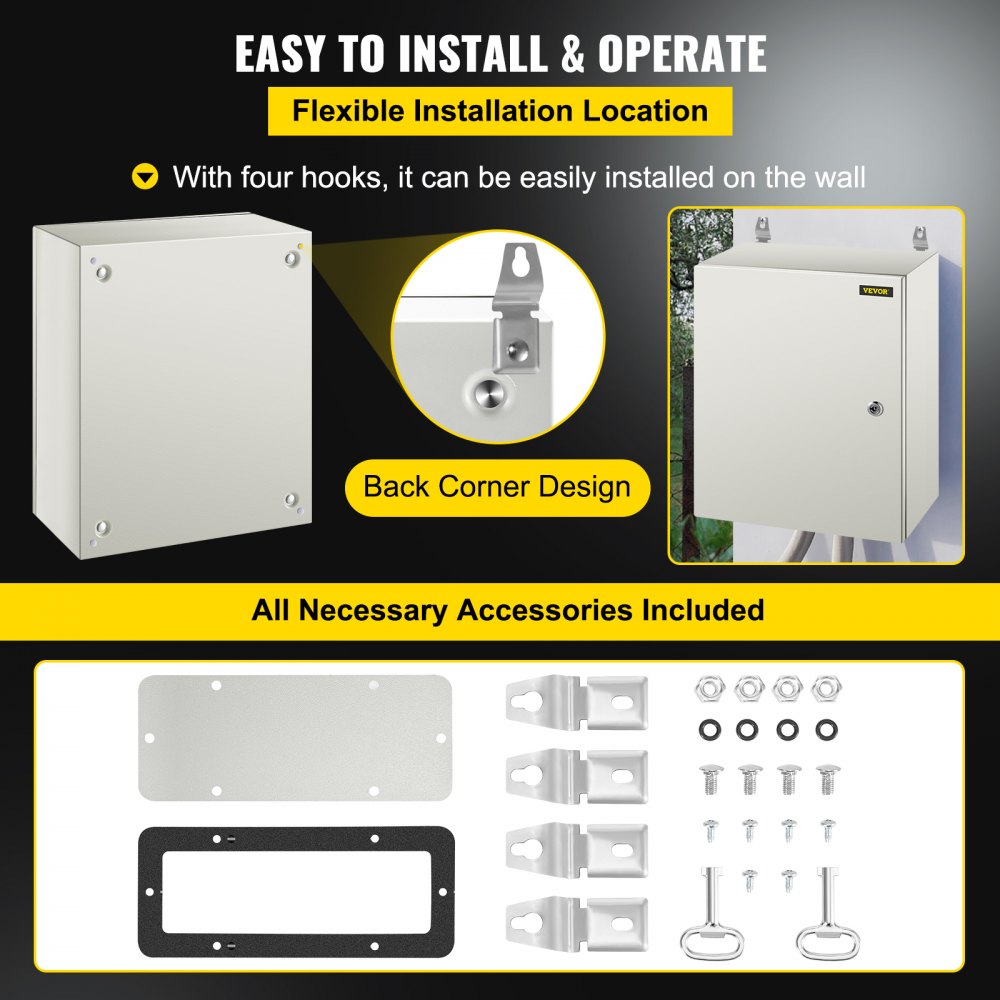

•Convenient mounting design with a detachable backplate.
•Exquisite design for protecting internal wiring.

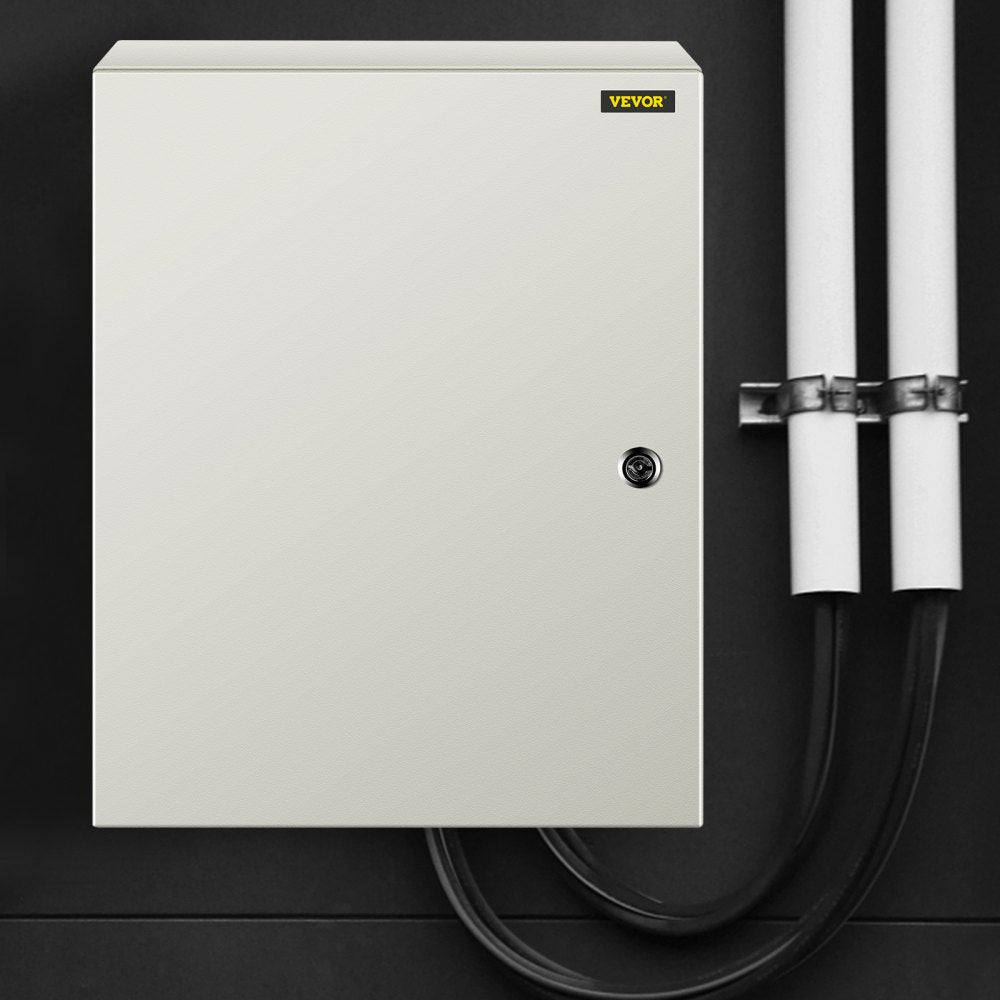

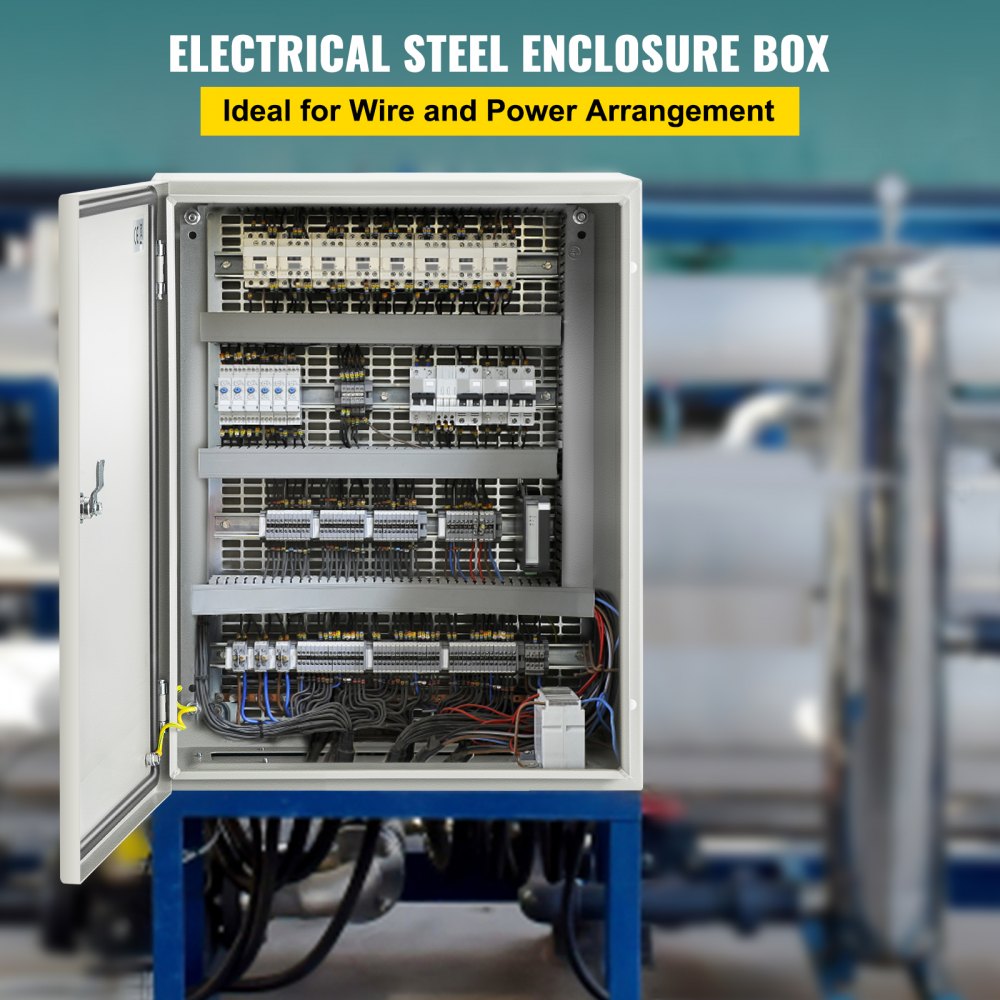

•Suitable for indoor and outdoor use in factories, construction sites, shopping malls, squares, residential areas, and courtyards..
Specifications:
| Model | SPT |
| Material | 0.059'' / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079'' / 2 mm Detachable Galvanized Backplate |
| IP Rating | IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |

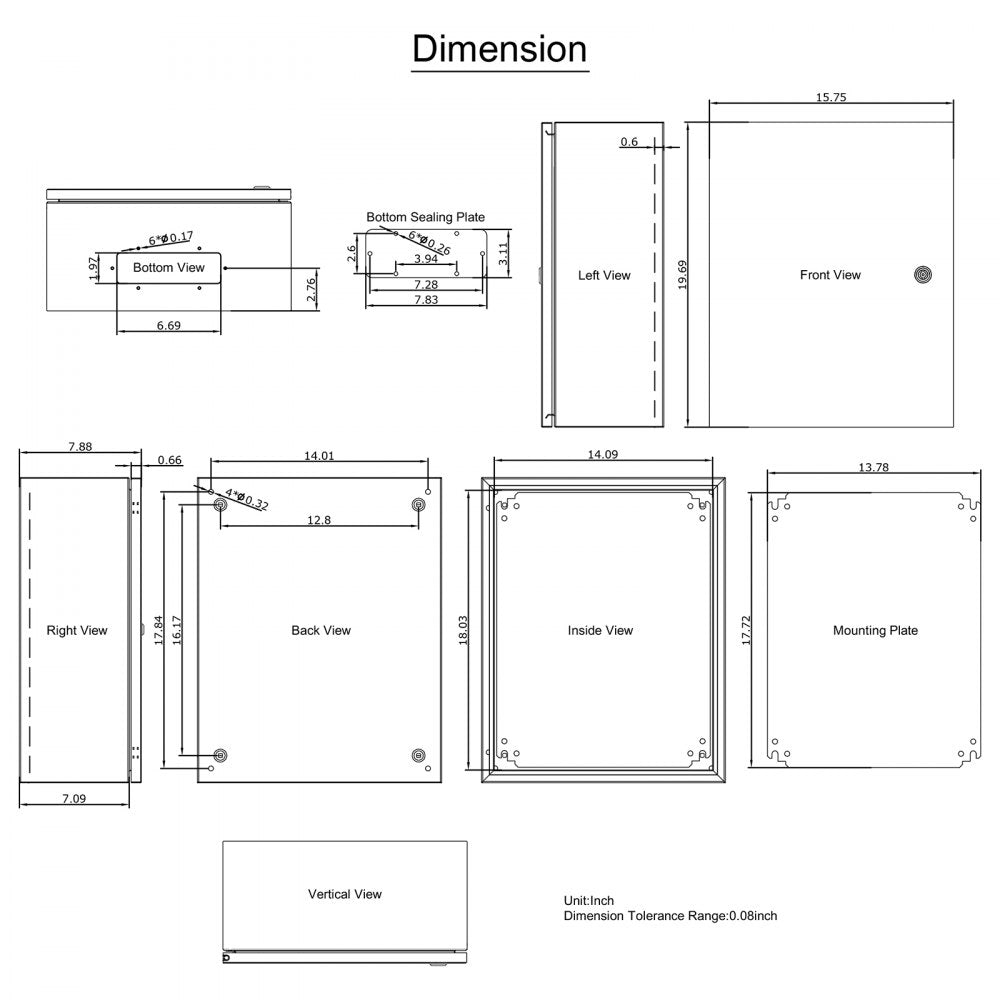

| Galvanized Backplate Dimensions | 17.7" x 13.8" / 45 x 35 cm |

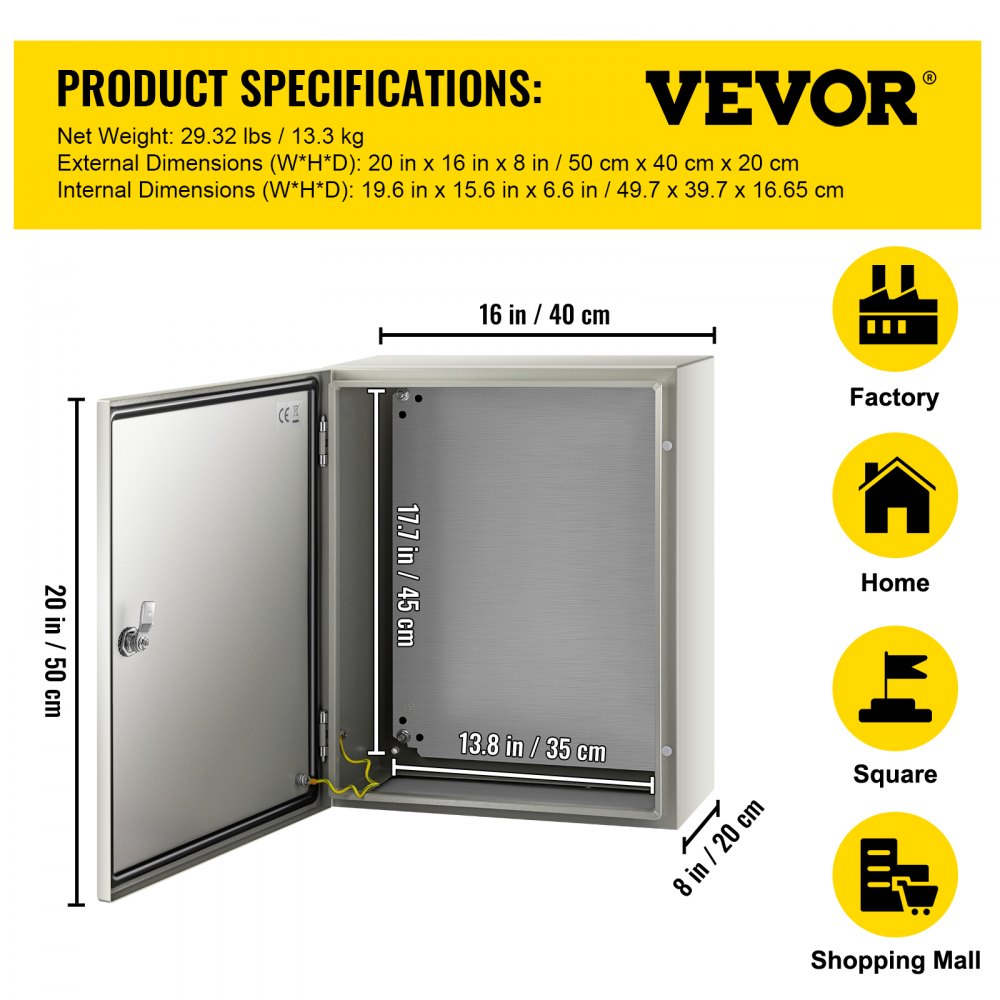

| Outer Dimensions (H x W x D) | 20'' x 16'' x 8'' / 50 x 40 x 20 cm |
| Inner Dimensions (H x W x D) | 19.6'' x 15.6'' x 6.6'' / 49.7 x 39.7 x 16.65 cm |
| Certification | CE / ROHS Certification |
