Description:
The VEVOR electrical enclosure box is made from premium carbon steel, providing exceptional durability and safeguarding your plugs and power cords from environmental factors Engineered with a reliable lock mechanism, sturdy hinges, and effective sealing strips, it boasts an impressive IP66 rating for moisture and corrosion resistance This versatile enclosure is suitable for both indoor and outdoor applications, designed to securely hold a variety of electrical components while protecting them from severe weather.

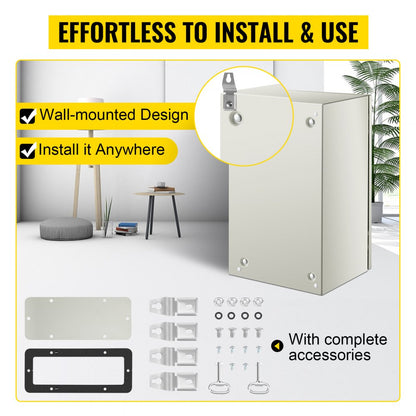

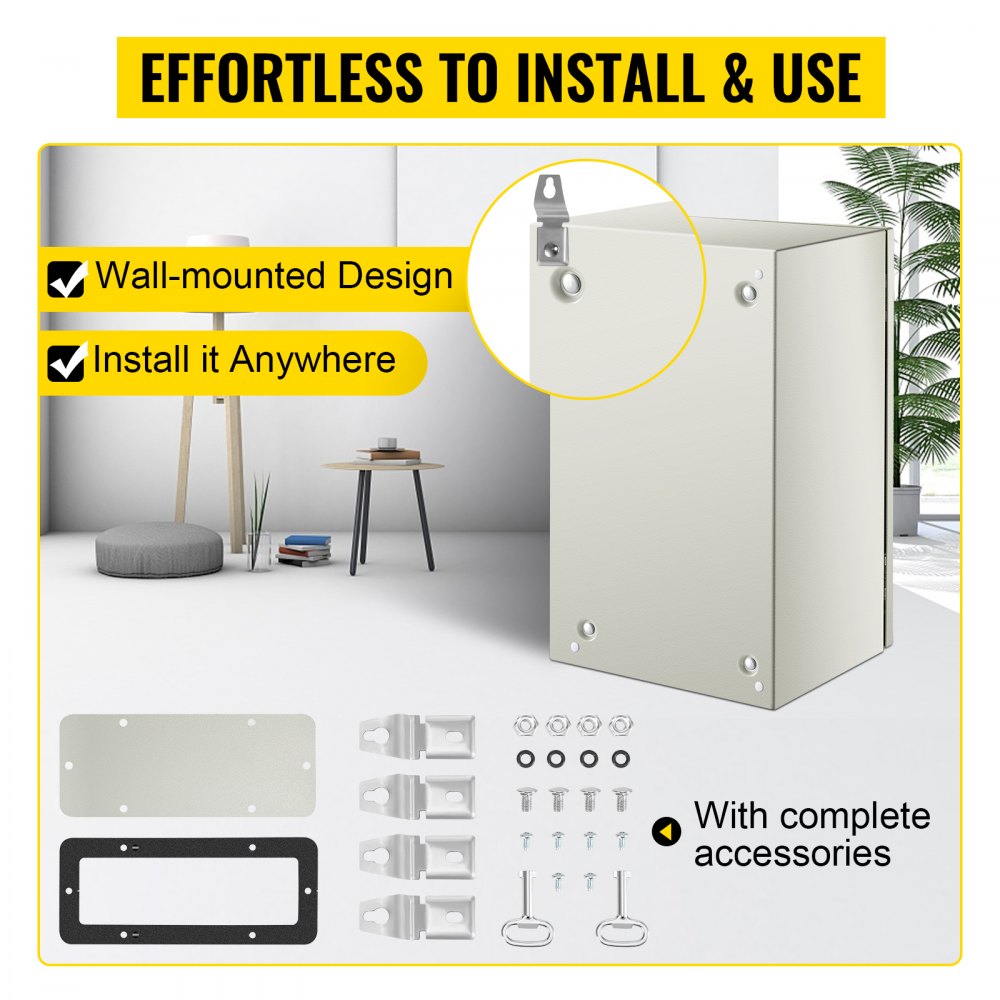

Its user-friendly installation process and thoughtful design features further enhance its practicality for any setting.
Features and Benefits:
•Constructed with sturdy 1.5 mm cold-rolled steel for greater wear resistance.
•Excellent sealing performance to prevent dirt and water ingress.

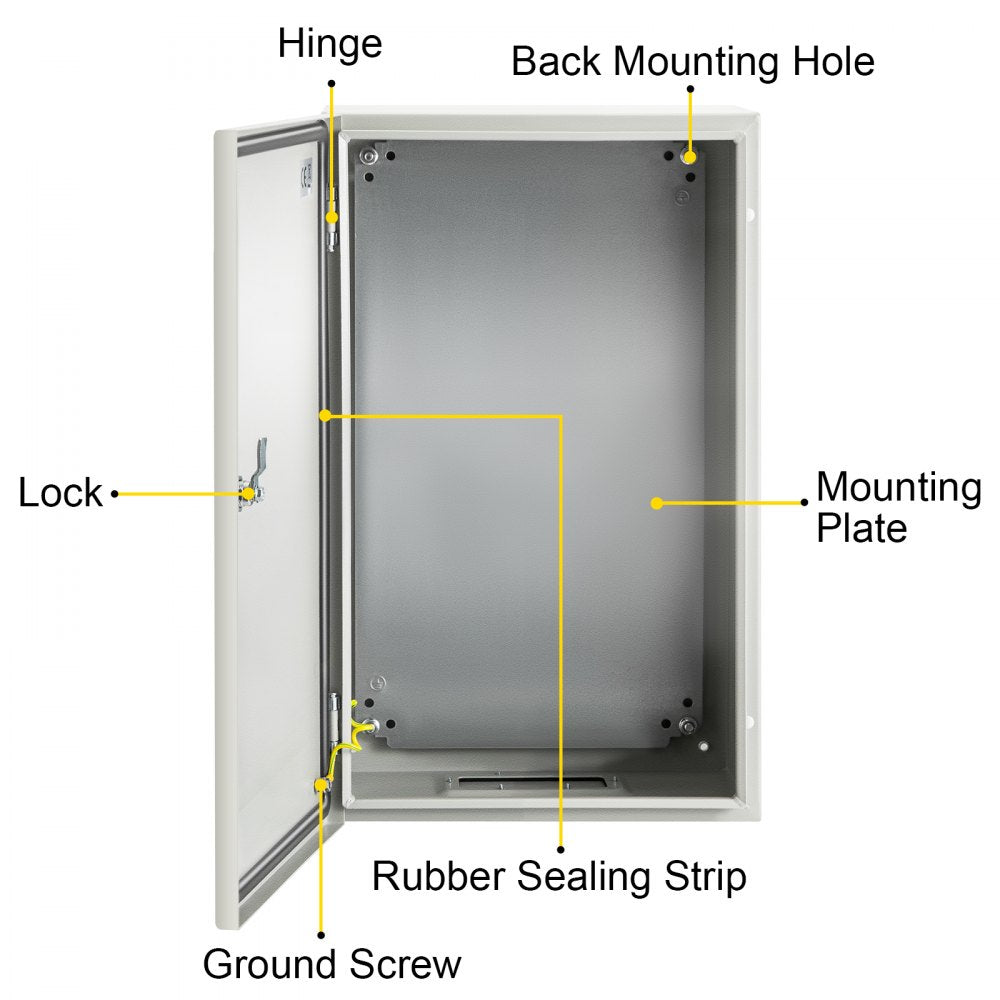

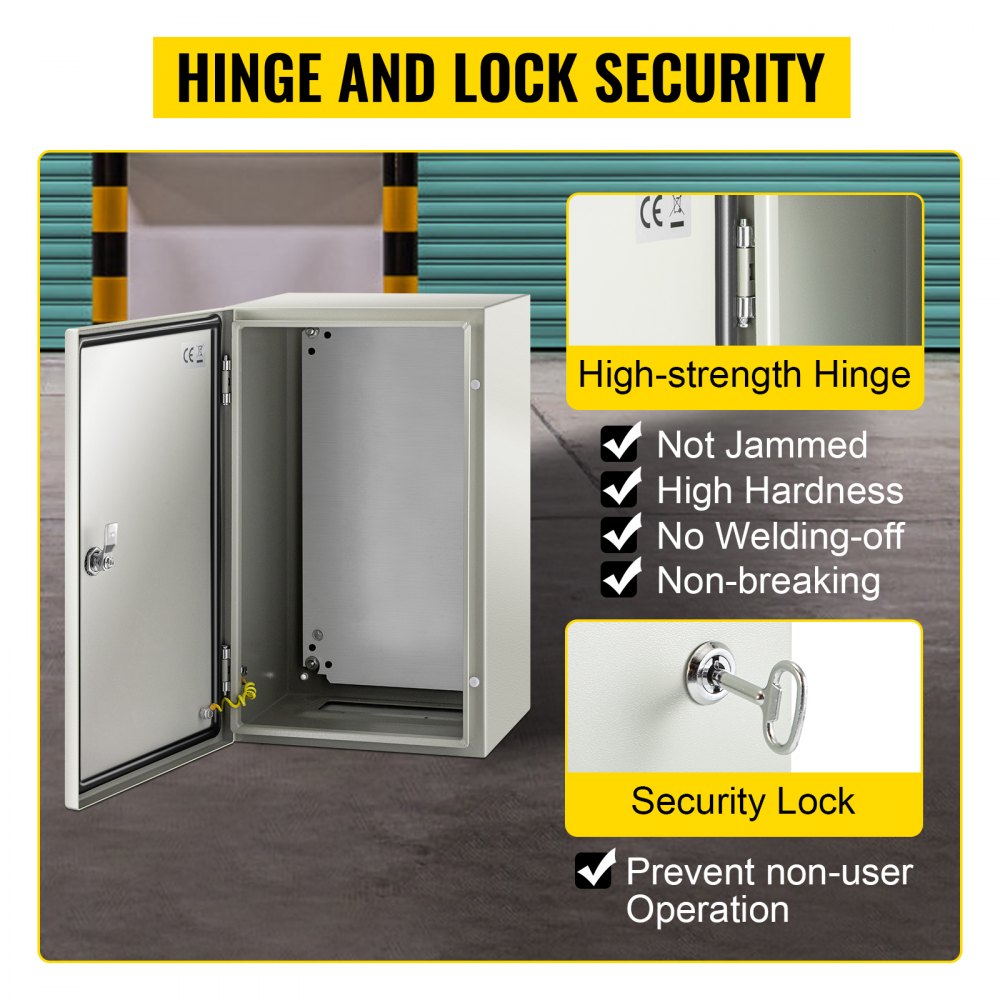

•Hinged cover designed for enhanced durability and lockability.

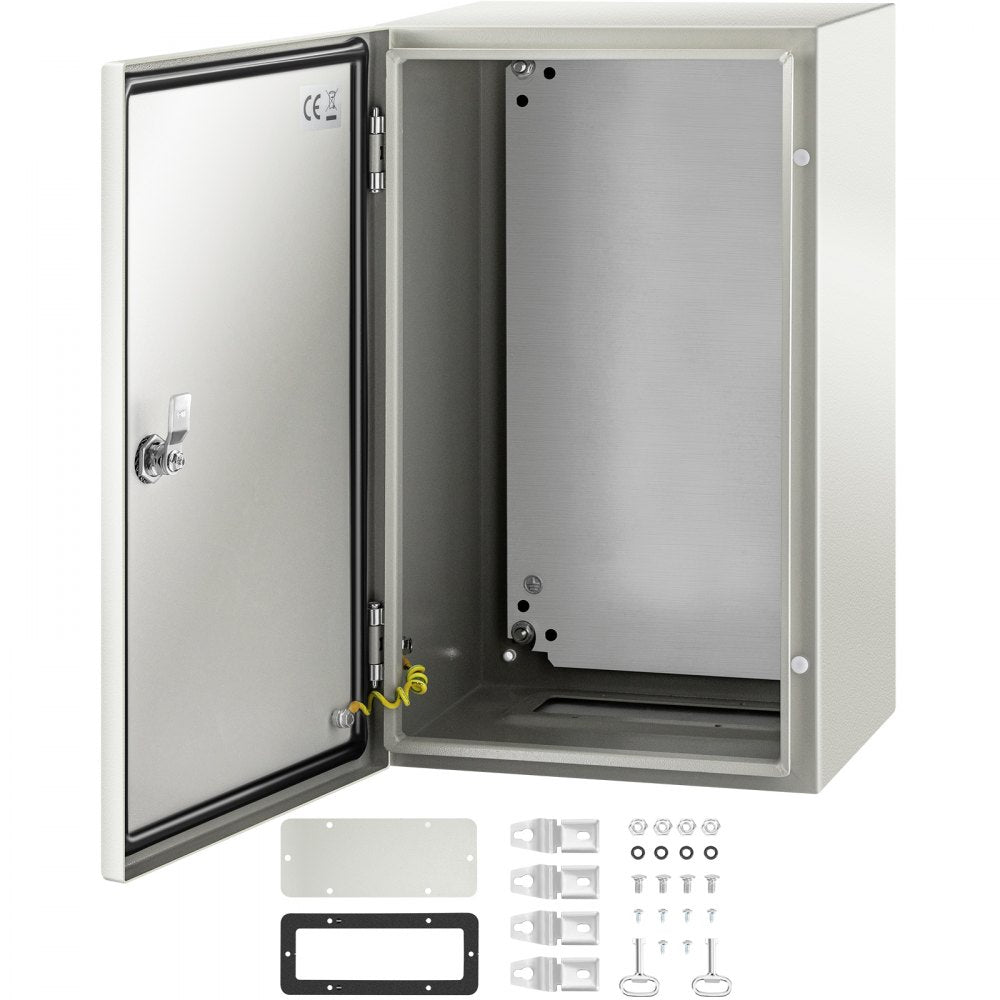

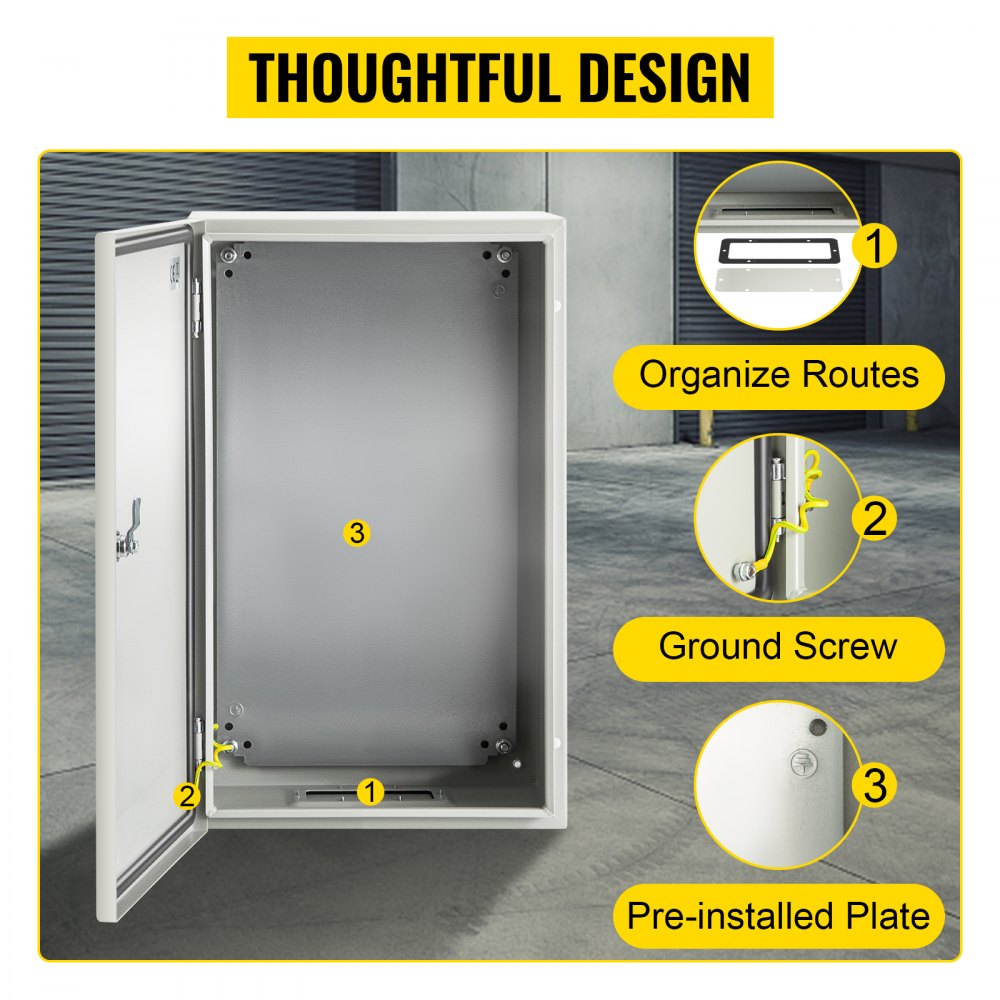

•Detachable galvanized backplate simplifies component installation.
•Thoughtfully designed with pre-installed ground wire and smooth cutouts to protect cables.
•Ideal for factories, construction sites, shopping malls, squares, residential areas, and courtyards.
•Suitable for solar, HVAC, and various electrical projects.
Specifications:
| Model | SPT |
| Color | Gray White(RAL7035) |

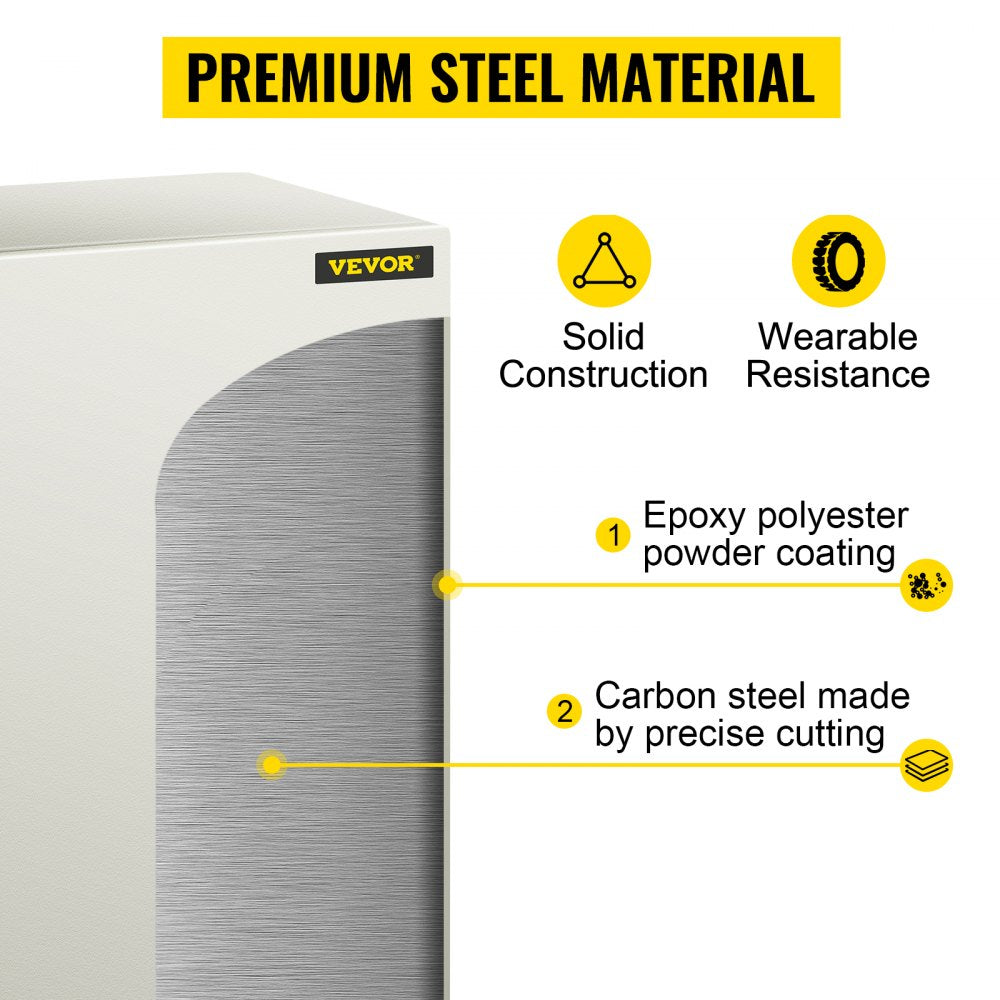

| Material | 0.059'' / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079'' / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |
| Galvanized Backplate Dimensions | 17.7" x 9.8" / 45 x 25 cm |

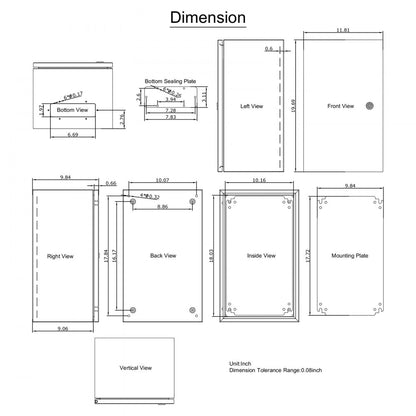

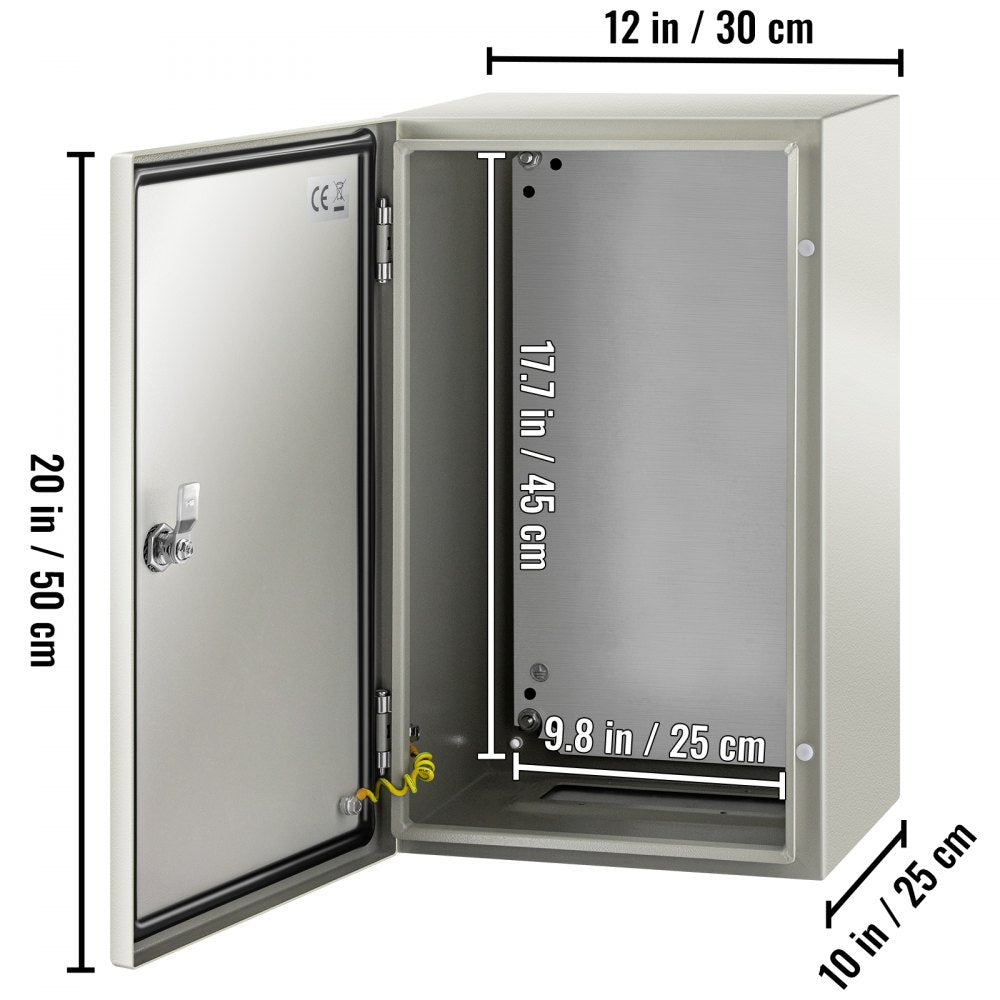

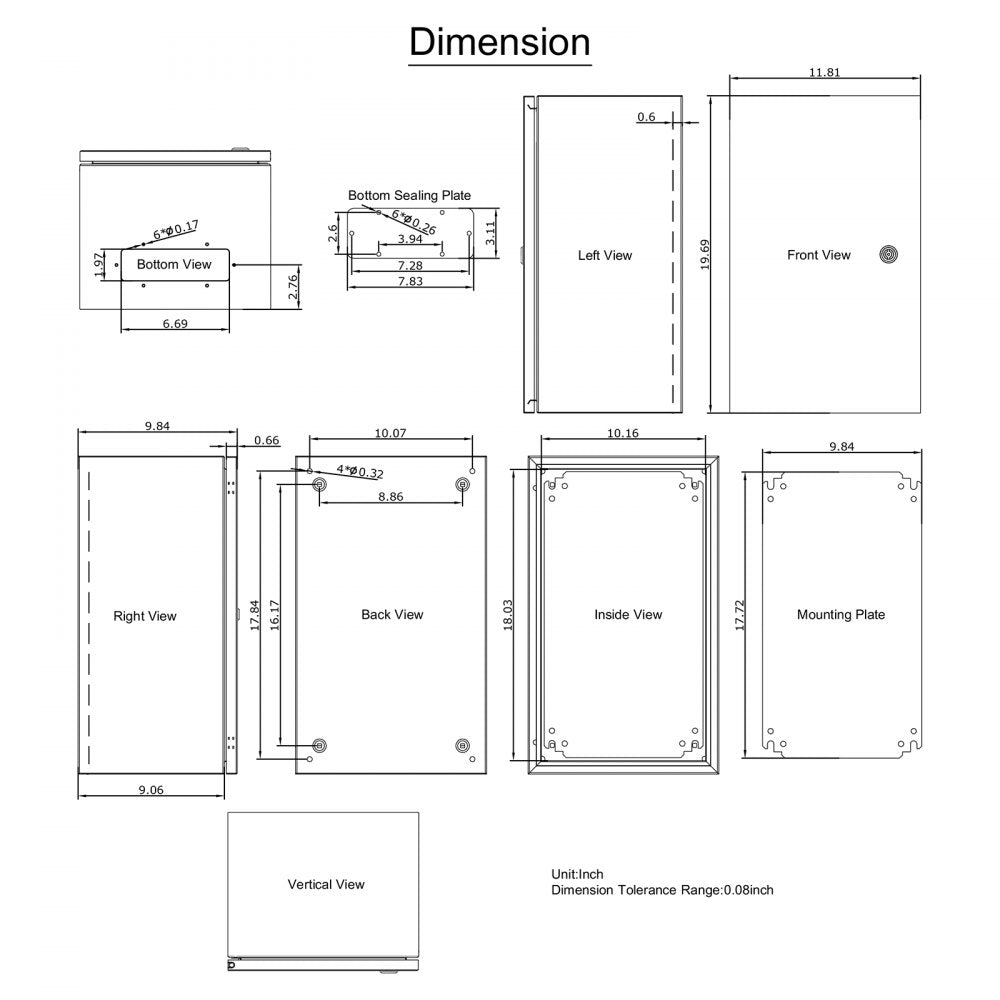

| Outer Dimensions (H x W x D) | 20'' x 12'' x 10'' / 50 x 30 x 25 cm |
| Inner Dimensions (H x W x D) | 19.6'' x 11.7'' x 8.5'' / 49.7 x 29.7 x 21.65 cm |
| Certification | CE / ROHS Certification |
