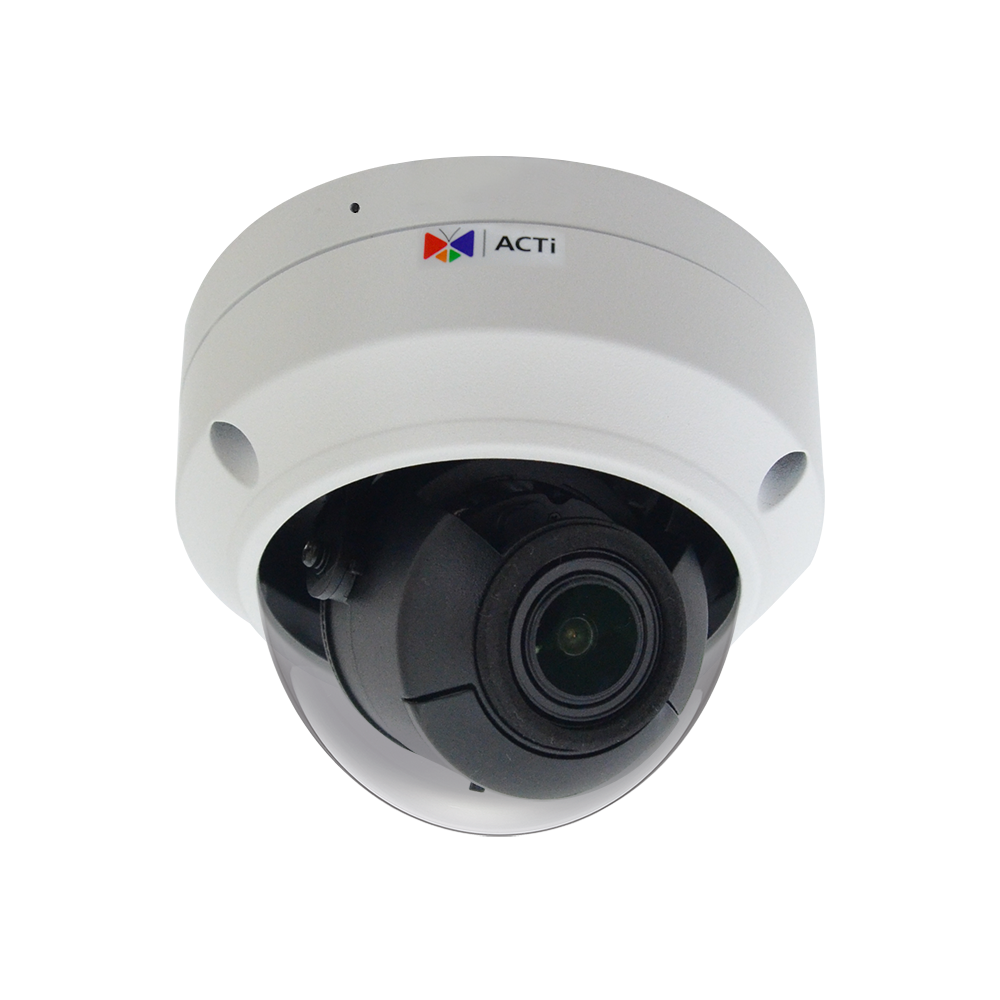

Z86 - 4 Megapixel Day & Night Zoom Dome Camera

Z86 - 4 Megapixel Day & Night Zoom Dome Camera

SKU: Z86   Download PDF

Qty:
Now $573.00   Web pricing policy
BEFORE   Now $573.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The Z86 is a 4 Megapixel Day and Night camera equipped with superior low light sensitivity and adaptive IR LED, featuring a 43x zoom lens with a focal range of f28-12/F16 and auto focus for installation Experience superior WDR at 120dB and a super wide-angle view with built-in analytics for event triggering, response, and notification The product ensures high-quality monitoring in various conditions, making it ideal for outdoor applications.

Features and Benefits:

    •4 Megapixel resolution with superior low light sensitivity.

    •Adaptive IR LED with a working distance of up to 40m.

    •Built-in analytics including People Detection and Vehicle Detection.

    •Wide Dynamic Range (WDR) of 120 dB.

    •Weatherproof casing (IP68) and vandal-proof design (IK10).

    •Ideal for outdoor surveillance and monitoring.

    •Suitable for installations requiring high-resolution imaging and low light performance.

Specifications:

 Product Type Zoom Dome
 Maximum Resolution 4MP
 Application Environment Outdoor
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/3 "
 Day/Night Yes
 Low Light Sensitivity Superior
 Minimum Illumination Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (AGC on)
 Mechanical IR Cut Filter Yes
 IR LED Adaptive IR LED x 2 (850 nm)
 IR Working Distance 40m
 Electronic Shutter 1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
 S/N Ratio 75 dB
 Lens Focal Length Zoom, f2.8-12mm
 Aperture F1.6
 Zoom Ratio 4.3x optical zoom
 Iris Fixed iris
 Focus Auto focus
 Horizontal Viewing Angle 102.1° - 30.7°
 Vertical Viewing Angle 54.5° - 16.9°
 Viewing Angle Adjustment Pan: 3°-360°, Tilt: 0°-70°, Rotation: 3°-360°
 Video Compression H.265 Adaptive Stream, H.264, MJPEG
 Power Source DC 12V, PoE (IEEE802.3af)
 Power Consumption 7.5 W (PoE)
 Dimensions (Ø): 128mm x 100mm (5.0" x 3.9")
 Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
 Operating Humidity 10% - 95% RH
 Material Metal body and Plastic dome cover
 Approvals CE Class B, FCC Class B, IP68, IK10, UL Listed
