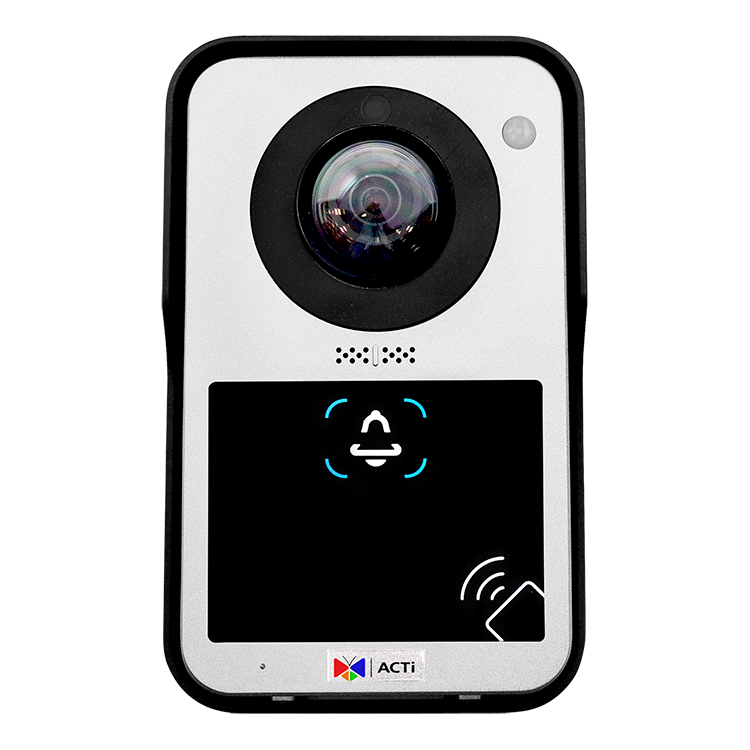

Q950 6MP Outdoor Door Station with D/N, IR, Extreme WDR, SLLS, Fixed lens (f1.65mm)

Q950 6MP Outdoor Door Station with D/N, IR, Extreme WDR, SLLS, Fixed lens (f1.65mm)

SKU: SKU: Q950   Download PDF

Qty:
Regular price Now $1,663.00   Web pricing policy
Regular price BEFORE   Sale price Now $1,663.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The 6MP Outdoor Door Station features advanced technologies such as Day & Night capability, superior low light sensitivity, and an infrared LED for clear images in dark conditions With its fixed lens of f165mm, this door station is designed to operate effectively in outdoor environments, making it ideal for securing entrances while ensuring high definition video quality Equipped with extreme wide dynamic range (130dB) and event trigger functionalities, it allows for event response and notifications.

The device utilizes a progressive scan CMOS image sensor with a maximum resolution of 6MP, ensuring superb image clarity The station supports multiple streaming and advanced video analytics, enhancing overall surveillance efficiency and security capabilities.

Features and Benefits:

    •Features a 6 Megapixel resolution for clear images.

    •Day/Night functionality with superior low light sensitivity.

    •Extreme Wide Dynamic Range (130dB) for enhanced detail in varying light conditions.

    •Supports dual streaming capabilities to meet different bandwidth needs.

    •Built-in analytics including motion detection and object counting.

    •Weatherproof (IP66) and vandal resistant (IK09) for outdoor placement.

    •Flexible power options with PoE Class 3 support.

    •User-friendly access control features with RFID card detection.

    •Ideal for outdoor security monitoring.

    •Access control in commercial and residential entrances.

    •Integrated with ACTi systems for enhanced security solutions.

Specifications:

 Image Sensor Progressive Scan CMOS
 Maximum Resolution 6MP
 Effective Pixels 3096(H) X 2080(V)
 Minimum Illumination Color: 0.003 lux at F2.8; B/W: 0 lux (IR LED on)
 IR LED 6 x 850 nm for enhanced night vision
 Electronic Shutter 1/5-1/64000 second
 Power Source DC 12V, PoE Class 3
 Power Consumption 4.2 W (PoE), 3.8 W (DC)
 Dimensions 177.06mm x 110mm x 47.66mm (W x H x D)
 Weight 689g (1.52lb)
 Operating Temperature -40°C ~ 50°C
 Environmental Casing Weatherproof (IP66), Vandal resistant (IK09)
